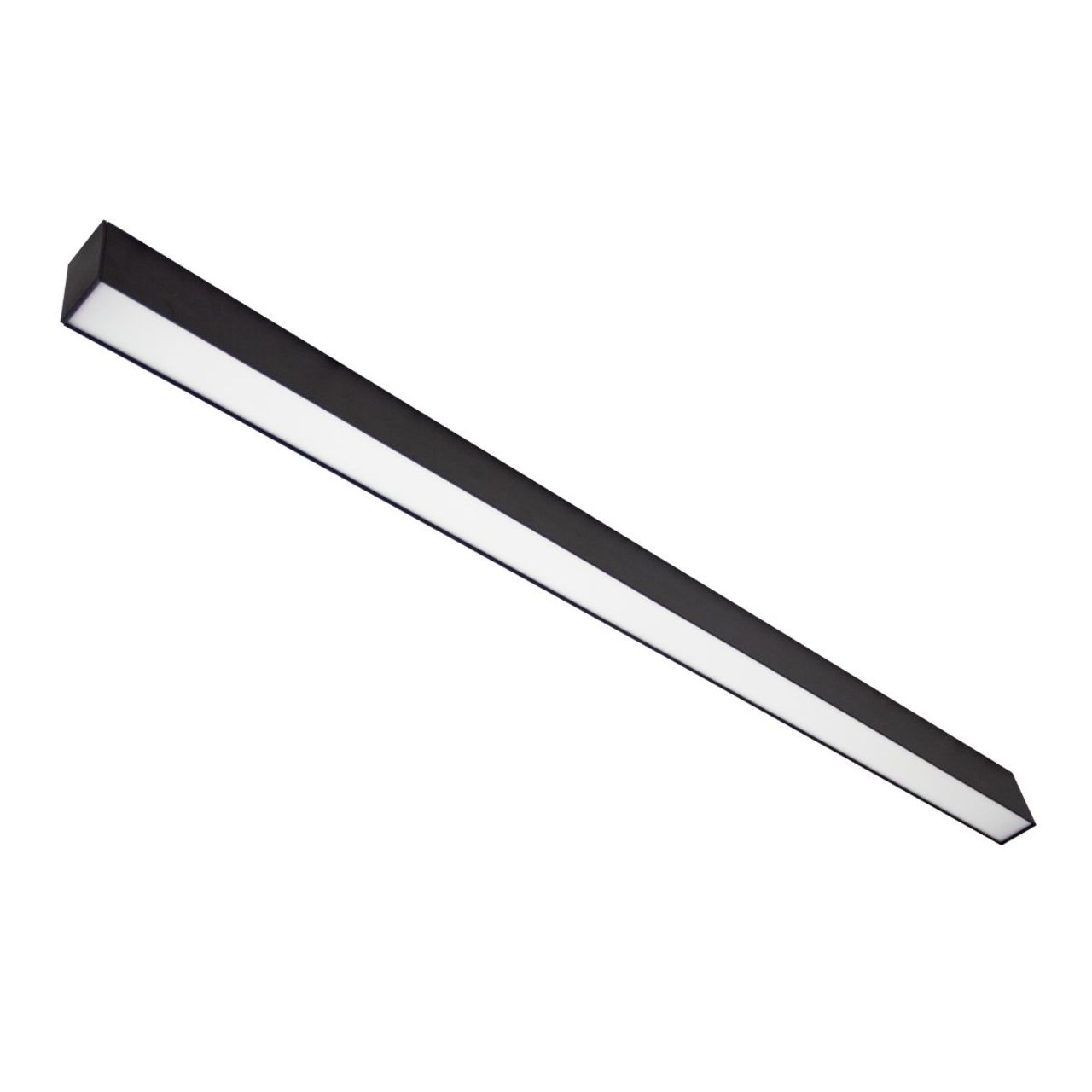

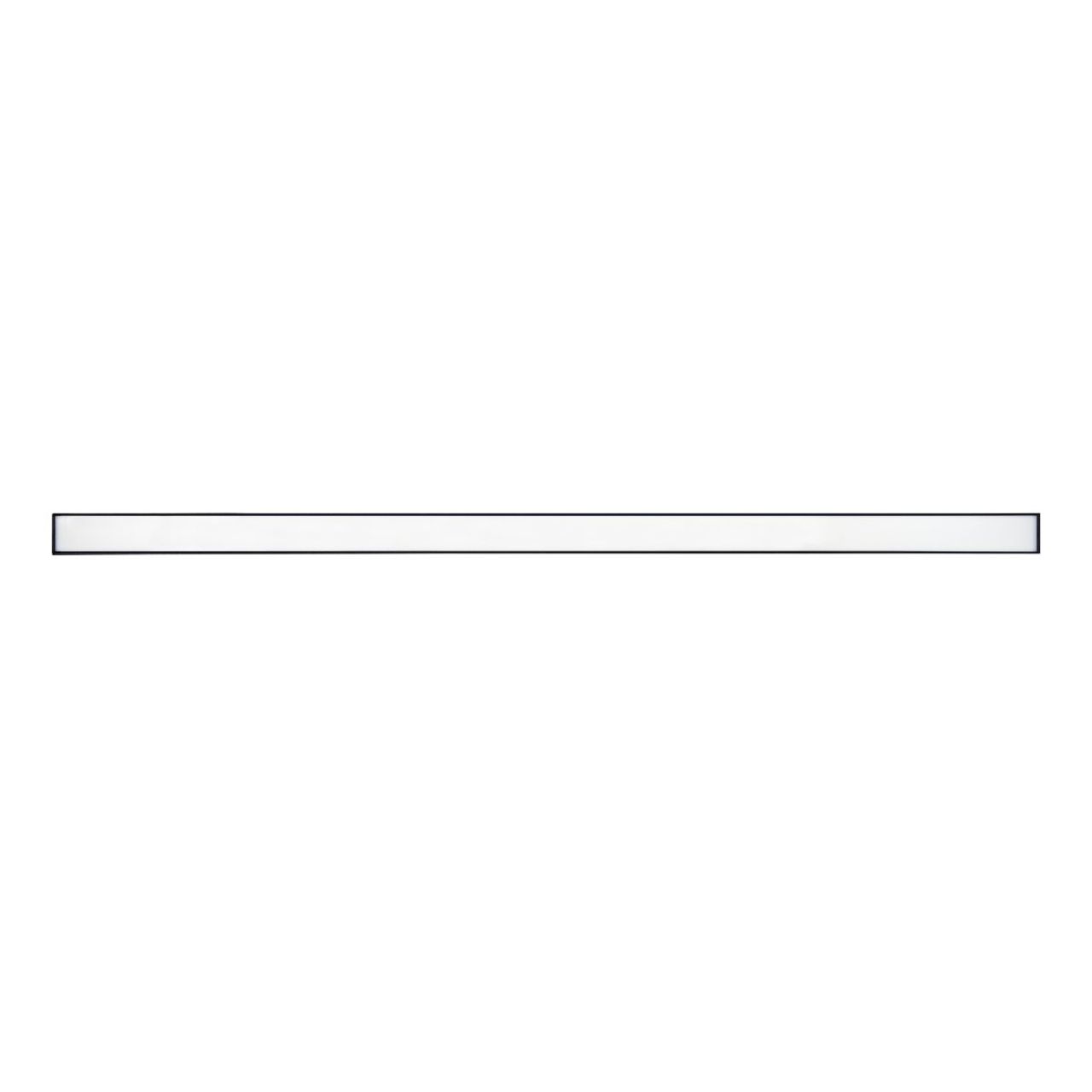

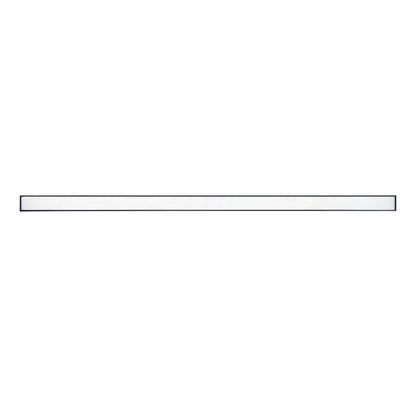

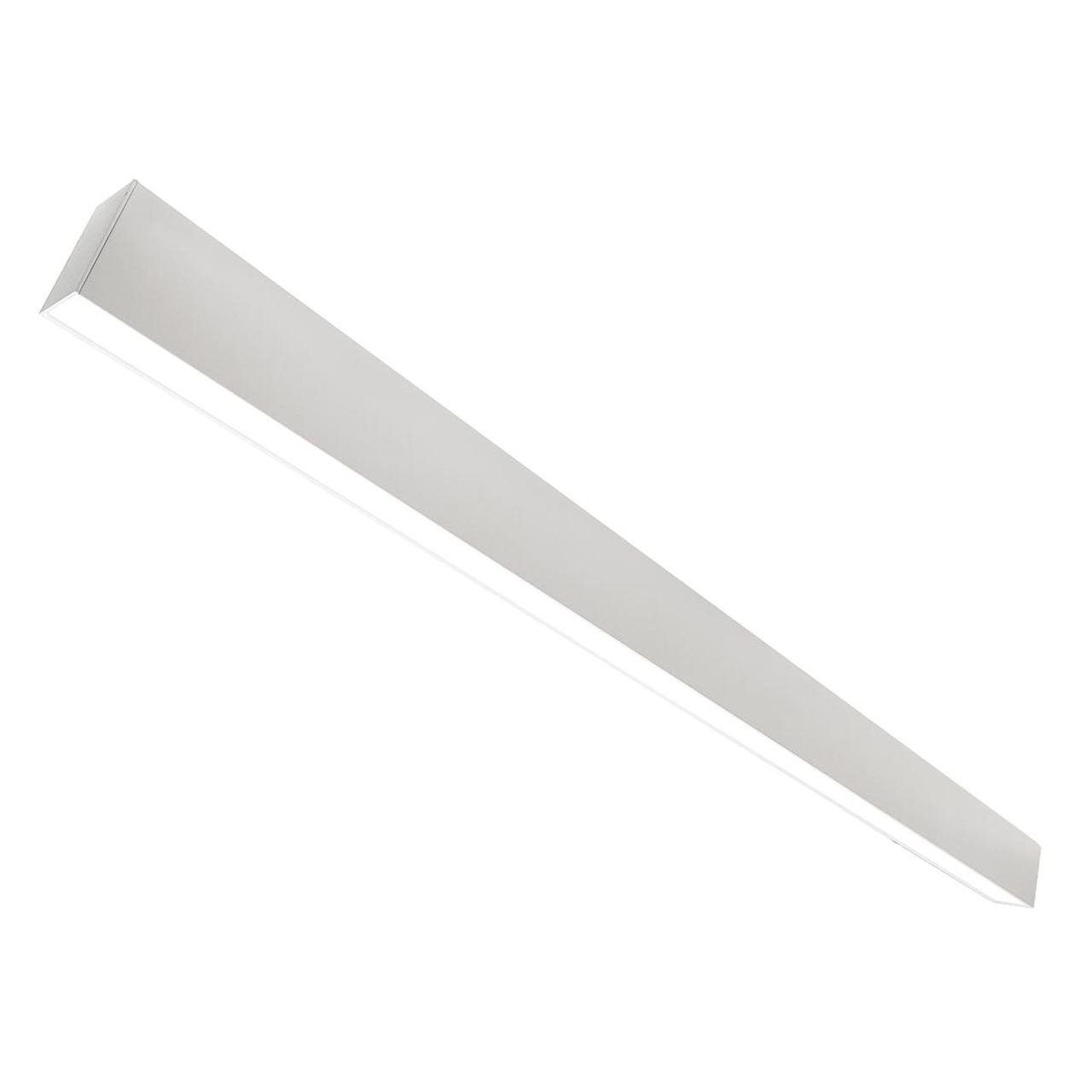

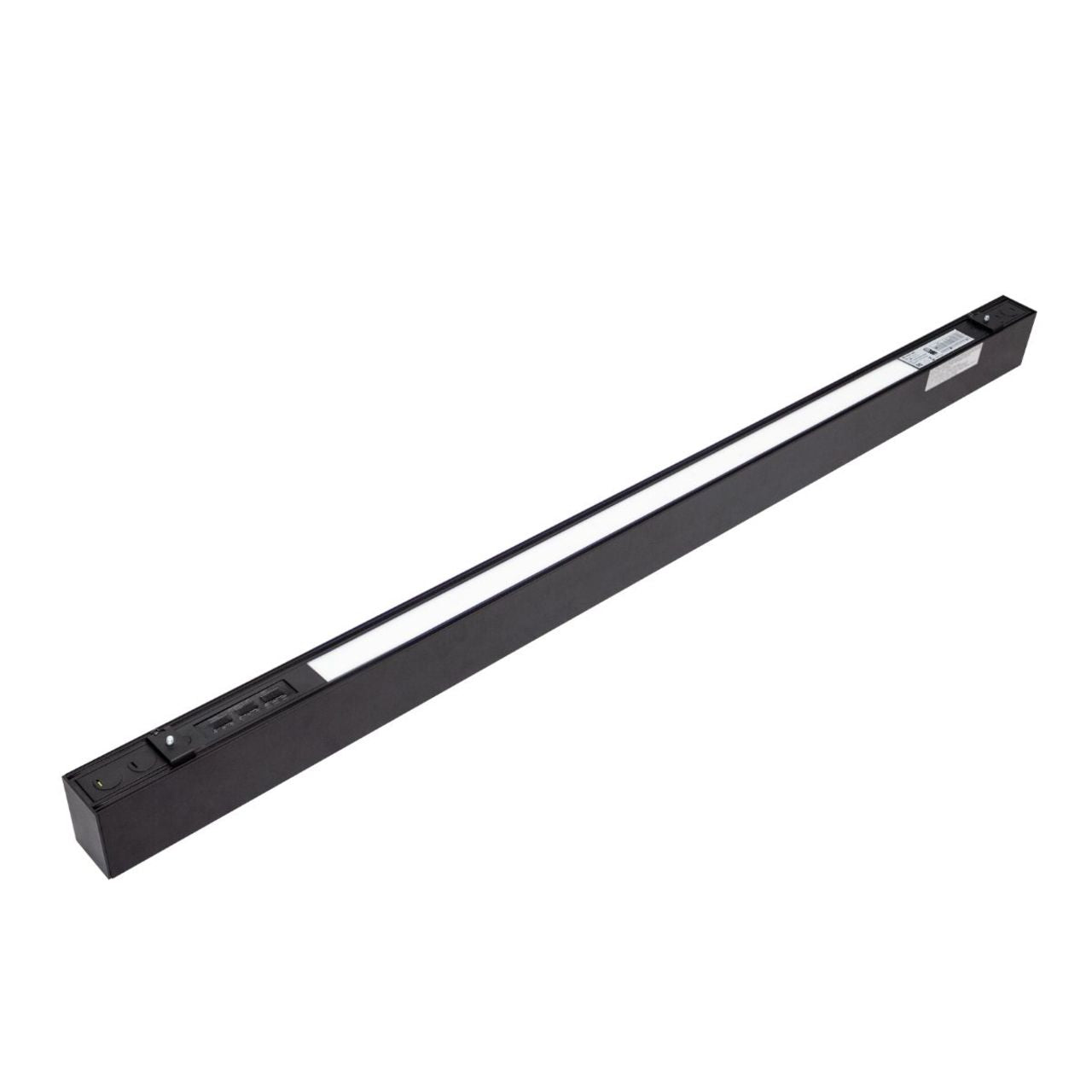

4ft. Wattage Adjustable & Color Tunable Up/Down Linear Light - 30W/40W/50W - 3500K/4000K/5000K - LumeGen

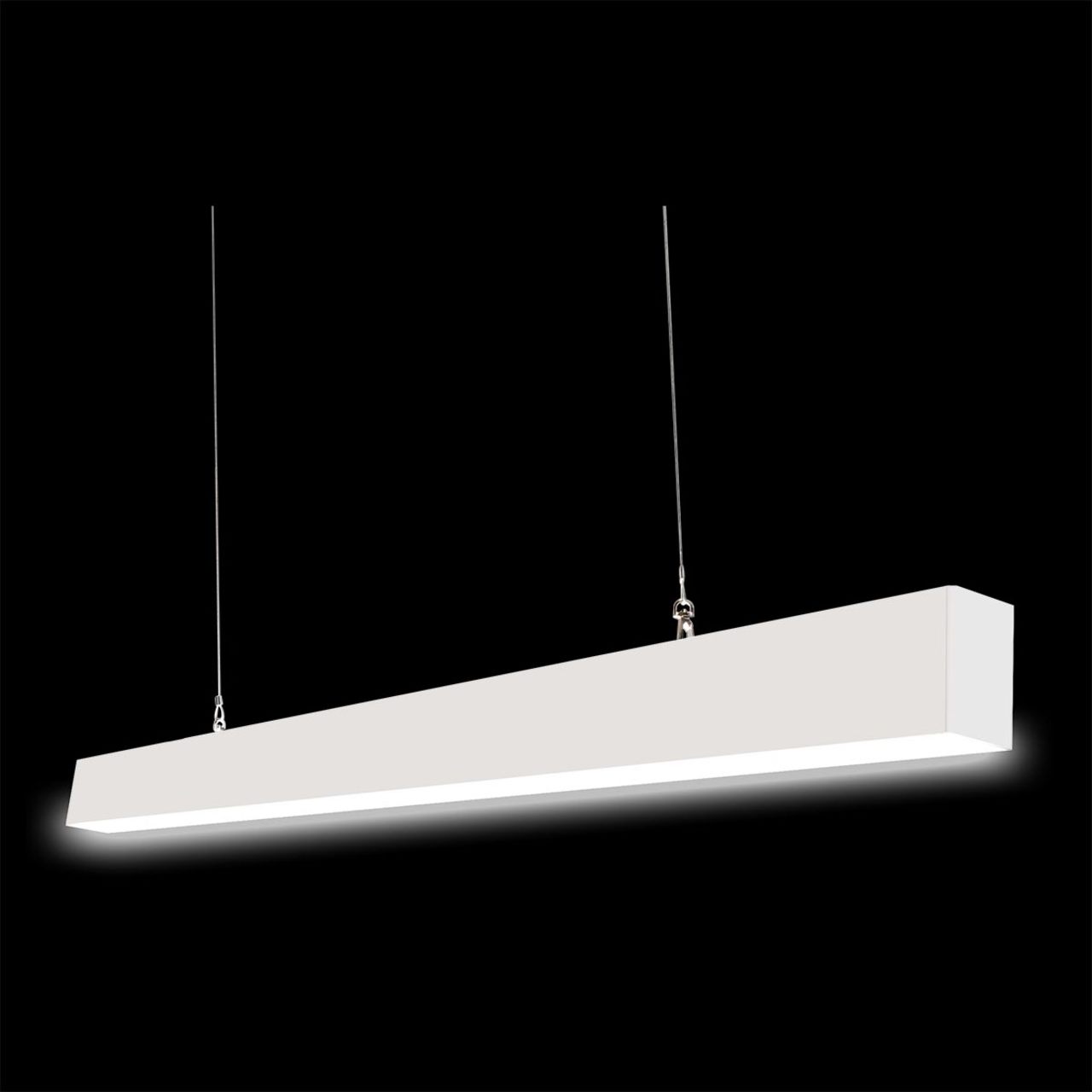

This 4-foot Wattage & Color Adjustable Up/Down LED Linear strip provides both direct and indirect lighting. The suspended installation allows the light to produce up lighting (indirect) for ambiance and down lighting (direct) for task use. In addition to the direct and indirect light, this fixture is both wattage adjustable and color tunable allowing the user to select between 3 wattages and 3 color temperatures. There is an additional switch which allows the user to adjust the proportion of lighting for direct and indirect light - the user can select between 70% down/30% up, 90% Down/10% up, or 100% down/0% up. The versatility of this light fixture is perfect for use in any commercial office, school, hotel, hospital, or many other spaces!
This fixture can be linked up to 6 units. It is also UL Listed. Additionally, this light is dimmable. Please note that the 0-10V dimmer is required and sold separately.
Specifications
-
Wattage Adjustable:
- 30W: 3450 Lumens
- 40W: 4600 Lumens
- 50W: 5750 Lumens
- Efficiency: 115 lm/w
- Input Voltage: 120-277V
- Power Factor: >0.9
- CRI: >80
- CCT: 3500K/4000K/5000K Selectable
- Operating Temperature: -4°F ~ 113°F
- LED Life: 50,000 hours
- LED Beam Angle: 360°

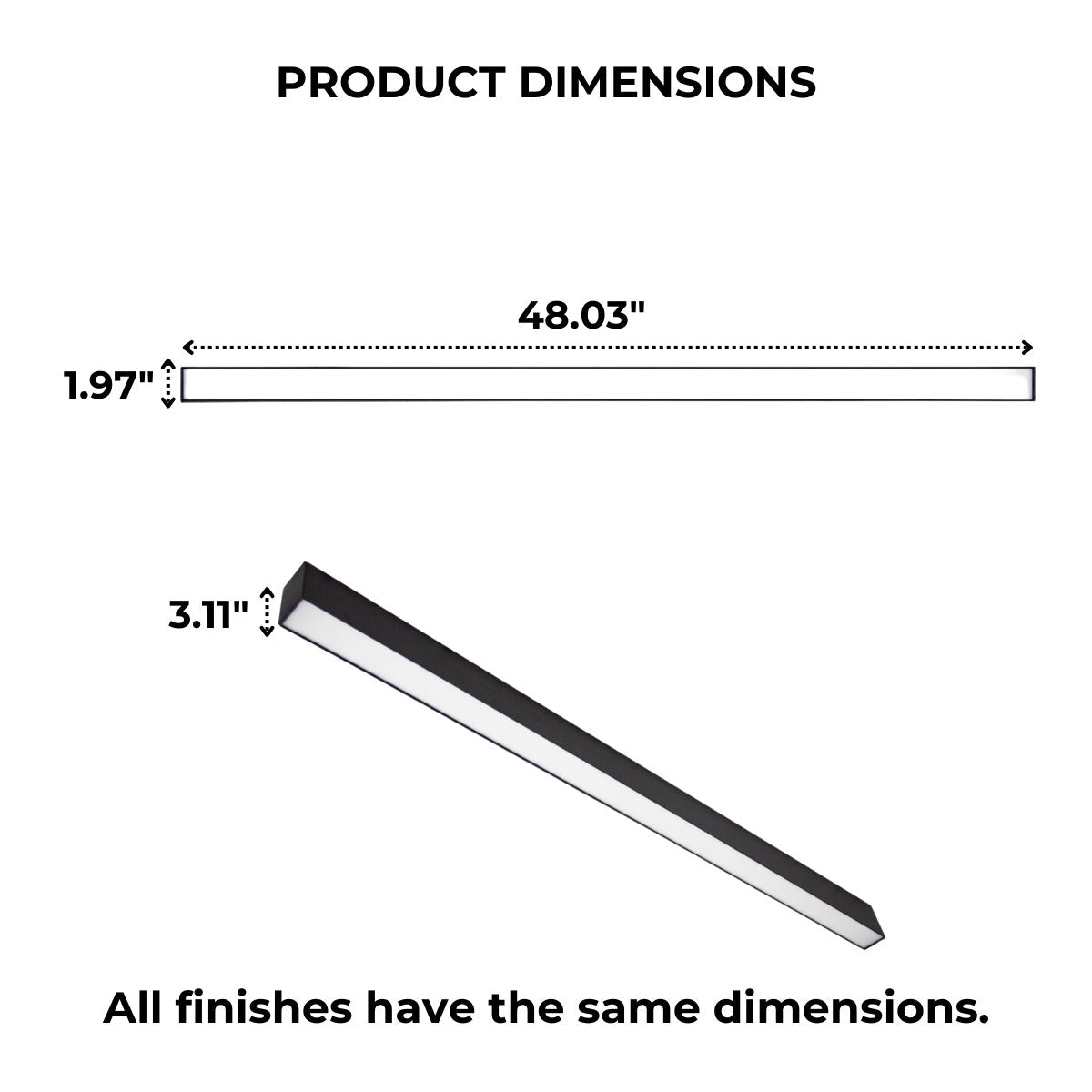

Product Dimensions - 48.03" L x 1.97" W x 3.11" H
Utility Rebates
This LED linear light is also DLC Standard V5.1 listed meaning it is highly energy efficient and may qualify for utility rebates in certain areas. Learn more about LED Rebates.
Emergency LED Drivers
Emergency LED Driver SKUs LEDLEHD1000050403 & LEDLEHD1000050404 are sold separately and can be installed alongside the luminaire's normal driver and will kick into action when the emergency driver senses a power outage.
Accessories
The following accessories are sold separately and are compatible with this linear fixture:
-

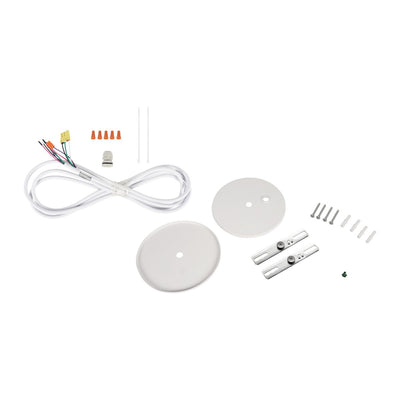

LEDMKLL1000051674 - Quintuple Wire for LumeGen Up/Down Linear Light
- The Quintuple Wire connects the first linear light to the power supply and then allows you to easily add multiple linear lights in series according to the input requirements. See the Specification Sheet for more details.
-

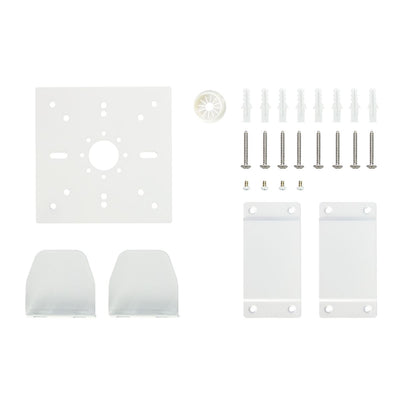

LEDMKLL1000051675 - Wall Mount Kit for LumeGen Up/Down Linear Light
- This wall mount kit is designed for an easy installation of the linear light. Mount the light fixture securely to various wall types.
-

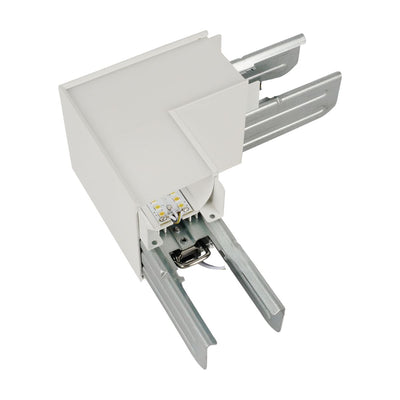

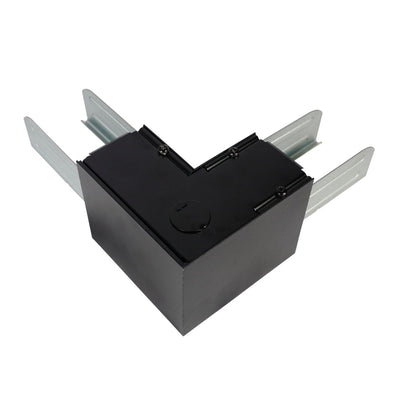

LEDMKLL1000051676-BK - L-Joiner for LumeGen Suspended Linear Lights - Black Finish
- This L Joiner (black finish) is designed for connecting light fixtures at a 90-degree angle, creating an "L" configuration.
-
LEDMKLL1000051676-WH - L-Joiner for LumeGen Suspended Linear Lights - White Finish
- This L Joiner (white finish) is designed for connecting light fixtures at a 90-degree angle, creating an "L" configuration.
-

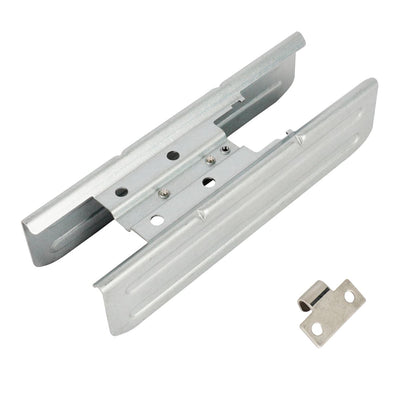

LEDMKLL1000051677 - Aligner for LumeGen Suspended Linear Lights
- This aligner connects multiple fixtures in a straight line, ensuring precise alignment.
Need more lighting options? Explore flat panels, solar lighting, and more from LumeGen.
Product Specifications
| Certificate | Description |
|---|---|
DLC Listed |
The DesignLights Consortium (DLC), sets criteria for energy-efficient LED products, ensuring they meet strict performance and efficiency standards. DLC Listed products meet baseline requirements and are eligible for rebates. |
UL Listed |
UL Listed refers to products that have been tested and certified by Underwriters Laboratories (UL). UL Listed LED lighting products have undergone meticulous testing to confirm compliance with standards like electrical safety and fire resistance. UL is recognized by OSHA as a NRTL and UL mark for lighting fixtures is the most prominent marks for lighting in the US. |
