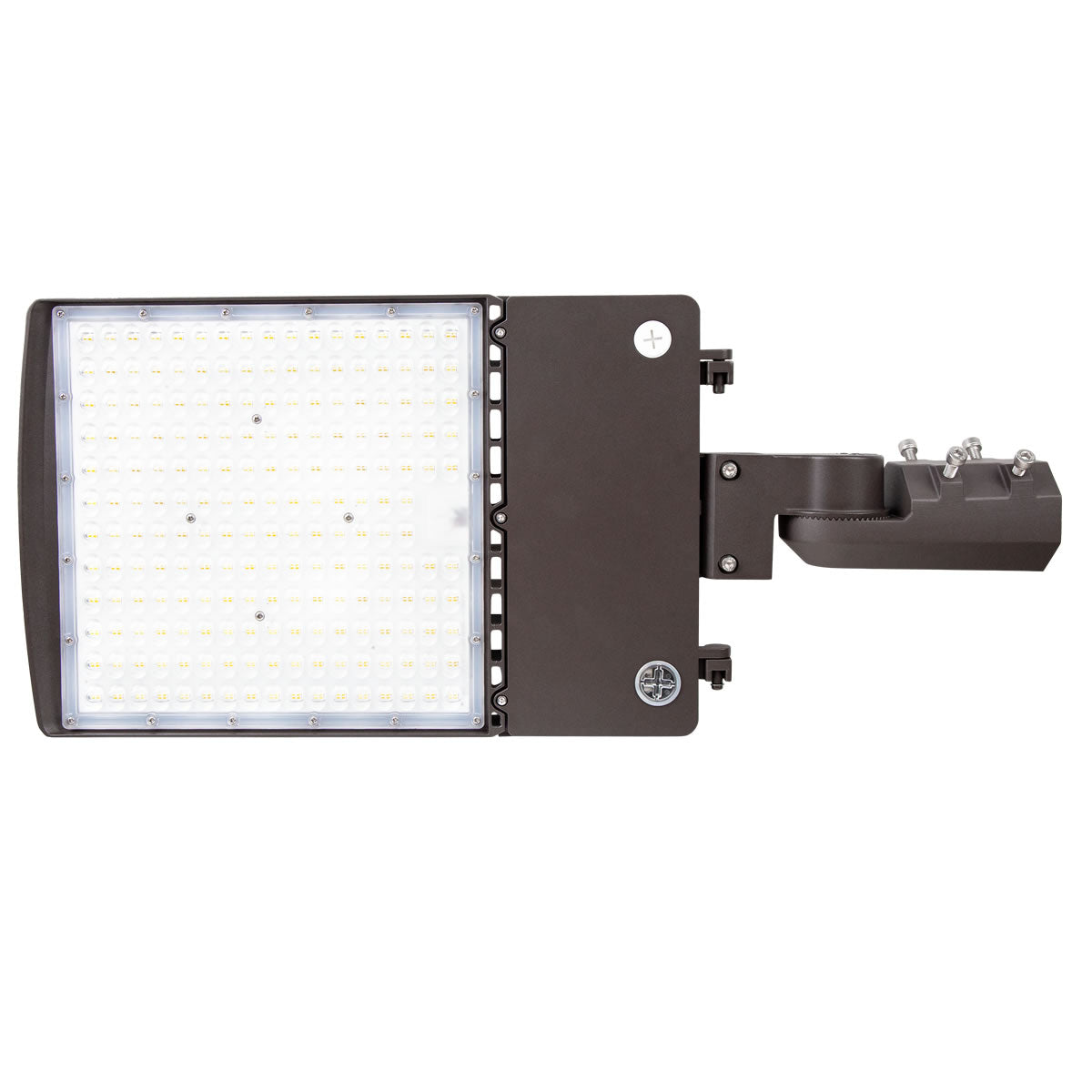

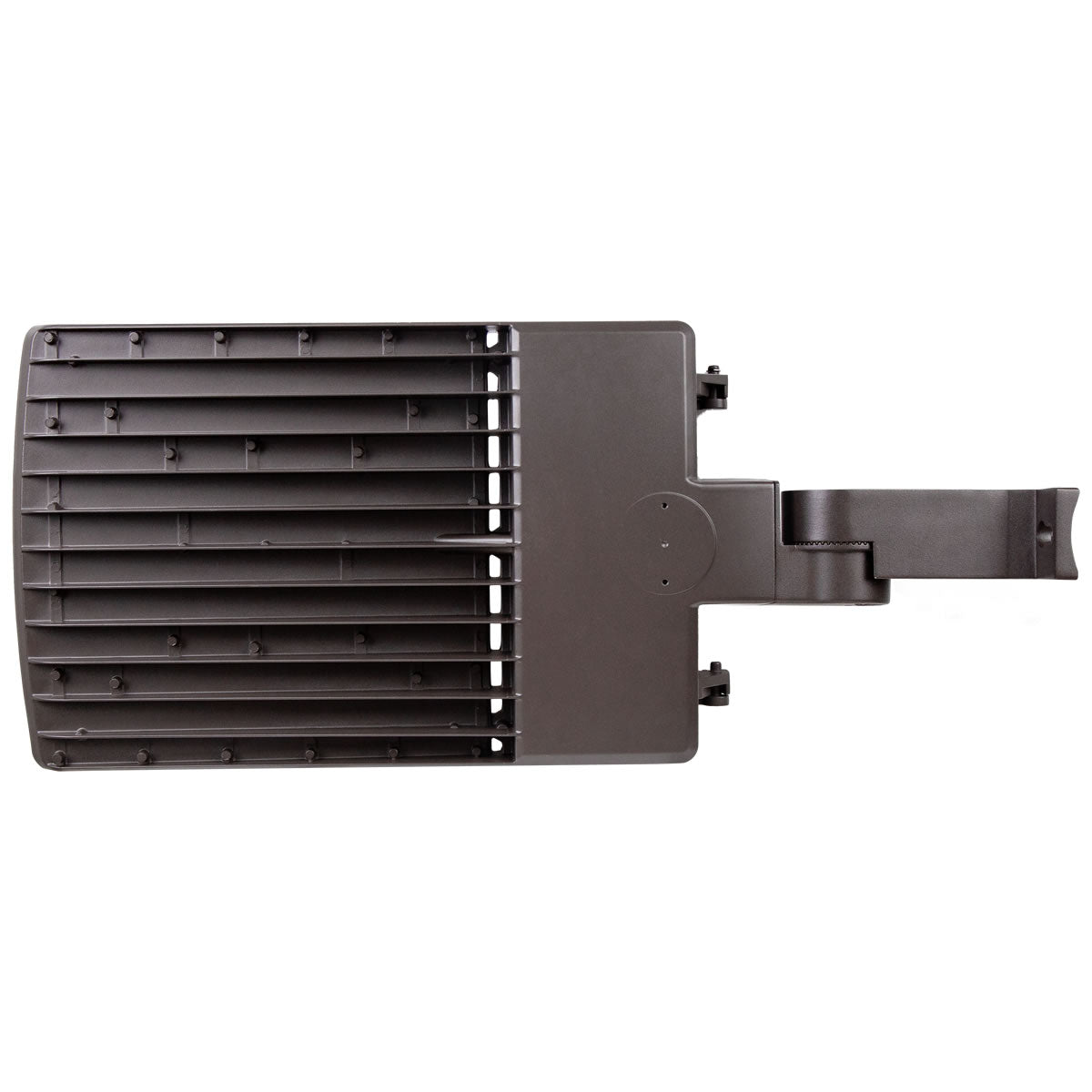

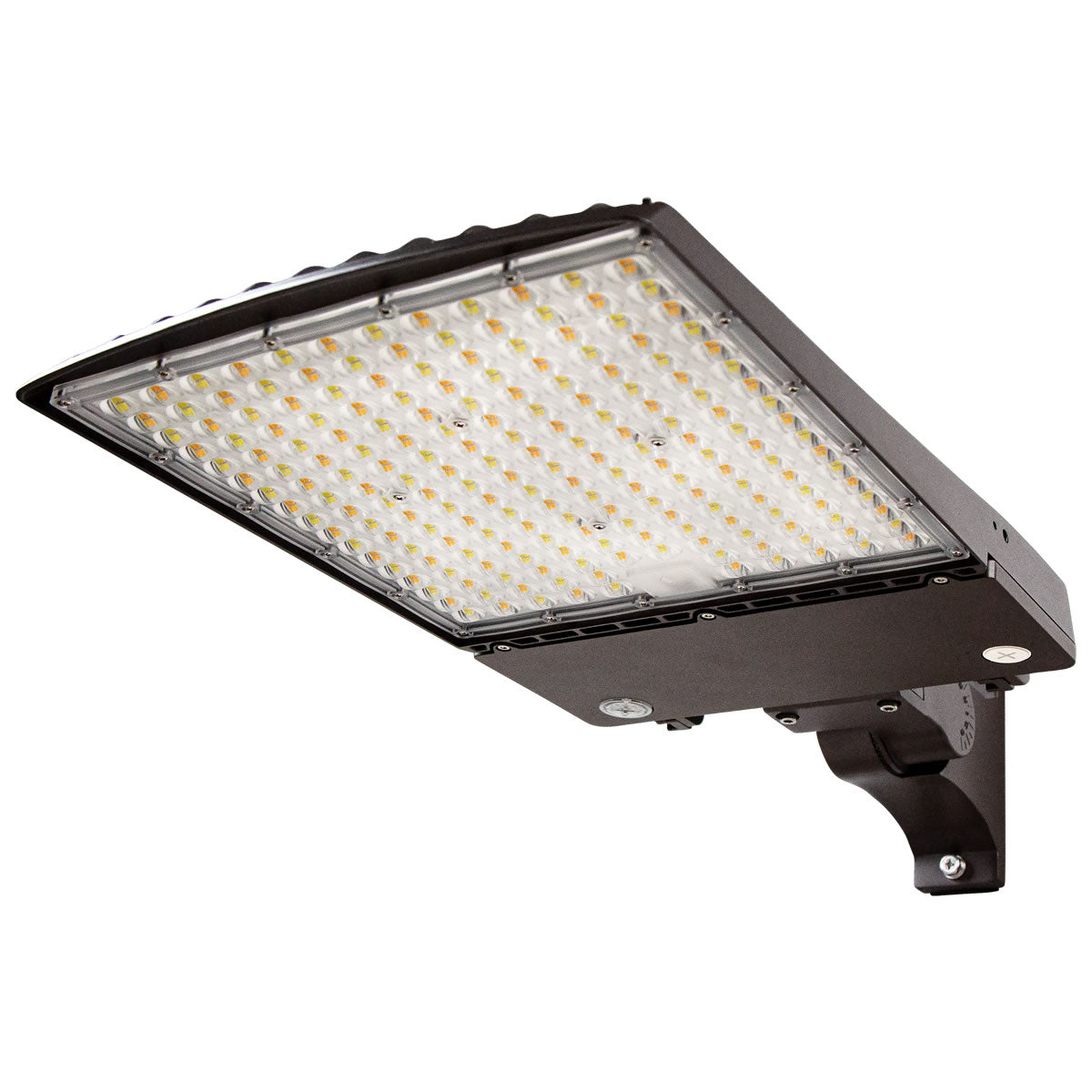

LED Area Light - 51,000 Lumen Max - AC277~480V - Wattage Adjustable 300W/240W/200W - 170LM/W - Color Tunable 30K/40K/50K - Photocell Base -Jen Lighting

Jen Lighting Corp.

SKU: LEDAREA1000051831-HV

MPN: J-AR09-300/240/200W-H-PCX-3CCT-T3 with photocell base

Certification:

Technical Specifications

Nominal Power:
200W/240W/300W
Nominal Lumens:
51000
Input Voltage:
AC200-480V
CCT:
3000K, 4000K, 5000K, Color Tunable
CRI:
70
Operating Temperature:
-40C / -40F to 50C / 122F
Warranty:
5 Year
Regular price $212.15
Regular price $0.00 Sale price $212.15
Sold out
Shipping calculated at checkout.

Availability: In Stock: Ships in 2 to 3 business days

  • Shipping With TrackingShipping With Tracking
  • Secure PaymentsSecure Payments
  • 141K+ Happy Customers141K+ Happy Customers
View full details

Add-ons:

LED Area Light - 51,000 Lumen Max  - AC277~480V - Wattage Adjustable 300W/240W/200W - 170LM/W - Color Tunable 30K/40K/50K - Photocell Base -Jen Lighting

LED Area Light - 51,000 Lumen Max - AC277~480V - Wattage Adjustable 300W/240W/200W - 170LM/W - Color Tunable 30K/40K/50K - Photocell Base -Jen Lighting

Regular price $212.15
Regular price $0.00 Sale price $212.15
Sold out

Descriptions

  • Bronze Finish
  • 3CCT Selectable - 3000K, 4000K, & 5000K
  • 3 Wattage Selectable - 200W, 240W, & 300W
  • Light Distribution Type III
  • 170lm/w, super brightness
  • AC277~480V
  • Lumen Output
    • 200W - 17,000 Lumens
    • 240W - 20,400 Lumens
    • 300W - 25,500 Lumens

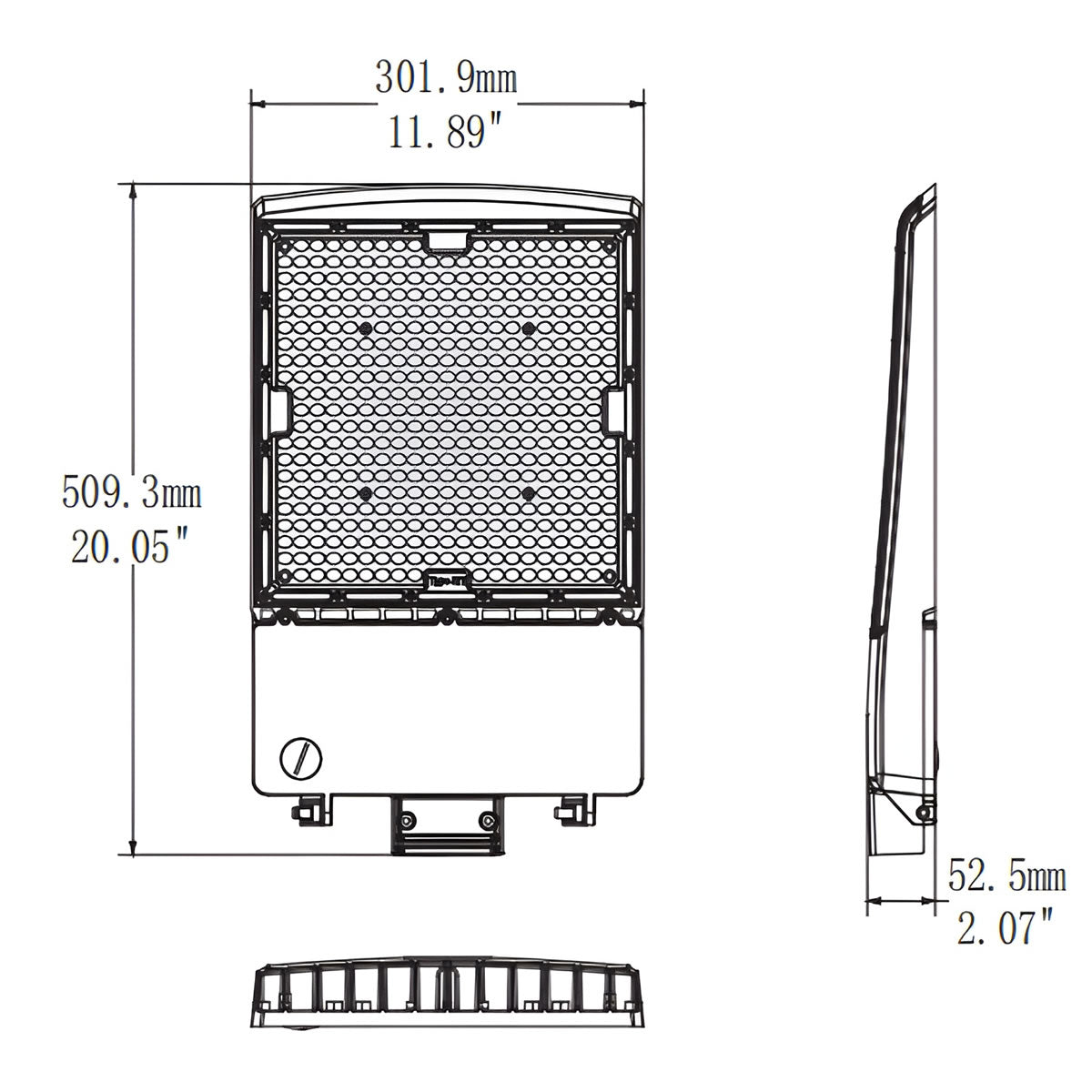

Product Dimensions - L x W x H   20.04× 11.89 ×2.07 in.

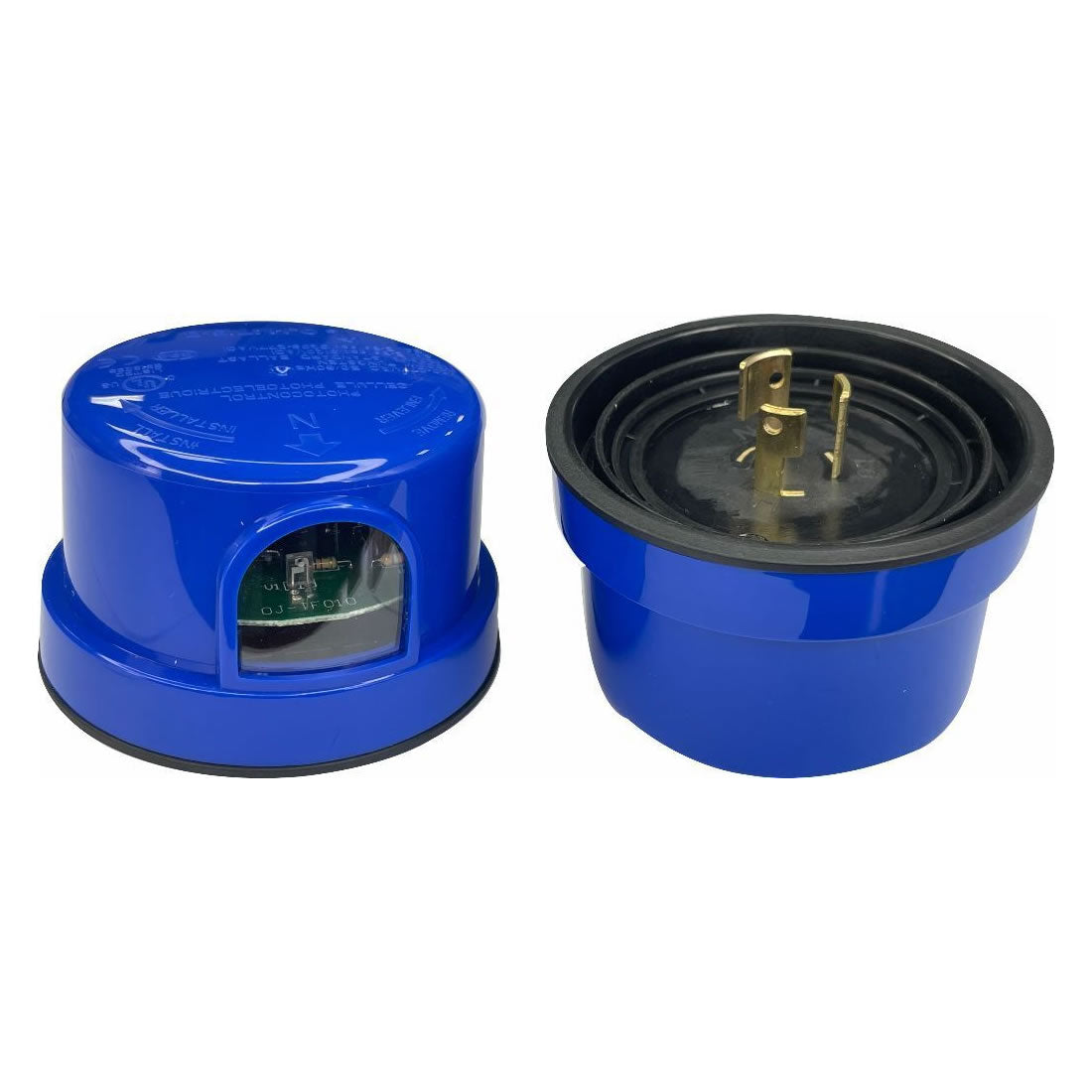

This area light is wattage and color selectable. It also has photcell base. If you want photocell function,please purchase the photocell of LEDMKAL1000051830.

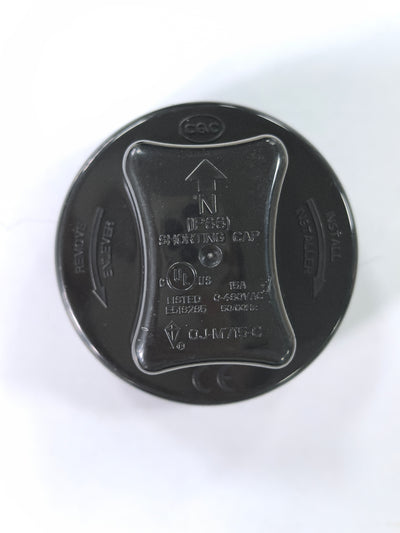

If you don't need photocell function, then please purchase the shorting cap of LEDMKAL1000051830-C.

Mounting Options (sold separately)

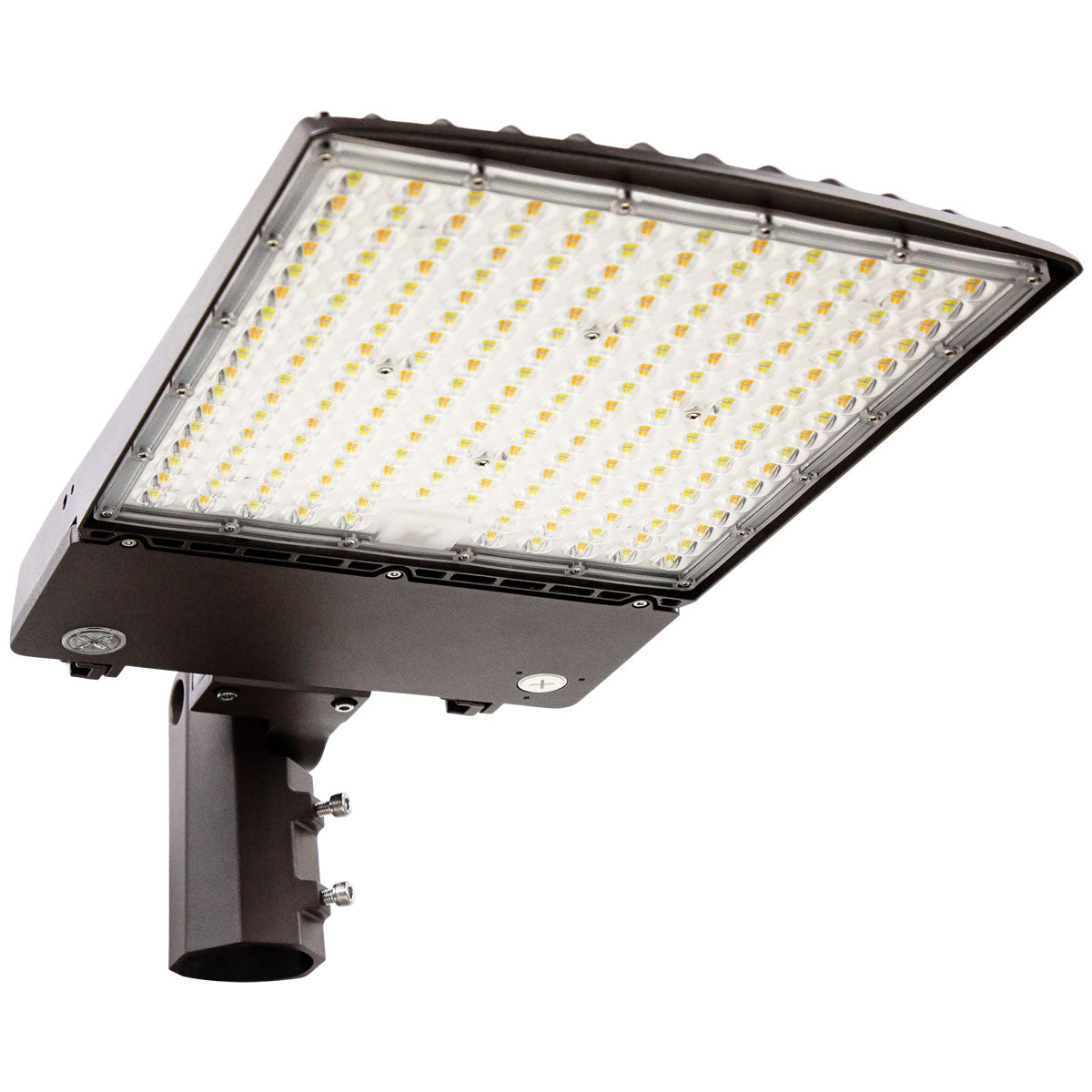

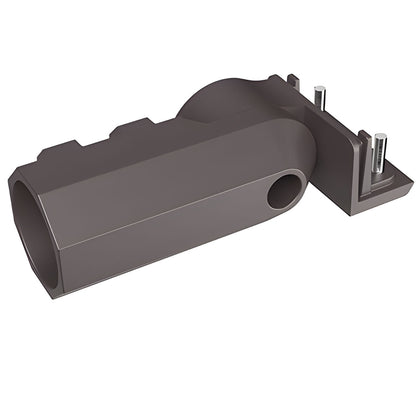

Three different mounting brackets are available for purchasing separately - Type A Slip Fitter Bracket (LEDMKAL1000051830-S)

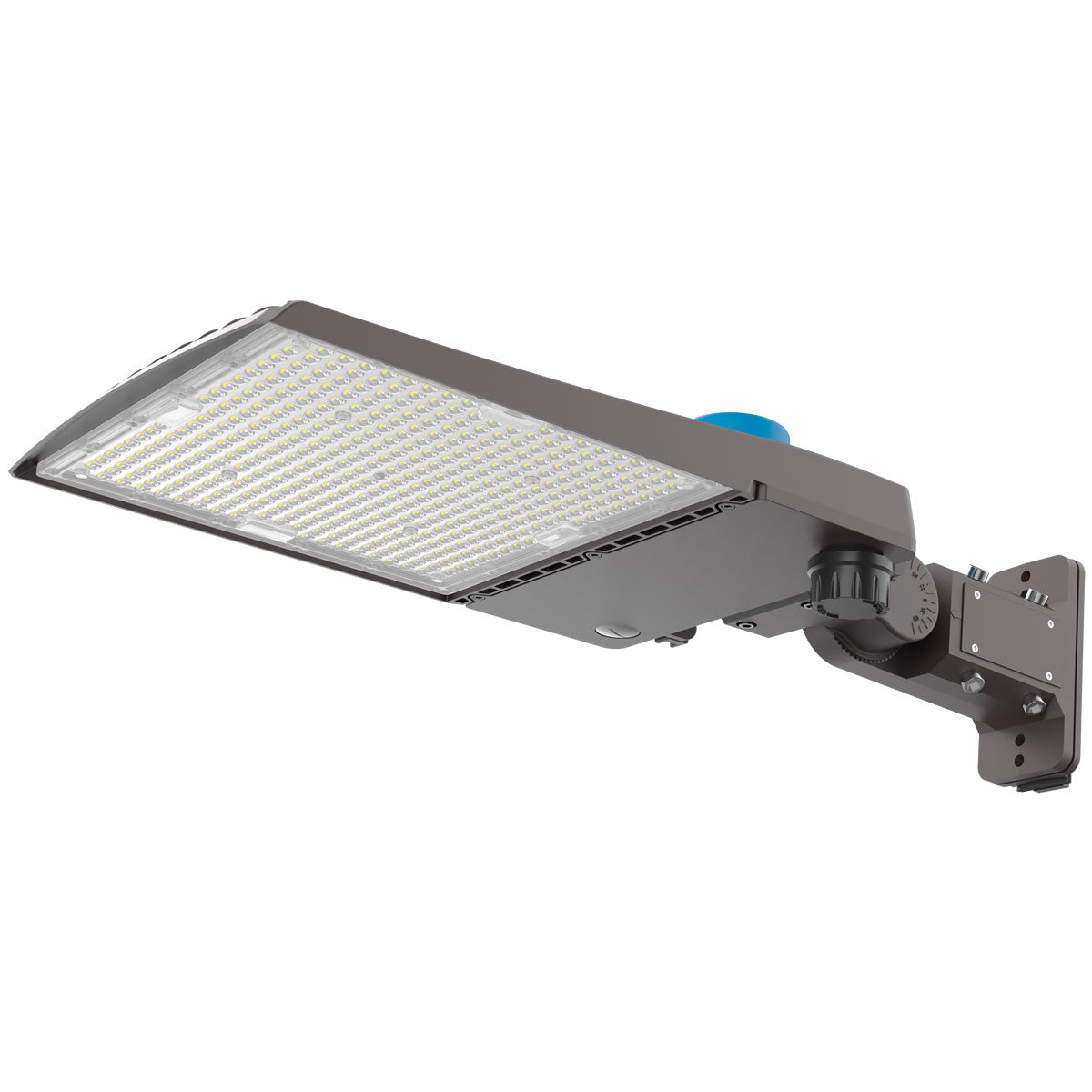

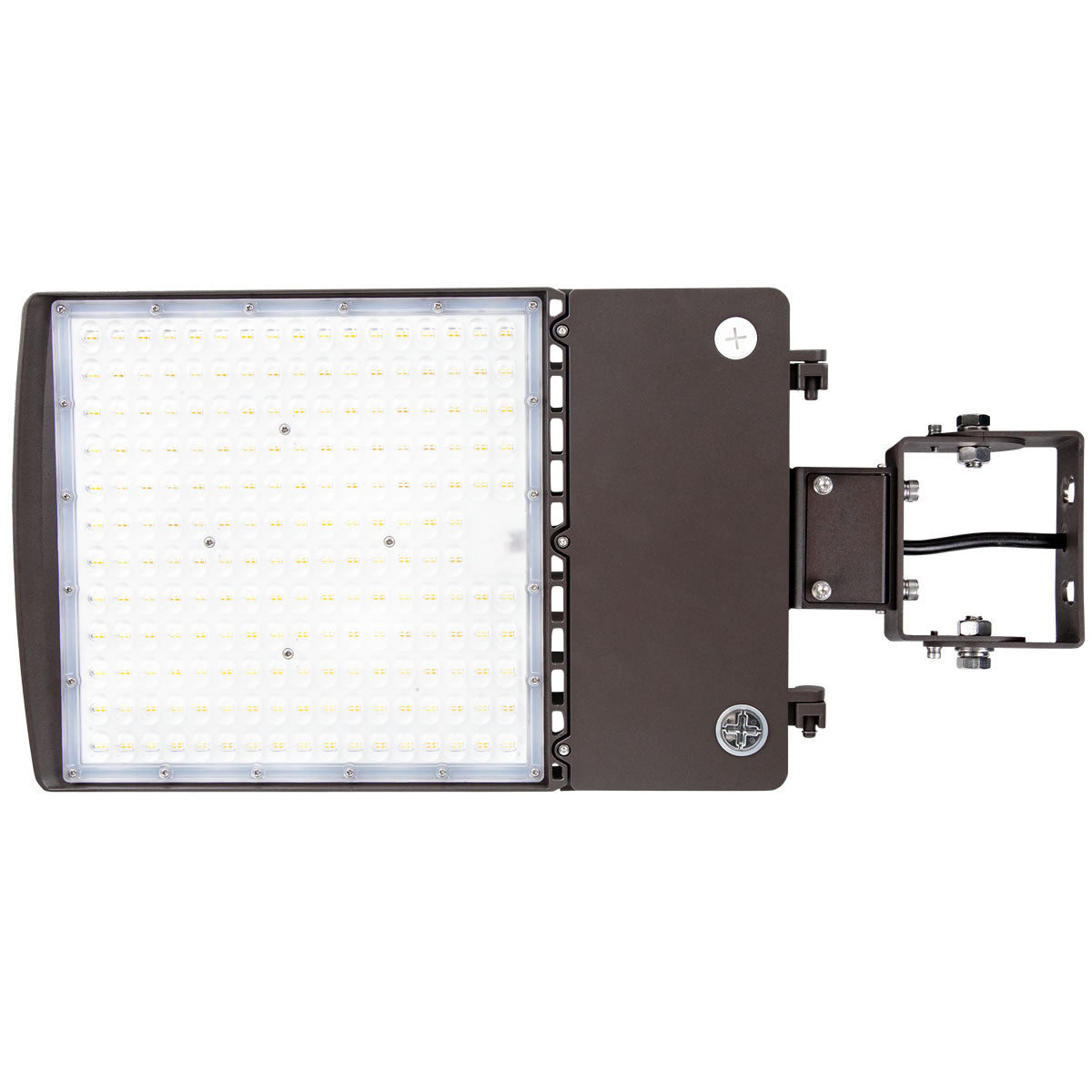

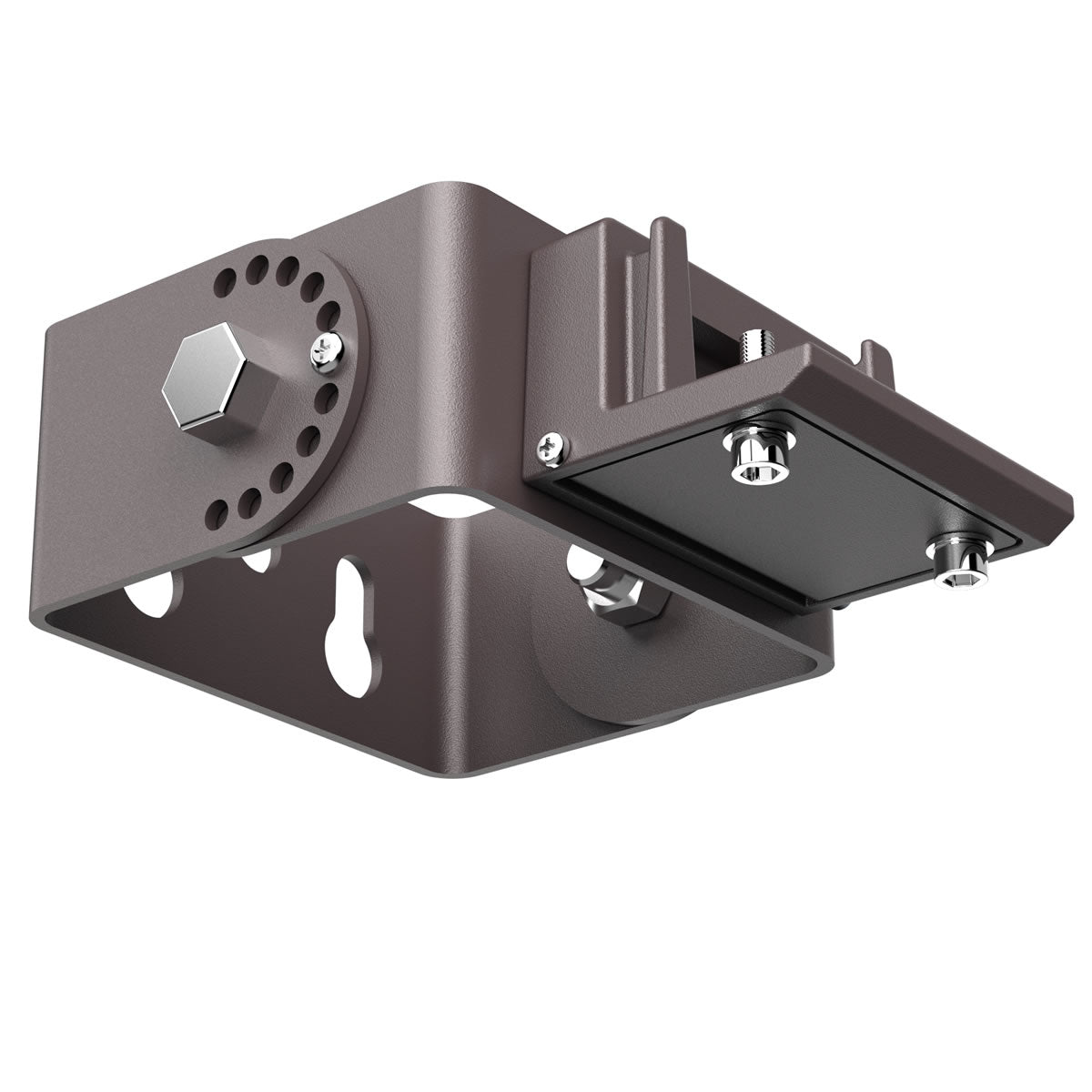

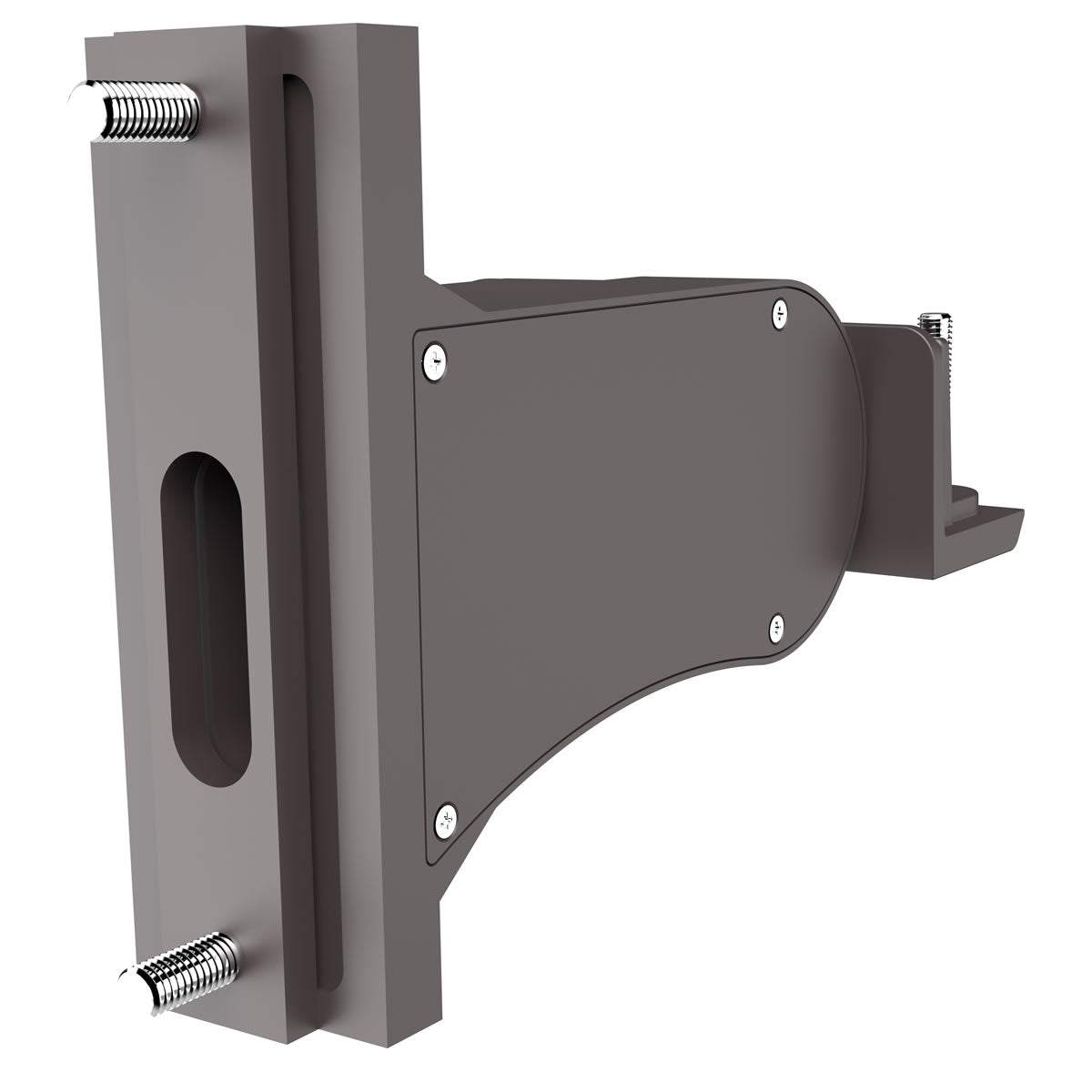

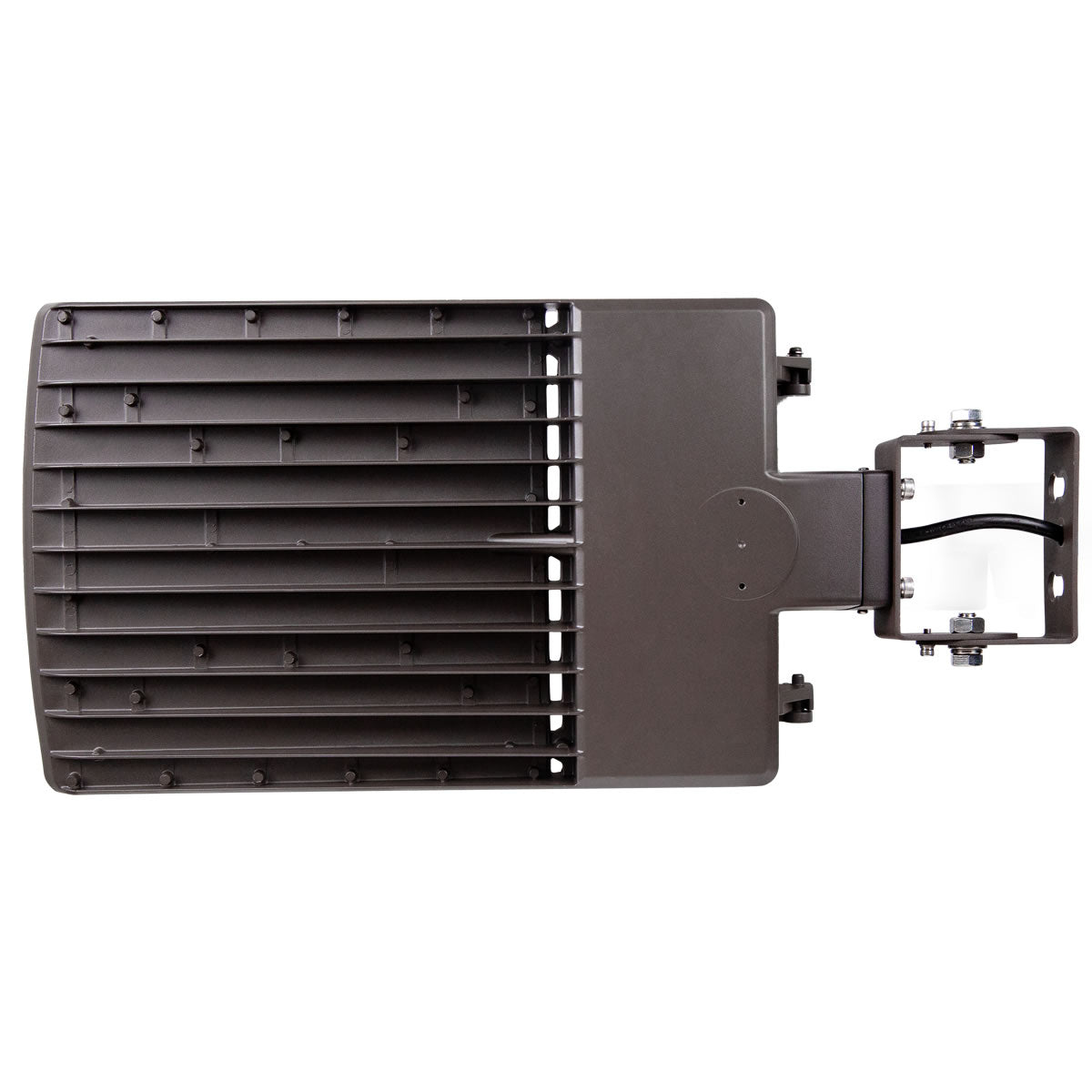

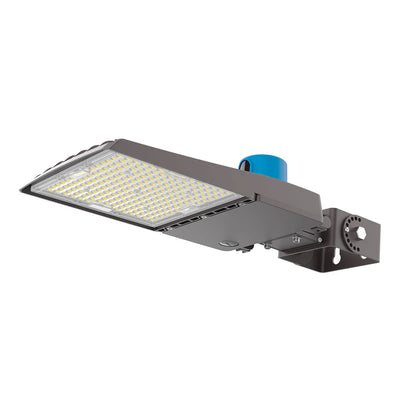

Adjustable arm mount for round or square pole (LEDMKAL1000051830-A), and Trunnion Bracket (LEDMKAL1000051830-T).

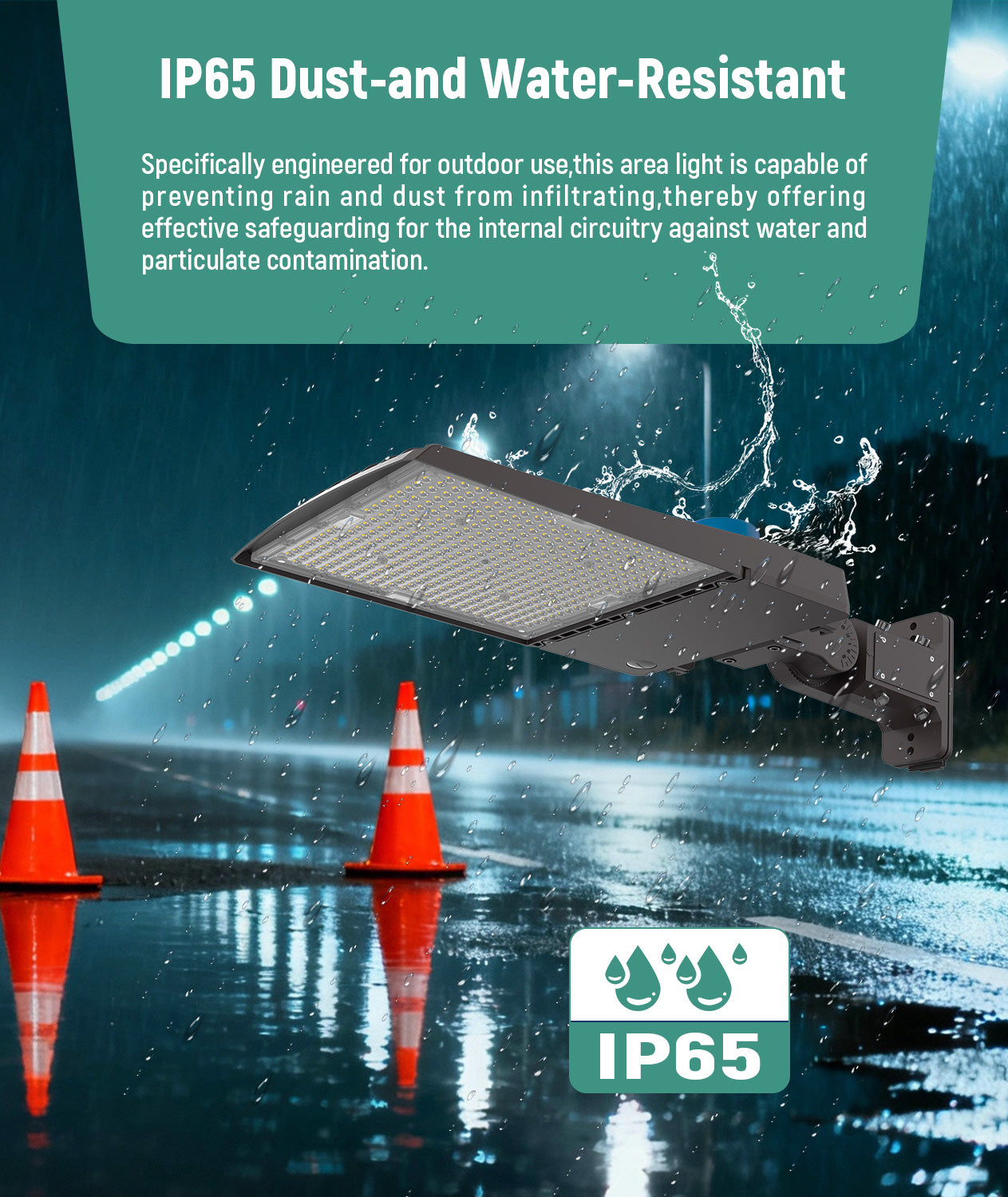

This LED area light from Jen Lighting is wattage adjustable at 170 lumens per watt allowing you to select between 200W, 240W, and 300W to adjust the brightness of the fixture. At 300W, this fixture is equivalent to a 1000W metal halide fixture. This area light is also 3CCT selectable with the user having the choice between 3000K, 4000K, and 5000K. Additionally, this light is 0-10V dimmable, IP65 Rated, and Wet Rated.

Utility Rebates

This LED area light is also DLC Premium V5.1 listed meaning it is highly energy efficient and may qualify for utility rebates in certain areas. Learn more about LED Rebates.

Shop our selection of Jen Lighting | Lightup.com – LightUp

Product Specifications

Brand: Jen Lighting Corp.
Case Qty: 1
Clearance:  Non-Clearance
Country of Origin: China
CRI:  70
Life Hours:  50,000 Hours
Light Source: LED
Lumens per Watt: 170 lm/W
Voltage: AC200-480V
Warranty:  5 Year
Operating Temp - Low: -40C / -40F
Operating Temp - High: 50C / 122F
Lumens: 51000
Color: Color Tunable 3000K/4000K/5000K
Finish: Bronze
Dimmable: Dimmable
Wattage: 200W/240W/300W
Watt Equivalent: 1,000 Watt
Color Temperature (CCT): 3000K, 4000K, 5000K, and Color Tunable
Light Fixture Type: Area Light and Color & Wattage Adjustable
Ratings and Certifications:DLC Premium
Ratings and Certifications:UL Listed
Ratings and Certifications:Wet Location
Ratings and Certifications:IP65
