Details

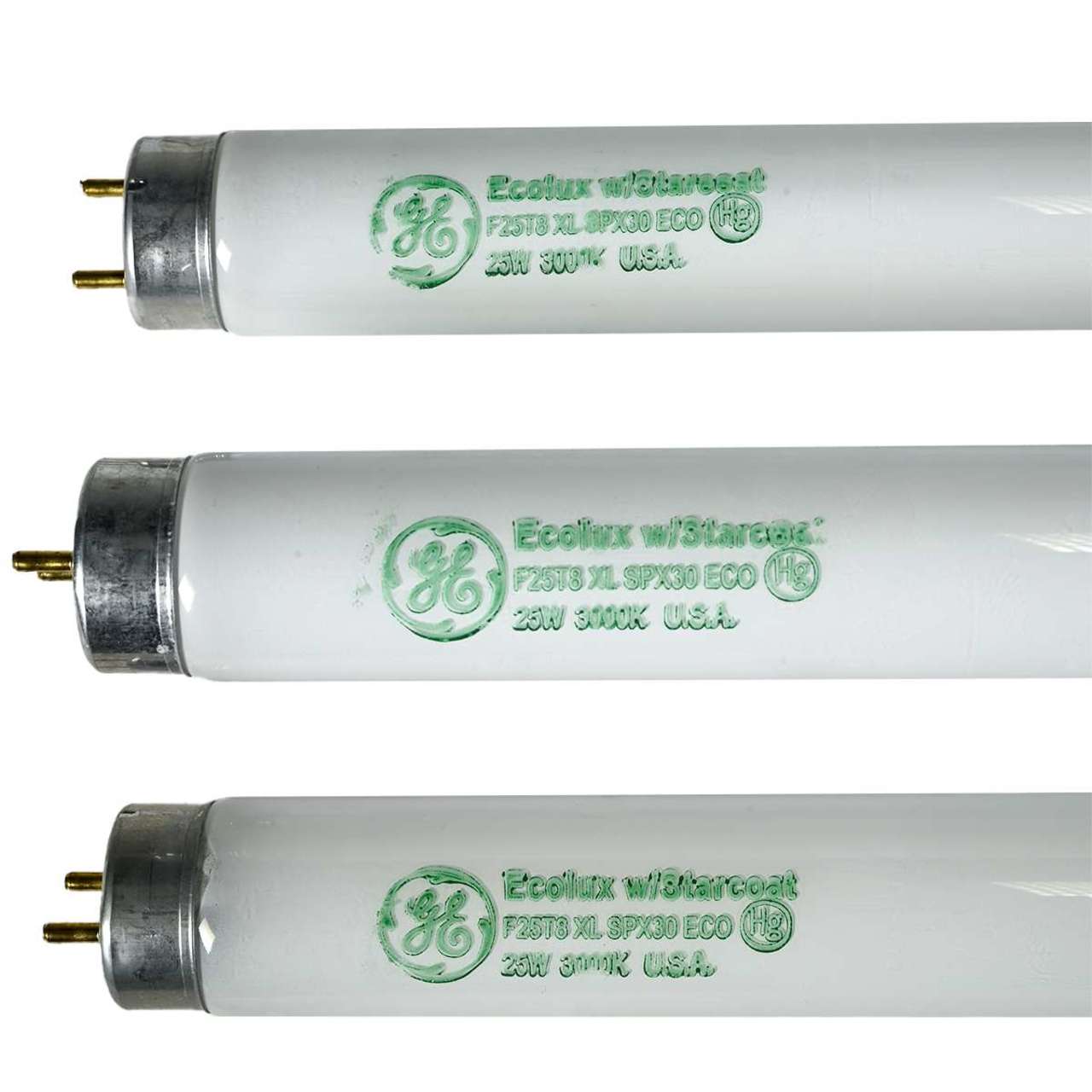

15489 - GE Ecolux® Starcoat® T8
F25T8XL/SPX30ECO
GENERAL CHARACTERISTICS
- Base Description Medium Bi-Pin
- Base Type Pin/Plug-In
- Mercury Content 2.95 mg
- Mercury-Picogrm per mean lm hr 36.2
- Rated Life Instant Start-Hrs
- 18000 h @ 3 h
- 24000 h @ 12 h
- Rated Life Rapid Start - Hrs
- 40000 h @ 3 h
- 45000 h @ 12 h
- Starting Temp (MIN) C-degrees 10 °C
- Bulb Material Soda lime
- Rated Life Hours-nominal 40000 h
- Primary Application Full Wattage
- Product Technology Linear Fluorescent
- Base G13
- Bulb Shape T8
PHOTOMETRIC CHARACTERISTICS
- Mean Lumens nominal 2040 lm
- Nominal Initial Lumen per Watt 86
- Color Rendering Index-CRI 85
DIMENSIONS
- Bulb Diameter (DIA) <Max> 1.1 in
- Bulb Diameter (DIA) <Min> 0.94 in
- Diameter 1.0 in
- End of Base Pin to Pin 35.67 in
- Face to End of Opposing Pin (B) <Max> 35.5 in
- Face to End of Opposing Pin (B) <Min> 35.4 in
- Nominal Length 36.0 in
ELECTRICAL CHARACTERISTICS
- Scotopic/Photopic Ratio 1.3
- Current Crest Factor (MAX) 1.7
- Open Circuit Voltage (rapid start) Min @
- Temperature
- 00 V @ 10 °C
- Cathode Resistance Ratio - Rh/Rc (MIN) 4.250
- Cathode Resistance Ratio - Rh/Rc (MAX) 6.500
- Rated power (Watts) 25 W
