LED Low Profile Exit & Emergency Combo Sign - White - 90 Min. Emergency Runtime - 120/277V - LumeGen

20% Off Euri Lighting LED Bulbs | Discount Applied in Cart | Shop Now

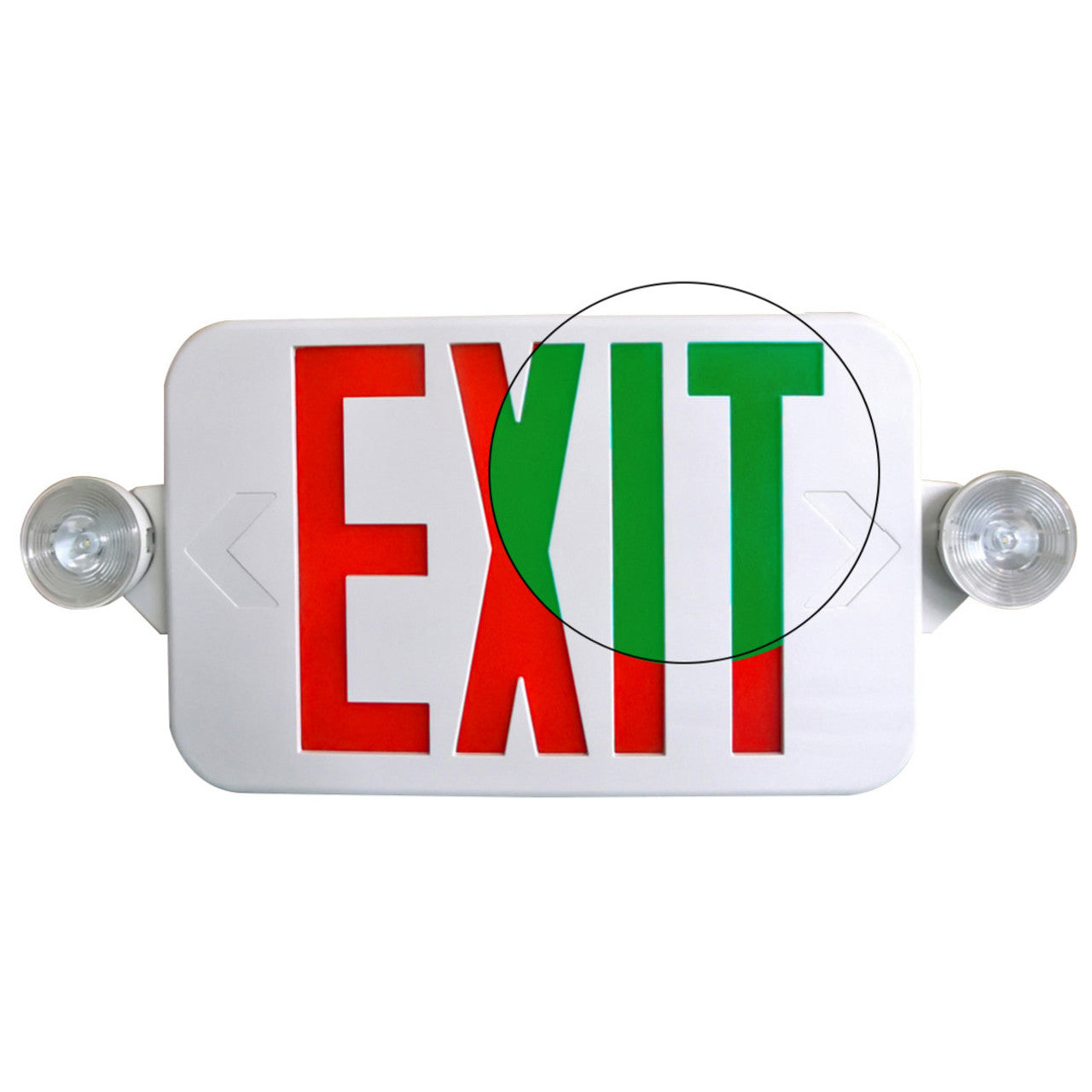

LED Low Profile Exit & Emergency Combo Sign - High Lumen - Red/Green Letters - 90 Min. Emergency Runtime - LumeGen

LumeGen

SKU:
LEDEMEX1000051581-HL
MPN:
CEU3RG[X]-HL-V2
Certified/Rated for Ul Listed Certified/Rated for Damp Location Certified/Rated for Cec
$49.99
$49.99
Availability:
In Stock: Ships in 5 to 7 business days

Description

Protect your building's occupants and provide safety with this LED Exit & Emergency Combo Sign. This LED combo exit light produces ultra-bright, energy efficient, long life red or green light and complies with building fire codes and insurance standards. Available in black or white finish, this Emergency Combo Exit Light comes with both green and red lettering to match the building code or ordinance in most areas.

This LED Combo Exit & Emergency Sign has dual light heads to provide illumination in the event of power outage. Each head is 2W with 1 LED per head. The adjustable LED lamp heads provide optimal emergency lighting where needed.

This LED combo exit sign is made with injection-molded, engineering grade, 5VA flame retardant, high-impact resistant, thermoplastic in white finish. It comes with EZ snap-out chevron directional indicators. It can be configured with a single- or double-sided face with EZ-snap mounting canopy included for top or end mount. It has a universal knockout pattern on the back plate for wall mount.

This LED combo exit sign is UL Listed for damp locations and certified to CEC under Title 20 Regulations. Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes. One year warranty on all electronics and housing.

This LED exit sign operates on 120/277 voltage and includes 3.6V long-life, maintenance-free, rechargeable NiCd battery. Unique bi-color LED indicator light alerts occupant on battery condition (Green = normal, Red = check battery). Internal solid-state transfer switch automatically connects the internal battery to LED board for minimum 90-minute emergency illumination. Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.

Exit Light Dimensions (without canopy) - 16" L x 1-15/16" W x 7-1/4" H

Canopy Dimensions - 5-1/2" L x 4-5/16" W x 11/16" H

This fixture is equipped with High Lumen 2W LED Heads to increase center-to-center spacing. It also has 0.5W of remote capacity.

  • LED life-cycle of more than 10 years
  • Molded-in template for Quick installation
  • Universal Knockout Directional Indicators
  • Dual Voltage: 120V or 277V
  • 90 min Emergency Runtime operation
  • Provided with test switch and AC-On indicator
  • Canopy Included
  • UL Listed for Damp Locations
  • NFPA 101
  • OSHA certified
  • 5 Year Warranty

Extra Information

Brand:
LumeGen
Case Qty:
1
Clearance:
Non-Clearance
Country Of Origin:
China
_PDF:
lumegen-warranty|pdf|LumeGen Warranty
_PDF:
ceu-ies|ies|IES File
_PDF:
ceu-im|pdf|Instruction Manual
_PDF:
ceu-spec|pdf|Specification Sheet
Light Source:
LED
Operating Temp - Low:
0C / 32F
Operating Temp - High:
40C / 104F
Voltage:
AC120-277V
Warranty:
1 Year
Wattage:
3W
Ratings and Certifications:
UL Listed
Ratings and Certifications:
CEC
Features:
Instant On
Features:
Long Life Span
Features:
Warranty
Features:
Damp Location Rated
Features:
Flicker Free
Recommended Uses:
Recommended Uses:
Recommended Uses:
_MPN:
CEU3RG[X]-HL-V2
Right Overlay Image:
New on Lightup.png
Lowest Bulk Price:
49.99
