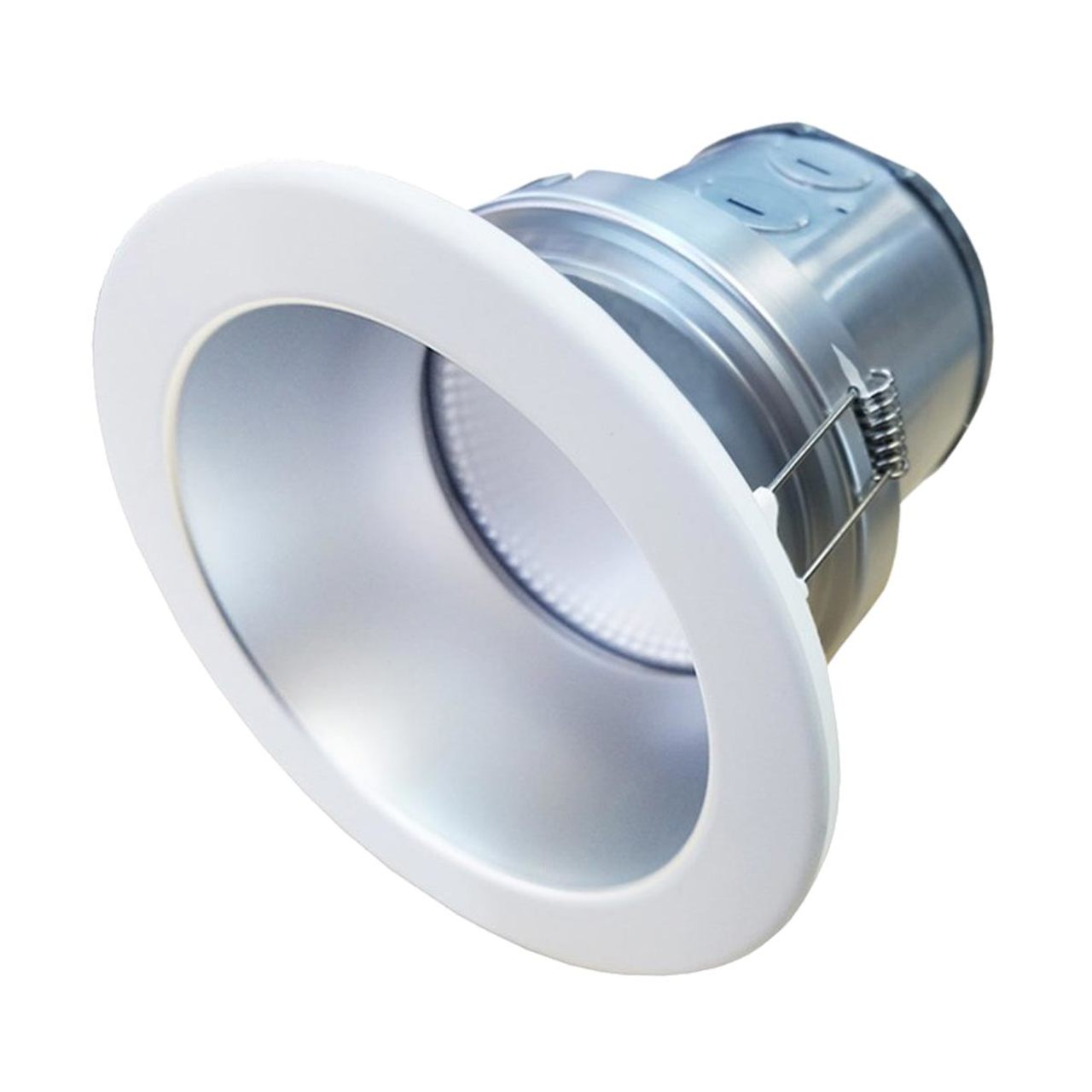

LED Versaflex Recessed Downlight Module - 20W - 1760 Lumens - Beyond LED Technology

LED Versaflex Recessed Downlight Module - 20W - 1760 Lumens - Beyond LED Technology
SKU: LEDLDLG1000050846
MPN: 150822
BRAND: Beyond LED Technology
$25.00
color temp graph
Availability: In Stock
$25.00
Clearance Non-Clearance
Country Of Origin China
Shape Downlight Fixture
CRI 80
Life Hours 50,000 Hours
Light Source LED
Warranty 5 Year
Wattage 20 W
Color 3000K Soft White
Approvals and Listings Energy Star
Approvals and Listings UL Listed
Features Dimmable
Features Instant On
Features Mercury Free
Features Damp Rated
Recommended Uses 0_to_10v_dimmable.png
Recommended Uses energy_star.png
Recommended Uses ul_listed.png
Base Type Hardwire
Lumens per Watt 100 lm/W
Lumens Range 1,500 - 3,000 Lumens
Operating Temp - High 45C / 113F
Watt Equivalent 85 Watt
Voltage AC120-347V
Features Warranty
Lumens 1760
Right Overlay Image Price Drop.png
Brand Beyond LED Technology
  • Details

    The Versaflex Commercial LED Down Light is a great canless downlight option utilizing a built-in junction box to eliminate the need for a traditional recessed housing. This LED down light is ideal for ceilings in shopping malls, retail stores, banquet halls, auditoriums, office spaces, or any other commercial setting. This 20W recessed down light replaces an 85W halogen bulb light output while maintaining low operating temperatures comparatively. At 88 lumens/watt, this LED downlight produces 1760 lumens and is dimmable with a 0-10V dimmer. The long lifespan of 50,000 hours will also guarantee brightness for up to 25 times longer than traditional halogen bulbs which last around 2,000 hours.

    Installation is a breeze, simply wire the connections in the junction box and install into the ceiling via dual butterfly clips. The Versaflex down light can be used in new construction applications and remodel applications. For new construction applications, a mounting plate may be required (sold separately). Save money and time with this canless LED downlight with the quick installation time and no need to purchase a recessed housing.

    The Versaflex Commercial LED Down Light is extremely flexible as it can be fitted with three different size trims - 4", 6", or 8". Trims are sold separately based on what size is needed. The viewing angle for each size trim is listed below:

    • 4" is 65°
    • 6" is 70°
    • 8" is 75°

    NOTE - THIS IS THE LIGHT ENGINE ONLY! TRIMS ARE REQUIRED FOR INSTALLATION AND SOLD SEPARATELY IN CASES OF 6.

    Emergency Drivers

    Constant-power emergency drivers with 90-minute run time are available to add on to your LED downlight to increase fire safety and comply with local fire safety codes. Check out our selection of LED emergency drivers.

  • Warranty Information

The Versaflex Commercial LED Down Light is a great canless downlight option utilizing a built-in junction box to eliminate the need for a traditional recessed housing. This LED down light is ideal for ceilings in shopping malls, retail stores, banquet halls, auditoriums, office spaces, or any other commercial setting. This 20W recessed down light replaces an 85W halogen bulb light output while maintaining low operating temperatures comparatively. At 88 lumens/watt, this LED downlight produces 1760 lumens and is dimmable with a 0-10V dimmer. The long lifespan of 50,000 hours will also guarantee brightness for up to 25 times longer than traditional halogen bulbs which last around 2,000 hours.

Installation is a breeze, simply wire the connections in the junction box and install into the ceiling via dual butterfly clips. The Versaflex down light can be used in new construction applications and remodel applications. For new construction applications, a mounting plate may be required (sold separately). Save money and time with this canless LED downlight with the quick installation time and no need to purchase a recessed housing.

The Versaflex Commercial LED Down Light is extremely flexible as it can be fitted with three different size trims - 4", 6", or 8". Trims are sold separately based on what size is needed. The viewing angle for each size trim is listed below:

  • 4" is 65°
  • 6" is 70°
  • 8" is 75°

NOTE - THIS IS THE LIGHT ENGINE ONLY! TRIMS ARE REQUIRED FOR INSTALLATION AND SOLD SEPARATELY IN CASES OF 6.

Emergency Drivers

Constant-power emergency drivers with 90-minute run time are available to add on to your LED downlight to increase fire safety and comply with local fire safety codes. Check out our selection of LED emergency drivers.
