2x4 LED Flat Panel Light | With Emergency Backup Driver

 Solar Lighting Sale | 20% Off Select Solar Lighting Categories | Discount Applied in Cart.

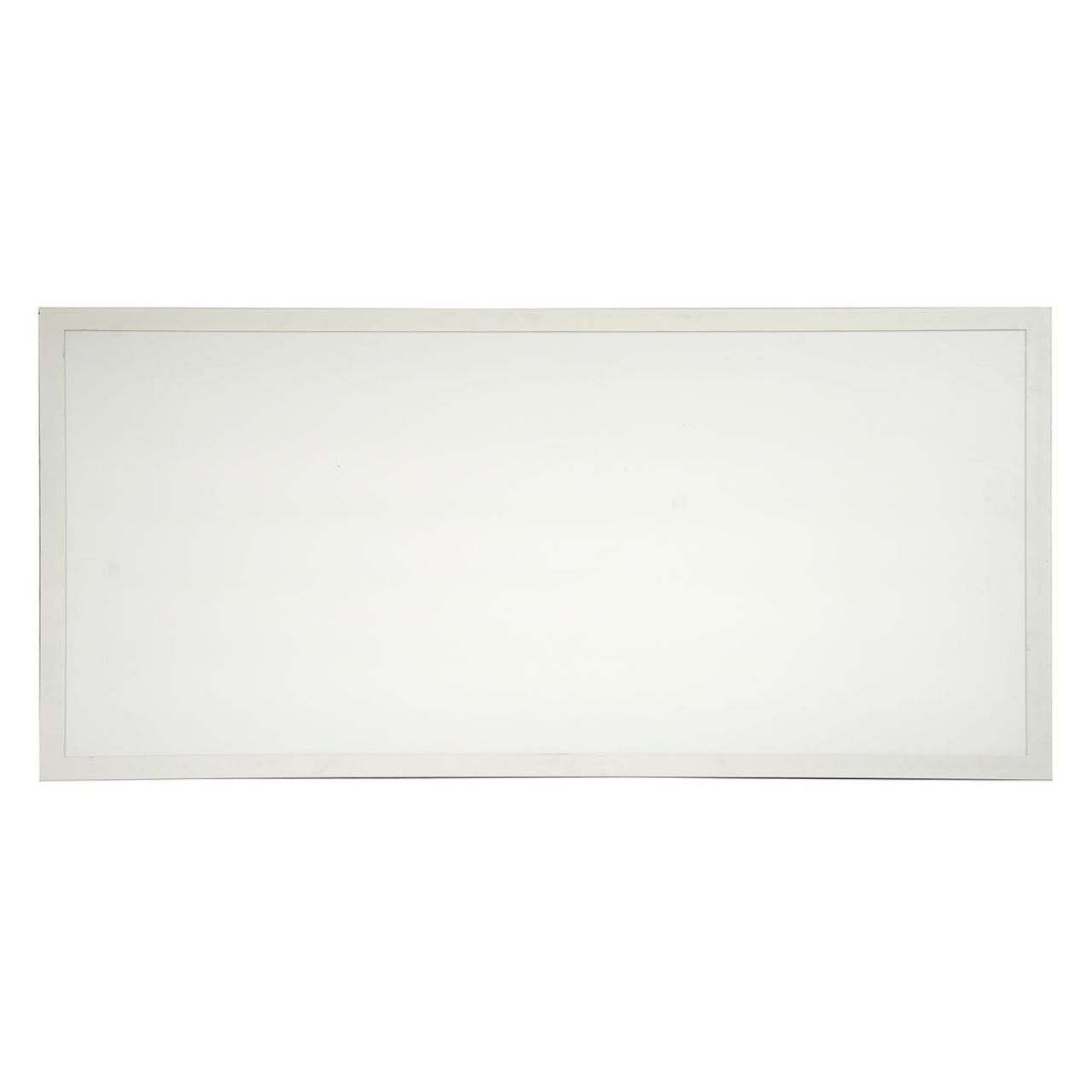

2x4 LED Flat Panel Light With Emergency Backup - Wattage Adjustable 30W/35W/40W - Color Tunable 35K/40K/50K - Medinah Power

LEDLFPN1000055010-EM
DPS-24-U-P-ET-4-EL
$178.33
Availability:
In Stock: Ships in 5 to 7 business days

2x4 LED Flat Panel Light With Emergency Backup - Wattage Adjustable 30W/35W/40W - Color Tunable 35K/40K/50K - Medinah Power

LEDLFPN1000055010-EM
DPS-24-U-P-ET-4-EL
Certified/Rated for Ul Listed Certified/Rated for Damp Location Certified/Rated for 0 To 10v Dimmable Certified/Rated for Dimmable

Description

Wattage Adjustable and Color Tunable 2x4 LED Flat Panel Light With Emergency Backup

This 2x4 LED Backlit Flat Panel is the perfect replacement for fluorescent troffers and includes an emergency backup. With two mounting options, this LED flat panel light can fit whatever your needs may be. LED flat panels will also save you both time and money. Additionally, they work for a variety of commercial spaces including offices, schools, and other areas where bright, even light is needed.

At 125 lumens per watt, this Wattage Selectable LED flat panel light produces up to 5000 lumens when operating at the highest wattage of 40W. See below for how many lumens each wattage produces:

  • 30W - 3750 Lumens
  • 35W - 4375 Lumens
  • 40W - 5000 Lumens

In addition to being wattage adjustable, this flat panel is also color tunable. The below color temperatures are available:

  • Cool White (3500K)
  • Bright White (4000K)
  • Daylight (5000K)

Ceiling & Suspension Mounting Options

There are two different installation options. The Instruction Manual provides direction for each one:

  1. Installation Option One - Standard Recessed Mount in T-bar grid ceiling
  2. Installation Option Two - Suspension Mount Installation (LEDMKFP1000051040 and LEDMKFP1000051041 sold separately)

Product Dimensions - 47.8" W x 23.7" L x 1.5" H

Extra Information

Brand:
Medinah Power
Case Qty:
1
Clearance:
Non-Clearance
Country Of Origin:
China
_PDF:
eran-panels-instruction-manual|pdf|Instruction Manual - Backlit Flat Panel Mounting Instructions
_PDF:
eran-cct-adj-panel-im|pdf|Instruction Manual - CCT & Wattage Adjustable LED Panel
Beam Angle:
120 Degrees
Color Temp / CCT:
Color Tunable 3500-4000-5000K
CRI:
80
Light Source:
LED
Lumens Range:
2,600 - 5,200 Lumens
Operating Temp - Low:
-20C / -4F
Voltage:
AC120-277V
Warranty:
5 Year
Color:
Color Tunable 3500-4000-5000K
Ratings and Certifications:
UL Listed
Features:
Dimmable
Features:
Instant On
Features:
Long Life Span
Features:
Warranty
Features:
Damp Rated
Recommended Uses:
Recommended Uses:
Recommended Uses:
_MPN:
DPS-24-U-P-ET-4-EL
HR-mail-only:
true
Lumens:
3750 | 4375 | 5000
Wattage:
30W/35W/40W
_PDF:
eran-industrial-spec-2024-new-2x4|pdf|Specification Sheet
Lumens per Watt:
125 lm/W
Operating Temp - High:
50C / 122F
Ratings and Certifications:
Damp Location
Features:
Wattage & CCT Adjustable
Recommended Uses:
