Button Photocell for Outdoor Lighting Fixture

LEDLHLS1000050007
JL-403C
$12.99
Availability:
In Stock: Ships in 5 to 7 business days

Button Photocell for Outdoor Lighting Fixture

LEDLHLS1000050007
JL-403C

Description

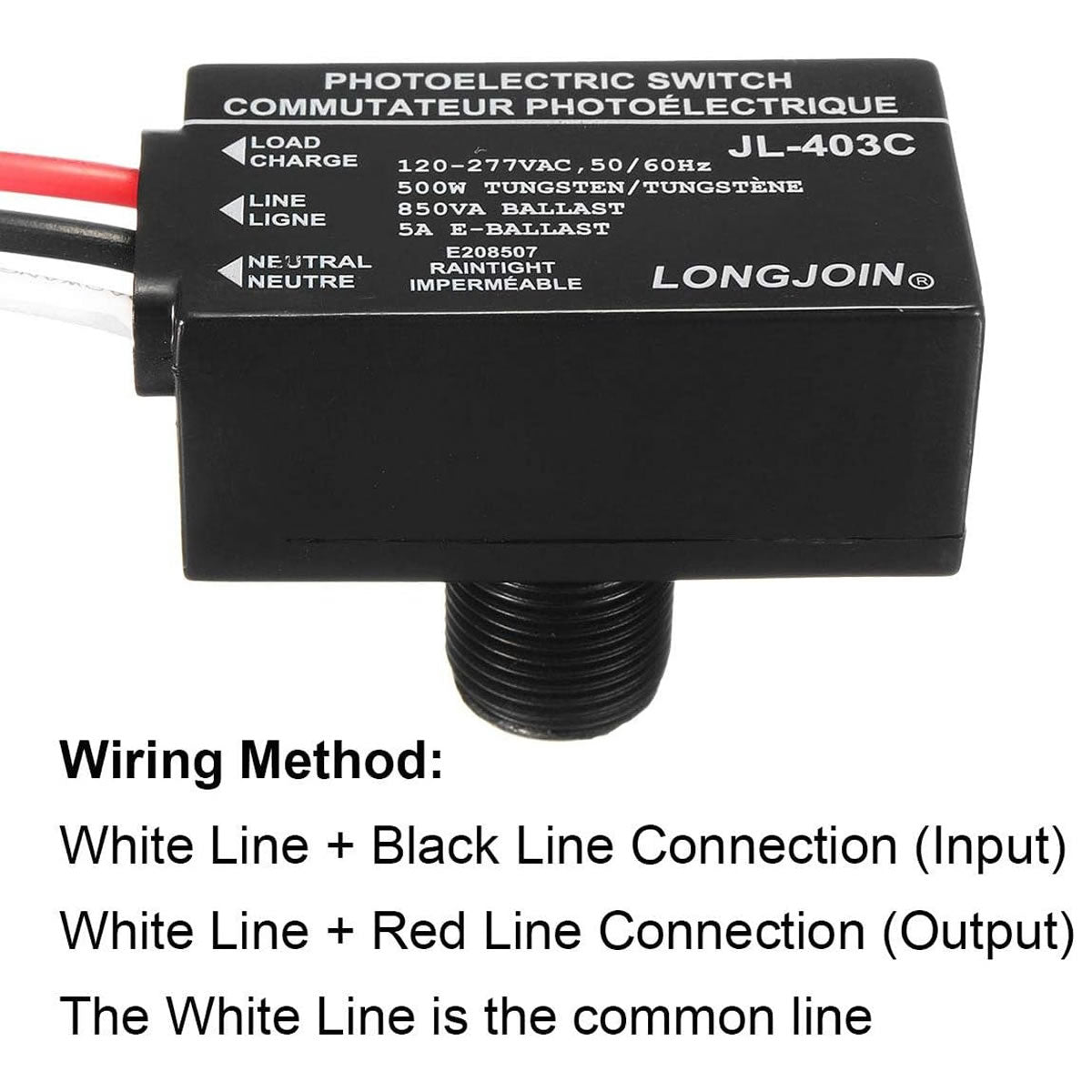

Light-sensitive photocell switches luminaires off when ambient light is present, and witches them on when ambient light is absent. Ideal for use with outdoor luminaires requiring photoelectric automation. Rain-tight for outdoor use. Preset time delay prevents unintended switching from flashes due to headlights, lightning, and other transitory lighting sources.

  • Rated Load (Tungsten lamp) - 500W
  • Rated Load (Ballasted Lamp) - 850VA
  • Works with LED, incandescent, HID and fluorescent light sources.
  • Heavy-duty, rain-proof, polycarbonate housing and lens
  • Photocell is 1/2" diameter CdS (cadmium-sulfide)
  • Universal 120-277 AC voltage (50-60Hz)
  • Presets 3 to 10 second time-delay prevents unintended switching due to momentary flashes of light.
  • Power consumption: 2W
  • Switches light source on when ambient light levels decrease to 1-2 foot-candles.
  • Switches light source off when ambient lighting levels increase to 3-8 foot-candles.
  • Suitable for ambient temperatures ranging from -40F to 158F, 99% relative humidity.
  • 5-Year Warranty

Mounts via 5/8" threaded, neoprene gasket and plastic nut to fixture knockout. 18AWG 6" power lead.

Specifications

Brand:
LumeGen
Case Qty:
1
Clearance:
Non-Clearance
Country Of Origin:
China
_PDF:
ledlhls1000050007-08-spec|pdf|Specification Sheet
Warranty:
5 Year
_MPN:
JL-403C
