Case of 2 - LED Linear High Bay - 300W - 42,000 Lumens - 5000K - 2-Pack Microwave Sensor - Jen Lighting

Jen Lighting Corp.

SKU:
LEDLHBY1000051855-5000K-KIT
MPN:
JEN-300W-X-50K (gen 2) | HD07VR-MH
Certified/Rated for 0 To 10v Dimmable Certified/Rated for Dlc Premium Certified/Rated for Fcc Compliant Certified/Rated for Ul Listed
$285.46
$285.46

Description

***Note: A 2 pack of Linear High Bays and the compatible 2 pack of motion sensors are included.***

LED Linear High Bay - LEDLHBY1000051855-5000K

This 300W LED Linear High Bay Light is the perfect energy-efficient indoor lighting solution for industrial, commercial, or residential location with high ceilings, like warehouses, gyms, barns, and supermarkets. The linear footprint is especially ideal for replacing fluorescent high bays that are used to light aisles, lanes, or hallways.

This 300W LED High Bay produces 42,000 lumens with an efficacy of 140 lumens per watt in 5000K. Equipped with a dimmable 120-277V LED driver, this UFO high bay light allows you to adjust the brightness over your space and save energy with a 0-10V dimmer. This fixture produces light equivalent to a 1000W Metal Halide high bay saving you up to 70% in energy and last up to 50,000 hours.

This high bay light is recommended for use on 25-35 feet ceilings. At 30 foot height, a spacing of 25 feet for a normal amount of light at floor level. Spacing of 20 feet will allow for a brighter light at floor level.

This LED high bay is constructed with a steel and aluminum body for excellent heat dissipation. A remote to program the sensor is available (SKU LEDLHMS1000054068) to purchase separately as well.

Product Dimensions: 35.1" L x 14.2" W x 1.87" D

Emergency Drivers

Constant-power emergency drivers with 90-minute run time are available to add on to your LED high bays to increase fire safety and comply with local fire safety codes. Check out our selection of LED emergency drivers.

This item is sold as a case of 2 fixtures.

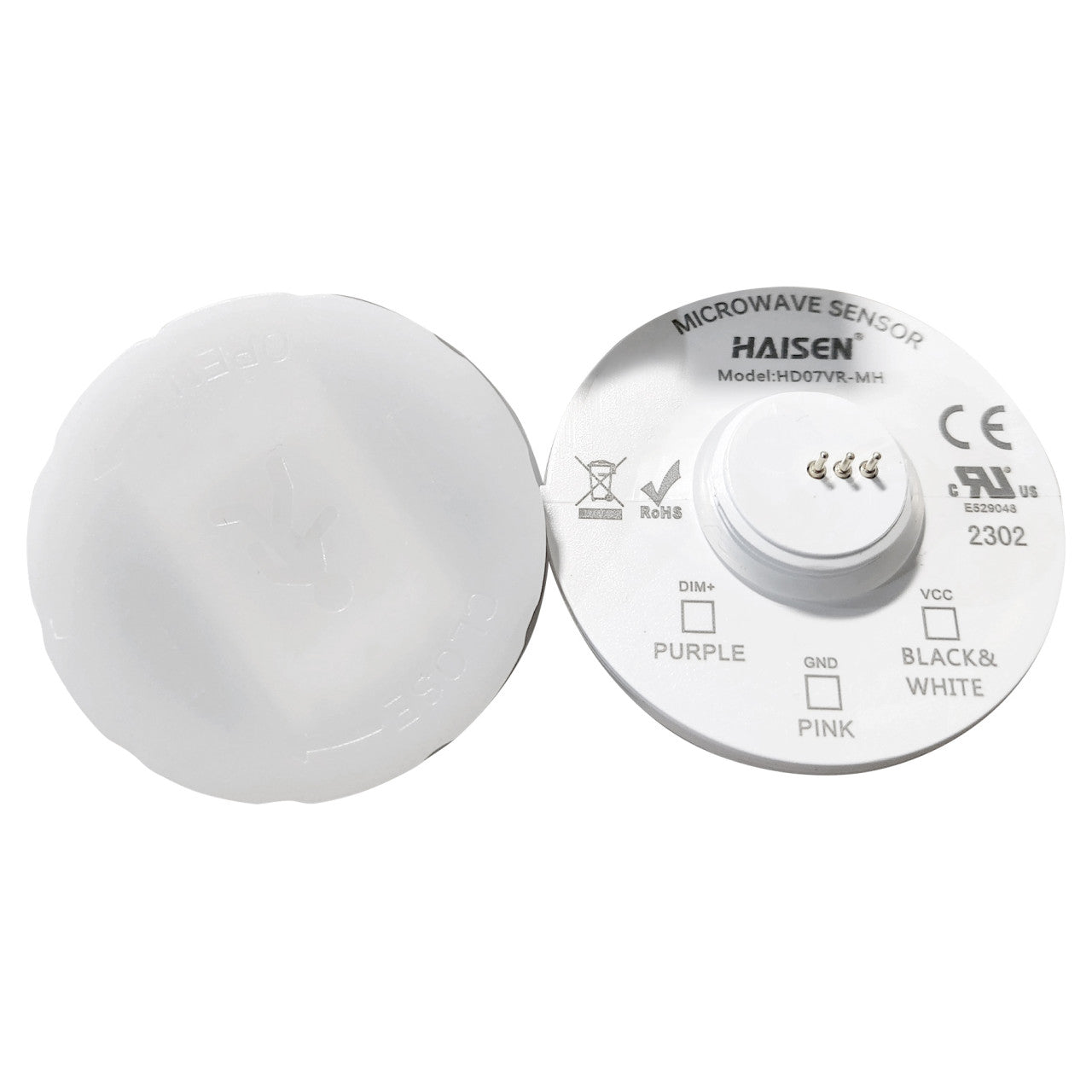

Motion Sensor - LEDLHMS1000051849

Transmitting and receiving antenna technology using planar microwave sensors automatically turn on/off the lights when it detects motion.

This motion sensor is an add-on for Jen Lighting UFO and Linear High Bay Light Fixtures. Requires remote control HD05R (SKU LEDLHMS1000054068 sold separately) in order to program this sensor from default settings.

Technical Specs (Default Settings):

  • Operating Voltage - 10-15VDC
  • Operating Current - 30mA
  • Output - Dim 0-10V
  • Stand-by Power - <0.5W
  • Hold Time - 5 seconds
  • Microwave Frequency -5.8GHz
  • Microwave Power - <0.3mW
  • Mounting Height - 19' Max
  • Detection Range - 9'
  • Operating Temperature - -4°F ~ 140°F
  • IP Rating - IP65

Extra Information

Brand:
Jen Lighting Corp.
Case Qty:
1
Clearance:
Non-Clearance
Country Of Origin:
China
_PDF:
ledlhby1000051732-ledlhby1000051733-spec-sheet|pdf|Specification Sheet
_PDF:
ledlhms1000051849-spec-sheet|pdf|Specification Sheet
CRI:
80
Life Hours:
50,000 Hours
Light Source:
LED
Lumens per Watt:
140 lm/W
Lumens:
42,000
Operating Temp - Low:
-20C / -4F
Operating Temp - High:
50C / 122F
Voltage:
AC120-277V
Features:
Dimmable
Features:
Great Heat Dissipation
Features:
Instant On
Features:
Long Life Span
Features:
Mercury Free
Features:
Warranty
Recommended Uses:
Recommended Uses:
Recommended Uses:
Recommended Uses:
Ratings and Certifications:
DLC Premium
Ratings and Certifications:
FCC Compliant
Ratings and Certifications:
UL Listed
Wattage:
300W
_MPN:
JEN-300W-X-50K (gen 2) | HD07VR-MH
_PDF:
jen-lighting-ledlhby1000051855-5000k-dlc-qpl|pdf|Jen Lighting S-4U7I1D DLC QPL (LEDLHBY1000051855)
HR-mail-only:
true
