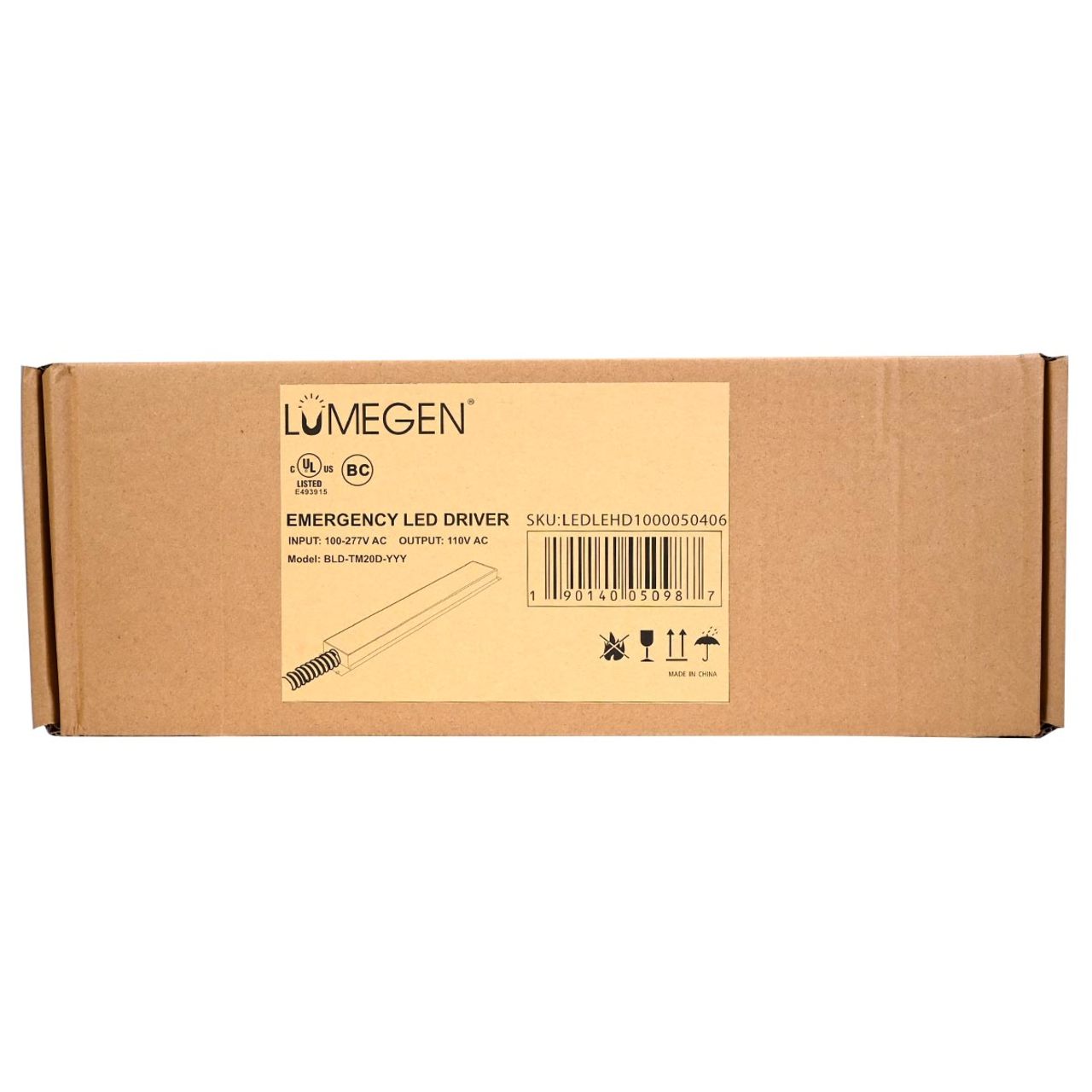

This 20W LED Emergency Driver is designed for LED luminaires ranging up to 20W such as LED downlights or LED Tubes. This emergency LED driver is wired directly into the AC input of the LED luminaire and can provide 100% lumen output for LED lights using 20W or less in the event of a power outage. This transfer of power happens quickly enough where the lights generally don't even go out keeping the area safely lit. The primary line power supply keeps the battery charged and ready to go in the event of a power disruption. This emergency LED driver provides enough power to light the fixture to allow illuminated egress in emergency situations for up to 90 minutes when fully charged. It meets or exceeds all NEC, IBC, and Life Safety Codes for Emergency lighting requirements.

This LED emergency driver requires a max input power of 12W and input voltage of 100-347V. It provides constant power output of 20W and output voltage of 170V AC. It is UL924 listed and tested to CSA 22.2, No. 141 for factory and field installation as well as complies to CA Title 20 battery charge efficiency standards. It is damp rated.

This emergency LED driver includes a 2-in-1 test switch and charge indicator that can be used to test the emergency function and monitor the operation status. Includes 18" flexible metal conduit pre-attached.

Electrical Specifications

Input Voltage: 100-347V AC, 50/60Hz

Output Voltage: 170V DC

Input Power: 12W max

Output Power: 20W

Emergency Time: 90 minutes

Battery: Li-ion

Charging Time: ≥24 hours

Ambient temperature: 41°F to 122°F

Warranty: 5 years

Product Dimensions: 13.78" L x 1.9" W x 0.94" D
