Description
This 25W LED Emergency Driver is designed for LED commercial downlights, LED strip lights, LED flat panels, LED troffers, LED high bays or any other LED luminaire 100W* or lower(*non 0-10V dimming luminaires 25W or less). This emergency LED driver is installed alongside the luminaire's normal driver and will kick into action when the emergency driver senses a power outage. This transfer of power happens quickly enough where the lights generally don't even go out keeping the area safely lit. The primary line power supply keeps the battery charged and ready to go in the event of a power disruption. This emergency LED driver provides enough power to light the fixture to allow illuminated egress in emergency situations for up to 90 minutes when fully charged. It meets or exceeds all NEC, IBC, and Life Safety Codes for Emergency lighting requirements.
This LED emergency driver requires an input power of 12W and input voltage of 100-347V. It provides constant power output of 25W and output voltage of 170V DC. It is UL924 listed and tested to CSA 22.2, No. 141 for factory and field installation as well as complies to CA Title 20 battery charge efficiency standards. It is damp rated.

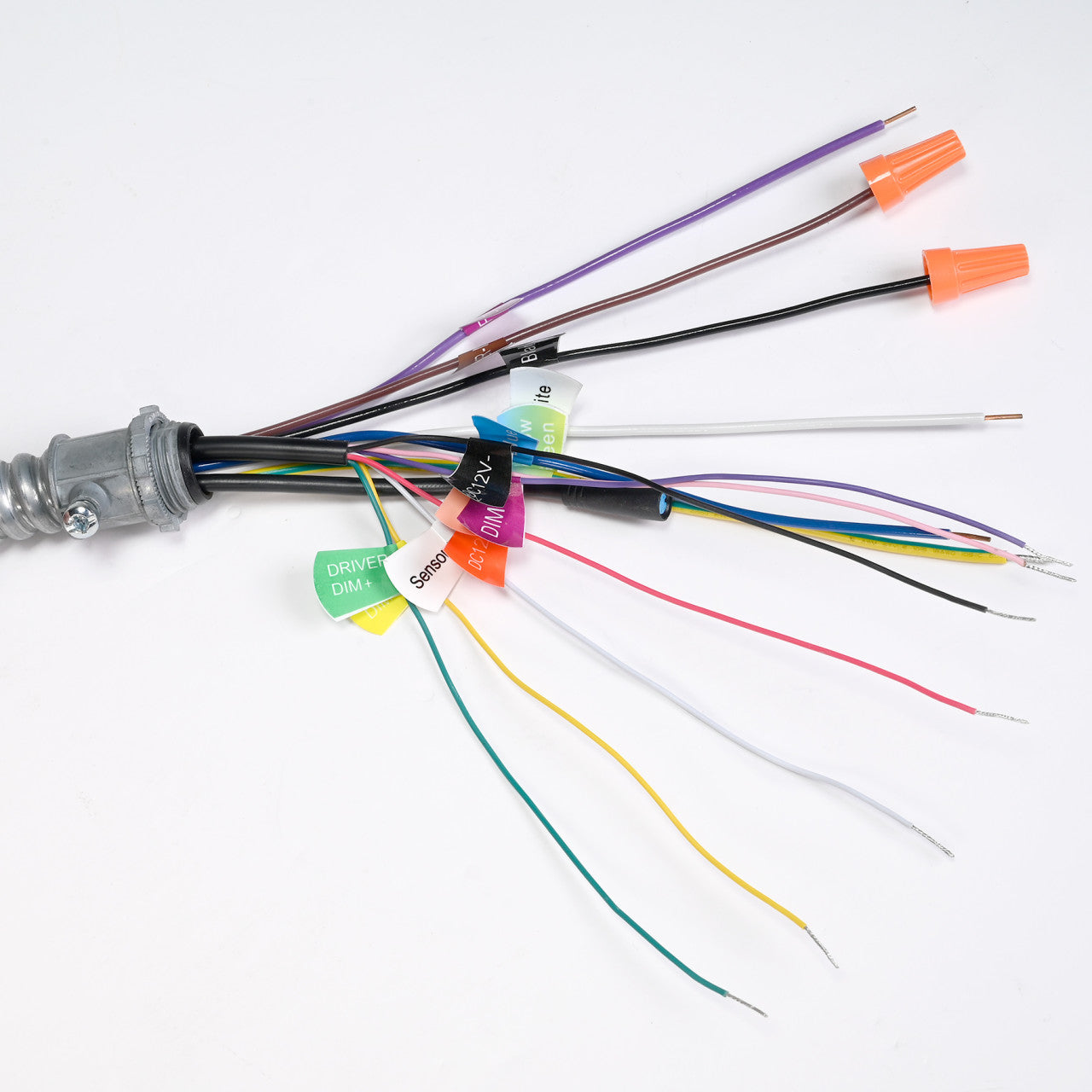

This emergency LED driver has built in self-diagnostic function to automatically conduct monthly 30-second and yearly 90-minute tests to ensure the backup is functioning properly. Includes 18" flexible metal conduit pre-attached.
Electrical Specifications
Input Voltage: 100-347V AC, 50/60Hz
Output Voltage: 170V DC
Input Current: ≤100mA
Input Power: 12W
Output Power: 25W
Emergency Time: 90 minutes
Battery: Li-ion
Charging Time: ≥24 hours
Ambient temperature: 32°F to 122°F
Warranty: 5 years
Product Dimensions: 13.78" L x 1.9" W x 0.94" D
