LED Area Light Shoebox | With Photocell & Square/Round Pole Mount Bracket

15% Off LED Tubes and 10% Off Parking Lot Area Lights| Automatically Applied in Cart.

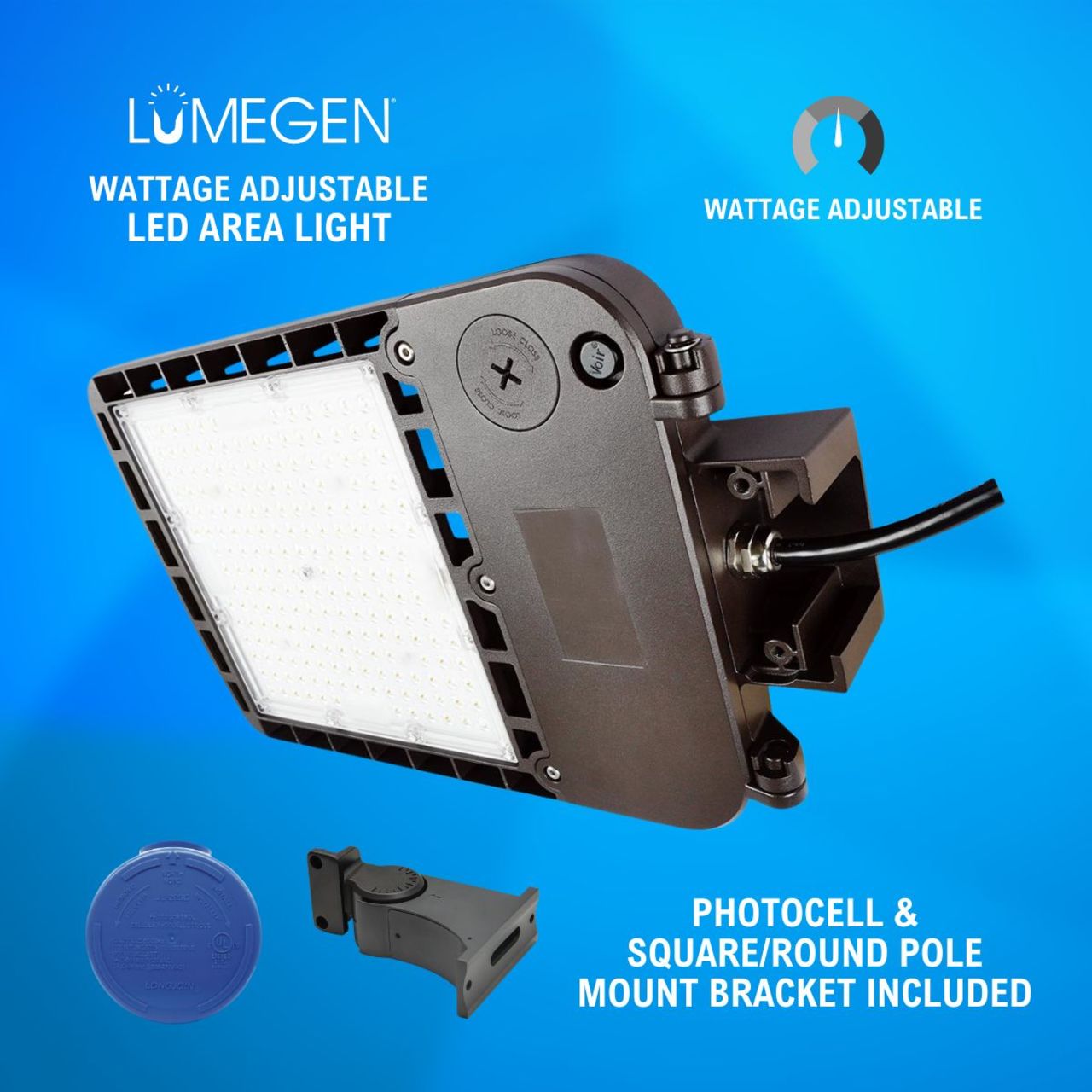

LED Area Light with Photocell and Square/Round Pole Mount Bracket - Wattage Adjustable 70W/100W/150W - 5000K - LumeGen

LumeGen

SKU:
LEDAREA1000050732-5KD-TB-P
MPN:
LG-AL-70/100/150W-H3-TP-50K (TB-P)
Certified/Rated for Dimmable Certified/Rated for Dlc Premium Certified/Rated for Fcc Compliant Certified/Rated for Ul Listed Certified/Rated for Wet Location Certified/Rated for 0 To 10v Dimmable
$97.99
$97.99

Description

Outdoor LED Shoebox Area Light - Parking Lot Lights and Other Commercial Site Lighting Applications

Included within this Kit:

  • 1 - LED Area Light
  • 1 - Type A Square/Round Pole Mount with Knuckle Bracket
  • 1 - AC120-277V Photocell Sensor

This Wattage Tunable LED Area Light is designed to illuminate roadways, walkways, parking lots, building exteriors, loading docks, and many other large outdoor areas. This LED area light represents the classic shape of an HID area light with thin profile and quicker installation process to reduce installation time by 50%. This LED area light is suitable for wet locations. It is suitable for a variety of mounting options (mounting adapters sold separately) and there is an available photosensor (sold separately) available for add-on.

This light uses a high efficiency LED driver with a wide range input voltage of AC 100-277V. It also uses BRIDGELUX 2835 LED Chips. It is equipped with Type III optics as well.

At 130 lumens per watt, this Wattage Selectable LED area light produces up to 19,500 lumens when operating at the highest wattage of 150W and 13,000 lumens at the 100W setting. It produces approximately 9,100 lumens at lowest setting of 70W.

This light is available in 5000K color temperature that is perfect for various outdoor applications. This area light boasts die-cast aluminum housing with a dark brown powder finish. Its lens is made of heat-resistant polycarbonate (PC) that is anti-UV and flame resistant. It is also IP65 rated meaning it is dust-tight and can withstand jets of water to ensure a long lifespan out in the elements.

LED Area Light Photocell - Dusk to Dawn Fixture

This area light comes with a shorting cap and a Photocell sensor SKU LEDLHLS1000050732, which can make this fixture Dusk to Dawn.

This LED area light is also DLC Premium V5.1 listed meaning it is highly energy efficient and may qualify for utility rebates in certain areas. Check out our Rebate Assistant tool to find if this product qualifies for you!

Shop our Commercial Lighting for a selection of lighting to fit your needs for various commercial applications.

Product Dimensions - 15.9" L x 9.8" W x 2.6" H

What are area lights?

Area lights are used to illuminate large outdoor areas including but not limited to parking lots, student or work campuses, The main purpose other than illumination is safety. Area lights can be mounted in a variety of ways making them ideal for numerous applications.

Extra Information

Brand:
LumeGen
Case Qty:
1
Clearance:
Non-Clearance
Country Of Origin:
Viet Nam
_PDF:
lumegen-warranty|pdf|LumeGen Warranty
_PDF:
ledarea1000050733-5k-im|pdf|Instruction Manual
_PDF:
ledarea1000050732-5k-photometric-report|pdf|Photometric Test Report - 5000K
_PDF:
ledarea1000050732-33-spec-sheet-final|pdf|Specification Sheet
_PDF:
lumegen-ledarea1000050732-5k-dlc-qpl|pdf|LumeGen Q4G3U6 DLC QPL
Lowest Bulk Price:
97.99
Color Temp / CCT:
5000K
CRI:
80
Life Hours:
50,000 Hours
Light Source:
LED
Lumens per Watt:
130 lm/W
Lumens:
9100/13,000/19,500
Lumens Range:
15,000 -20,000 Lumens
Operating Temp - Low:
-40C / -40F
Operating Temp - High:
50C / 122F
Voltage:
AC120-277V
Wattage:
Wattage Adjustable 70W/100W/150W
Color:
5000K Daylight
Ratings and Certifications:
DLC Premium
Ratings and Certifications:
FCC Compliant
Ratings and Certifications:
UL Listed
Ratings and Certifications:
Wet Location
Features:
Warranty
Features:
IP65
Features:
Wattage Adjustable
Recommended Uses:
Recommended Uses:
Recommended Uses:
Recommended Uses:
Recommended Uses:
Recommended Uses:
_MPN:
LG-AL-70/100/150W-H3-TP-50K (TB-P)
LED Chip Type:
BRIDGELUX 2835 LED Chips
Lens Material:
heat-resistant polycarbonate (PC) lens, anti-UV and flame resistant
HR-mail-only:
true
Right Overlay Image:
New on Lightup.png
