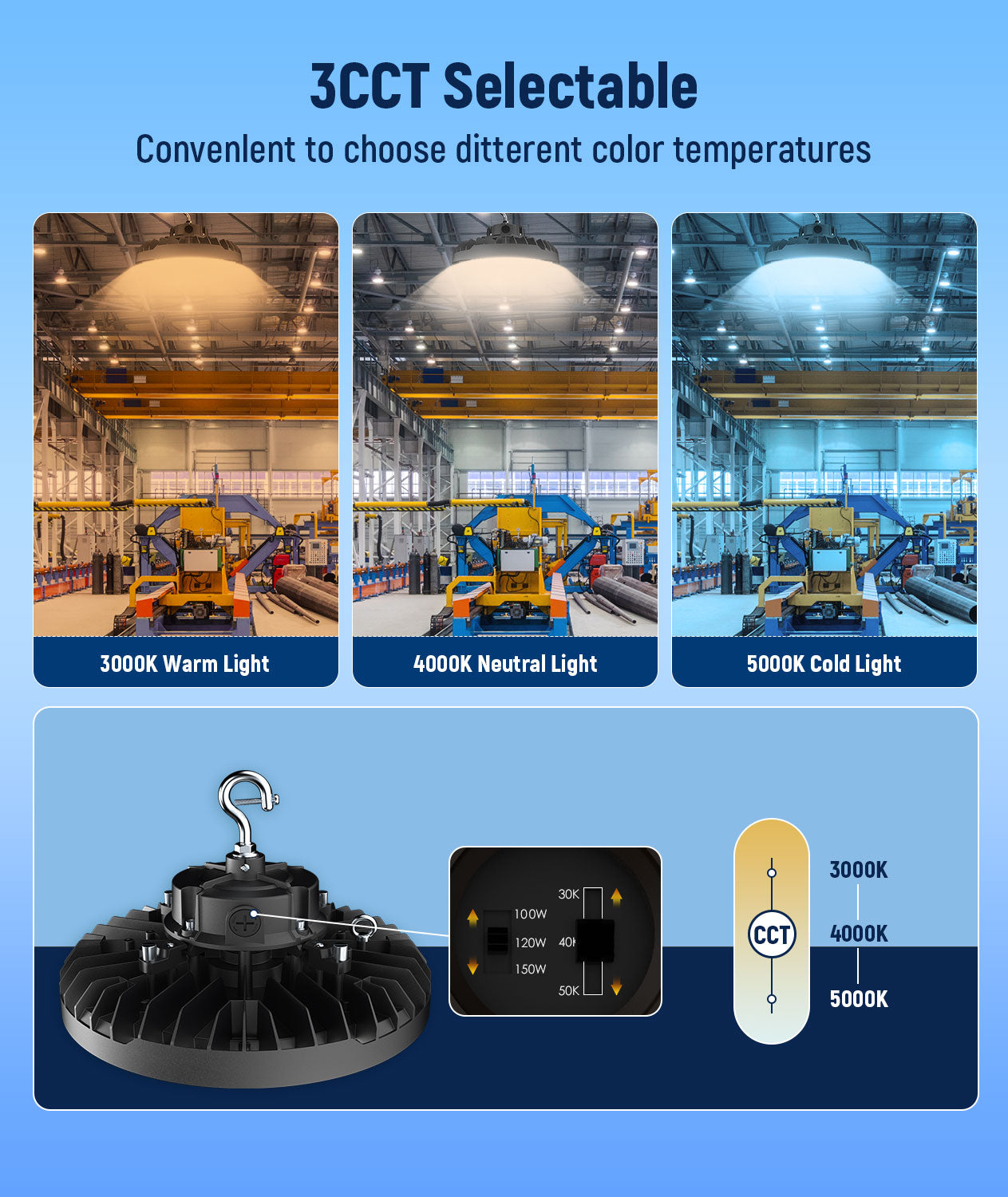

LED Wattage Adjustable UFO High Bay - 100W/150W - 5000K - Jen Lighting & Microwave Highbay Sensor - 12VDC

Jen Lighting Corp.

SKU:
LEDRUFO1000051734-5000K-KIT
MPN:
JEN-UFO-150/100/100W-H-TP(50) | HD07VR-MH
Certified/Rated for 0 To 10v Dimmable Certified/Rated for Dlc Premium Certified/Rated for Fcc Compliant Certified/Rated for Ul Listed Certified/Rated for Wet Location
$65.00
$65.00

Description

***Note: Both the UFO High Bay and the compatible motion sensor are included.***

UFO High Bay - LEDRUFO1000051734-5000K

This Wattage Adjustable LED UFO High Bay Light is the perfect energy-efficient indoor lighting solution for industrial, commercial, or residential location with high ceilings, like warehouses, gyms, barns, and supermarkets. The round footprint is especially ideal for replacing metal halide high bays that are used to light large open areas like warehouses, storage facilities, or gymnasiums.

This Wattage Adjustable (100W/150W) LED UFO produces 14,000/21,000 lumens with an efficacy of 140 lumens per watt in 5000K. Equipped with a dimmable 100-277V LED driver, this high bay light allows you to adjust the brightness over your space and save energy with a 0-10V dimmer. This fixture produces light equivalent to a 400W Metal Halide high bay saving you up to 60% in energy and last up to 50,000 hours.

This high bay light is recommended for use on 10-15 feet ceilings. At 15 foot height, a spacing of 15 feet for a normal amount of light at floor level. Spacing of 12 feet will allow for a brighter light at floor level.

This UFO high bay includes a suspension hook for suspension mounting.

A remote to program the sensor is available (SKU LEDLHMS1000054068) to purchase separately as well.

Emergency Drivers

Constant-power emergency drivers with 90-minute run time are available to add on to your LED high bays to increase fire safety and comply with local fire safety codes. Check out our selection of LED emergency drivers.

Motion Sensor - LEDLHMS1000051849

Transmitting and receiving antenna technology using planar microwave sensors automatically turn on/off the lights when it detects motion.

This motion sensor is an add-on for Jen Lighting UFO and Linear High Bay Light Fixtures. Requires remote control HD05R (SKU LEDLHMS1000054068 sold separately) in order to program this sensor from default settings.

Technical Specs (Default Settings):

  • Operating Voltage - 10-15VDC
  • Operating Current - 30mA
  • Output - Dim 0-10V
  • Stand-by Power - <0.5W
  • Hold Time - 5 seconds
  • Microwave Frequency -5.8GHz
  • Microwave Power - <0.3mW
  • Mounting Height - 19' Max
  • Detection Range - 9'
  • Operating Temperature - -4°F ~ 140°F
  • IP Rating - IP65

Extra Information

Brand:
Jen Lighting Corp.
Case Qty:
1
Clearance:
Non-Clearance
Country Of Origin:
China
_PDF:
ledrufo1000051734-ledrufo1000051735-spec-sheet|pdf|Specification Sheet
_PDF:
ledlhms1000051849-spec-sheet|pdf|Specification Sheet
Color Temp / CCT:
5000K
CRI:
80
Life Hours:
50,000 Hours
Light Source:
LED
Lumens per Watt:
140 lm/W
Lumens:
21,000
Operating Temp - Low:
-40C / -40F
Operating Temp - High:
60C / 140F
Voltage:
AC120-277V
Color:
5000K Daylight
Features:
Warranty
Features:
Wet Rated
Recommended Uses:
Recommended Uses:
Recommended Uses:
Recommended Uses:
Recommended Uses:
_MPN:
JEN-UFO-150/100/100W-H-TP(50) | HD07VR-MH
Wattage:
100W
Ratings and Certifications:
DLC Premium
Ratings and Certifications:
FCC Compliant
Ratings and Certifications:
UL Listed
Ratings and Certifications:
Wet Location
_PDF:
jen-lighting-ledrufo1000051734-5000k-dlc-qpl|pdf|Jen Lighting S-P42E7O DLC QPL
