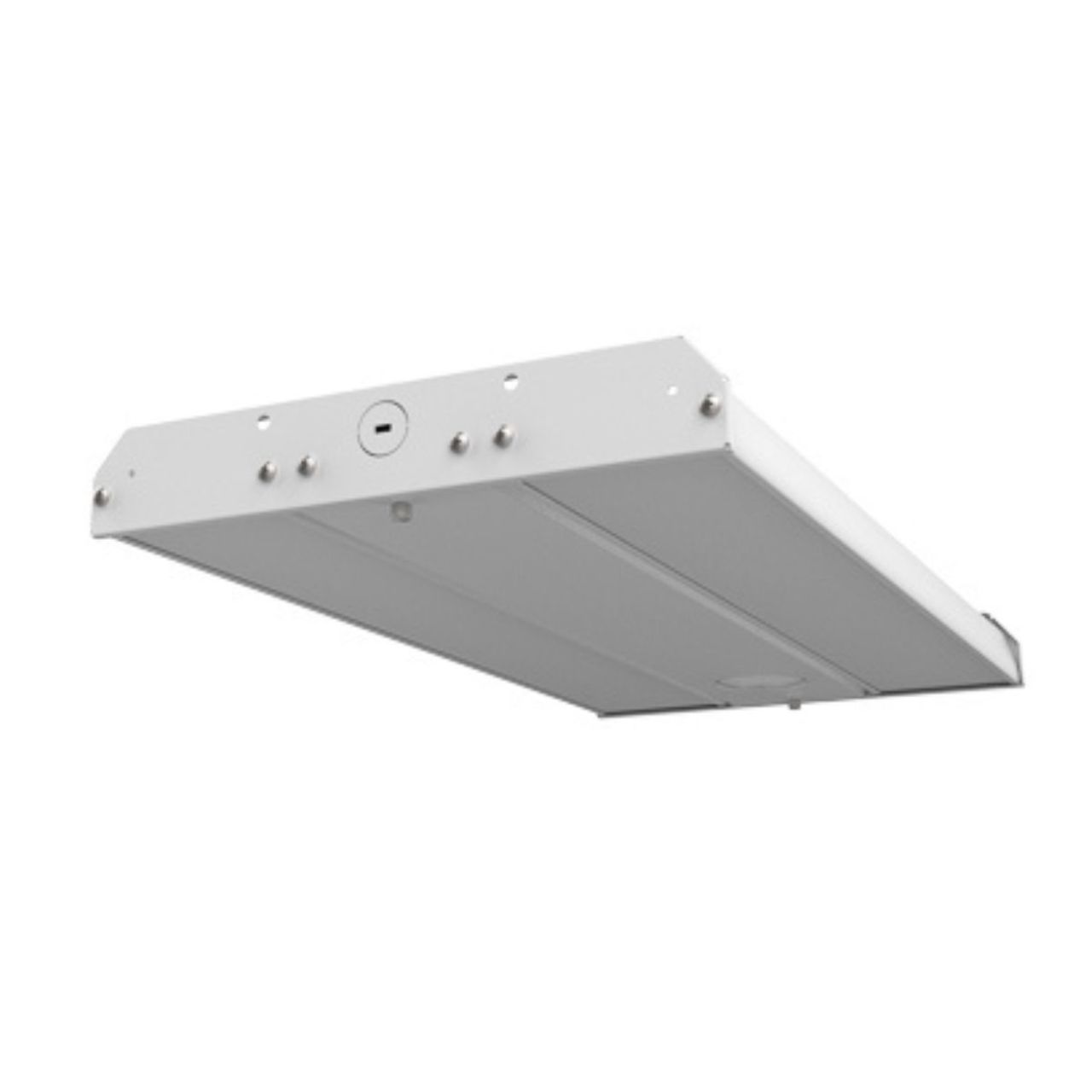

LED Linear High Bay - Wattage Selectable up to 200W - Color Selectable - Energetic Lighting

LEDLNHB100165488
LHBANP300SE84050
UPC:
845940015376
$109.99
Availability:
In Stock: Ships in 4 to 5 business days

LED Linear High Bay - Wattage Selectable up to 200W - Color Selectable - Energetic Lighting

LEDLNHB100165488
LHBANP300SE84050
845940015376
New
New
Certified/Rated for Etl Listed Certified/Rated for Title 24 Compliant

Description

LED Linear High Bay - Wattage Selectable up to 200W - Color Selectable - Energetic Lighting

This Wattage and Color Selectable LED Linear High Bay from Energetic Lighting combines cutting-edge features and versatile design, offering the perfect solution for efficient, customizable lighting in demanding commercial and industrial spaces. With advanced field-selectable options and compact engineering, these fixtures provide exceptional flexibility and performance.

Key Features:

  • EZCCT Field-Selectable CCT: Choose between 4000K and 5000K color temperatures, both delivering >90 CRI for vibrant, true-to-life illumination.
  • EZWATT Field-Selectable Wattage: Adapt the wattage to meet specific lighting requirements, maximizing energy efficiency.
  • Suspension Chain Hardware: Included for quick and secure installations.
  • Advanced Heat Sink Design: Efficient fins ensure optimal LED performance by maintaining ideal operating temperatures.
  • Slim Housing Profile: Ultra-thin design minimizes plenum space requirements for seamless installation.
  • Versatile Conduit Knockouts: Multiple trade-size knockouts positioned at both ends and the back for flexible wiring configurations.

Applications:

  • Warehouses
  • Manufacturing Facilities
  • Retail Spaces

Specifications

  • Wattage Adjustable 120W/160W/200W
    • 120W - 18,000 Lumens
    • 160W - 24,000 Lumens
    • 200W - 30,000 Lumens
  • 4000K, 5000K Selectable Color Temperature
  • 82 CRI
  • 120-277V
  • 0-10V Dimming
  • ETL Listed and Title 24 Compliant

Dimensions: 15.85" L x 10.79" W x 1.85" H

From commercial and residential lighting fixtures to electrical accessories, Energetic Lighting has lighting and accessories to fit your needs. Shop Now!

Specifications

Brand:
Energetic Lighting
Clearance:
Non-Clearance
Country Of Origin:
China
_MPN:
LHBANP300SE84050
__badge:
New
Case Qty:
1
_PDF:
energetic-lighting-lhba-ledlnhb100165488-65489-spec|pdf|Specification Sheet
CRI:
82
Light Source:
LED
Lumens per Watt:
145 lm/W
Lumens:
18,000-30,000
Lumens Range:
20,000-29,999 Lumens
Operating Temp - Low:
-20C / -4F
Operating Temp - High:
50C / 122F
Voltage:
AC120-277V
Warranty:
5 Year
Wattage:
Wattage Adjustable 120W/160W/200W
Dimmable:
Dimmable
_wattage_range:
100W-149W
_wattage_range:
150W-199W
_wattage_range:
200W-249W
Color Temp / CCT:
4000K
Color Temp / CCT:
5000K
Color Temp / CCT:
Color Tunable
Color:
Color Tunable 4000K-5000K
Ratings and Certifications:
ETL Listed
Ratings and Certifications:
RoHS Compliant
Ratings and Certifications:
Title 24 Compliant
Recommended Uses:
Recommended Uses:
