MCU + Triac LED Dimmer - 120V - 60Hz - 200W Max - Single Pole/3-Way - Button Switch - LumeGen

LEDDMMR1000050001
LG-TRCDM-120-200W/600W-BTN-WH
$14.99 $19.99 25% off
Availability:
In Stock

MCU + Triac LED Dimmer - 120V - 60Hz - 200W Max - Single Pole/3-Way - Button Switch - LumeGen

LEDDMMR1000050001
LG-TRCDM-120-200W/600W-BTN-WH
Price Drop!
Price Drop!

Description

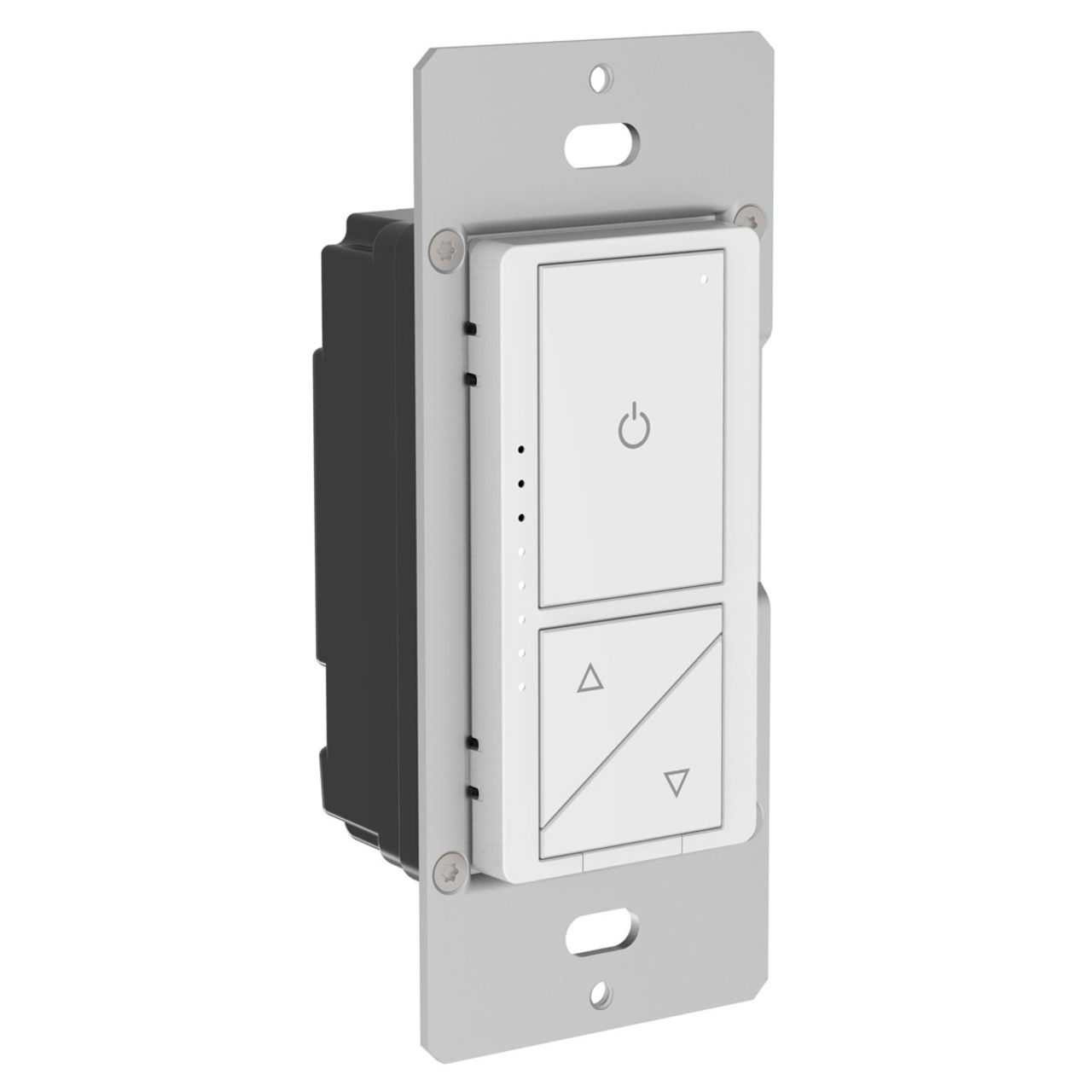

This MCU + triac LED dimmer features a button switch with remote control works with both LED lamps, dimmable CFL lamps, incandescent and halogen lamps. This dimmer can be used in single pole or 3-way applications.

Additional Specifications:

  • Rated Voltage: 120V
  • Rated Frquency: 60Hz
  • Rated Wattage: 600W
  • Load Range:
    • Incandescent: 15W-600W
    • LED/CFL: 3W-200W
  • Dimming Method: Phase-Cut
  • Dimensions: 4.1" L x 1.7" W x 1.2" H

***Please note that the main image for this dimmer also shows a white wall plate installed. The wallplate can be added at no charge by selecting the "White Wall Plate ($0.00)" drop down option under accessories! If the wall plate is not selected when adding to cart, it will not be included! This device works with standard size decorator wall plates.

Check out all that LightUp has to offer on weekly specials, new products, categories and more on our home page!

Specifications

Brand:
LumeGen
Case Qty:
1
Clearance:
Non-Clearance
Country Of Origin:
China
Warranty:
1 Year
_MPN:
LG-TRCDM-120-200W/600W-BTN-WH
_PDF:
leddmmr1000050001-im-final|pdf|Instruction Manual
Operating Temp - Low:
0C / 32F
Operating Temp - High:
40C / 104F
__badge:
Price Drop!
Lowest Bulk Price:
14.99
Dimmable:
Dimmable
