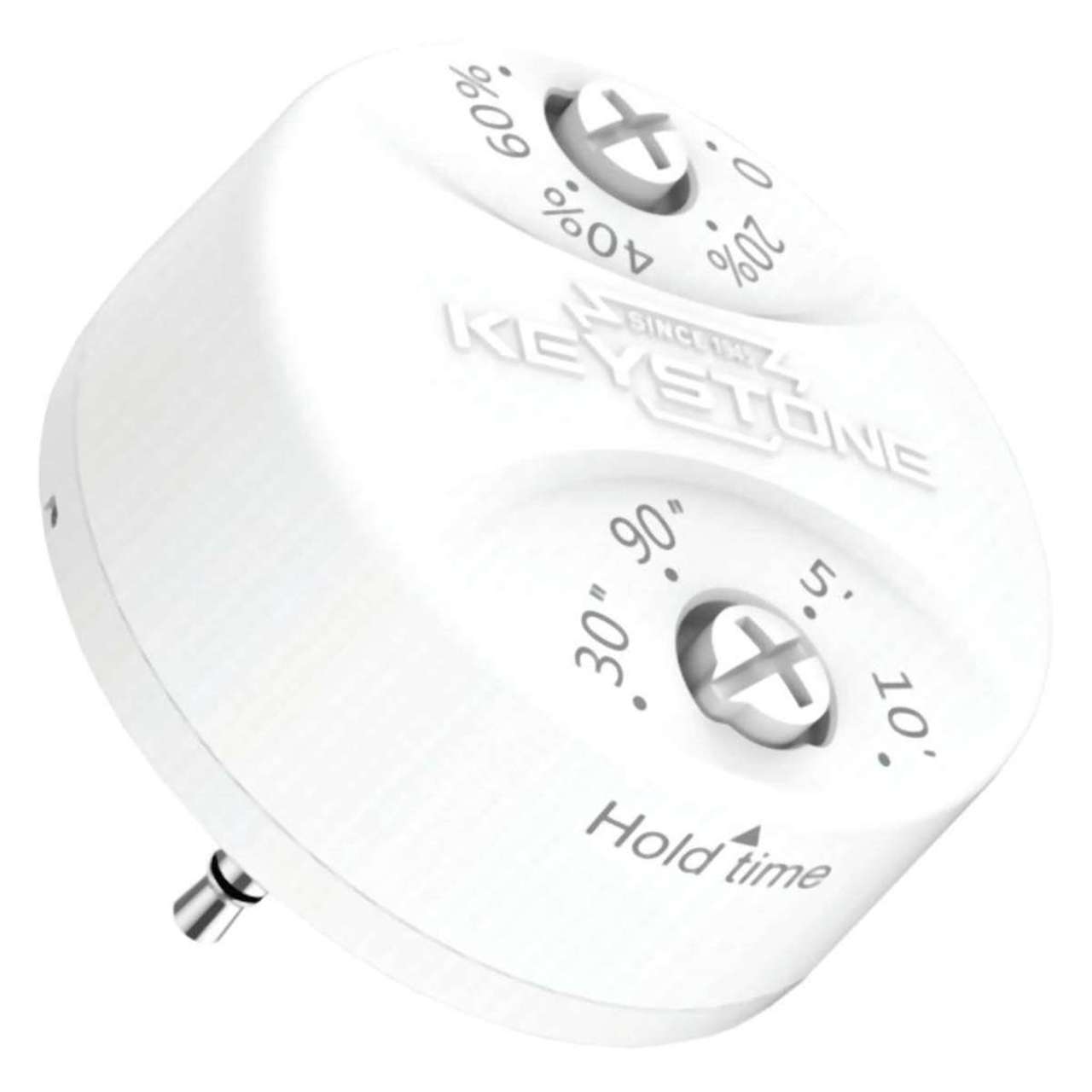

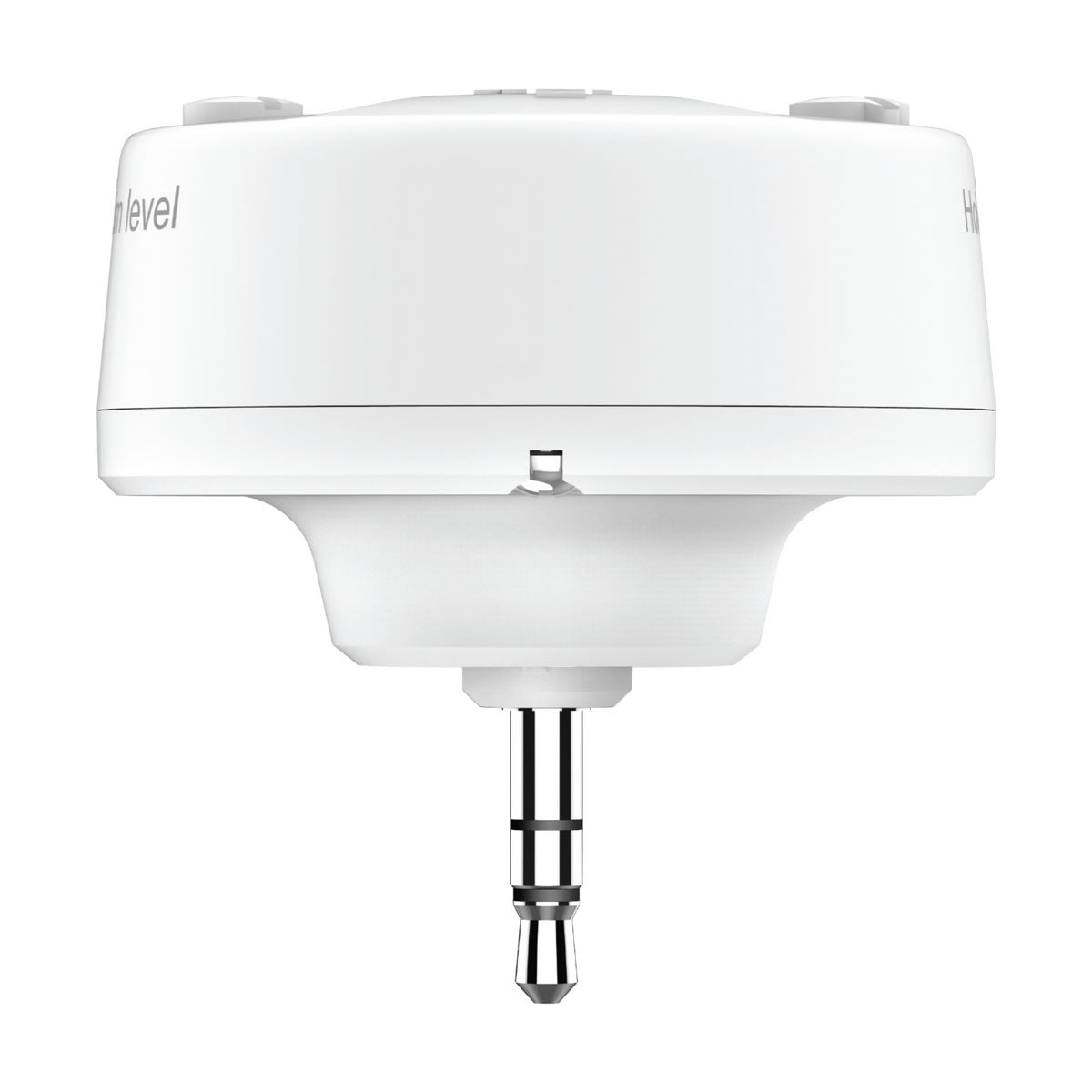

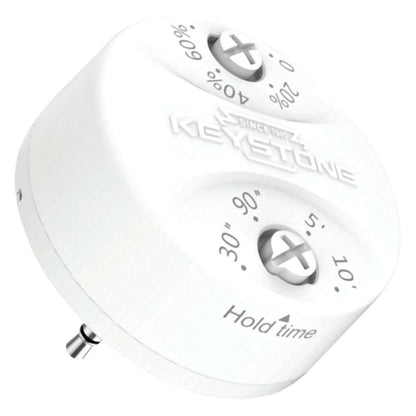

This LED Microwave Occupancy Sensor from Keystone is used for a number of applications including corridors, stairwells, restrooms, courtyards, doorways, parking lots, gas station, and warehouses. It is compatible with the below Keystone Corn Cob Retrofit Bulbs:
- LEDCORN1000051504
- LEDCORN1000051505
- LEDCORN1000051506
- LEDCORN1000051507
- LEDCORN1000051508
- LEDCORN1000051509
- LEDCORN1000051510
- LEDCORN1000051511
This occupancy sensor has an On/Off with adjustable standby dimming level and features 12V input. The connection method is through the 3.5mm standard AUX port. It is also able to operate in a range of temperatures including -4ºF/-20ºC to 140ºF/60ºC. Additionally, this occupancy sensor features the following specs:
- Input Voltage: 12V
- Input Frequency: 5.8GHz
- Output Voltage: 0-10V
- Operating Current: 20mA
- Transmit Power: 1mW

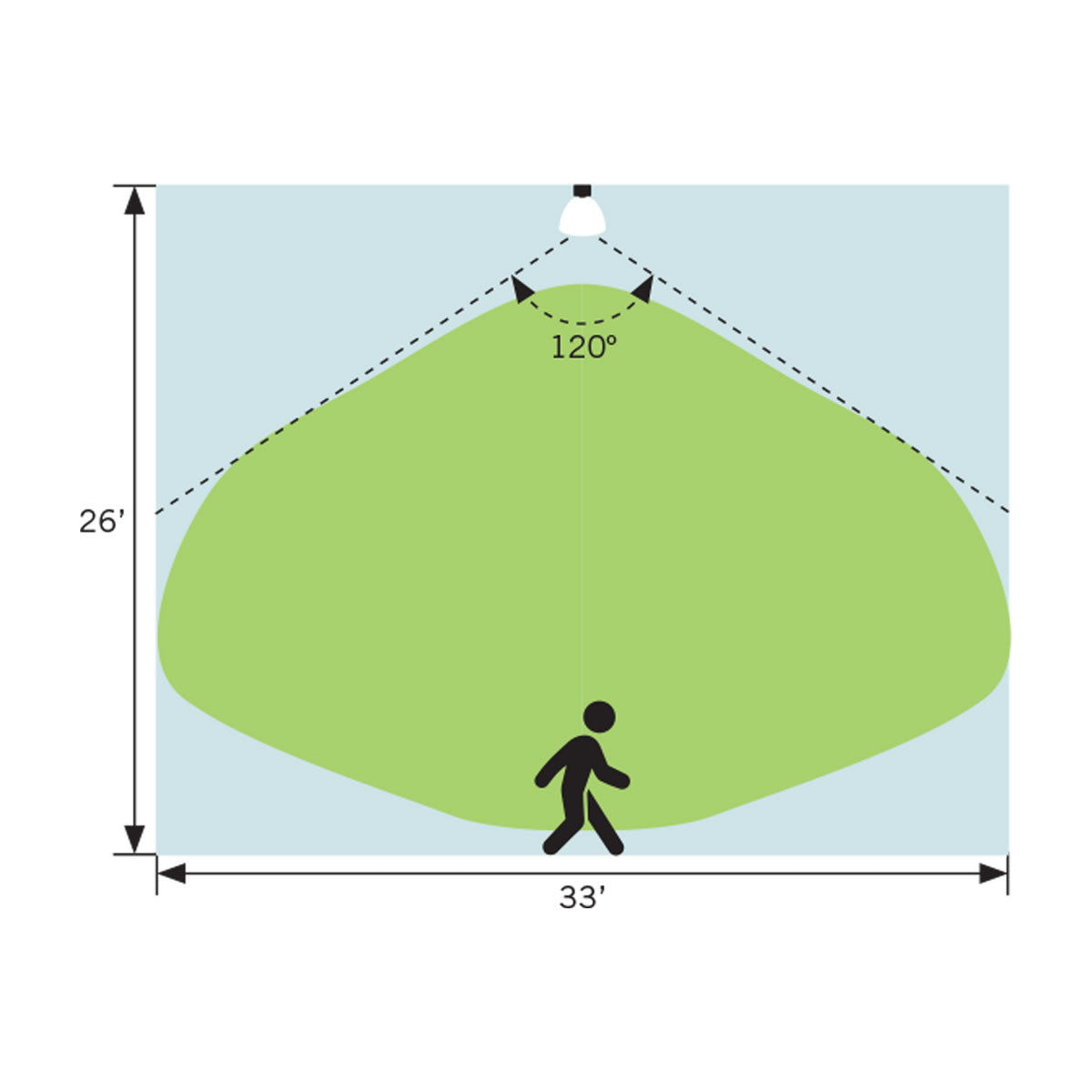

- Detection Angle: 120 Degrees
- Max Mounting Height: 26ft.
- Detection Radius (at Max Mounting Height): 16.5ft.
- Standby Dimming Levels: 0%, 20%, 40%, 60%
- Hold Time Options: 30 seconds, 90 seconds, 5 minutes, 10 minutes
Product Dimensions: 1.75" H x 1.69" Dia.
Product Specifications
Brand: Keystone
Case Qty: 1
Clearance: Non-Clearance
Country of Origin: China
Voltage: 12 V
Warranty: 5 Year
Color: White
Dimmable: Dimmable
Light Fixture Type: Photo Sensor
