Case of 25 - T5 4ft. LED Tube - 24 Watt - Direct Wire - Double Ended Power - 3600 Lumens - Frosted Lens - 4000K

XSY
LEDT54F1000051346-4000K-25PK
ORM-T51224B-4K
UPC:
190140068708
$219.99
Availability:
In Stock

Case of 25 - T5 4ft. LED Tube - 24 Watt - Direct Wire - Double Ended Power - 3600 Lumens - Frosted Lens - 4000K

XSY
LEDT54F1000051346-4000K-25PK
ORM-T51224B-4K
190140068708
25 Pack
25 Pack
Certified/Rated for Etl Listed

Description

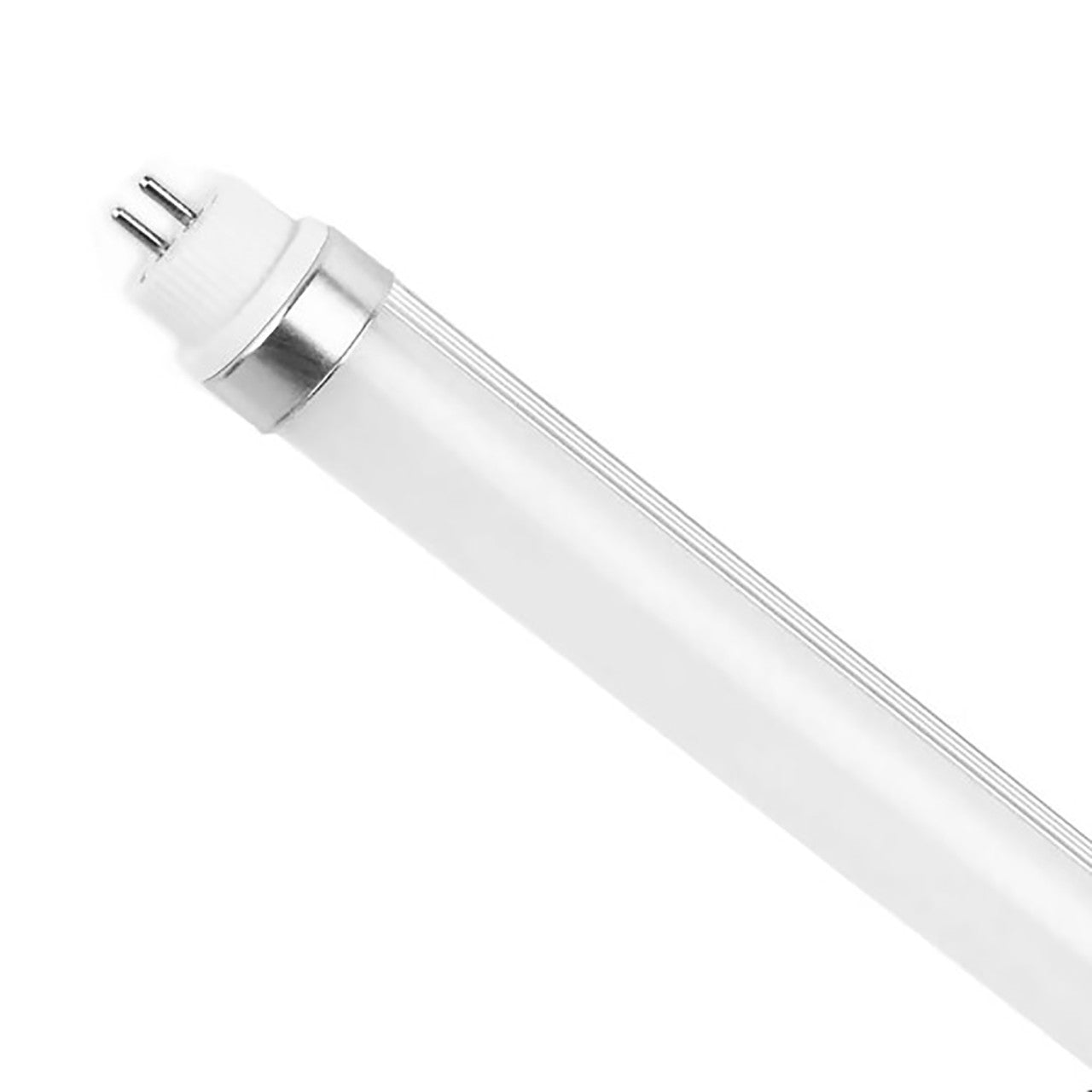

This 4ft. LED T5 Direct Wire Tube is a perfect pick for any commercial or residential setting. The material of this tube is plastic. This is a direct replacement for a F54T5HO fluorescent tube. Ballast must be bypassed.

Notable Specs:

  • Case of 25
  • Type B
  • 4ft. Nominal Length (46in. Actual Length)
  • 24W
  • 54W Fluorescent Tube Equivalent
  • 3600 Lumens
  • Available in 4000K Color Temperature
  • 140° Beam Angle
  • AC120-277V Input Voltage
  • Double Ended Power
  • Polycarbonate (PC) plastic lens with aluminum back
  • Non-Dimmable
  • ETL Listed

Discover the Benefits of Plug and Play LED Tubes

Plug and Play LED Tubes are here to stay! They make it easy to replace fluorescent tubes and upgrade your space with bright LED light. Plug and play tubes are easy to install. The process is easy as Step 1, 2, and 3.*

  1. Turn off power to the light being changed before installation using the switch on the breaker panel.
  2. Remove the fluorescent tubes. Remember - Fluorescent tubes contain mercury and should be disposed of properly.
  3. Install the LED tubes and turn the power back on.

*Please make sure to read the instruction manual of the LED tubes and fixture the tubes are being installed into as the above instructions may not be 100% correct per the specific tubes or product.

Can you put led tube lights in a fluorescent fixture? Can I replace my fluorescent T8 linear bulbs with LEDs?

Yes! LED Tubes can be installed into a fluorescent fixture. When tubes are Type A + B. Type A or Type B, it is easy to replace those flickering fluorescents. A brief explanation of Type A and B LED linear tubes is below.

Type A LED Linear Tubes are often called "plug and play" tubes. This is because they can simply be installed into the existing fixture.

Type B LED Linear Tubes are often referred to as "ballast bypass." They work with all fluorescent fixtures including ballast-free fixtures. Type B linear tubes power goes directly to the lamp sockets and no longer through the ballast.

Type A + B can be used with or without a ballast. It is ultimately the buyer's preference what they want to do. Type A installation uses the LED Tube + Ballast power for more energy consumption compared to Type B installation only uses the raw tube power and is more energy-efficient.

What does ballast bypass mean? How does ballast bypass work?

Ballast bypass means when installing the LED linear tube, the fixture's ballast will need to be removed first. The power will then go directly to the lamp sockets and no longer through the ballast. The benefits of ballast bypass LED replacement tubes include lights not being shut down by a ballast failure, no more ballast replacements, and savings on the energy bill because energy is no longer drawing from the ballast.

Emergency Drivers: Constant-power emergency drivers with 90-minute run time are available to add on to your LED high bays to increase fire safety and comply with local fire safety codes. Check out our selection of LED emergency drivers.

Contact our Wholesale Department if you have a large project and want to explore a volume discount on your order.

Check out all that LightUp has to offer on weekly specials, new products, categories and more on our home page!

Specifications

Brand:
XSY
Case Qty:
25
Clearance:
Non-Clearance
Country Of Origin:
China
Beam Angle:
140 Degrees
Color Temp / CCT:
4000K
CRI:
80
Life Hours:
50,000 Hours
Light Source:
LED
Lumens per Watt:
150 lm/W
Lumens Range:
3,000 - 5,000 Lumens
Length:
4 ft.
Voltage:
AC120-277V
Warranty:
5 Year
Color:
4000K Bright White
Recommended Uses:
_PackQty:
25
_MPN:
ORM-T51224B-4K
Lumens:
3600
_PDF:
ledt54f1000051346-spec-sheet|pdf|Specification Sheet
Lamp Shape:
T5
LED Tube Compatibility:
Type B - Direct Wire / Ballast Bypass
LED Tube Power Operation:
Double Ended Power
Wattage:
24W
Ratings and Certifications:
ETL Listed
Lens Material:
Polycarbonate (PC) plastic lens
HR-mail-only:
true
__badge:
25 Pack
Dimmable:
Non-Dimmable
_wattage_range:
20W-29W
