Case of 4 - 1x4 LED Flat Panel Light - Wattage Adjustable 20W/30W/40W - Color Tunable 35K/40K/50K/57K/65K - LumeGen

LumeGen

SKU:
LEDLFPN1000050532
MPN:
LG-BLPL-14-40W-XY-TCP
Certified/Rated for 0 To 10v Dimmable Certified/Rated for Dlc Premium Certified/Rated for Fcc Compliant Certified/Rated for Etl Listed
$159.52
UPC:
190140287406
$159.52

$39.88 each

Availability:
In Stock

Description

This 1x4 Wattage Adjustable and Color Tunable LED Backlit Flat Panel is the perfect replacement for fluorescent troffers in new or remodel applications. Designed to fit in a conventional suspended grid ceilings for new construction or retrofit applications. They can be adjusted between 3 different wattages and 5 different color temperatures. LED flat panels will save you both energy and maintenance costs of replacing fluorescent tubes. They are perfect for areas where you need bright, even light such as schools, universities, offices, hospitals, hotels, or any other indoor areas with a drop ceiling.

This 1x4 LED Backlit Flat Panel is easy to install, just wire the fixture and lift into place in the drop t-grid ceiling. The LED panel weights less and has a more compact design compared to fluorescent troffers which will save you time installing the fixture. The integrated LEDs mean you no longer have to change bulbs as the LEDs will last the life of the fixture. LEDs last 2-3 times longer than old fluorescent tubes and contain no harmful chemicals! Plus LED flat panels do not have a hinged door meaning no more dead bugs or debris in the lens!

This LED panel light is wattage selectable meaning you can select between 20W, 30W, and 40W. At 125 lumens per watt, each wattage provides approximately the following amount of light:

  • 20W = 2500 Lumens
  • 30W = 3750 Lumens
  • 40W = 5000 Lumens

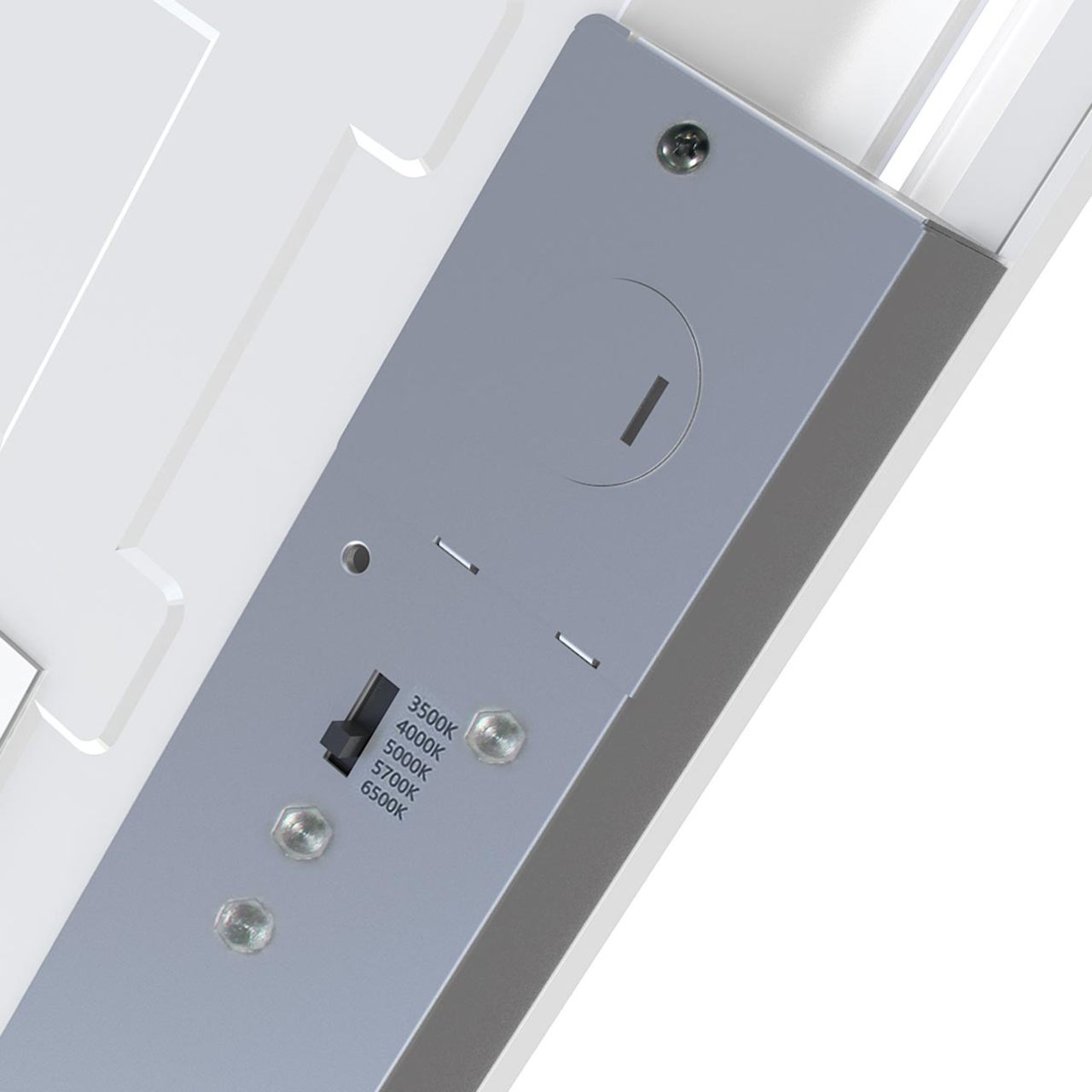

In addition to being wattage selectable, this LED panel light is also color tunable allowing you to select between 3500K, 4000K, 5000K, 5700K, and 6500K. With all of the different configurations available in this one light, it is extremely versatile to many different applications or customer preferences.

There are surface (flush) mount kits available (sold separately) which will allow you to install this fixture flush to the ceiling rather than recessed in a drop t-grid ceiling. Visit our surface kits category to shop for LED flat panel surface mount kits.

This LED flat panel is also DLC Premium V5.1 listed meaning it is highly energy efficient and may qualify for utility rebates in certain areas. Check out our Rebate Assistant tool to find if this product qualifies for you!

Product Dimensions - 47.72" W x 11.85" L x 1.48" H

Optional Accessories (sold separately):

LEDMKFP1000051818 - Surface Mount Kit for Drywall Flange Kit

LEDMKFP1000058818 - Surface Mount Kit

LEDMKFP1000051820 - 60in. Safety Rope

LEDLHED1000050314 - 4-Pack Earthquake Clips

Emergency Drivers

Constant-power emergency drivers with 90-minute run time are available to add on to your LED panels to increase fire safety and comply with local fire safety codes. Check out our selection of LED emergency drivers.

Are you a business owner? Do you want up to 10% off on all future purchases? Learn more about a LightUp Trade Account and start saving on your next project today!

Enhance Your Lighting with these Add-On Options

Extra Information

Brand:
LumeGen
Clearance:
Non-Clearance
_PDF:
lumegen-warranty|pdf|LumeGen Warranty
Light Source:
LED
Voltage:
AC120-277V
Warranty:
5 Year
Features:
Dimmable
Features:
Instant On
Features:
Mercury Free
Features:
Warranty
Features:
Wattage & CCT Adjustable
Recommended Uses:
Recommended Uses:
_PackQty:
4
_MPN:
LG-BLPL-14-40W-XY-TCP
Case Qty:
4
Wattage:
Wattage Adjustable 20W/30W/40W
Ratings and Certifications:
DLC Premium
_PDF:
ledlfpn1000050530-50531-50532-im|pdf|Instruction Manual
_PDF:
photometric-ledlfpn1000050532-3500k|pdf|Photometric Test Report - 3500K
_PDF:
photometric-ledlfpn1000050532-4000k|pdf|Photometric Test Report - 4000K
_PDF:
photometric-ledlfpn1000050532-5000k|pdf|Photometric Test Report - 5000K
_PDF:
photometric-ledlfpn1000050532-5700k|pdf|Photometric Test Report - 5700K
_PDF:
photometric-ledlfpn1000050532-6500k|pdf|Photometric Test Report - 6500K
Beam Angle:
120 Degrees
CRI:
80
Life Hours:
50,000 Hours
Lumens per Watt:
125 lm/W
Lumens:
2500/3750/5000
Lumens Range:
2,600 - 5,200 Lumens
Operating Temp - Low:
-20C / -4F
Operating Temp - High:
45C / 113F
Lens Material:
Polycarbonate (PC) Lens
_PDF:
ledlfpn1000050530-31-32-spec-sheet-final|pdf|Specification Sheet
Ratings and Certifications:
FCC Compliant
Recommended Uses:
Ratings and Certifications:
ETL Listed
Recommended Uses:
Country Of Origin:
Viet Nam
_PDF:
lumegen-ledlfpn1000050532-dlc-qpl|pdf|LumeGen S-5UYQCK DLC QPL
HR-mail-only:
true
Left Overlay Image:
4 Pack.png
Lowest Bulk Price:
159.52
