LED 4ft. Color Tunable Up/Down Linear Light - 50 Watt - 3000K/4000K/5000K - White, Black, or Silver Lamp Body - LumeGen

LumeGen

SKU:
LEDSTRP1000051664
MPN:
LG-LSUD4-50W-30K/40K/50K-[W/B/S]
Certified/Rated for Rohs Compliant Certified/Rated for 0 To 10v Dimmable Certified/Rated for Damp Location Certified/Rated for Dlc Listed Certified/Rated for Etl Listed
$94.99
$94.99
Availability:
In Stock

Description

Improve the quality of lighting in your space with the 4ft. Suspended Linear Fixture.  This LED fixture produces down lighting (direct) for task use and up lighting (indirect) for ambiance. This fixture is color selectable meaning it can be adjusted between 3000K, 4000K, and 5000K color temperatures allowing the user to select the desired color. It is available in 3 stylish finishes: Matte black, Silver, and Glossy White. The versatility of this light fixture is perfect for use in any commercial office, school, hotel, hospital and many other spaces.

This light uses 50W of total power split 70% down (35W) and 30% up (15W).  The down light is 4000 Lumens and the up light is 1800 Lumens (Lumens ±10% depending on fixture finish). Long life span LEDs are rated to last at least 50,000 hours. It includes a 0-10V dimmable driver (0-10V dimmer sold separately).

This LED strip light is constructed with an aluminum housing with removable K/O plates for easy wiring and end-to-end connections (linkable up to 7 fixtures). Installs flush to walls (wall bracket sold separately) or can be suspended from ceiling. A surface canopy box is also available (sold separately) for use to hide wiring and provide a finished appearance when used in suspension mounting applications. The cables for suspension mounting come with the LED fixture. They are not included within the surface canopy mount kit. It has a polycarbonate (PC) frosted shatterproof lens.

This LED flat panel is also DLC Standard V5.1 listed meaning it is highly energy efficient and may qualify for utility rebates in certain areas.  Check out our Rebate Assistant tool to find if this product qualifies for you!

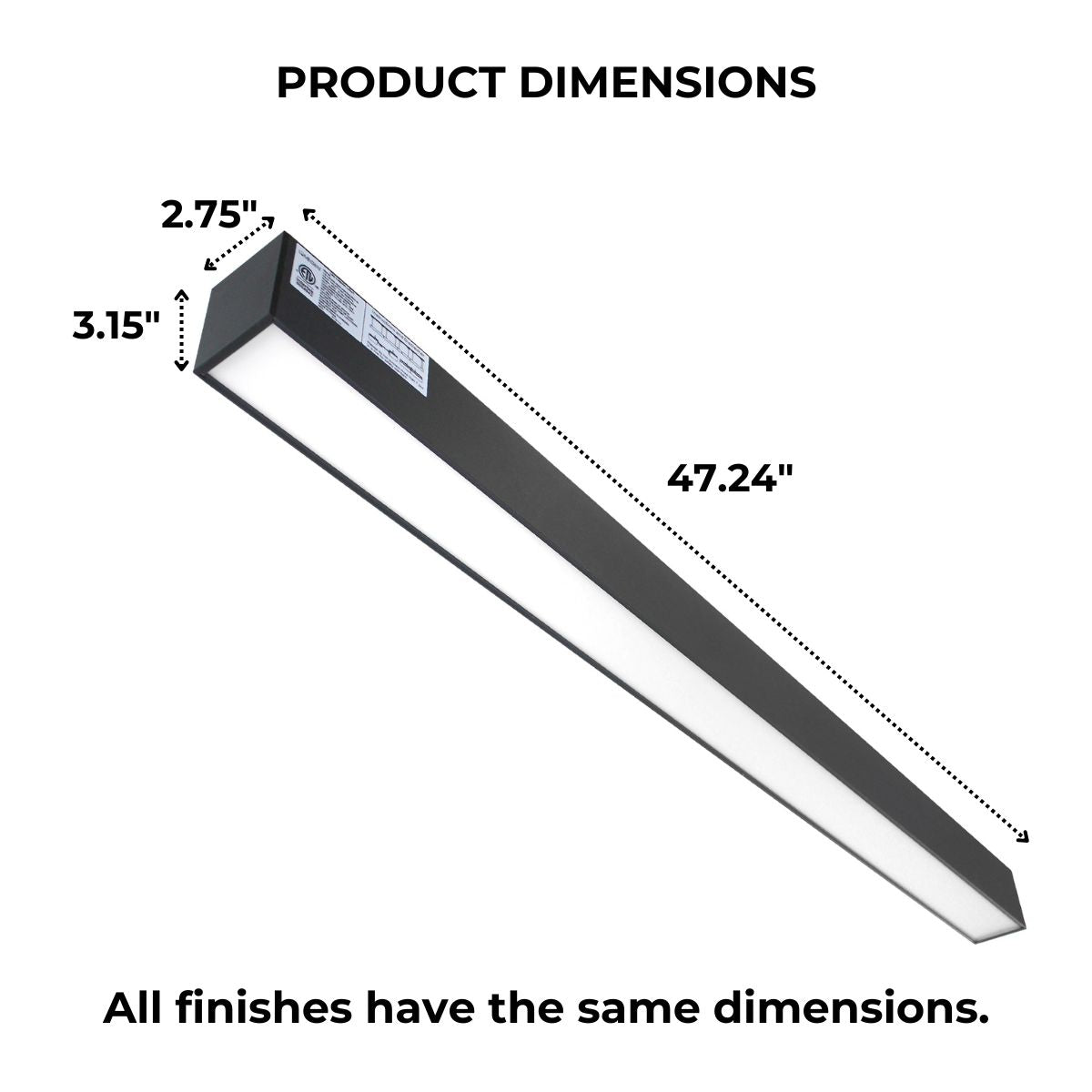

Product Dimensions - 47.24" L x 2.75" W x 3.15" D

Product Specifications

  • Wattage: 50W (35W Down | 15W Up)
  • Lumens: 4000 Lumens Down | 1800 Lumens Up (±10% depending on fixture finish)
  • Efficiency: 130 lm/w
  • Input Voltage: 100-277V
  • Power Factor: >0.9
  • CRI: >80
  • CCT: 3000K/4000K/5000K Selectable
  • Operating Temperature: -13°F ~ 122°F
  • LED Life: >50,000 hours
  • LED Beam Angle: 120°
  • Surge Protection:5 kV

Optional Mounting Accessories:

Surface Canopy Cover

  • White - LEDMKLL1000051668
  • Black - LEDMKLL1000051669
  • Silver - LEDMKLL1000051670

Wall Mount Bracket

  • White - LEDMKLL1000051671
  • Black - LEDMKLL1000051672
  • Silver - LEDMKLL1000051673

Enhance Your Lighting with these Add-On Options

Extra Information

Brand:
LumeGen
Case Qty:
1
Clearance:
Non-Clearance
Country Of Origin:
China
_PDF:
lumegen-warranty|pdf|LumeGen Warranty
CRI:
80
Life Hours:
50,000 Hours
Light Source:
LED
Lumens per Watt:
130 lm/W
Lumens Range:
3,000 - 5,000 Lumens
Voltage:
AC100-277V
Warranty:
5 Year
Features:
Instant On
Features:
Warranty
Recommended Uses:
_PDF:
lg-up-down-linear-light-ledstrp1000051664-spec-sheet|pdf|Specification Sheet
Beam Angle:
120 Degrees
Color Temp / CCT:
Color Tunable 3000K/4000K/5000K
Operating Temp - Low:
-25°C / -13°F
Operating Temp - High:
50C / 122F
Color:
Color Tunable 3000K/4000K/5000K
Features:
Long Life Span
Features:
Damp Location Rated
Features:
Flicker Free
Features:
CCT Tunable
Recommended Uses:
Recommended Uses:
Recommended Uses:
Recommended Uses:
_MPN:
LG-LSUD4-50W-30K/40K/50K-[W/B/S]
Lumens:
4000 Lumens Down | 1800 Lumens Up
_PDF:
ledmkll1000051668-im|pdf|Instruction Manual Surface Canopy Kit
_PDF:
ledmkll1000051671-im|pdf|Instruction Manual Wall Mount Kit
_PDF:
ledstrp1000051664-im|pdf|Instruction Manual
_PDF:
ledstrp1000051664-blk-50w-3000k|ies|IES File - Black Finish - 3000K
_PDF:
ledstrp1000051664-blk-50w-4000k|ies|IES File - Black Finish - 4000K
_PDF:
ledstrp1000051664-slv-50w-3000k|ies|IES File - Silver Finish - 3000K
_PDF:
ledstrp1000051664-slv-50w-4000k|ies|IES File - Silver Finish - 4000K
_PDF:
ledstrp1000051664-wht-50w-3000k|ies|IES File - White Finish - 3000K
_PDF:
ledstrp1000051664-wht-50w-4000k|ies|IES File - White Finish - 4000K
Wattage:
50W
Ratings and Certifications:
DLC Listed
Ratings and Certifications:
ETL Listed
Ratings and Certifications:
RoHS Compliant
HR-mail-only:
true
_PDF:
lumegen-ledstrp1000051664-dlc-qpl|pdf|LumeGen S-H4ZDBI DLC QPL
