Description

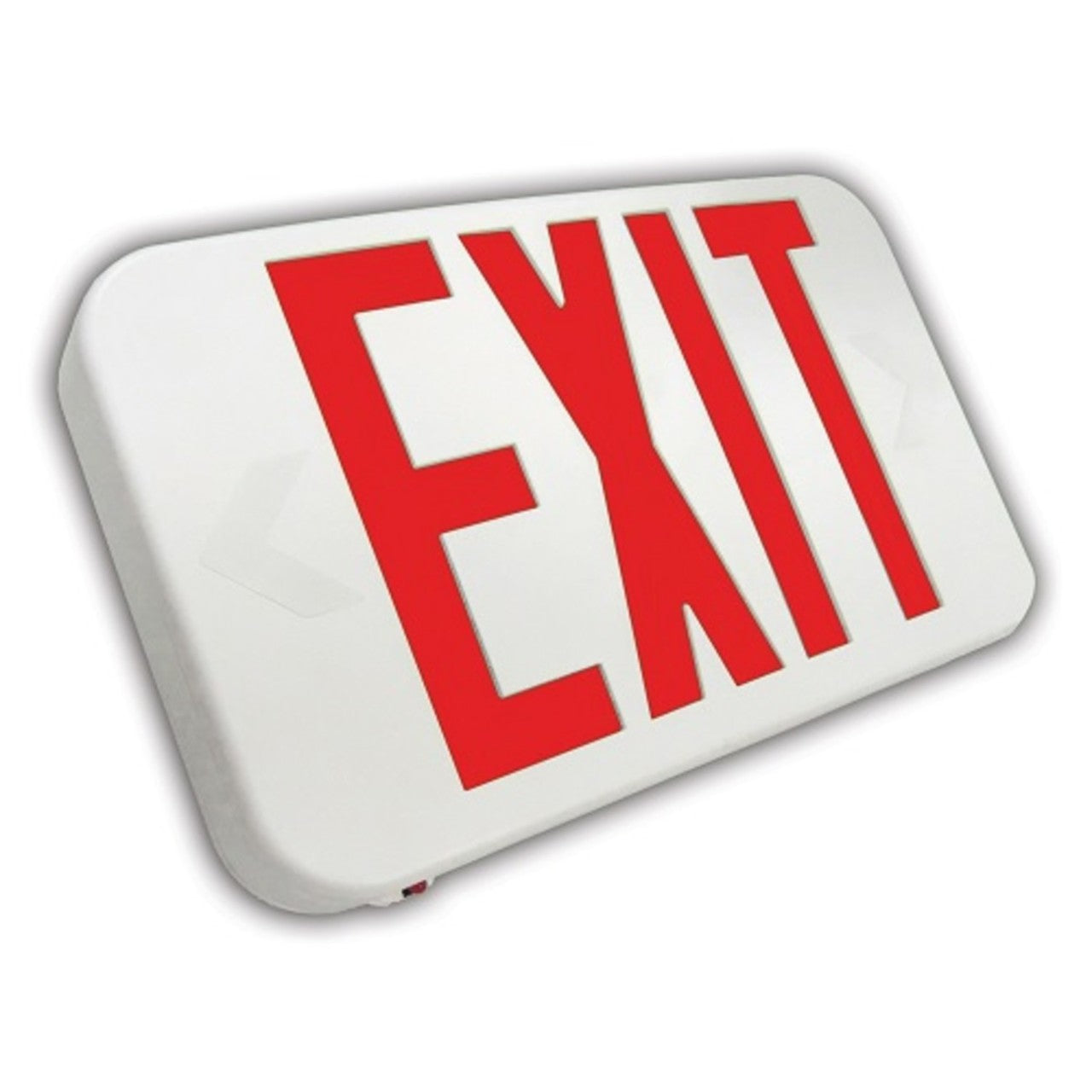

Protect your building's occupants and provide safety with this LED Compact Exit Sign with backup battery. This LED exit light produces ultra-bright, energy efficient, long life red or green light and complies with building fire codes and insurance standards. This unit comes with interchangeable red and green lettering.
This unit includes a self-diagnostic feature which performs monthly, biannually and annual tests to ensure reliable operation and meets electrical and life safety codes.
This LED exit sign is made with injection-moulded, engineering grade, 5VA flame retardant, high-impact resistant, thermoplastic in white finish. It has an aesthetically pleasing, curved faced with rounded corner design. It comes with EZ snap-out chevron directional indicators. It can be configured with a single- or double-sided face with EZ-snap mounting canopy included for top or end mount. It has a universal knockout pattern on the back plate for wall mount.
This LED exit sign is UL Listed for damp locations and certified to CEC under Title 20 Regulations. Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes. Five year warranty on all electronics and housing. Battery pro-rated for five years.
This LED exit sign operates on 120/277 voltage and includes 1.2V long-life, maintenance-free, rechargeable NiCd battery. It includes a charge rate/power "ON" LED indicator light and push-to-test switch for mandated code compliance testing. Internal solid-state transfer switch automatically connects the internal battery to LED board for minimum 90-minute emergency illumination. Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.
Exit Light Dimensions (without canopy) - 11-5/8" L x 1-5/8" W x 7-1/8" H
Canopy Dimensions - 5-1/2" L x 4-5/16" W x 3/4" H
Custom wording and USA Assembly available via special request. Call in to inquire costs for custom wording or USA assembly for this unit.
- LED life-cycle of more than 10 years
- Molded-in template for Quick installation
- Universal Knockout Directional Indicators
- Dual Voltage: 120V or 277V
- Provided with test switch and AC-On indicator
- Canopy Included
- UL Listed for Damp Locations
- NFPA 101
- OSHA certified
- 5 Year Warranty
