LED Linear High Bay Light | Up to 30,000 Lumens | LightUp

LED Linear High Bay - Wattage Adjustable up to 220W - Up to 30,000 Lumens - Color Tunable 4000K/5000K - LumeGen

LEDLHBY1000051816
LG-SB-MLHB-A-220U-4K5K
UPC:
190140295111
$74.99 $79.99 6% off
Availability:
In Stock
Certified/Rated for Dlc Premium Certified/Rated for Etl Listed

LED Linear High Bay - Wattage Adjustable up to 220W - Up to 30,000 Lumens - Color Tunable 4000K/5000K - LumeGen

LEDLHBY1000051816
LG-SB-MLHB-A-220U-4K5K
190140295111
Price Drop!
Certified/Rated for Dlc Premium Certified/Rated for Etl Listed

Description

This Wattage Adjustable and Color Tunable LED Linear High Bay Light is the perfect energy-efficient indoor lighting solution for industrial, commercial, or residential location with high ceilings, like warehouses, gyms, barns, and supermarkets. The linear footprint is especially ideal for replacing fluorescent high bays that are used to light aisles, lanes, or hallways. These lights are ideal for mounting higher than 10 feet to spread even bright light over a large area.

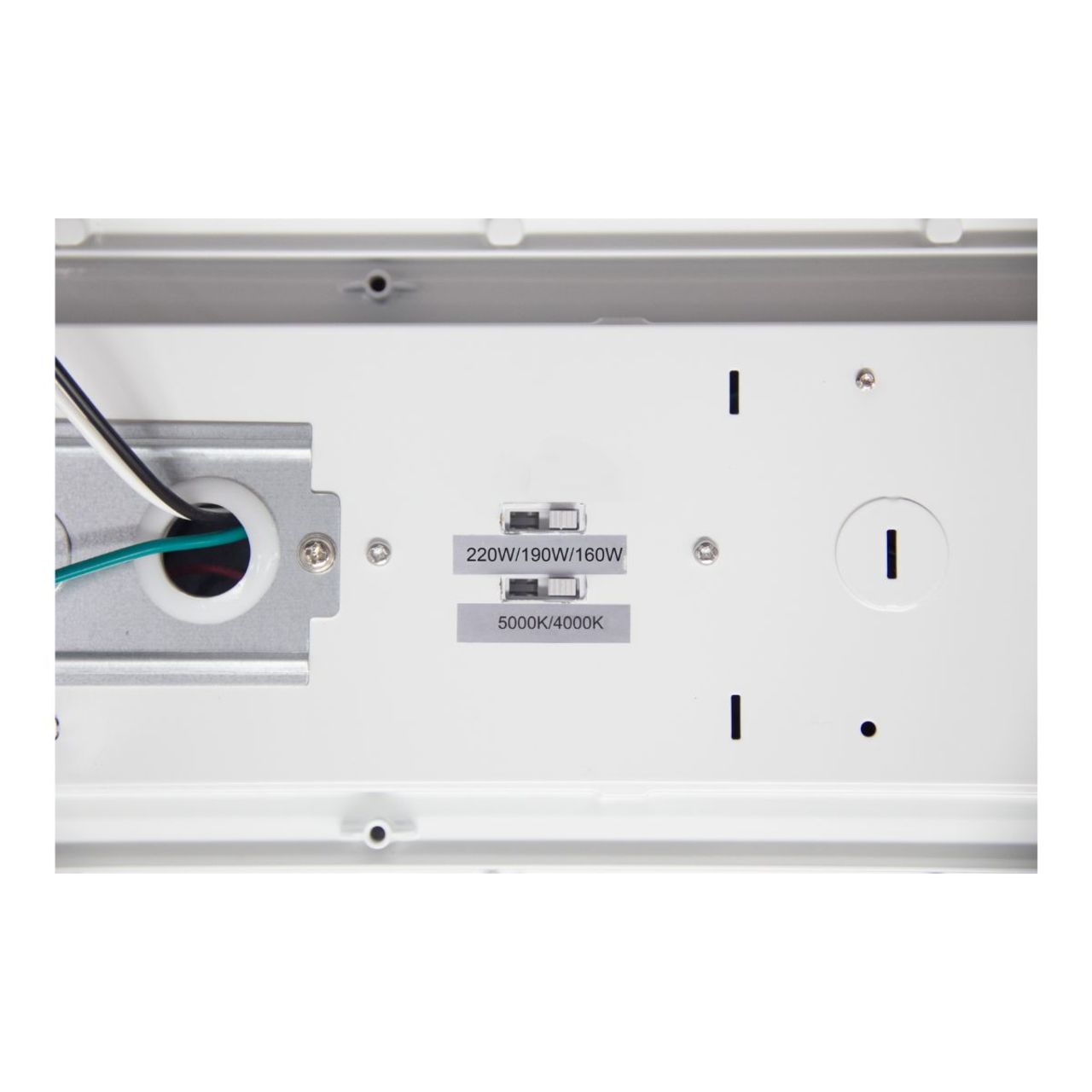

This Wattage Adjustable high bay fixture allows the user to field select the wattage (which affects the brightness) on site prior to installation as well as the color temperature. You can select between 160W/190W/220W with an efficacy of 140 lumens per watt. It is also color tunable allowing you to select 4000K or 5000K color temperatures. Equipped with a dimmable 120-277V LED driver, this high bay light allows you to adjust the brightness over your space and save energy with a 0-10V dimmer (sold separately). This fixture is constructed with an aluminum body and includes polycarbonate (PC) optical lens and is rated to last up to 50,000 hours.

An option motion sensor add-on is available (sold separately SKU LEDLHBA1000051812) for even more control of the fixture.

This LED high bay is also DLC V5.1 listed meaning it is highly energy efficient and may qualify for utility rebates in certain areas. Check out our Rebate Assistant tool to find if this product qualifies for you!

Product Dimensions - 20" L x 12.2" W x 1.8" H

Additional Accessories (sold separately)

The accessories below are compatible with this linear high bay and are sold separately.

  • LEDDMMR1000050000 - 0-10V LED Dimmer
  • LEDLHBA1000051812 - Motion Sensor
  • LEDLHBA1000051811 - Remote Control (compatible with Motion Sensor SKU LEDLHBA1000051812)
  • LEDLHBA1000051813 - Pole/Pendant Mounting Box
  • LEDLHBA1000051814 - Surface/Pendant Bracket - 2PK
  • LEDLHBA1000051815 - Wire Guard
  • LEDLEHD1000050405 - Emergency LED Driver - 25W - 90 Minute Backup Time

DLC QPL Product ID - S-SDVW57

Are you a business owner? Do you want up to 10% off on all future purchases? Learn more about a LightUp Trade Account and start saving on your next project today!

Specifications

Brand:
LumeGen
Case Qty:
1
Clearance:
Non-Clearance
Color Temp / CCT:
Color Tunable 4000K-5000K
CRI:
80
Life Hours:
50,000 Hours
Light Source:
LED
Lumens per Watt:
140 lm/W
Lumens:
160W: 22,400 | 190W: 26,600 | 220W: 30,800
Lumens Range:
20,000-29,999 Lumens
Voltage:
AC120-277V
Warranty:
5 Year
Wattage:
Wattage Adjustable 160W/190W/220W
Color:
Color Tunable 4000K-5000K
Ratings and Certifications:
DLC Premium
Recommended Uses:
_MPN:
LG-SB-MLHB-A-220U-4K5K
HR-mail-only:
true
_PDF:
photometric-ledlhby1000051816-4k|pdf|Photometric Test Report - 4000K
_PDF:
photometric-ledlhby1000051816-5k|pdf|Photometric Test Report - 5000K
_PDF:
lumegen-warranty|pdf|LumeGen Warranty
_PDF:
ledlhby1000051815-51816-51817-im|pdf|Instruction Manual
_PDF:
lumegen-ledlhby1000051816-dlc-qpl|pdf|LumeGen S-SDVW57 DLC QPL
Beam Angle:
90 Degrees
Operating Temp - Low:
-20C / -4F
Operating Temp - High:
45C / 113F
Ratings and Certifications:
ETL Listed
Recommended Uses:
Lens Material:
Polycarbonate (PC) lens
_PDF:
ledlhby1000051815-16-17-spec-sheet-f|pdf|Specification Sheet
Dimmable:
Dimmable
__badge:
Price Drop!
Country Of Origin:
Viet Nam
_wattage_range:
150W-199W
_wattage_range:
200W-249W
Lowest Bulk Price:
74.99
