LED Linear High Bay - 200W - 30,000 Lumens - 5000K - PIR Motion Sensor - LumeGen

LumeGen

SKU: LEDLHBY1000051831-5000K-KIT

MPN: LG-SB-S2LHB-200U-50K | LG-SBLHB-PIR

Brand:

LumeGen

Certification:

UL Listed DLC Premium

Technical Specifications

Nominal Power:
200W
Nominal Lumens:
30,000
Input Voltage:
AC120-277V
CCT:
5000K
CRI:
80
Operating Temperature:
-20C / -4F to 50C / 122F
Regular price $97.98
Regular price $0.00 Sale price $97.98
Sold out
Shipping calculated at checkout.

Availability: In Stock

  • Shipping With TrackingShipping With Tracking
  • Secure PaymentsSecure Payments
  • 141K+ Happy Customers141K+ Happy Customers
View full details
LED Linear High Bay - 200W - 30,000 Lumens - 5000K - PIR Motion Sensor - LumeGen

LED Linear High Bay - 200W - 30,000 Lumens - 5000K - PIR Motion Sensor - LumeGen

Regular price $97.98
Regular price $0.00 Sale price $97.98
Sold out

LED Linear High Bay with PIR Motion Sensor - 200W - 30,000 Lumens - 5000K - LumeGen

Illuminate your large indoor areas with exceptional efficiency and coverage using the Dual-Lens 200W LED Linear High Bay Light. Its innovative dual-lens design is ideal for warehouses, retail spaces, factories, gymnasiums, auto shops, and any expansive area with high ceilings, with a linear form factor perfect for aisle lighting. Designed for mounting above 20 feet, it distributes bright, even light across significant spaces. By replacing traditional fluorescent high bays, you'll enjoy up to 30% energy savings and reduced maintenance from bulb replacements.

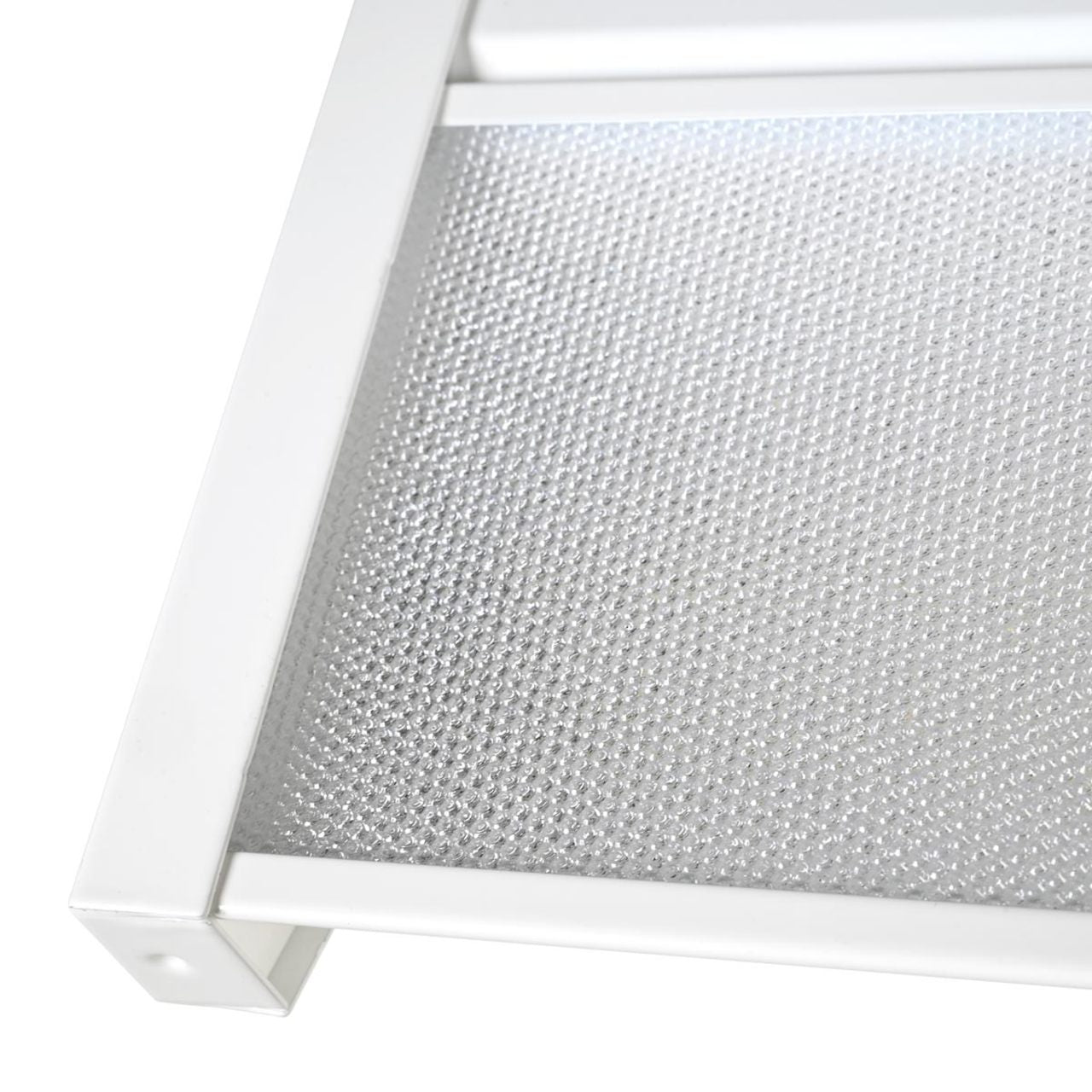

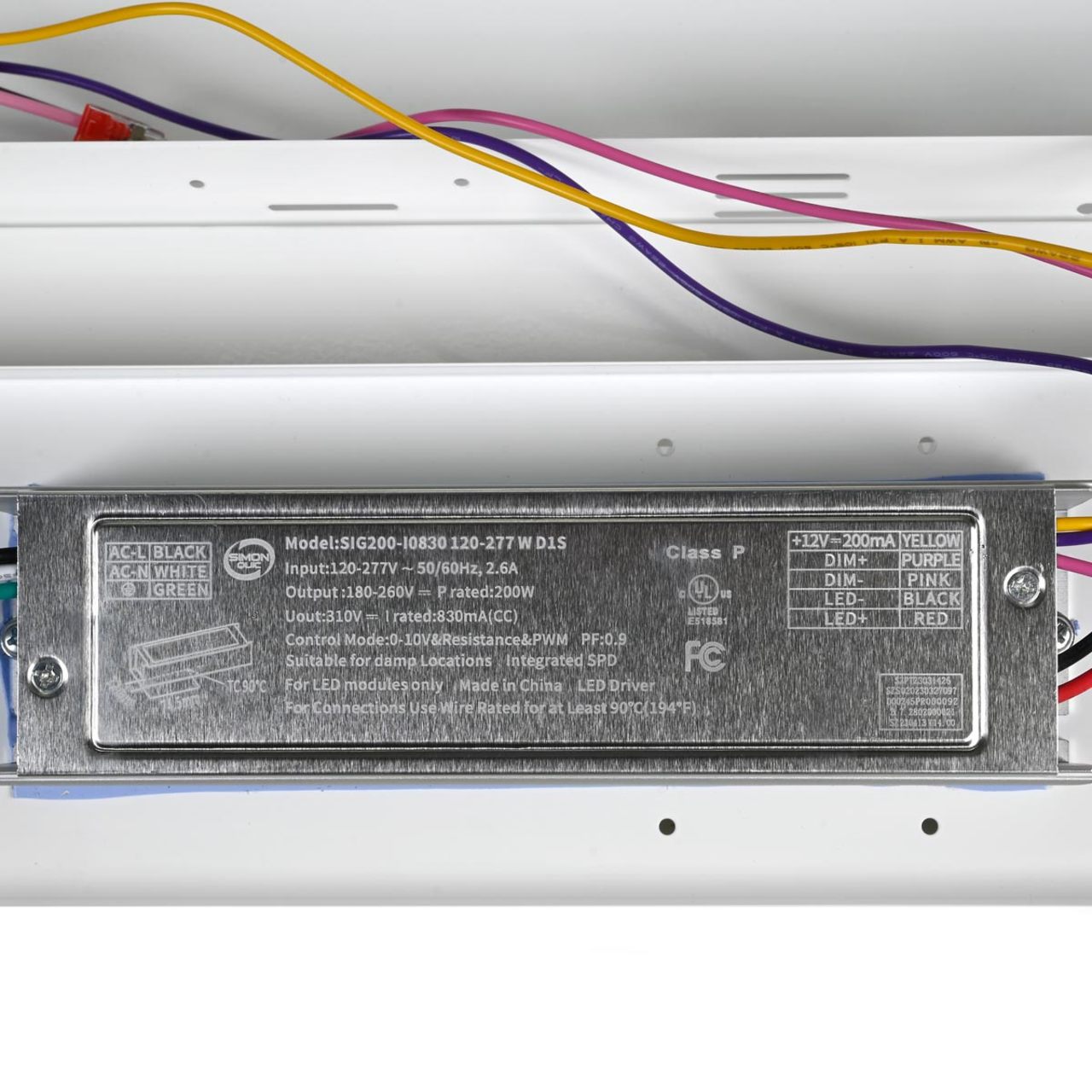

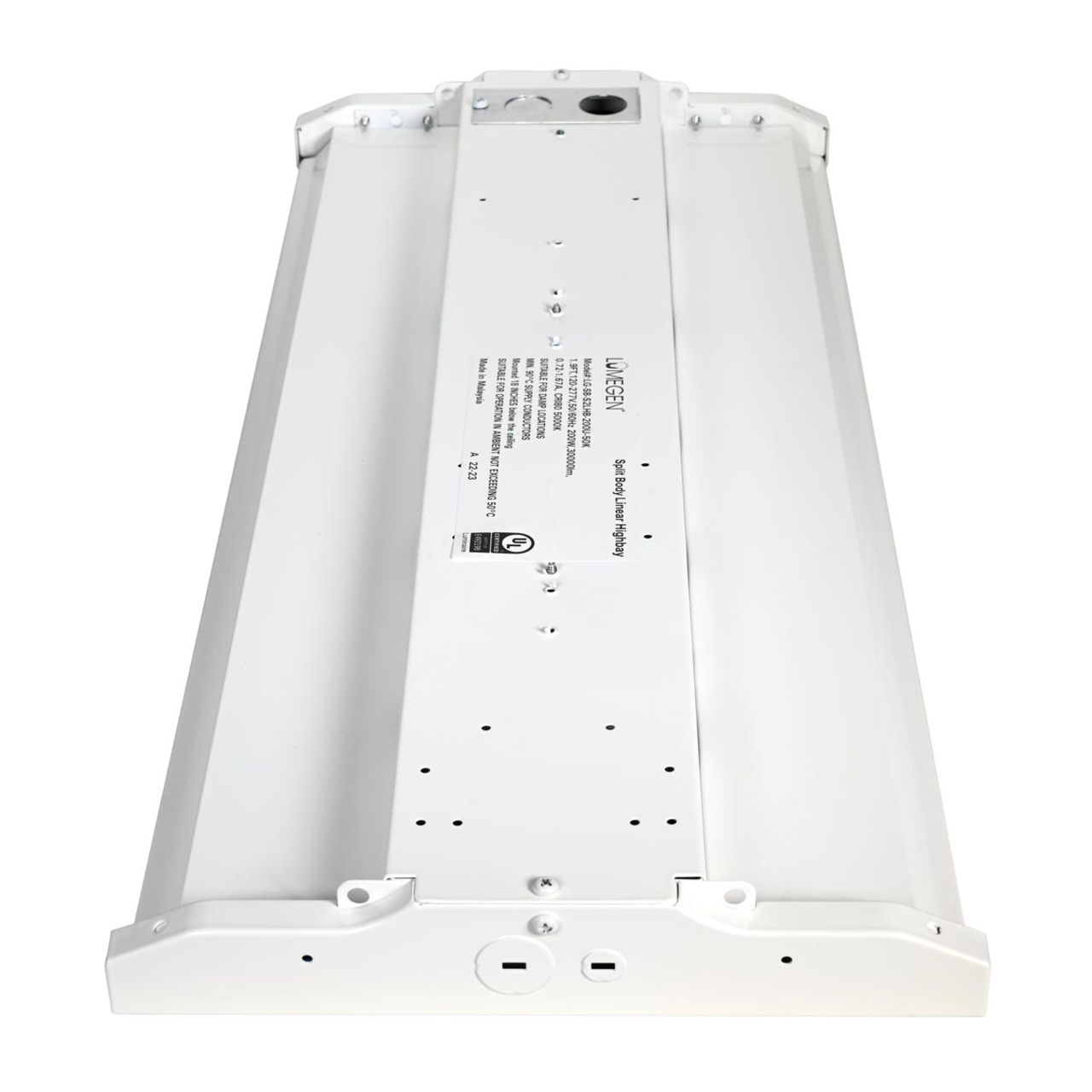

This 200W LED high bay produces a brilliant 30,000 lumens at a 5000K color temperature, achieving an impressive 150 lumens per watt. The robust sheet metal stamped housing provides superior heat dissipation, while the frosted PC lens ensures uniform light diffusion and minimizes glare. The integrated dimmable AC120-277V LED driver allows for easy brightness control and additional energy savings using a 0-10V dimmer (sold separately). Offering a long lifespan of 100,000 hours, this fixture provides significant energy and cost savings compared to traditional metal halide high bays.

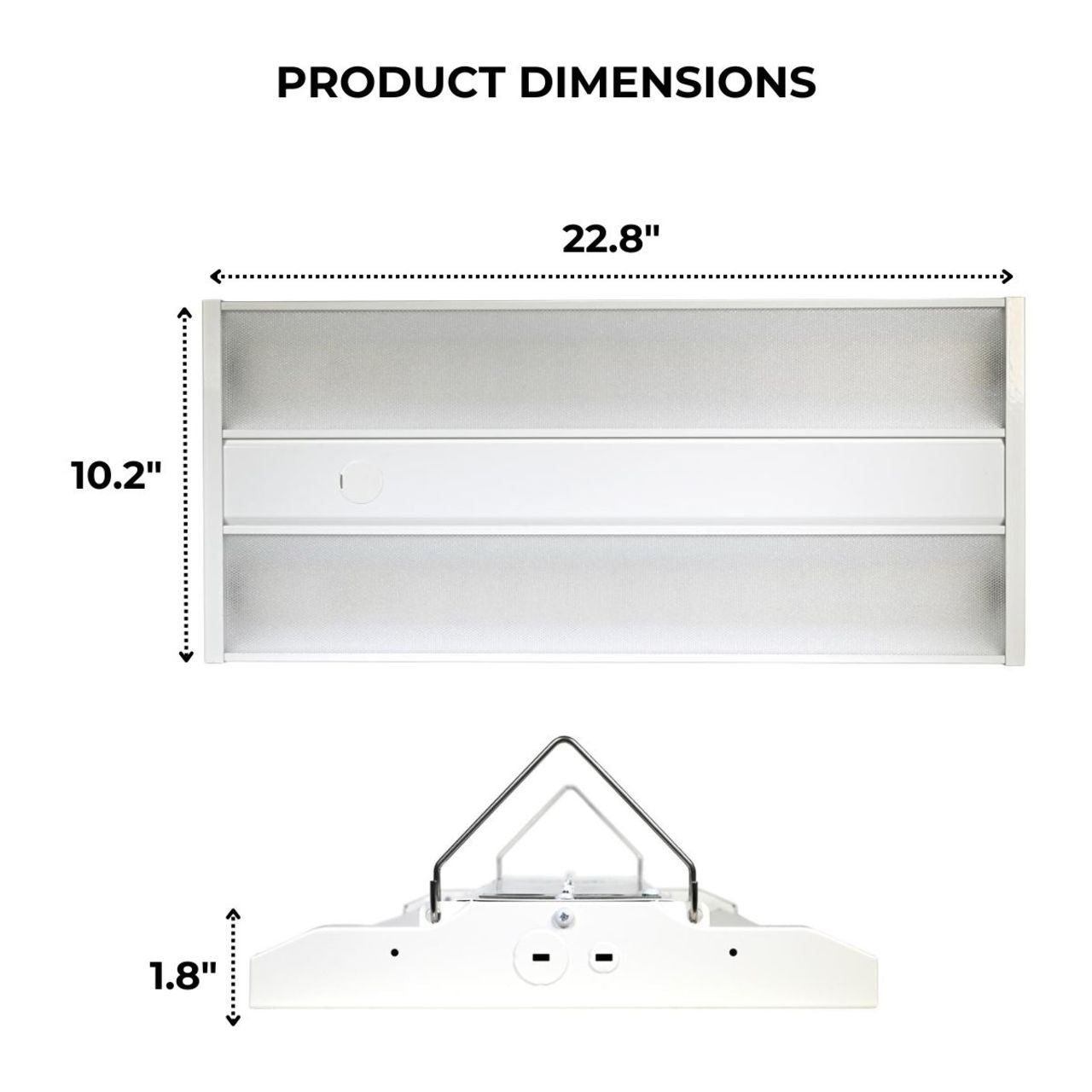

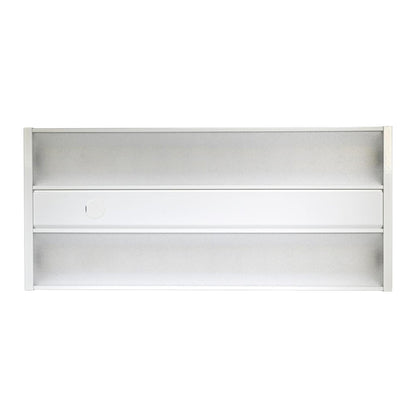

Product Dimensions: 22.8" L x 10.2" W x 1.8" D

Accessories

Included Accessories

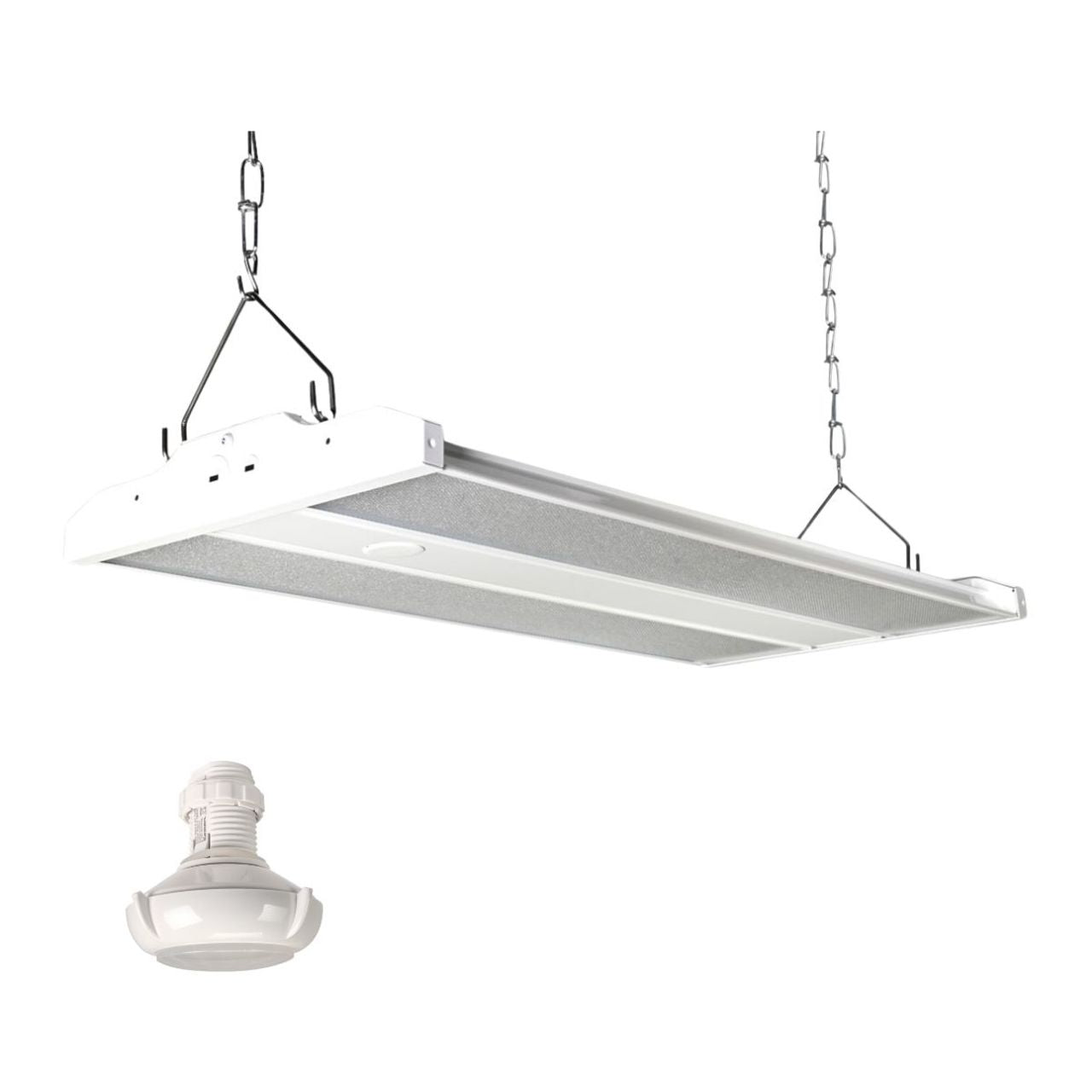

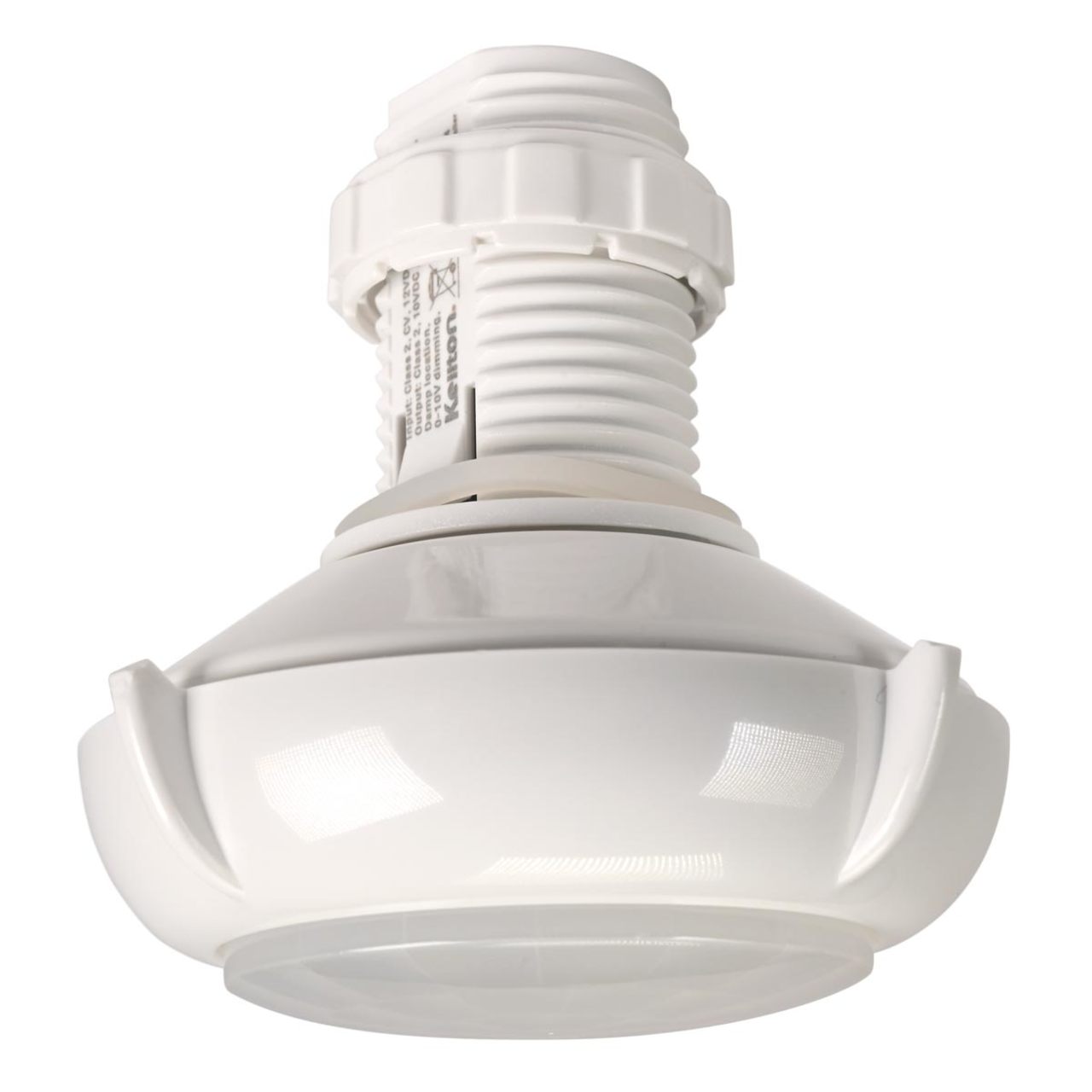

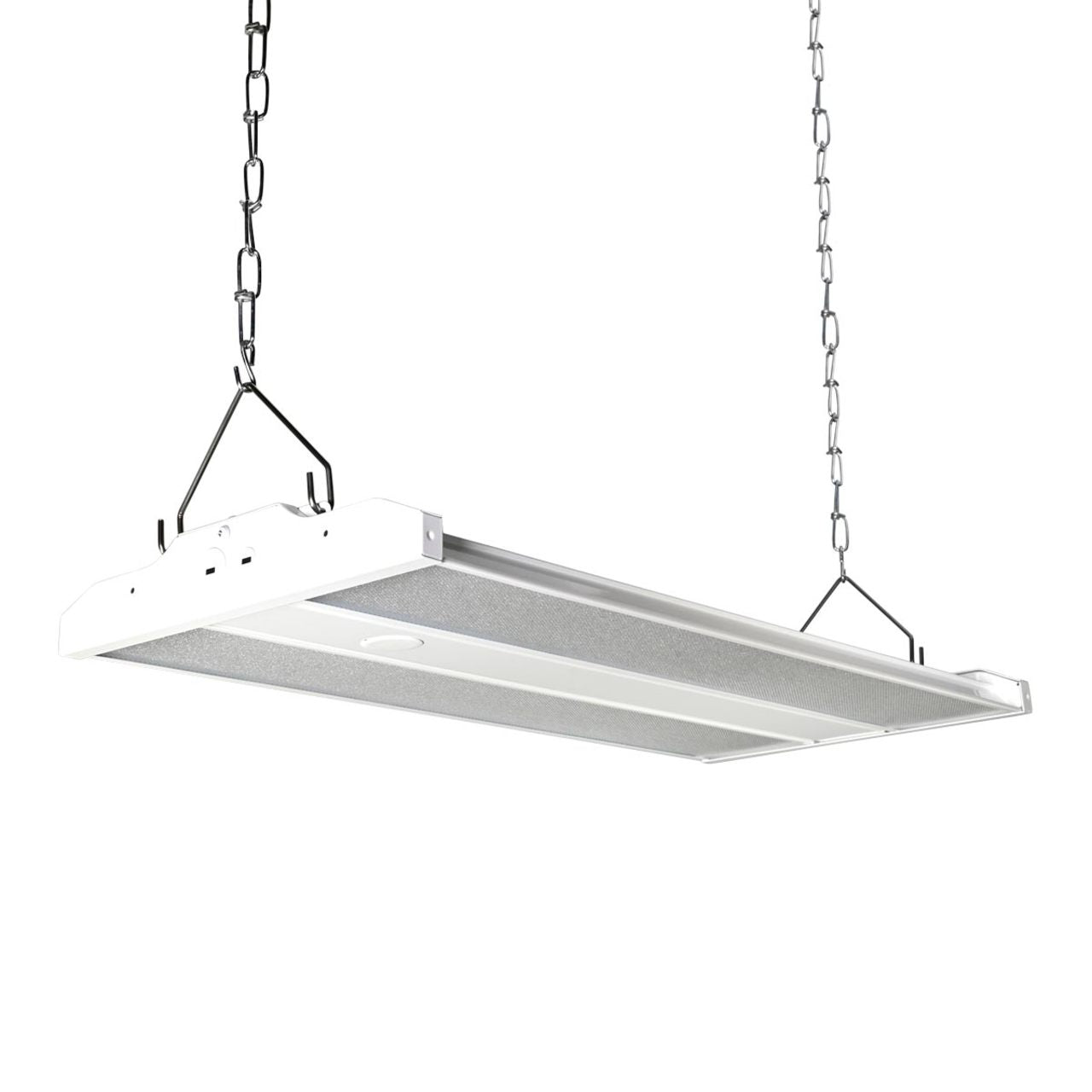

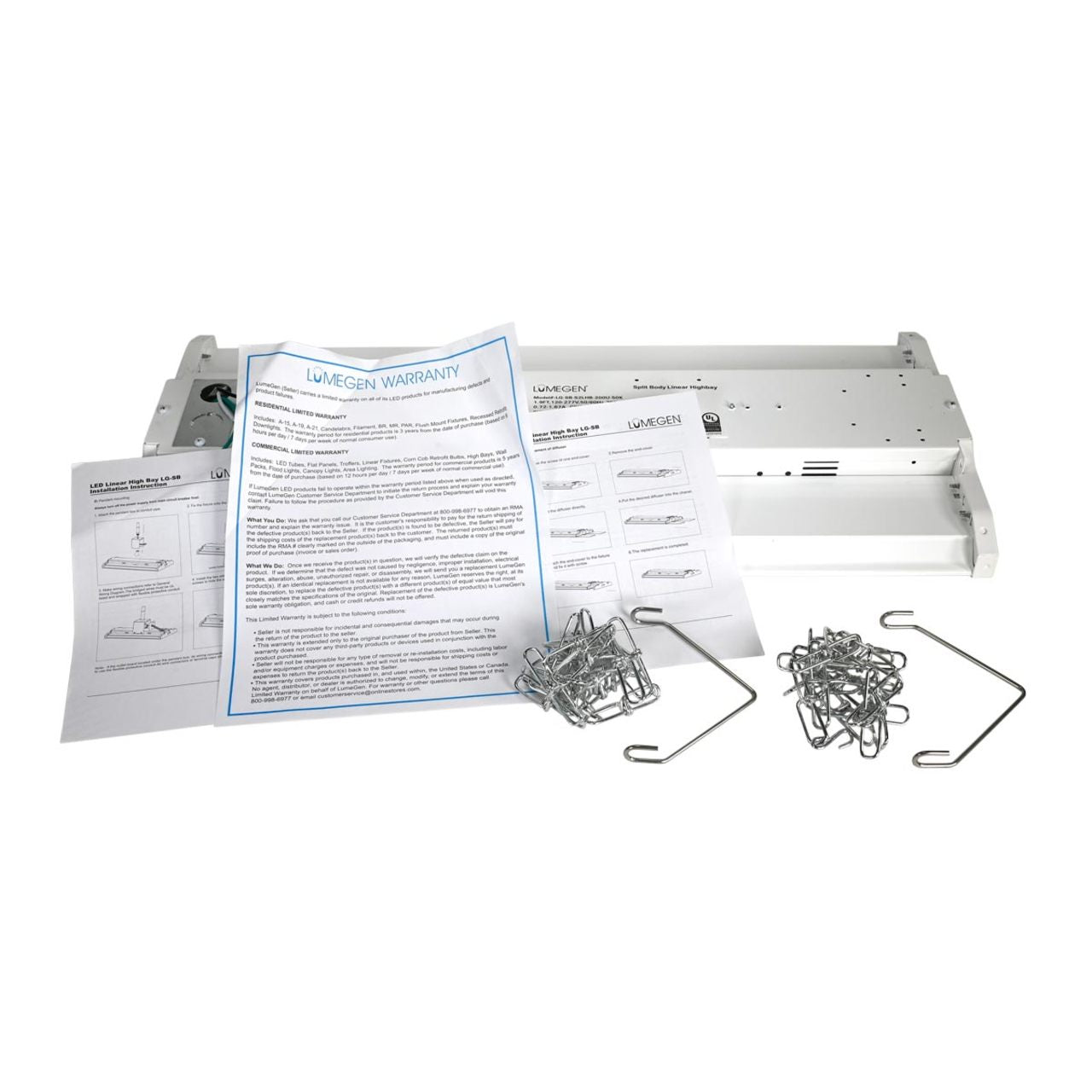

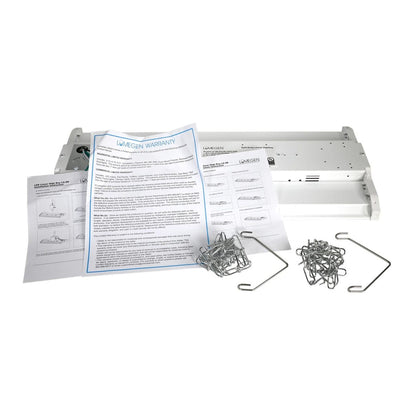

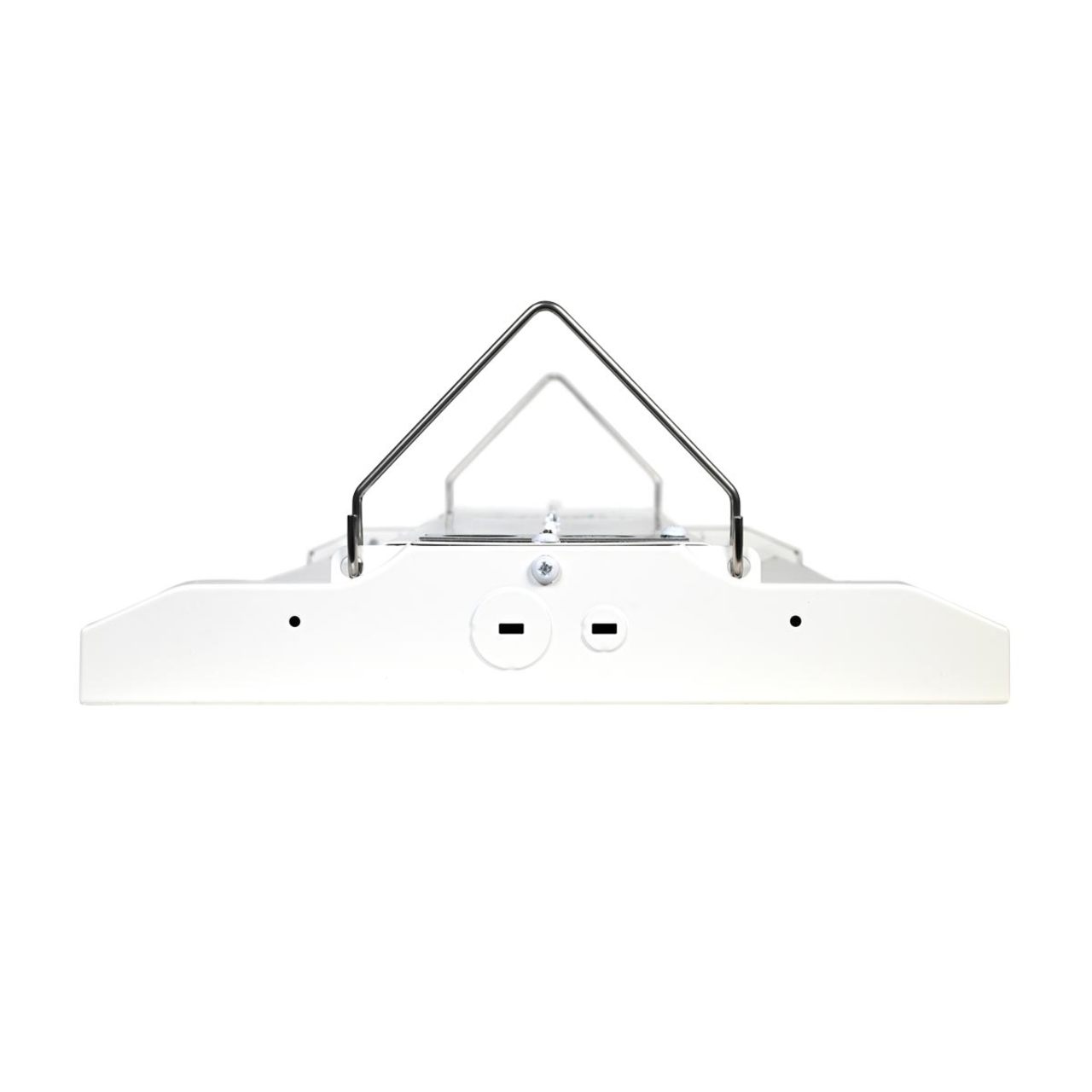

This linear high bay light can be mounted numerous ways. V-Hooks and chain suspended mounting accessories are included with the light. Additionally, a PIR motion sensor is included (SKU LEDLHBA1000051846).

Additional Accessories (Sold Separately)

There is a remote control that can be purchased separately (SKU LEDLHBA1000051845) to operate the PIR motion sensor SKU LEDLHBA1000051846.

Additional mounting options are available to be purchased separately including cable mount kits (SKUs LEDLHBA1000051841 & LEDLHBA1000051842), surface mount kit (SKU LEDLHBA1000051838), and pendant mount kit (SKU LEDLHBA1000051840). An additional power cords can also be purchased separately (SKUs LEDLHBA1000051843).

Utility Rebates

This LED high bay is also DLC Premium V5.1 listed meaning it is highly energy efficient and may qualify for utility rebates in certain areas. Learn more about LED Rebates.

Emergency Drivers

Constant-power emergency drivers with 90-minute run time are available to add on to your LED high bays to increase fire safety and comply with local fire safety codes. Check out our selection of LED emergency drivers.

Need more lighting options? Explore flat panels, solar lighting, and more from LumeGen.

Product Specifications

Brand: LumeGen
Case Qty: 1
Clearance:  Non-Clearance
Country of Origin: China
CRI:  80
Life Hours:  100,000 Hours
Light Source: LED
Lumens per Watt: 150 lm/W
Voltage: AC120-277V
Operating Temp - Low: -20C / -4F
Operating Temp - High: 50C / 122F
Lumens: 30,000
LED Chip Type: BRIDGELUX 2835 LED Chips
Color: 5000K Daylight
Dimmable: Dimmable
Wattage: 200W
High Bay Body Type: Split Body
Lens Material: Frosted PC Lens
Motion Sensor: Compatible - Sensor Included
Color Temperature (CCT): 5000K
Light Fixture Type: High Bay (Linear)
Ratings and Certifications:DLC Premium
Ratings and Certifications:UL Listed
Certificate Description
UL Listed

UL Listed

UL Listed refers to products that have been tested and certified by Underwriters Laboratories (UL). UL Listed LED lighting products have undergone meticulous testing to confirm compliance with standards like electrical safety and fire resistance. UL is recognized by OSHA as a NRTL and UL mark for lighting fixtures is the most prominent marks for lighting in the US.
DLC Premium

DLC Premium

The DesignLights Consortium (DLC), sets criteria for energy-efficient LED products, ensuring they meet strict performance and efficiency standards. DLC Premium products surpass basic standards and are eligible for higher rebate incentives.
