LED Linear High Bay - 270W - 40,500 Lumens - 5000K - PIR Motion Sensor - LumeGen

LumeGen

SKU: LEDLHBY1000051832-5000K-KIT

MPN: LG-SB-MLHB-270U-50K | LG-SBLHB-PIR

Brand:

LumeGen

Certification:

UL Listed DLC Premium

Technical Specifications

Nominal Power:
270W
Nominal Lumens:
40,500
Input Voltage:
AC120-277V
CCT:
5000K
CRI:
80
Operating Temperature:
-20C / -4F to 50C / 122F
Regular price $124.98
Regular price $0.00 Sale price $124.98
Sold out
Shipping calculated at checkout.

Availability: In Stock

  • Shipping With TrackingShipping With Tracking
  • Secure PaymentsSecure Payments
  • 141K+ Happy Customers141K+ Happy Customers
View full details
LED Linear High Bay - 270W - 40,500 Lumens - 5000K - PIR Motion Sensor - LumeGen

LED Linear High Bay - 270W - 40,500 Lumens - 5000K - PIR Motion Sensor - LumeGen

Regular price $124.98
Regular price $0.00 Sale price $124.98
Sold out

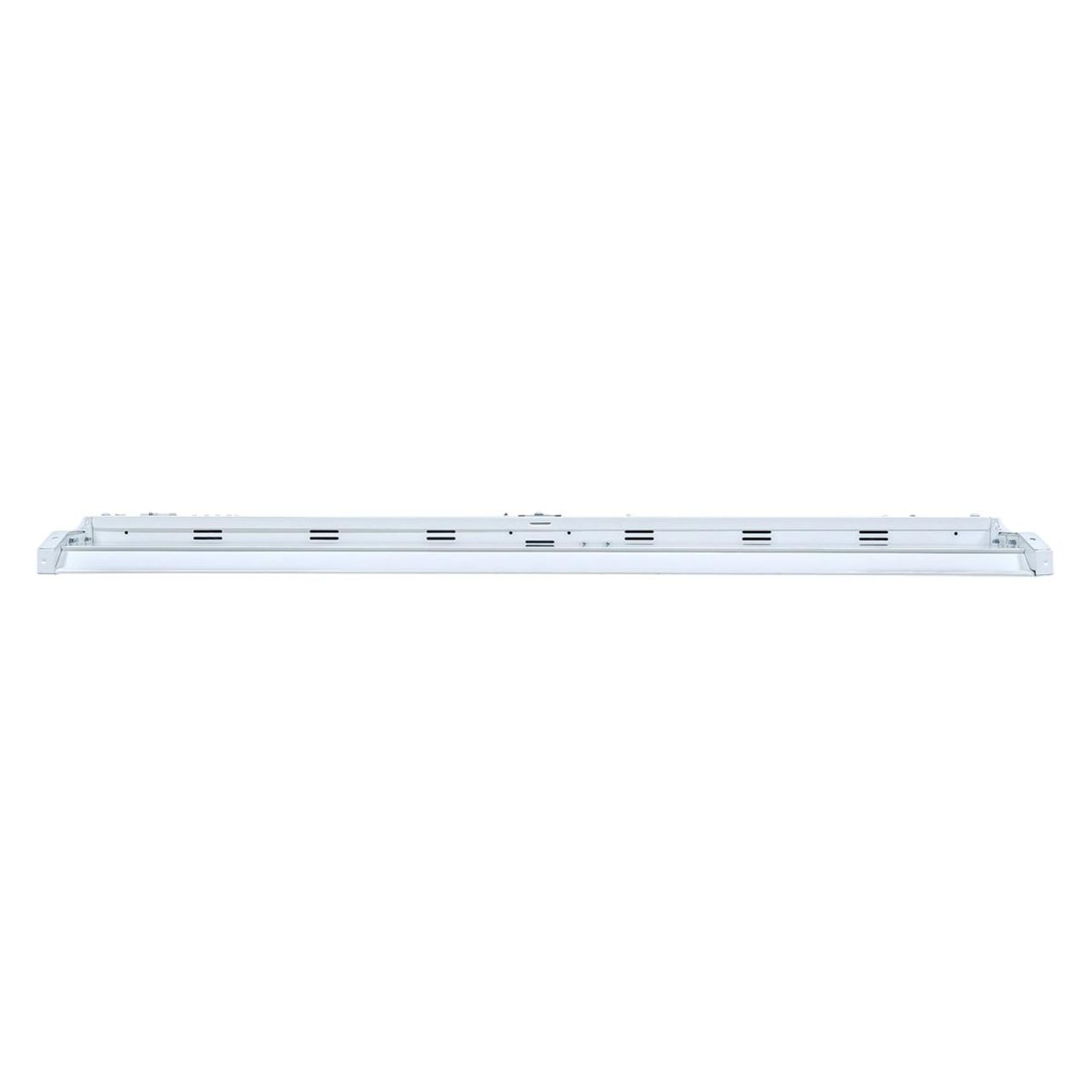

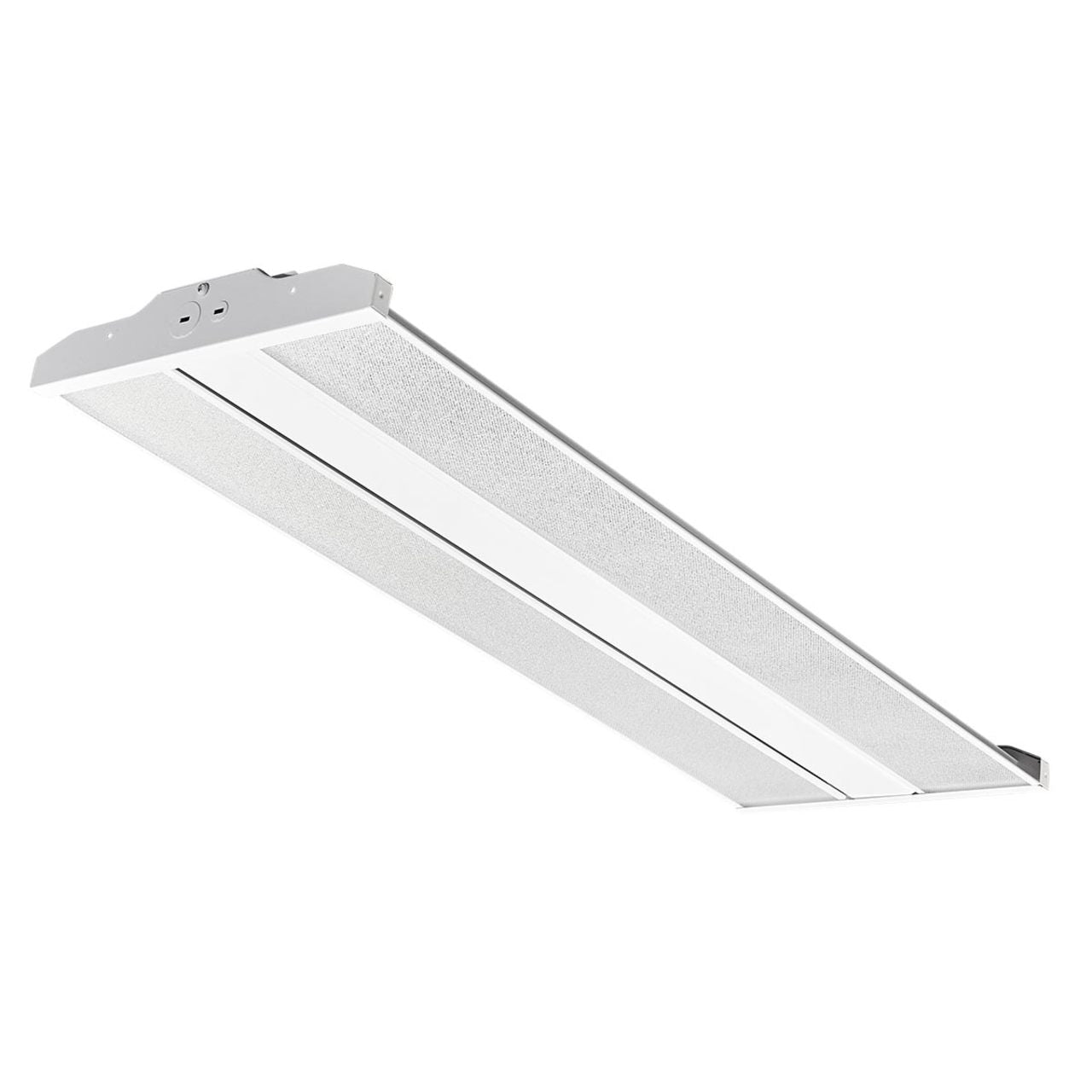

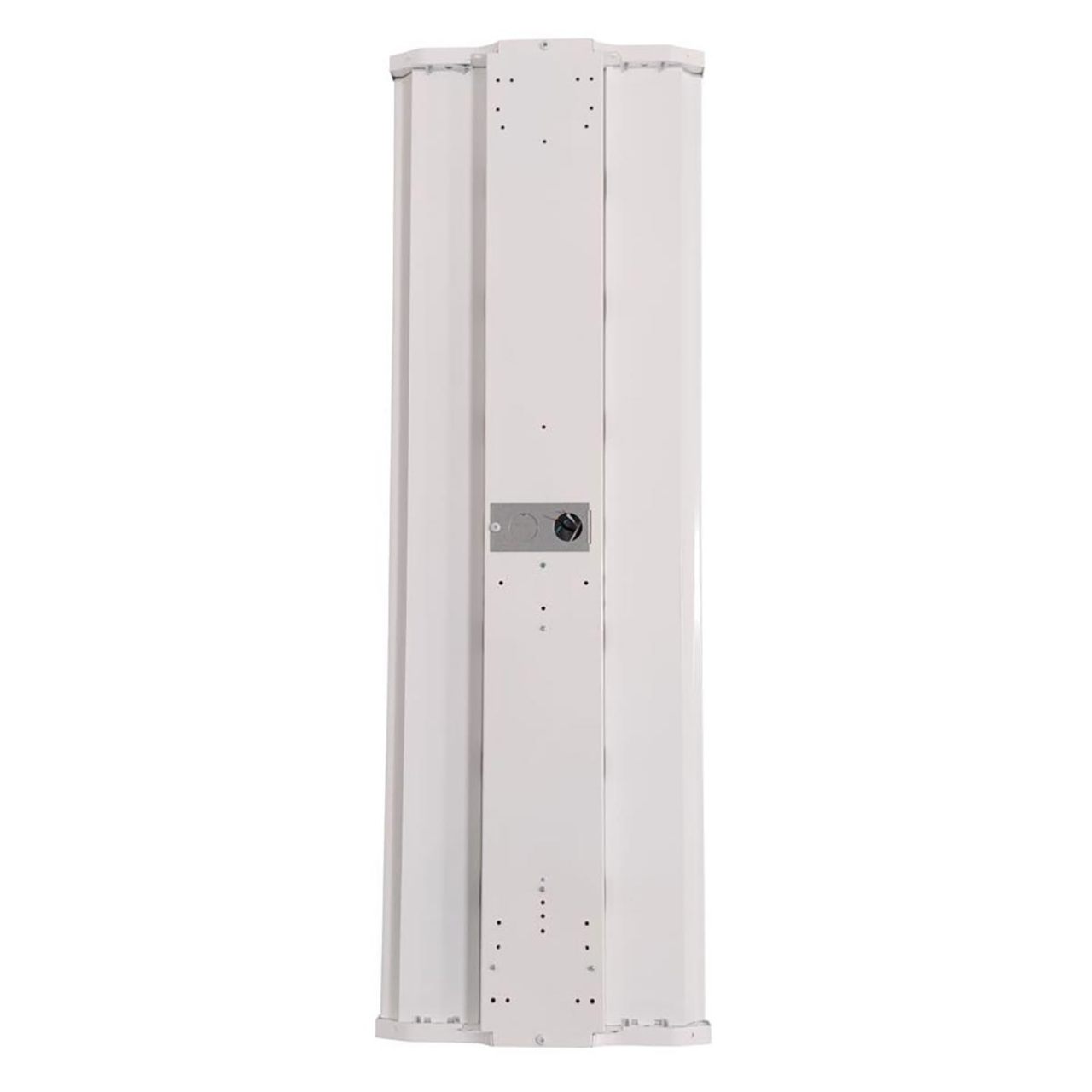

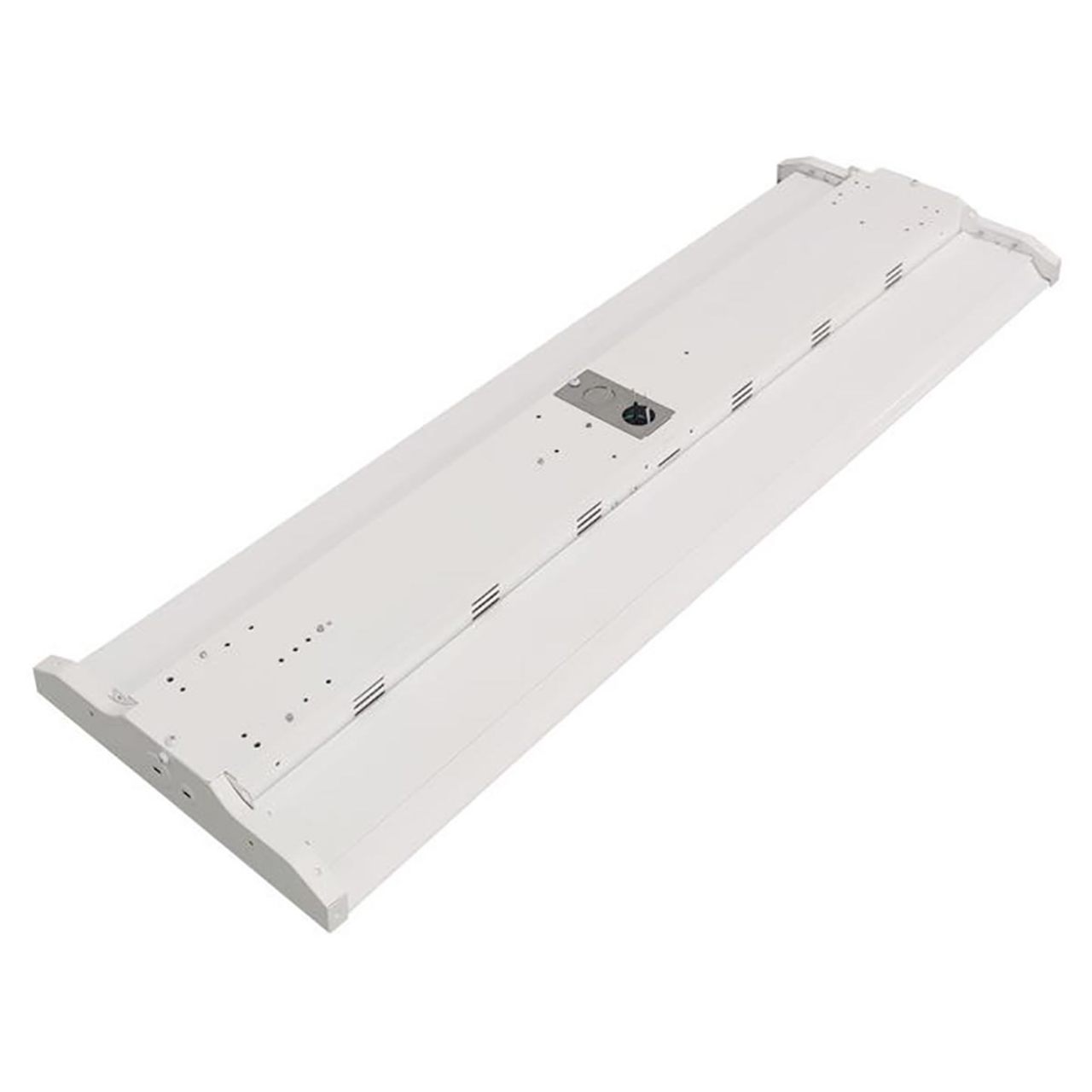

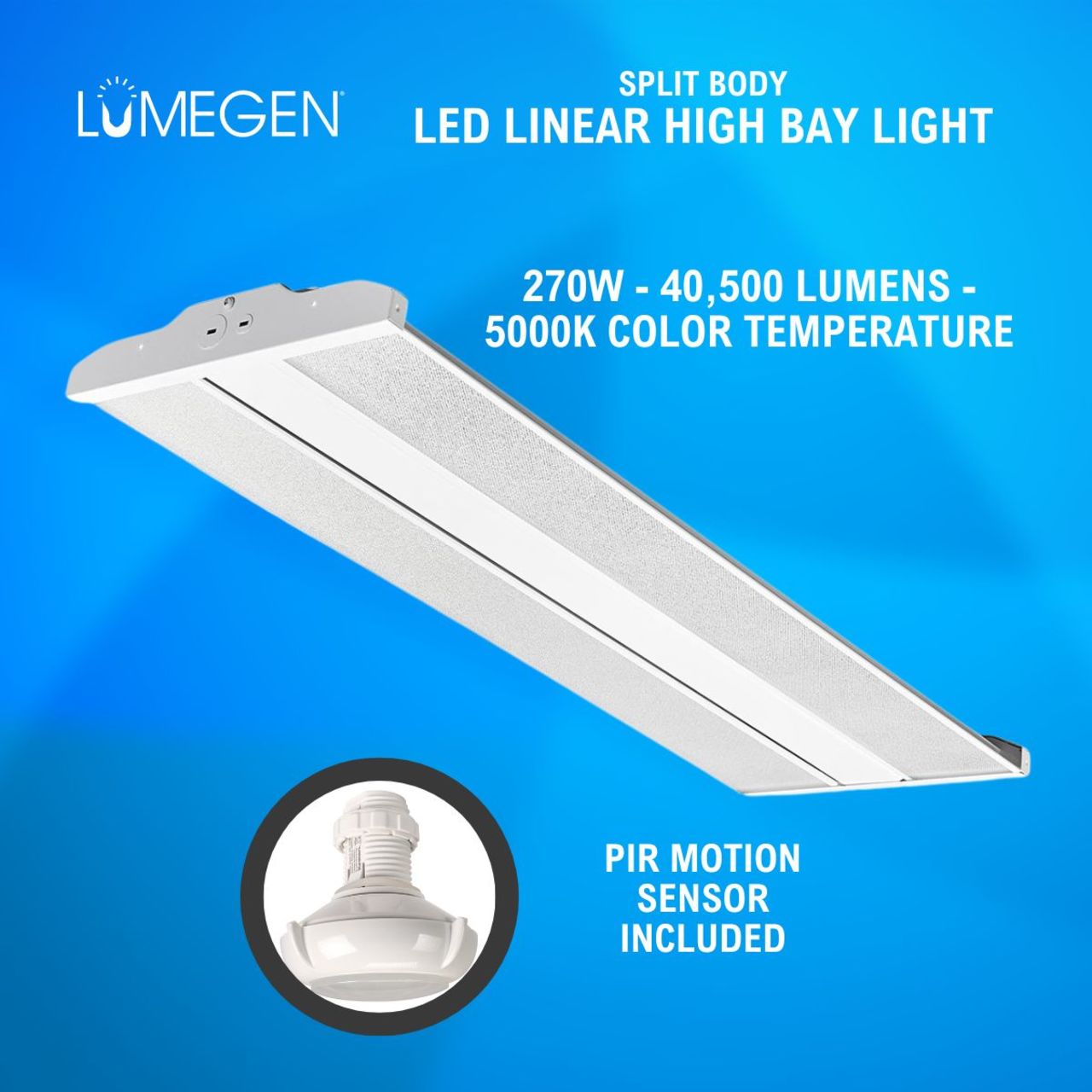

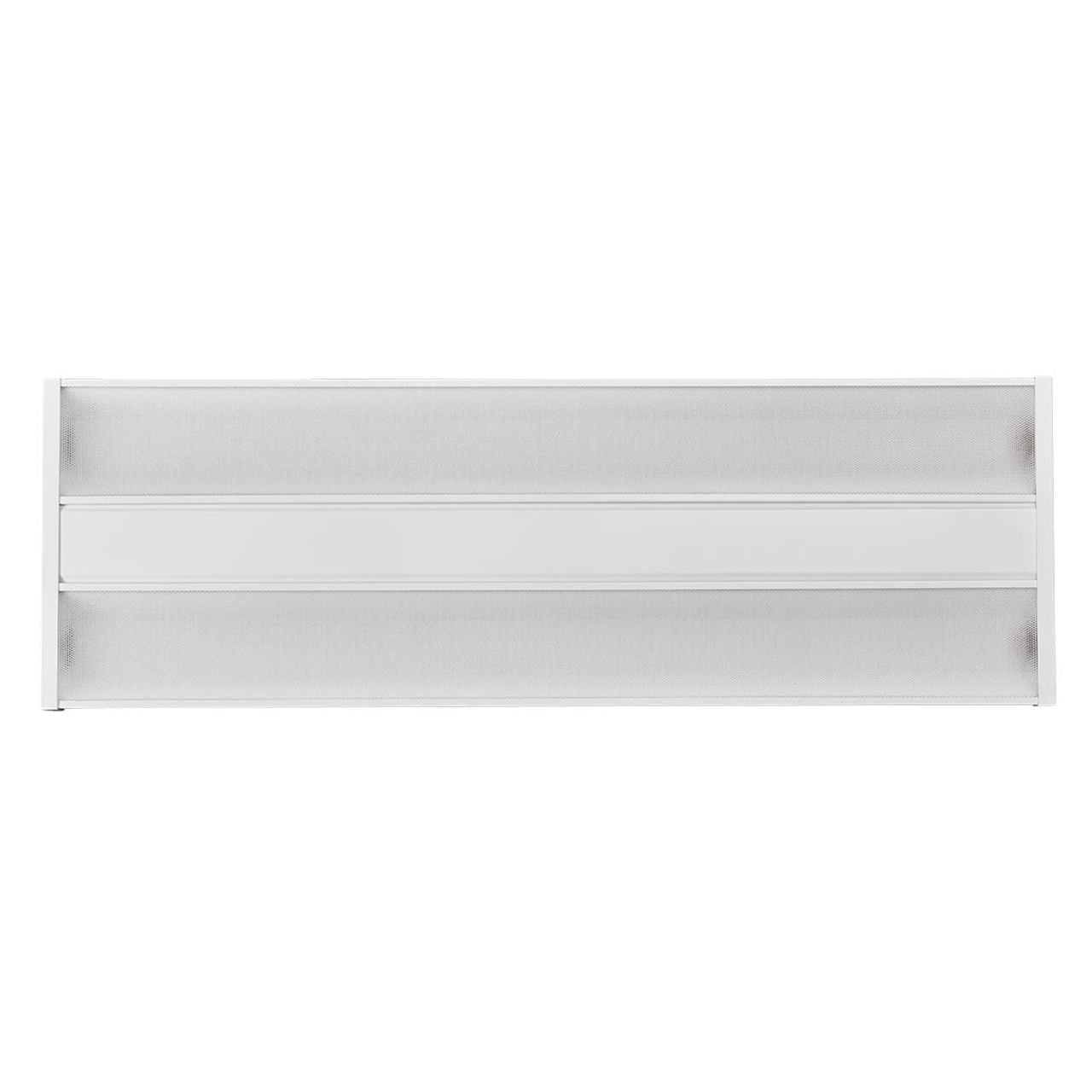

LED Linear High Bay with PIR Motion Sensor - 270W - 40,500 Lumens - 5000K - LumeGen

Looking for an energy efficient indoor lighting solution for a warehouse, retail space, factory, or other large open indoor area? This Dual-Lens 270W LED Linear High Bay Light is it! Its linear footprint makes them great for aisles, and they are made for mounting higher than 20 feet to spread even bright light over a large area. Save up to 30% on energy consumption and saving on maintenance costs in comparison to traditional fluorescent high bay lights that require replacing light bulbs over the life of the fixture.

This 270W LED High Bay delivers an impressive 40,500 lumens at a high efficacy of 150 lumens per watt, providing bright, efficient lighting in a crisp 5000K color temperature. Designed with a durable stamped sheet metal housing for excellent heat dissipation, it also features a frosted polycarbonate lens to ensure smooth, even light distribution while minimizing glare.

Equipped with a 0-10V dimmable LED driver (AC120-277V), this UFO high bay allows for adjustable brightness to match your lighting needs and enhance energy savings. A compatible 0-10V dimmer is required and sold separately. Ideal for replacing traditional metal halide fixtures, this LED high bay offers significant energy cost savings and is rated for an extended lifespan of up to 100,000 hours.

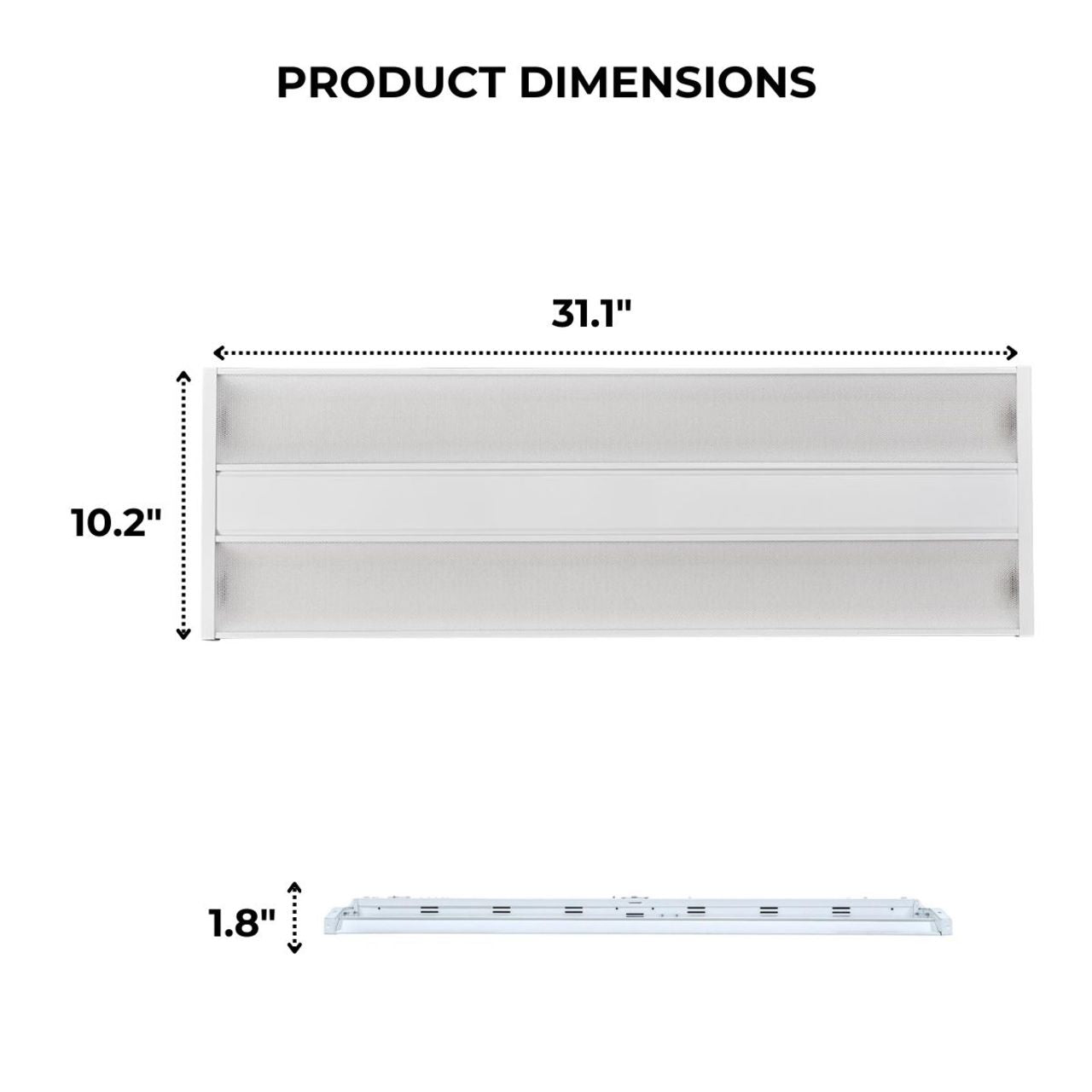

Product Dimensions: 31.1" L x 10.2" W x 1.8" D

Accessories

Included Accessories

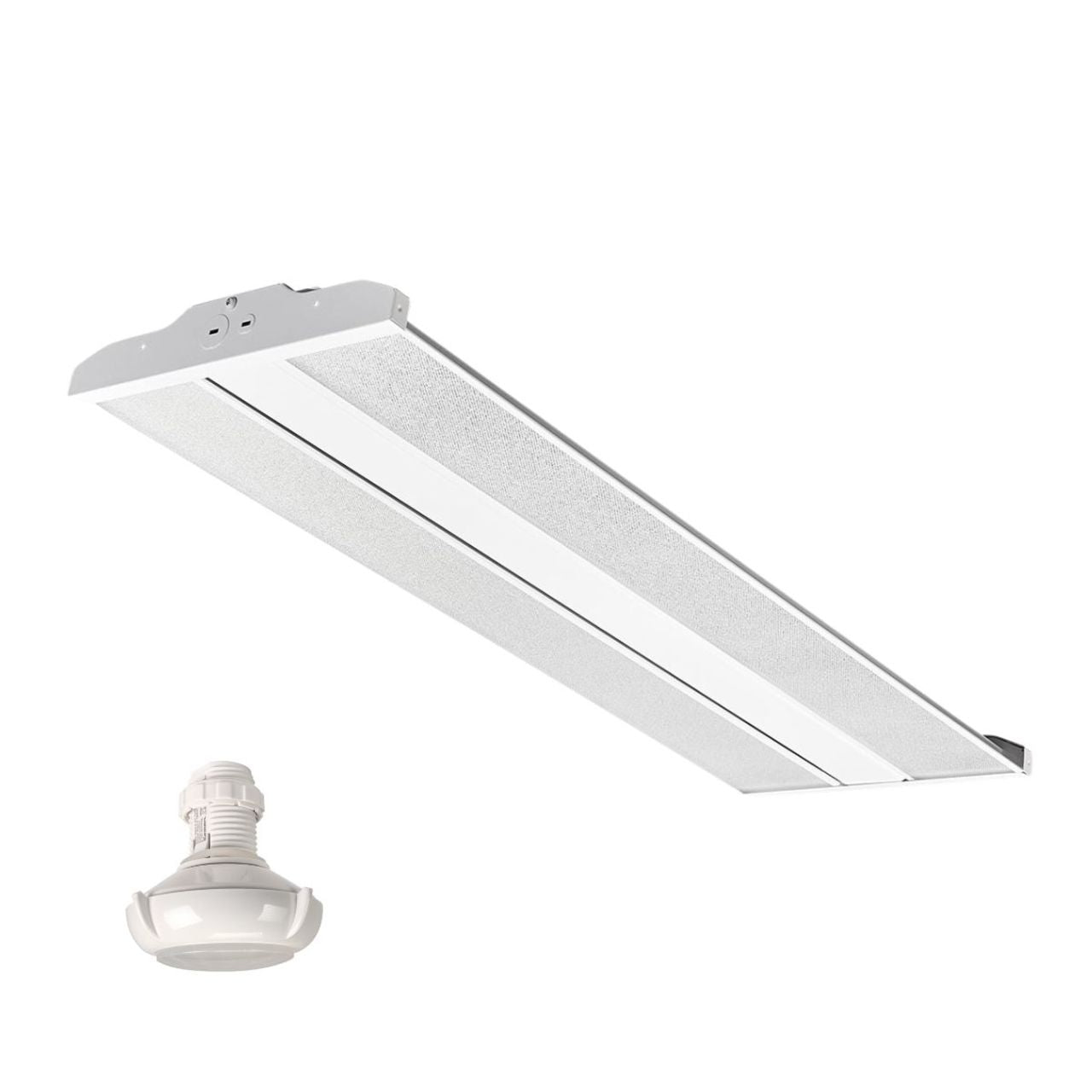

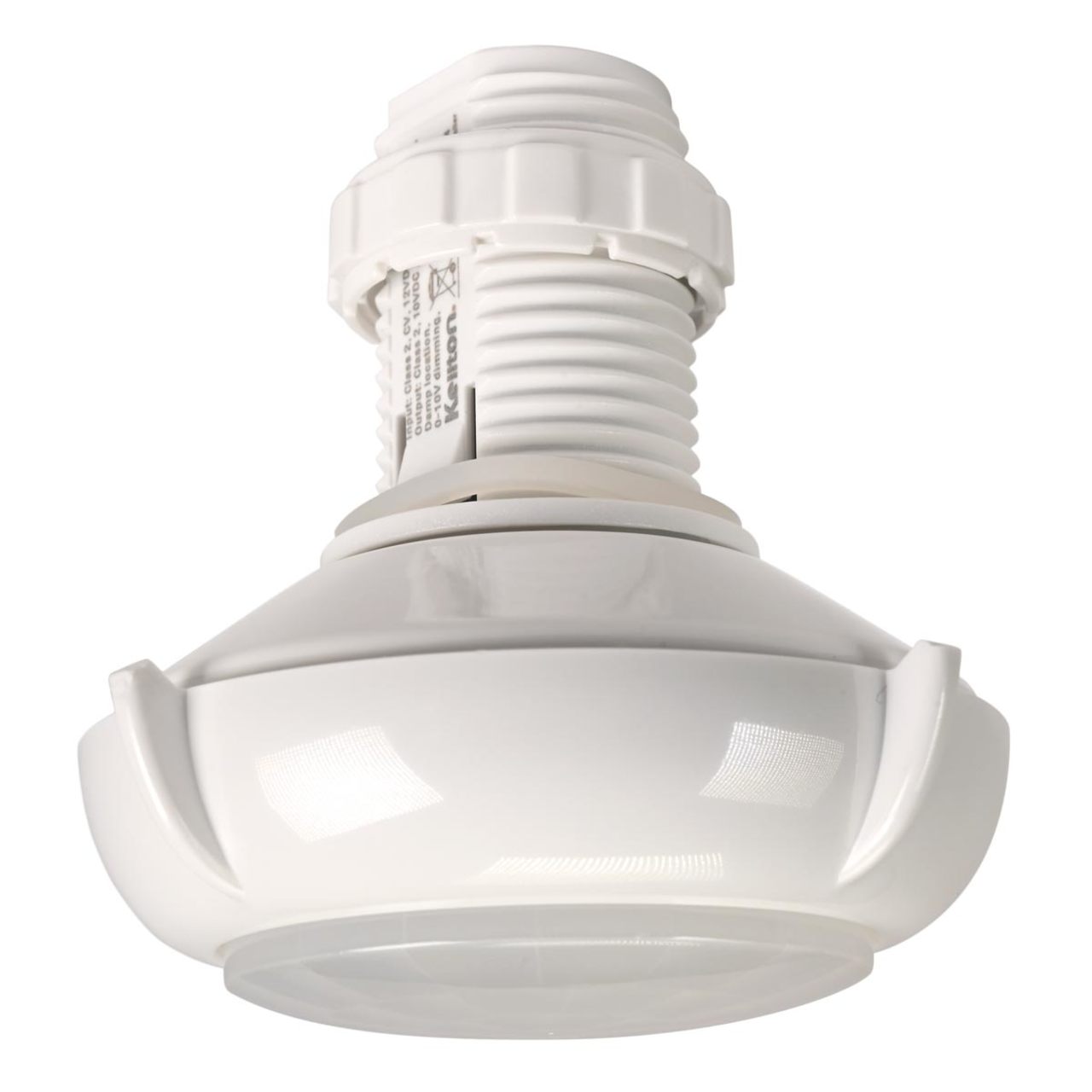

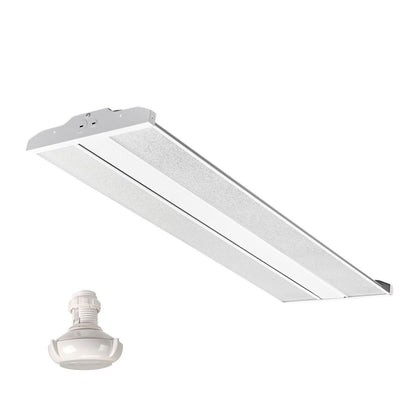

This linear high bay light can be mounted numerous ways. V-Hooks and chain suspended mounting accessories are included with the light. Additionally, a PIR motion sensor is included (SKU LEDLHBA1000051846).

Additional Accessories (Sold Separately)

There is a remote control that can be purchased separately (SKU LEDLHBA1000051845) to operate the PIR motion sensor SKU LEDLHBA1000051846.

Additional mounting options are available to be purchased separately including cable mount kits (SKUs LEDLHBA1000051841 & LEDLHBA1000051842), surface mount kit (SKU LEDLHBA1000051838), and pendant mount kit (SKU LEDLHBA1000051840). An additional power cords can also be purchased separately (SKUs LEDLHBA1000051843).

Utility Rebates

This LED high bay is also DLC Premium V5.1 listed meaning it is highly energy efficient and may qualify for utility rebates in certain areas. Learn more about LED Rebates.

Emergency Drivers

Constant-power emergency drivers with 90-minute run time are available to add on to your LED high bays to increase fire safety and comply with local fire safety codes. Check out our selection of LED emergency drivers.

Need more lighting options? Explore flat panels, solar lighting, and more from LumeGen.

Product Specifications

Brand: LumeGen
Case Qty: 1
Clearance:  Non-Clearance
Country of Origin: China
CRI:  80
Life Hours:  100,000 Hours
Light Source: LED
Lumens per Watt: 150 lm/W
Voltage: AC120-277V
Operating Temp - Low: -20C / -4F
Operating Temp - High: 50C / 122F
Lumens: 40,500
LED Chip Type: BRIDGELUX 2835 LED Chips
Color: 5000K Daylight
Dimmable: Dimmable
Wattage: 270W
High Bay Body Type: Split Body
Lens Material: Frosted PC Lens
Motion Sensor: Compatible - Sensor Included
Color Temperature (CCT): 5000K
Light Fixture Type: High Bay (Linear)
Ratings and Certifications:DLC Premium
Ratings and Certifications:UL Listed
Certificate Description
UL Listed

UL Listed

UL Listed refers to products that have been tested and certified by Underwriters Laboratories (UL). UL Listed LED lighting products have undergone meticulous testing to confirm compliance with standards like electrical safety and fire resistance. UL is recognized by OSHA as a NRTL and UL mark for lighting fixtures is the most prominent marks for lighting in the US.
DLC Premium

DLC Premium

The DesignLights Consortium (DLC), sets criteria for energy-efficient LED products, ensuring they meet strict performance and efficiency standards. DLC Premium products surpass basic standards and are eligible for higher rebate incentives.
