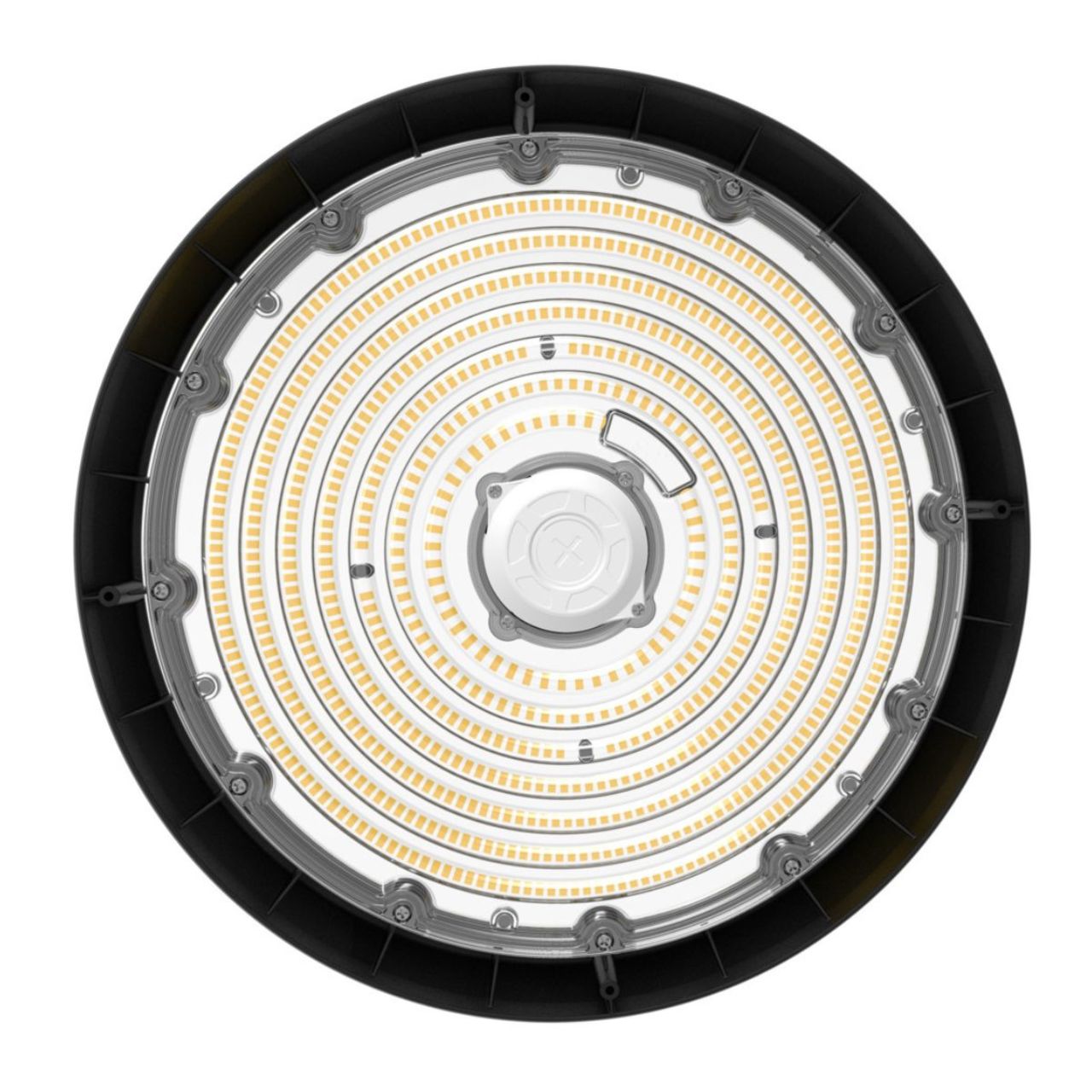

The J-UFO12-240W/200W/150W-H LED UFO High Bay Light is designed for commercial and industrial facilities that require high-voltage 277-480V operation and powerful, energy-efficient illumination. With selectable wattage settings of 150W, 200W, and 240W, this fixture provides flexible light output for different ceiling heights, layouts, and project requirements.
The fixture delivers approximately 21,000 lumens at 150W, 28,000 lumens at 200W, and up to 33,600 lumens at 240W, with luminous efficacy up to 140 lm/W. This makes it well suited for warehouses, factories, workshops, airports, distribution centers, and other high-bay applications.
Featuring 3CCT selectable technology, the J-UFO12 allows installers to choose between 3000K, 4000K, and 5000K color temperatures in the field. The fixture uses a double-switch design for easy wattage and CCT adjustment, helping reduce the number of fixed-output fixtures required for commercial projects.
Built with a durable die-cast aluminum housing and powder-coated finish, the J-UFO12 provides excellent heat dissipation and long-term reliability. A UV-stabilized polycarbonate lens helps protect the LED source, while the Lumileds LED platform provides consistent performance for demanding commercial environments.
The fixture supports hook and yoke mounting, with additional accessory options including a PC reflector, safety rope, U bracket, sensor, and emergency backup. Its plug-and-play sensor design also allows fast installation of compatible controls.
Key Features
- Wattage Selectable: 150W / 200W / 240W
- High Voltage Input: 277-480VAC
- Maximum Light Output: Up to 33,600 lumens
- High Efficiency: Up to 140 lm/W
- 3CCT Selectable: 3000K / 4000K / 5000K
- CRI: >80
- 90° Light Distribution
- Lumileds LED Source
- Die-Cast Aluminum Housing
- Powder-Coated Finish
- UV-Stabilized Polycarbonate Lens

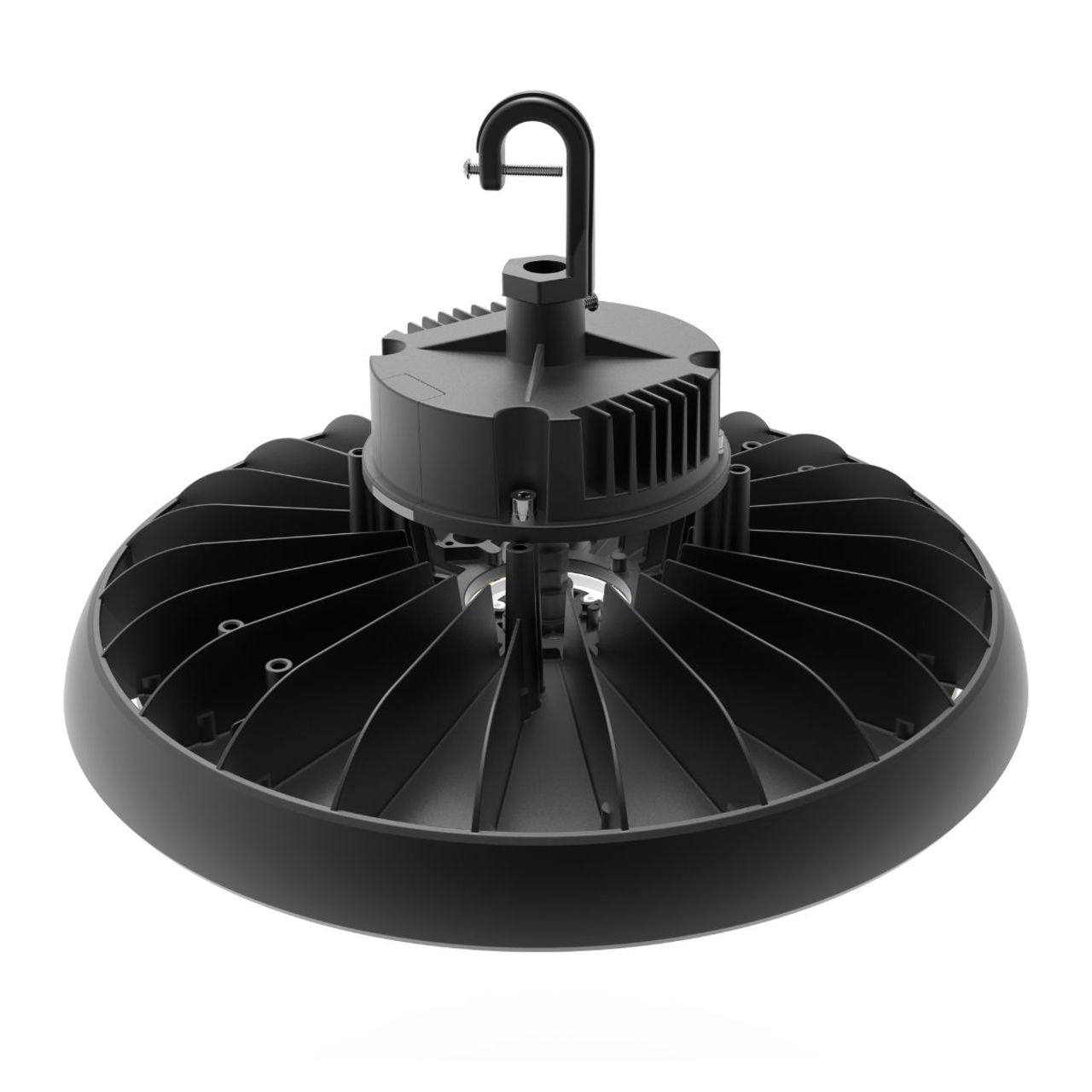

- Hook and Yoke Mounting
- Optional Sensor
- Optional Emergency Backup
- Optional PC Reflector, Safety Rope, and U Bracket
- Operating Temperature: -30°C to 50°C
- ETL & DLC Listed
- 5-Year Warranty
Applications
- Warehouses
- Factories
- Workshops
- Distribution Centers
- Airports
- Industrial Facilities
- Commercial High-Bay Spaces
- Manufacturing Areas
- Large Indoor Facilities
Technical Specifications
| Specification | Value |
|---|---|
| Series | J-UFO12 |
| Model | J-UFO12-240W/200W/150W-H |
| Product Type | LED UFO High Bay Light |
| Selectable Wattage | 150W / 200W / 240W |
| Lumen Output | 21,000 / 28,000 / 33,600 lm |
| Maximum Lumens | 33,600 lm |
| Luminous Efficacy | Up to 140 lm/W |
| CCT | 3000K / 4000K / 5000K Selectable |
| Input Voltage | 277-480VAC |
| CRI | >80 |
| Light Distribution | 90° |
| Housing | Die-Cast Aluminum |
| Lens | UV-Stabilized Polycarbonate |
| LED Source | Lumileds |
| Mounting | Hook / Yoke |
| Operating Temperature | -30°C to 50°C |
| Certifications | ETL / DLC |
| Warranty | 5 Years |
Product Specifications
| Certificate | Description |
|---|---|
DLC Listed |
The DesignLights Consortium (DLC), sets criteria for energy-efficient LED products, ensuring they meet strict performance and efficiency standards. DLC Listed products meet baseline requirements and are eligible for rebates. |
