LED Parking Garage Canopy Light - Wattage Adjustable 65W/80W/100W - Color Tunable 3000K/4000K/5000K - Brown Finish - Sensor Base - LumeGen
The Wattage Tunable and Color Selectable LED Canopy Light is ideal for outdoor areas such as parking garages, gas stations, underpasses, and loading docks. It provides significant energy savings, replacing metal halide fixtures up to 400W while reducing energy consumption by up to 70%. With selectable wattage and color temperatures, this light offers 9 customizable configurations to meet various brightness and color needs. Its LED technology minimizes maintenance costs, ensuring long-lasting performance and durability for outdoor ceiling or canopy lighting applications.
Specifications
- Wattage Selectable (60W/80W/100W)
- 60W: 7200 Lumens(120 lumens/W)
- 80W: 9600 Lumens (120 lumens/W)
- 100W: 12,000 Lumens (120 lumens/W)
- CCT Selectable (3000K/4000K/5000K)
- 80 CRI
- 120-277 Voltage
- 150 Degree Beam Angle
- Dimmable - 0-10V Dimmer Required (Sold Separately)
- Motion Sensor Base (Motion Sensor Sold Separately)
- DLC Premium (DLC QPL S-V616CW), UL Listed, IP65 Rated, RoHS Compliant

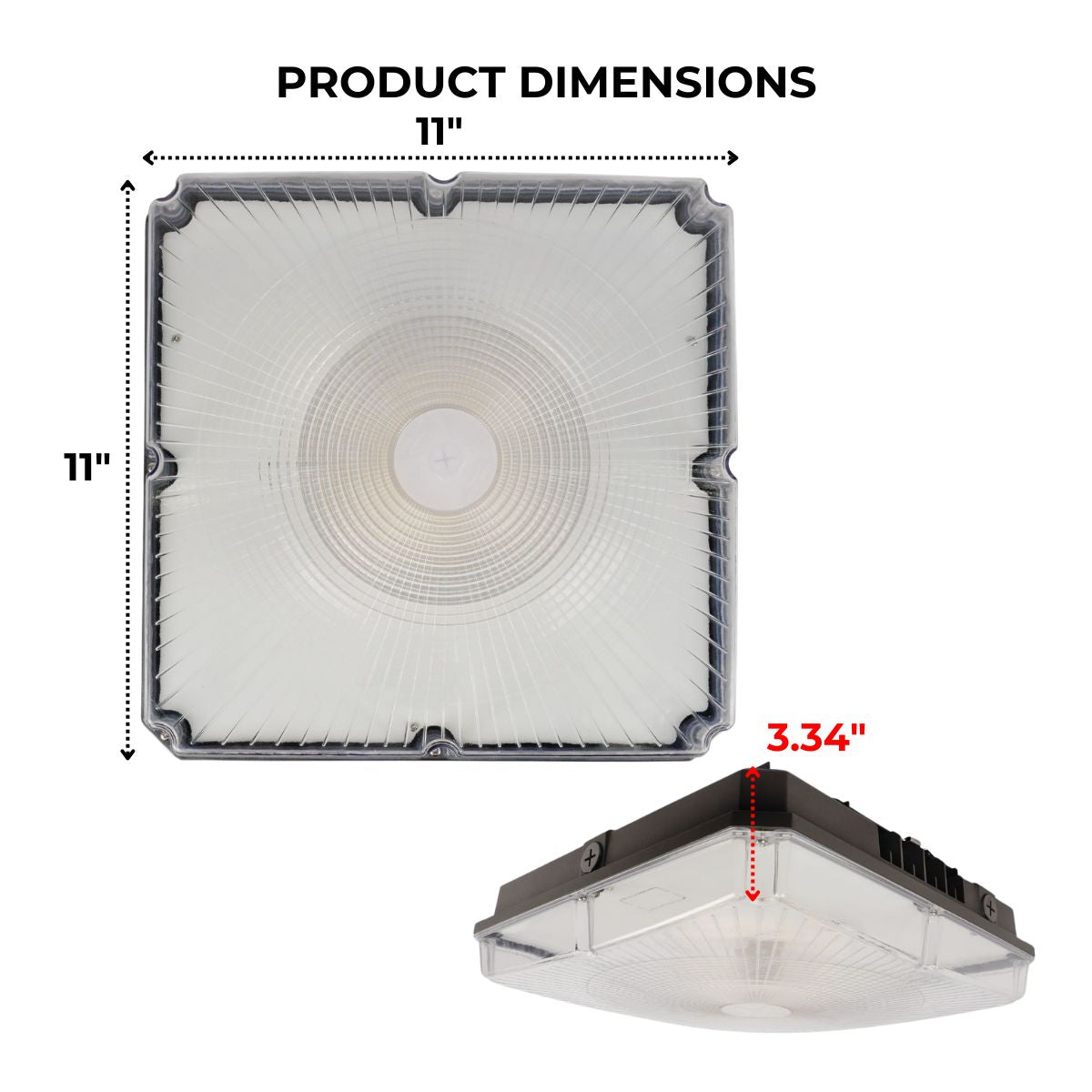

Fixture Dimensions: 11" Length x 11" Width x 3.34" Height
Need more lighting options? Explore flat panels, solar lighting, and more from LumeGen.
Product Specifications
| Certificate | Description |
|---|---|
DLC Premium |
The DesignLights Consortium (DLC), sets criteria for energy-efficient LED products, ensuring they meet strict performance and efficiency standards. DLC Premium products surpass basic standards and are eligible for higher rebate incentives. |
UL Listed |
UL Listed refers to products that have been tested and certified by Underwriters Laboratories (UL). UL Listed LED lighting products have undergone meticulous testing to confirm compliance with standards like electrical safety and fire resistance. UL is recognized by OSHA as a NRTL and UL mark for lighting fixtures is the most prominent marks for lighting in the US. |
Resources-Guides
Instruction Manual
Photometric Test Report - 60W - 3000K
Photometric Test Report - 60W - 4000K
Photometric Test Report - 60W - 5000K
Photometric Test Report - 80W - 3000K
Photometric Test Report - 80W - 4000K
Photometric Test Report - 80W - 5000K
Photometric Test Report - 100W - 3000K
Photometric Test Report - 100W - 4000K
Photometric Test Report - 100W - 5000K
Specification Sheet
DLC QPL Report
LumeGen Warranty
