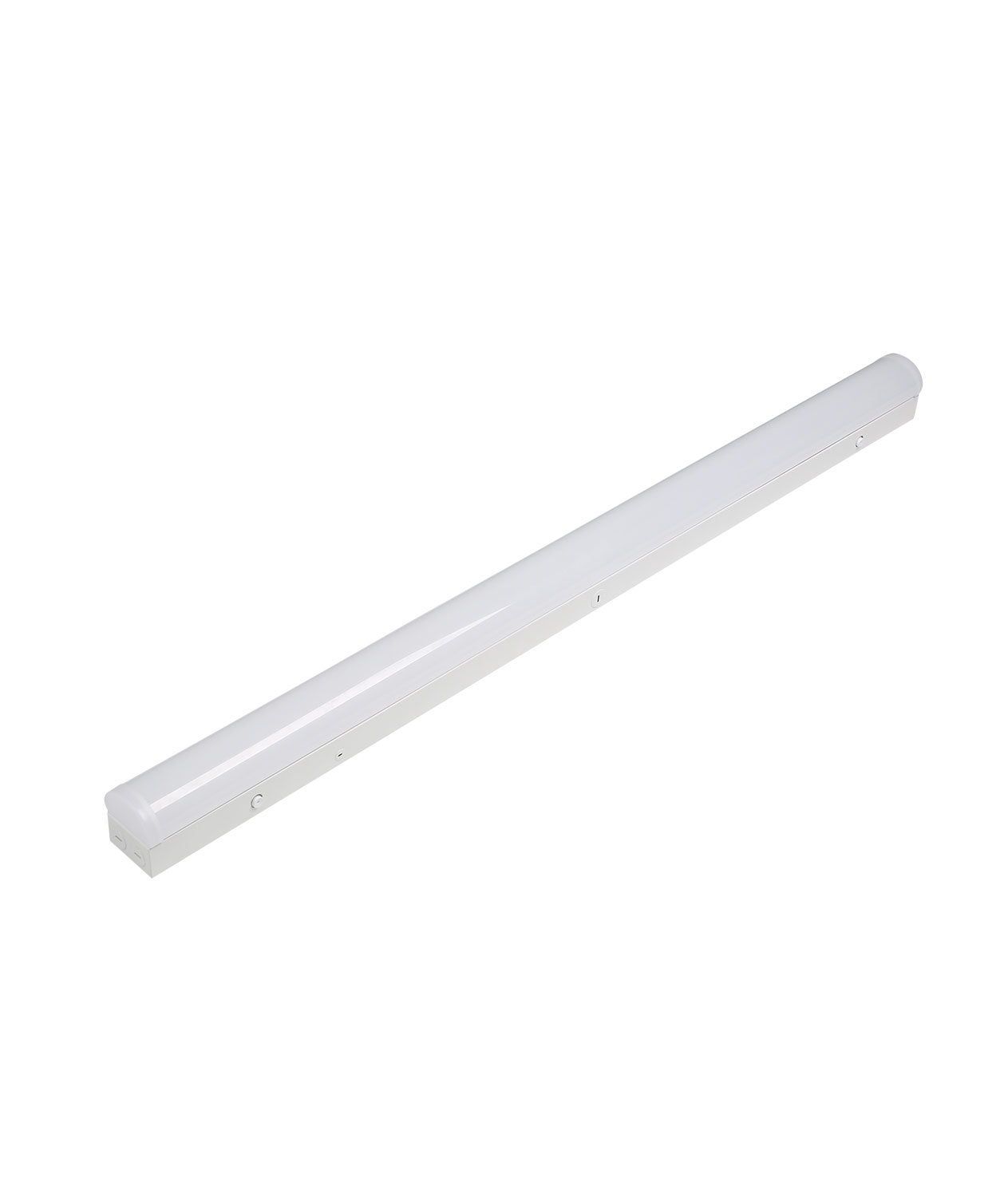

4FT Emergency LED Linear Strip Light with Battery Backup
The JCE Lighting J-ST02 4FT Emergency LED Linear Strip Light combines field-selectable lighting performance with an integrated emergency battery backup configuration for commercial lighting projects.
Select between 20W, 30W, and 45W and five color temperatures of 3500K, 4000K, 5000K, 5700K, and 6500K. At 45W, the fixture delivers up to 5,850 lumens.
This EM configuration includes the emergency battery backup and is sold as a 6-pack.
Key Features
- Emergency Version: Emergency battery backup included
- 6-Pack: Six 4FT fixtures per package
- Selectable Wattage: 20W / 30W / 45W
- 5CCT Selectable: 3500K / 4000K / 5000K / 5700K / 6500K
- Maximum Output: 5,850 lumens
- Efficacy: Approximately 130 lm/W
- Voltage: AC 120-277V
- Dimming: 0-10V
- Installation: Surface mounted or suspended
- Certifications: ETL Listed & DLC 5.1 Premium
- Warranty: 5-Year Limited Warranty
Selectable Wattage & 5CCT
Field-selectable power and color temperature allow contractors to configure the fixture during installation instead of purchasing separate fixtures for each wattage and CCT requirement.
- 20W – 3,128 lumens
- 30W – 4,160 lumens
- 45W – 5,850 lumens
- 3500K / 4000K / 5000K / 5700K / 6500K selectable
Emergency Battery Backup Included
Unlike the sensor-ready version, this model is configured with an emergency battery backup included, making the emergency configuration easy to identify during purchasing and project specification.
Technical Specifications
| SKU | SL01004 |
|---|---|
| Model | JEN-ST02-4FT-45PDBC (EM) |
| Length | 4FT |
| Wattage | 20W / 30W / 45W Selectable |
| CCT | 3500K / 4000K / 5000K / 5700K / 6500K |
| Maximum Lumens | 5,850 lm |
| Voltage | 120-277V AC |
| Dimming | 0-10V |
| Emergency Backup | Included |
| Certifications | ETL Listed, DLC 5.1 Premium |
| Pack Quantity | 6 Fixtures |
| Warranty | 5 Years |
Applications
- Offices
- Retail Spaces
- Schools
- Restaurants
- Healthcare Facilities
- Hospitality Applications
