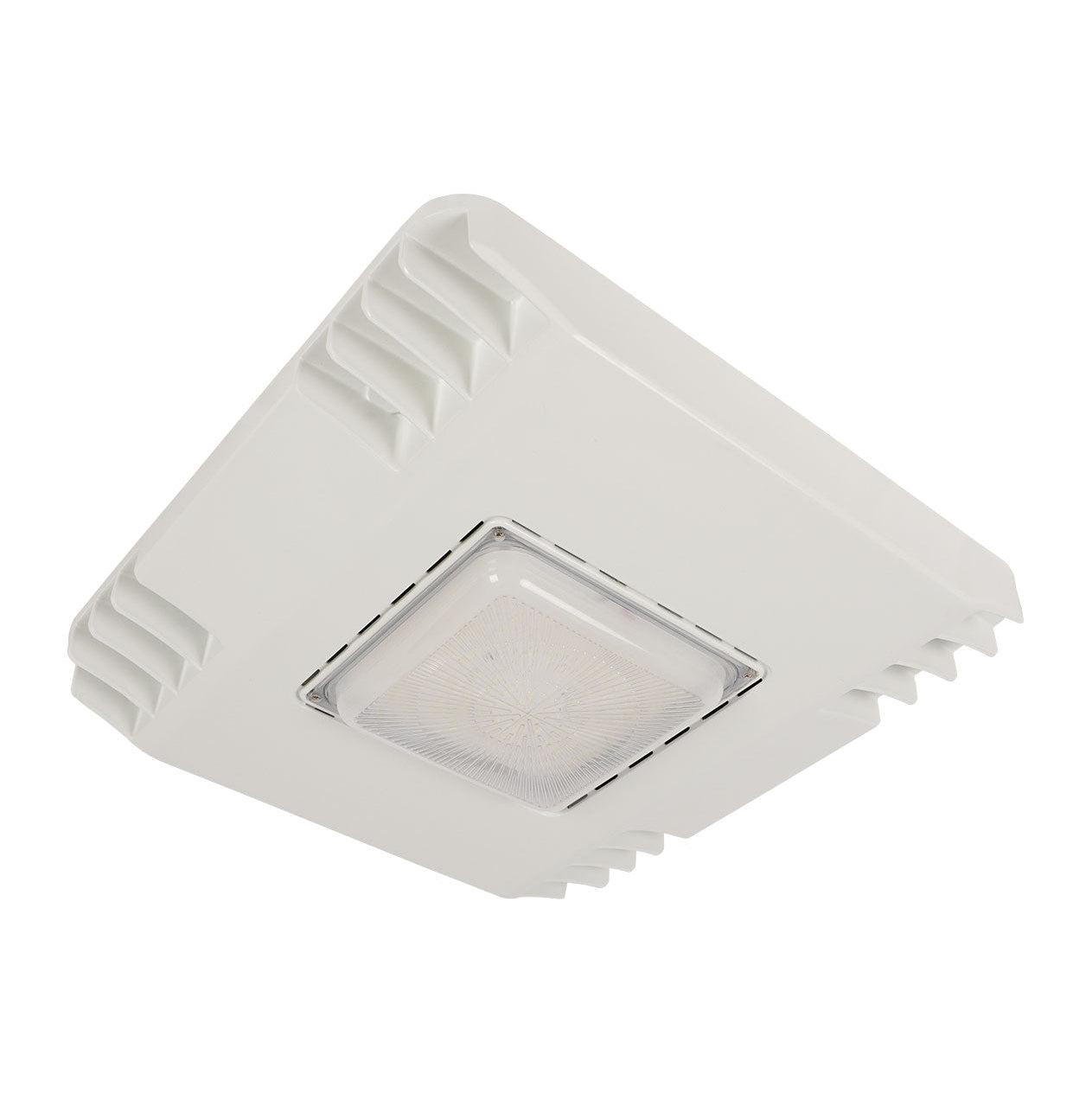

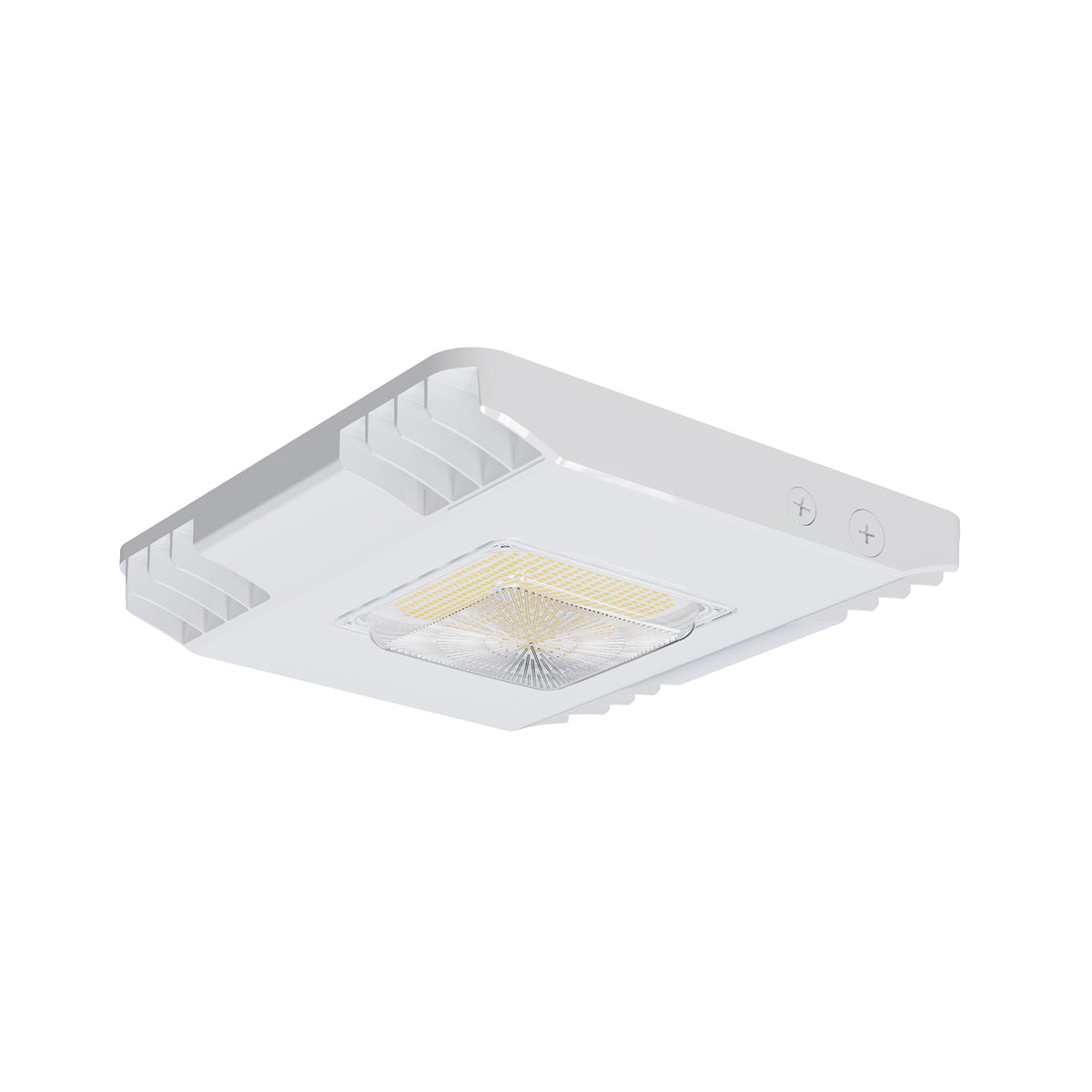

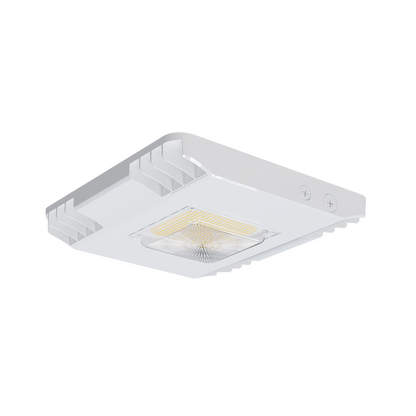

150W LED Gas Station Canopy Light with Selectable Wattage & CCT

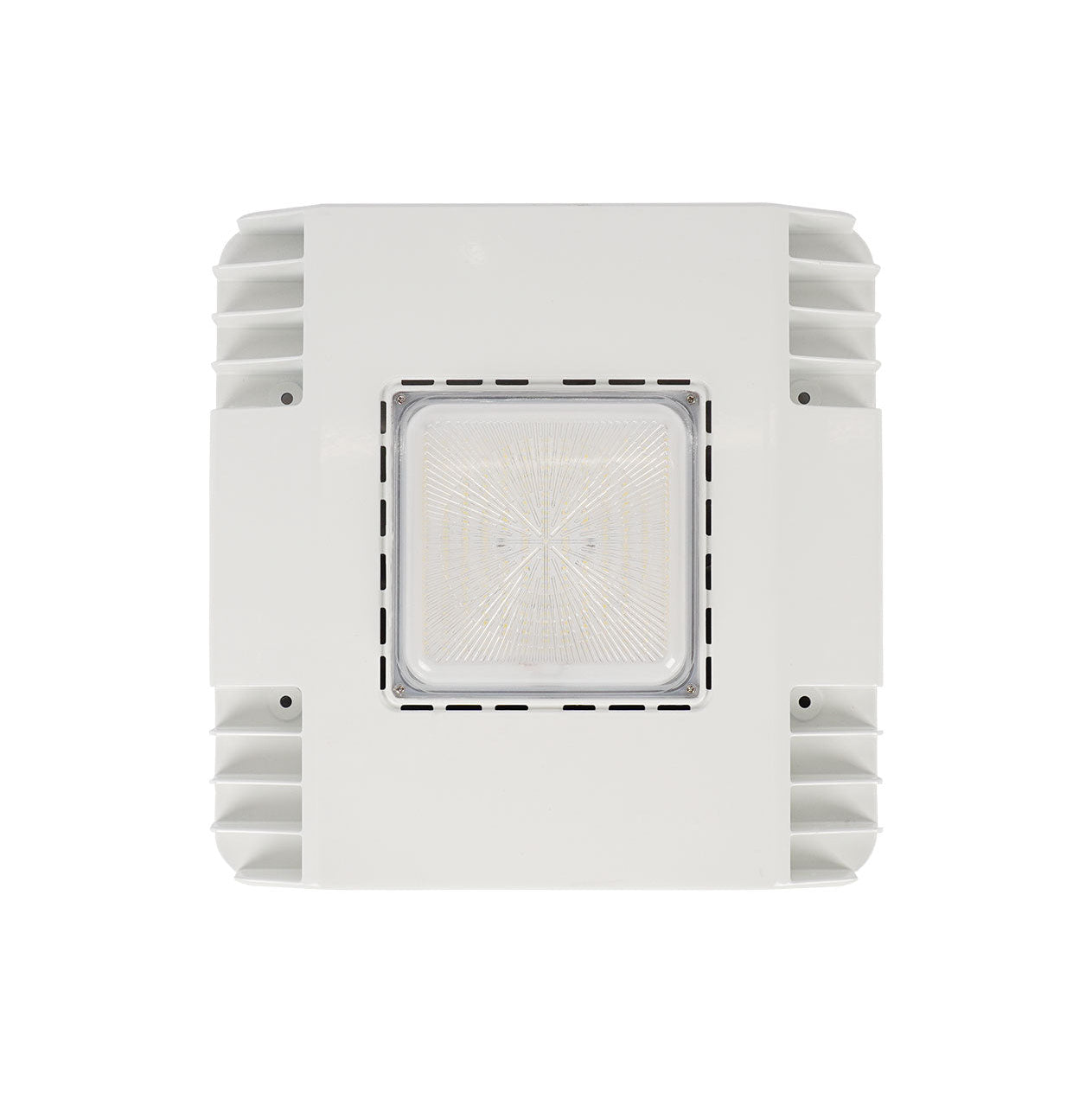

The JCE Lighting CP03 LED Gas Station Canopy Light is designed for commercial canopy lighting applications that require high lumen output, flexible field adjustment, and reliable outdoor performance.
One fixture provides 100W, 130W, and 150W selectable wattage along with 3500K, 4000K, and 5000K selectable color temperatures, allowing contractors, distributors, and facility managers to configure the light output and CCT at installation without stocking multiple fixture models.

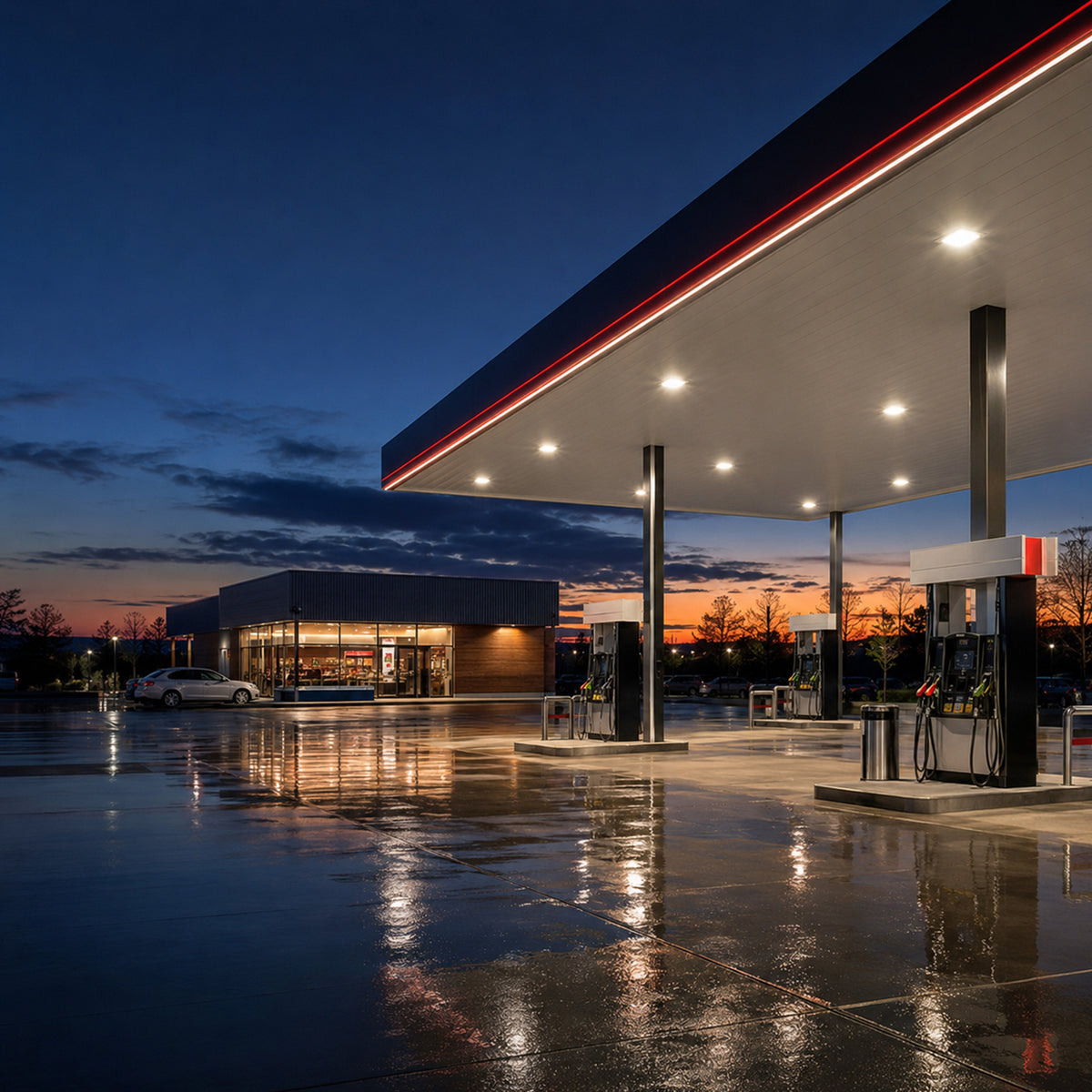

Delivering up to 19,500 lumens and approximately 130 lm/W, this commercial LED canopy light is ideal for gas stations, fuel station canopies, convenience stores, parking structures, garages, driveways, and other covered commercial areas.
Key Features
- Selectable Wattage: 100W / 130W / 150W adjustable
- Selectable CCT: 3500K / 4000K / 5000K
- High Output: Up to 19,500 lumens
- High Efficacy: Approximately 130 lumens per watt
- Universal Voltage: AC 120-277V
- 0-10V Dimming: Compatible with commercial lighting control applications
- IP65 Rated: Suitable for demanding canopy and outdoor commercial environments

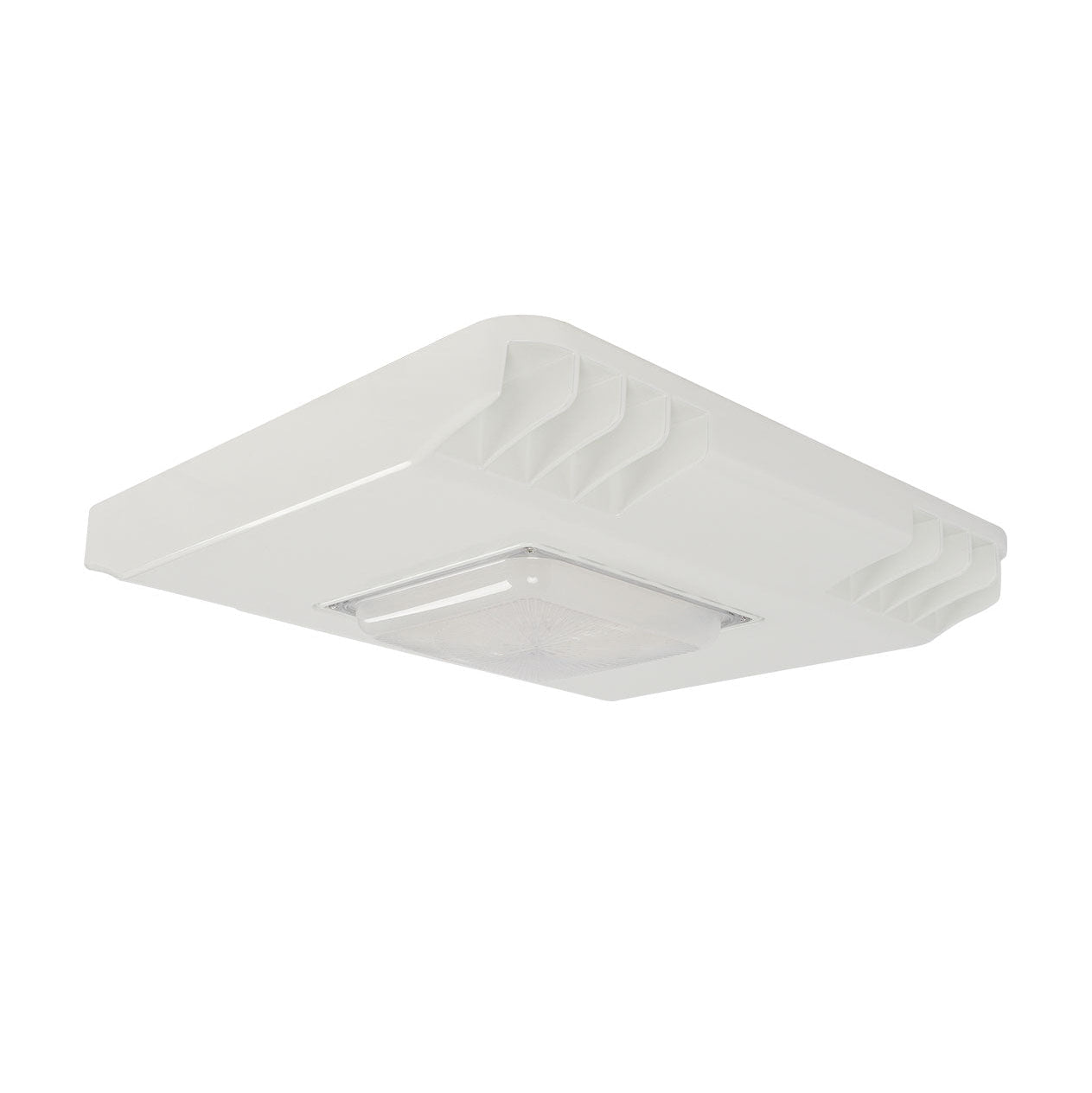

- ETL Listed
- DLC 6.0 Premium
- Durable Construction: Die-cast aluminum housing with polycarbonate lens
- Long Service Life: Designed for 50,000+ hours of operation
- 5-Year Limited Warranty
Selectable Wattage & Light Output
The CP03 combines three wattage settings in one fixture, making it easier to standardize inventory across projects with different illumination requirements.
| Wattage | Light Output | Efficacy |
|---|---|---|
| 150W | 19,500 Lumens | Approx. 130 lm/W |
| 130W | 16,900 Lumens | Approx. 130 lm/W |
| 100W | 13,000 Lumens | Approx. 130 lm/W |
3500K / 4000K / 5000K CCT Selectable
Select the appropriate color temperature for each project directly at the fixture:
- 3500K: Neutral white light for applications requiring a softer commercial appearance
- 4000K: Clean neutral-white illumination suitable for many commercial canopy applications
- 5000K: Crisp daylight-white illumination commonly used for gas stations and high-visibility commercial areas
The field-selectable design helps contractors and distributors reduce the number of separate wattage and CCT configurations that need to be stocked.
Built for Commercial Canopy Applications

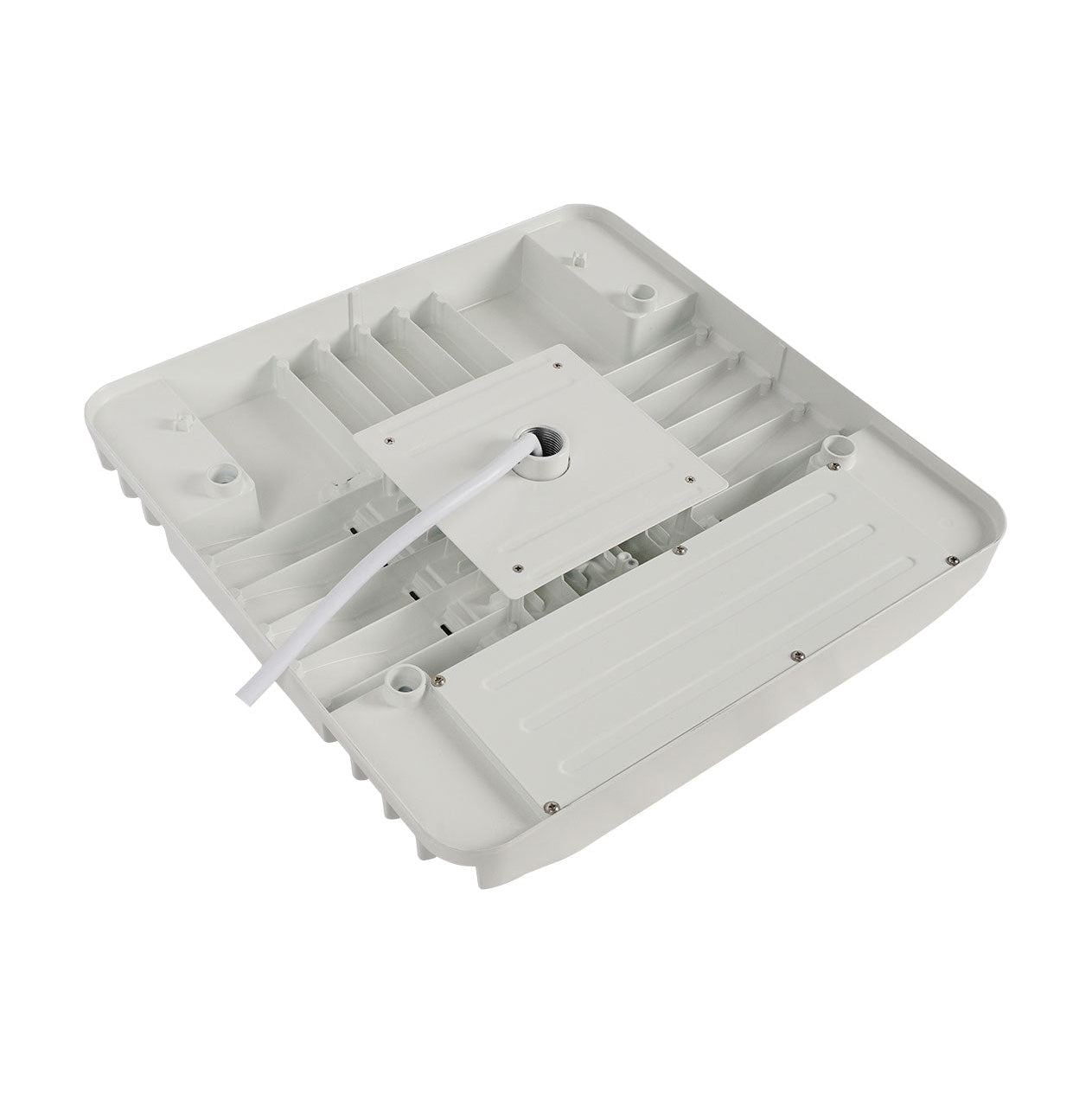

The CP03 features a durable die-cast aluminum housing and polycarbonate lens designed for commercial use. Its IP65-rated construction helps protect the fixture in demanding canopy environments.
The fixture supports commercial installation requirements and is suitable for both surface-mounted canopy applications and compatible pendant-style installations.
Ideal Applications
- Gas Station Canopies
- Fuel Stations
- Convenience Store Canopies
- Commercial Parking Canopies

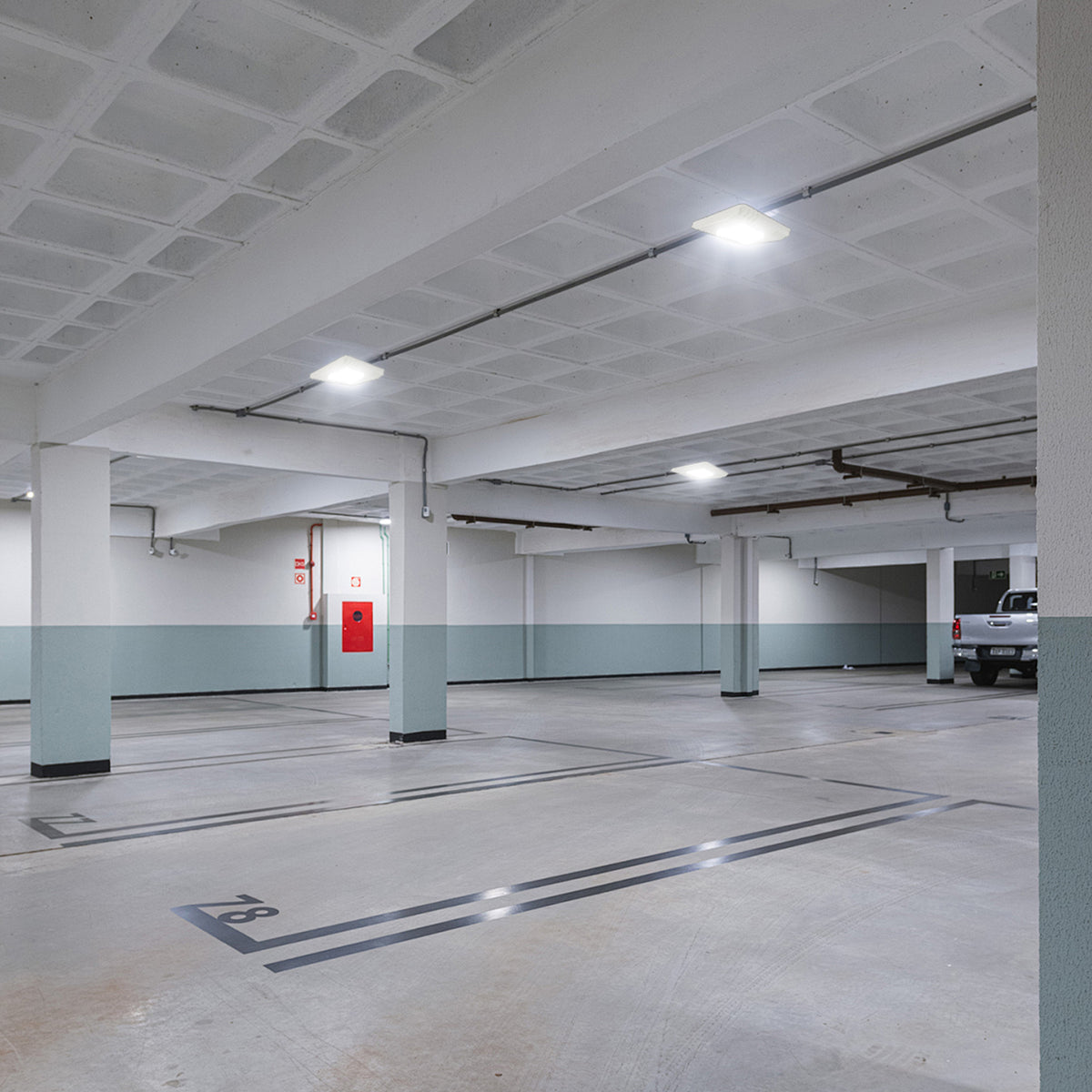

- Parking Garages
- Driveways and Covered Entrances
- Service Stations
- Carports
- Commercial Garages
- Covered Loading Areas
Technical Specifications
| Product Type | LED Gas Station Canopy Light |
|---|---|
| Model | J-TCP1515-150W-C-H-TCP |
| Selectable Wattage | 100W / 130W / 150W |
| Selectable CCT | 3500K / 4000K / 5000K |
| Lumens | 13,000 / 16,900 / 19,500 lm |
| Efficacy | Approx. 130 lm/W |
| Input Voltage | AC 120-277V |
| Dimming | 0-10V Dimming |
| IP Rating | IP65 |
| Certifications | ETL Listed, DLC 6.0 Premium |
| Housing | Die-Cast Aluminum |
| Lens | Polycarbonate Lens |
| Finish | White |
| Rated Life | 50,000+ Hours |
| Warranty | 5-Year Limited Warranty |
| Packing | 1 Piece / Carton |
| Carton Size | 16.54" × 4.34" × 16.74" |
| Gross Weight | 9.82 lbs / carton |
Why Choose a Wattage & CCT Selectable LED Canopy Light?
For contractors, electrical distributors, property managers, and commercial lighting buyers, selectable fixtures simplify purchasing and inventory management. Instead of ordering separate fixtures for different wattages and color temperatures, the CP03 provides multiple configurations in one commercial canopy light.
This flexibility makes it especially suitable for retrofit projects, multi-location gas station programs, commercial property upgrades, and projects where lighting requirements may vary between installation locations.
Frequently Asked Questions
How many wattage settings does this LED canopy light have?
The fixture provides three selectable wattage settings: 100W, 130W, and 150W.
What color temperatures are available?
The CP03 offers selectable 3500K, 4000K, and 5000K color temperatures.
How many lumens does the 150W setting produce?
At the 150W setting, the fixture produces up to 19,500 lumens.
Can this canopy light be used at gas stations?
Yes. It is designed for commercial canopy applications including gas stations, fuel stations, convenience stores, parking canopies, garages, and similar covered commercial locations.
Does this fixture support 0-10V dimming?
Yes. The fixture supports 0-10V dimming for compatible commercial lighting control systems.
Is this LED canopy light DLC listed?
Yes. This model is DLC 6.0 Premium and ETL listed.
Features:
- Power Selectable: 100W, 130W, or 150W for flexible output.
- CCT Selectable: Choose between 3500K, 4000K, or 5000K to suit your environment.
- High Efficiency: Up to 130 lumens per watt for superior energy savings.
- High Luminous Output: 13,000 lumens (100W), 16,900 lumens (130W), and 19,500 lumens (150W).
- Durable Construction: UV-stabilized polycarbonate lens and die-cast aluminum housing.
- Integrated Driver: Fast, easy installation with built-in driver.
- Environmental Performance: Operates in temperatures from -40°F to +113°F.
- Mounting Options: Surface-mounted or pole-pendant with 3/4" NPT thread.
- Certifications: ETL listed, DLC 5.1 Premium for reliability and energy efficiency.
- Warranty: 5-year limited warranty for peace of mind.
