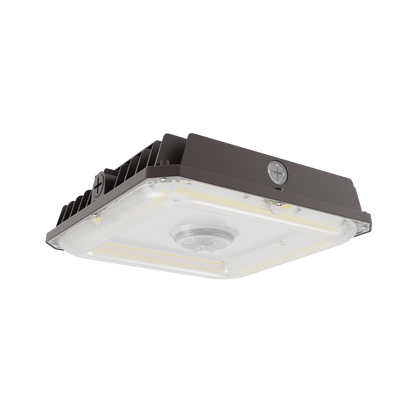

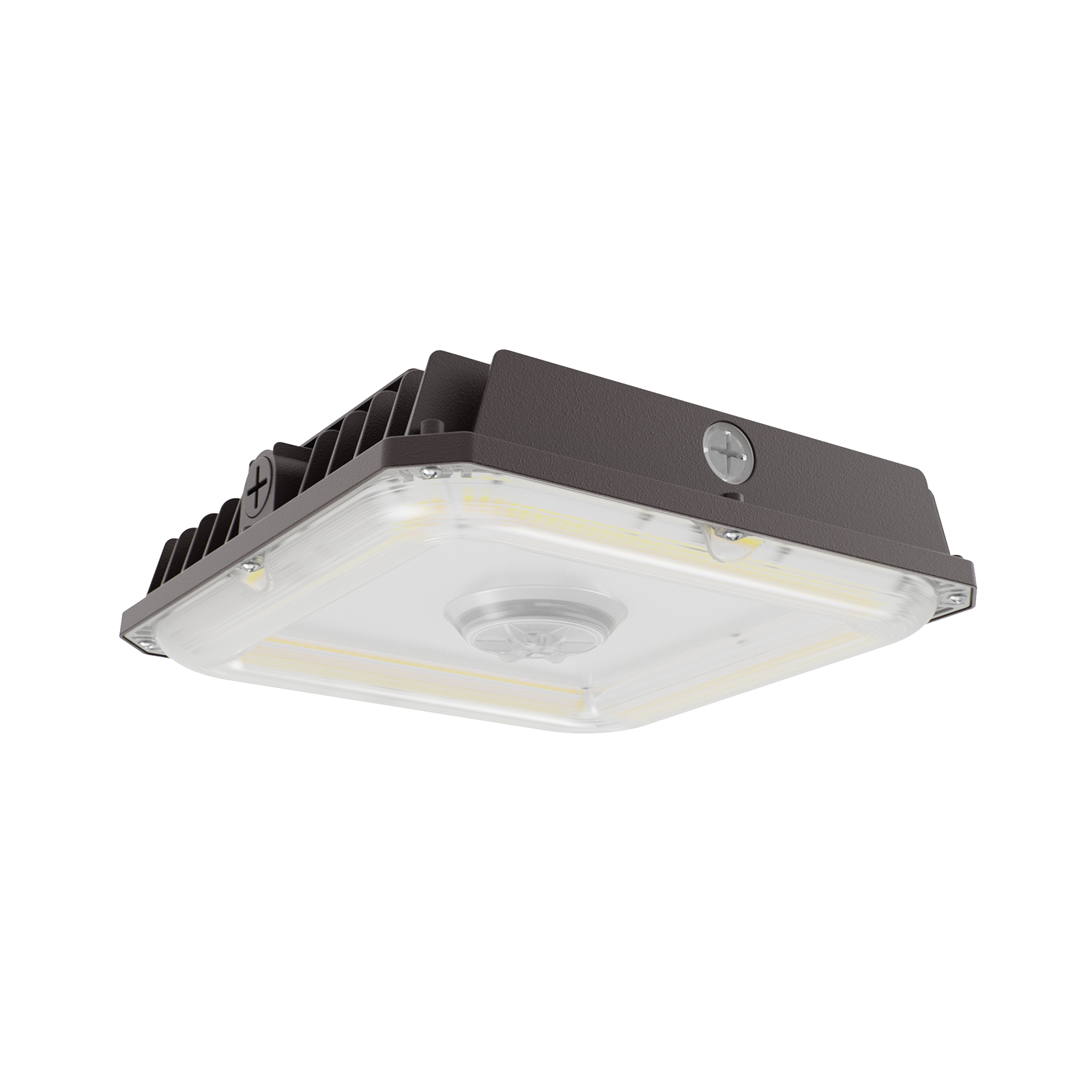

75W LED Garage Canopy Light – 4-Pack, Wattage & CCT Selectable
The J-CP02 LED Garage Canopy Light is designed for parking garages, parking structures, covered driveways, commercial canopies, and other indoor or covered commercial lighting applications. Each fixture delivers up to 10,125 lumens with an efficacy of more than 135 lm/W, providing efficient, high-output illumination for demanding commercial projects.
With field-selectable 40W / 60W / 75W power settings and 3000K / 4000K / 5000K selectable CCT, contractors and facility managers can adjust both light output and color temperature to meet different project requirements using a single fixture.
This model operates on 120-277V AC, supports 0-10V dimming, and includes a sensor base for compatible PIR sensor installation. The sensor is not included and is sold separately.
Key Features
- 4-Pack: Includes 4 LED garage canopy light fixtures
- Selectable Wattage: 40W / 60W / 75W
- Selectable CCT: 3000K / 4000K / 5000K
- Maximum Light Output: Up to 10,125 lumens per fixture
- High Efficacy: More than 135 lm/W
- Input Voltage: 120-277V AC
- Dimming: 0-10V dimming
- Sensor Ready: Sensor base included; PIR sensor sold separately
- Outdoor Protection: IP65 rated
- Certification: UL & DLC 6.0 Premium
- Warranty: 5-Year Limited Warranty
Product Specifications
| Product Type | LED Garage Canopy Light |
| Model | J-CP75W-CS-3CCT-A |
| Maximum Wattage | 75W |
| Selectable Wattage | 40W / 60W / 75W |
| Light Output | 40W – 5,400 lm 60W – 8,100 lm 75W – 10,125 lm |
| Efficacy | >135 lm/W |
| Selectable CCT | 3000K / 4000K / 5000K |
| Input Voltage | 120-277V AC |
| Dimming | 0-10V |
| Sensor Configuration | Sensor Base Included; PIR Sensor Sold Separately |
| IP Rating | IP65 |
| Certification | UL & DLC 6.0 Premium |
| Warranty | 5-Year Limited Warranty |
| Pack Quantity | 4 Fixtures |
40W / 60W / 75W Wattage Selectable
One fixture provides three selectable power levels, allowing contractors to adjust illumination according to ceiling height, spacing, required light levels, and project conditions.
The selectable output configurations provide approximately:
- 40W: 5,400 lumens
- 60W: 8,100 lumens
- 75W: 10,125 lumens
This field-adjustable design can help simplify project planning and reduce the need to stock multiple fixed-wattage garage canopy fixtures.
3000K / 4000K / 5000K Selectable CCT
The J-CP02 provides three field-selectable color temperatures to support different parking garage and commercial canopy lighting requirements.
- 3000K: Warm white illumination
- 4000K: Neutral white illumination
- 5000K: Daylight-style white illumination
Contractors can select the required CCT during installation instead of purchasing separate fixed-color fixtures for different projects.
Up to 10,125 Lumens for Parking Garage Lighting
At the maximum 75W setting, each fixture delivers up to 10,125 lumens. With an efficacy greater than 135 lm/W, the fixture provides high-output illumination for commercial parking structures while maintaining efficient LED performance.
Sensor-Ready Garage Canopy Light
Each fixture includes a sensor base that allows a compatible PIR sensor to be added when required. This provides additional flexibility for parking garages and commercial facilities that use occupancy-based lighting controls.
Please Note: Sensor base is included with the fixture. PIR sensor is not included and is sold separately.
120-277V with 0-10V Dimming
The fixture supports universal 120-277V AC commercial electrical systems and 0-10V dimming, making it suitable for a wide range of commercial retrofit and new-construction projects.
IP65 Rated for Demanding Commercial Environments
The IP65-rated construction helps protect the fixture against dust and water exposure, making it suitable for parking garages, covered exterior areas, commercial canopies, and other demanding lighting environments.
Recommended Applications
- Parking garages
- Parking structures
- Commercial parking facilities
- Covered driveways
- Commercial canopies
- Loading and unloading areas
- Covered walkways
- Commercial and industrial facilities
UL & DLC 6.0 Premium LED Canopy Light
With UL and DLC 6.0 Premium certification, selectable wattage, selectable CCT, sensor-ready capability, 0-10V dimming, IP65 protection, and a 5-year limited warranty, the J-CP02 is designed for professional commercial garage and canopy lighting projects.
Features:
- Power Selectable: 40W, 60W, or 75W for flexible output.
- CCT Selectable: Choose between 3500K, 4000K, or 5000K to suit your environment.
- High Efficiency: Up to 135 lumens per watt for superior energy savings.
- Durable Construction: UV-stabilized polycarbonate lens and die-cast aluminum housing.
- Integrated Driver: Fast, easy installation with built-in driver.
- Environmental Performance: Operates in temperatures from -40°F to +113°F.
- Mounting Options: Surface-mounted or pole-pendant with 3/4" NPT thread.
- Certifications: ETL listed, DLC 5.1 Premium for reliability and energy efficiency.
- Warranty: 5-year limited warranty for peace of mind.
