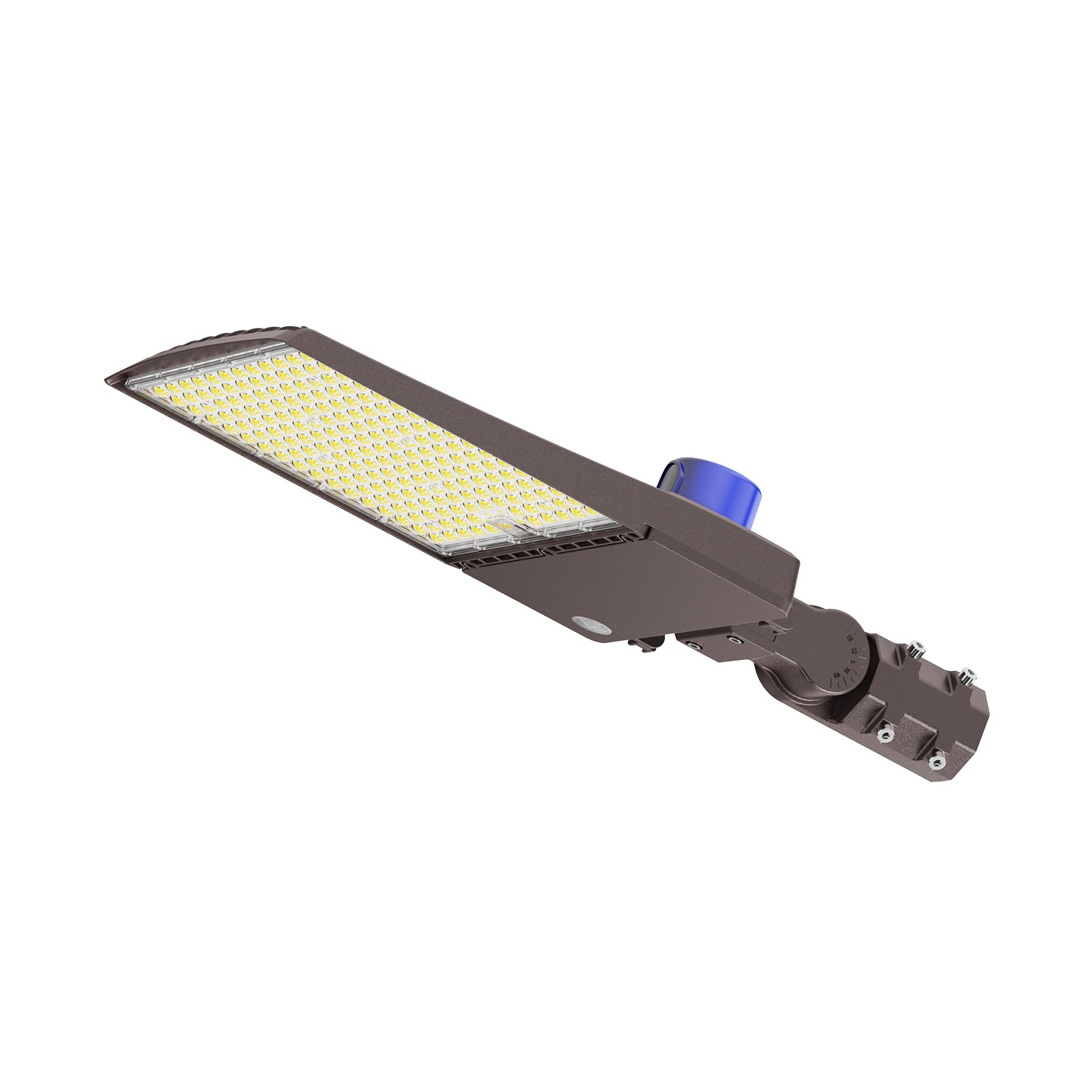

150W LED Area Light – Wattage & CCT Selectable
The J-AR09 150W LED Area Light is designed for commercial parking lots, roadways, building exteriors, and other outdoor area lighting applications. Delivering up to 25,500 lumens at an efficacy of up to 170 lm/W, this commercial LED area light combines high output with field-selectable wattage and color temperature for greater project flexibility.
Select from 100W, 120W, or 150W and choose 3000K, 4000K, or 5000K to match different site requirements. The fixture operates on 120-277V AC, supports 0-10V dimming, and features Type III light distribution for effective coverage across parking and roadway areas.
This configuration includes a sensor base for compatible sensor installation. Motion sensor is not included and is sold separately.
Key Features
- Selectable Wattage: 100W / 120W / 150W
- Selectable CCT: 3000K / 4000K / 5000K
- Maximum Light Output: Up to 25,500 lumens
- High Efficacy: Up to 170 lm/W
- Input Voltage: 120-277V AC
- Dimming: 0-10V
- Light Distribution: Type III
- Sensor Ready: Sensor base included; sensor sold separately
- Surge Protection: 10kV
- Outdoor Rating: IP65
- Housing: Die-cast aluminum
- Lens: Polycarbonate
- Certification: UL & DLC 6.0 Premium
- Warranty: 5-Year Limited Warranty
- Package Quantity: 1 Fixture
Product Specifications
| Product Type | LED Area Light |
| Maximum Wattage | 150W |
| Selectable Wattage | 100W / 120W / 150W |
| Maximum Lumens | 25,500 lm |
| Efficacy | Up to 170 lm/W |
| Selectable CCT | 3000K / 4000K / 5000K |
| Input Voltage | 120-277V AC |
| Dimming | 0-10V |
| Light Distribution | Type III |
| Sensor Configuration | Sensor Base Included; Sensor Sold Separately |
| Surge Protection | 10kV |
| IP Rating | IP65 |
| Certification | UL & DLC 6.0 Premium |
| Warranty | 5 Years |
| Pack Quantity | 1-Pack |
3-Wattage Selectable for Flexible Commercial Projects
Field-selectable 100W / 120W / 150W output allows contractors, electricians, and facility managers to use one LED area light across different project requirements. Wattage can be adjusted according to mounting height, required illumination, and site conditions without stocking multiple fixed-wattage fixtures.
3000K / 4000K / 5000K Selectable CCT
The fixture provides three selectable color temperatures to support different commercial outdoor lighting environments. Choose 3000K for warmer illumination, 4000K for a neutral appearance, or 5000K for a brighter daylight-style appearance commonly used in commercial parking lot and outdoor area lighting.
Up to 25,500 Lumens & 170 lm/W
With a maximum output of 25,500 lumens and efficacy up to 170 lm/W, the J-AR09 provides high-output illumination for demanding commercial exterior applications while maintaining efficient system performance.
Sensor-Ready LED Area Light
This model comes with a sensor base, allowing a compatible motion sensor to be added when required. This sensor-ready configuration gives commercial buyers greater flexibility for projects requiring occupancy-based lighting control or additional energy-saving functionality.
Please Note: Sensor base is included. Motion sensor is sold separately.
Type III Distribution for Parking Lots & Roadways
Type III light distribution helps project light outward across larger exterior areas, making this LED area light suitable for perimeter-mounted fixtures, parking areas, roadways, and other commercial outdoor applications where controlled forward illumination is required.
Built for Commercial Outdoor Applications
The fixture features a durable die-cast aluminum housing for heat dissipation, a polycarbonate lens, and an IP65-rated construction for outdoor use. Integrated 10kV surge protection provides additional protection for commercial electrical environments.

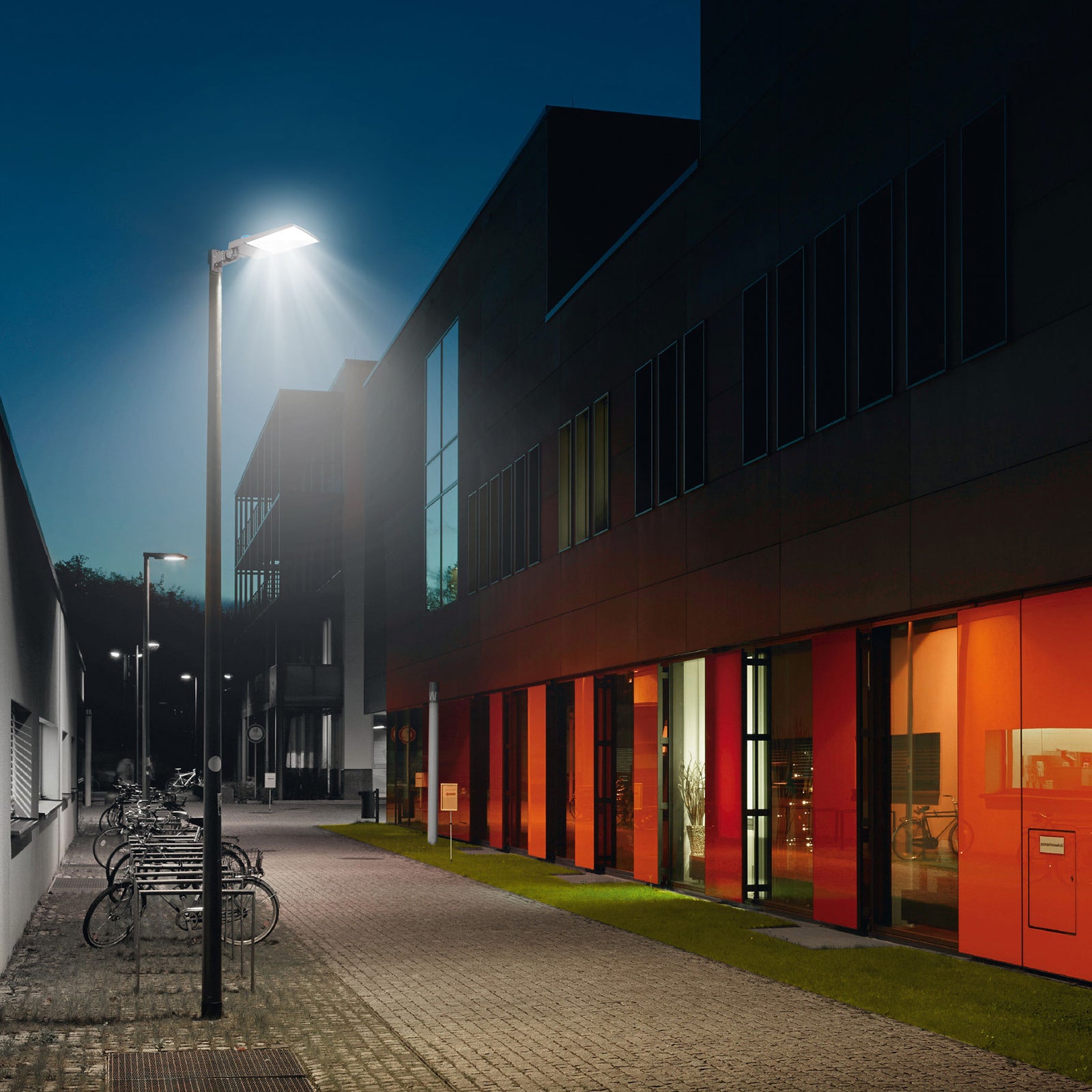

Recommended Applications
- Commercial parking lots
- Roadways
- Outdoor area lighting
- Commercial building exteriors
- Industrial outdoor areas
- Commercial property lighting
UL & DLC 6.0 Premium LED Area Light
UL and DLC 6.0 Premium certification makes the J-AR09 a strong choice for professional commercial lighting projects. Combined with selectable wattage, selectable CCT, 0-10V dimming, Type III distribution, sensor-ready capability, and a 5-year limited warranty, this fixture provides a versatile solution for new installations and outdoor lighting upgrades.
