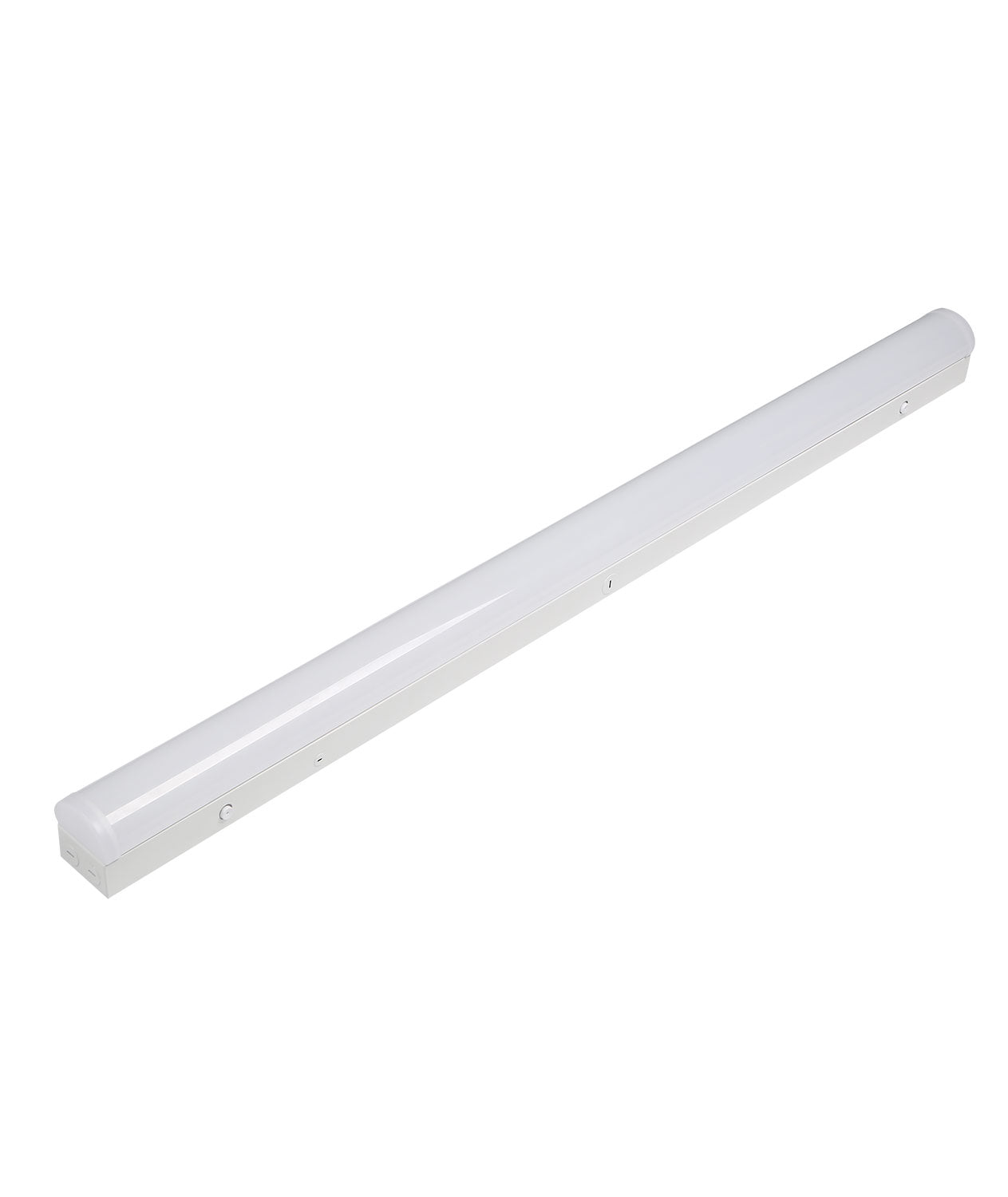

8FT LED Linear Strip Light – 70W/80W/90W & 5CCT Selectable
The JCE Lighting J-ST02 8FT LED Linear Strip Light provides high-output commercial illumination with selectable wattage and color temperature settings in one fixture.
Select between 70W, 80W, and 90W and choose from 3500K, 4000K, 5000K, 5700K, or 6500K. At the maximum 90W setting, each fixture delivers up to 11,700 lumens.
This configuration includes a sensor base for compatible sensor installation. The motion sensor itself is not included.
Sold as a 4-pack.
Key Features
- 8FT Commercial Linear Strip Fixture
- 4-Pack: Four fixtures per package
- Selectable Wattage: 70W / 80W / 90W
- 5CCT: 3500K / 4000K / 5000K / 5700K / 6500K
- Maximum Output: 11,700 lumens
- Efficacy: Approximately 130 lm/W
- Input Voltage: 120-277V AC
- Dimming: 0-10V
- Sensor-Ready: Sensor base included; sensor not included
- Surface or Suspended Installation
- ETL Listed & DLC 5.1 Premium
- 5-Year Limited Warranty
Selectable Light Output
| Wattage | Light Output |
|---|---|
| 90W | 11,700 lm |
| 80W | 10,400 lm |
| 70W | 9,100 lm |
Sensor-Ready Configuration
A sensor base is included with this model, allowing a compatible motion sensor to be added when required.
Motion sensor is not included.
Technical Specifications
| SKU | SL01001 |
|---|---|
| Model | JEN-ST02-8FT-90PDMC |
| Length | 8FT |
| Wattage | 70W / 80W / 90W Selectable |
| CCT | 3500K / 4000K / 5000K / 5700K / 6500K |
| Maximum Lumens | 11,700 lm |
| Voltage | 120-277V AC |
| Dimming | 0-10V |
| Sensor | Sensor Base Included; Sensor Not Included |
| Certifications | ETL Listed, DLC 5.1 Premium |
| Pack Quantity | 4 Fixtures |
| Warranty | 5 Years |
Applications
- Offices
- Retail Spaces
- Schools
- Restaurants
- Healthcare Facilities
- Hospitality Applications
Product Specifications
Brand: Jen Lighting Corp.
Case Qty: 6
Clearance: Clearance
Country of Origin: China
Beam Angle: 120 Degrees
CRI: 80
Life Hours: 50,000 Hours
Light Source: LED
Lumens per Watt: 130 lm/W
Voltage: AC100-277V
Warranty: 5 Year
Operating Temp - Low: -20C / -4F
Operating Temp - High: 45C / 113F
Lumens: 7800 | 9100 | 10,400
Color: Color Tunable 3500-4000-5000K
Dimmable: Dimmable
Wattage: 70W/80W/90W Adjustable
Nominal Fixture Length: 8ft.
Color Temperature (CCT): 3500K, 4000K, 5000K, 5700K, 6500K, and Color Tunable
Light Fixture Type: Strip Light (8ft.) and Color & Wattage Adjustable
Pack Qty: 6
Return Policy: Not Returnable
Ratings and Certifications:DLC Premium
| Certificate | Description |
|---|---|
DLC Premium |
The DesignLights Consortium (DLC), sets criteria for energy-efficient LED products, ensuring they meet strict performance and efficiency standards. DLC Premium products surpass basic standards and are eligible for higher rebate incentives. |
