4FT LED Linear Strip Light with 5 Wattage & 3CCT Selectable
The JCE Lighting J-ST05 4FT LED Linear Strip Light is a high-efficiency commercial lighting solution designed for projects that require flexible light output, selectable color temperature, and continuous linear lighting capability.
Each fixture provides five selectable wattage settings: 30W, 40W, 50W, 60W, and 68W, allowing contractors and facility managers to adjust power during installation based on project requirements.
At the maximum 68W setting, the fixture delivers up to 10,200 lumens with an efficacy of approximately 150 lm/W. Three selectable color temperatures—3500K, 4000K, and 5000K—provide additional flexibility for different commercial environments.
This model supports linkable installation and is sold as a 6-pack, making it well suited for commercial projects, retrofit installations, storage areas, garages, workshops, corridors, and other applications requiring multiple linear fixtures.
Key Features
- 6-Pack: Includes six 4FT LED linear strip fixtures
- 5 Wattage Selectable: 30W / 40W / 50W / 60W / 68W
- 3CCT Selectable: 3500K / 4000K / 5000K
- High Output: Up to 10,200 lumens per fixture
- High Efficacy: Approximately 150 lumens per watt
- Universal Voltage: AC 120-277V
- 0-10V Dimming: Compatible with commercial dimming controls
- Linkable Design: Supports continuous linear lighting installations
- Surface Mount: Standard installation configuration
- Suspended Mounting: Available with optional hanging accessories
- ETL & DLC 5.1
- Dry & Damp Locations: Suitable for a range of indoor commercial environments
- 5-Year Warranty
5 Wattage Settings in One Fixture
Instead of stocking separate fixtures for different wattages, the J-ST05 allows the installer to select from five power settings directly at the fixture.
| Wattage Setting | Configuration |
|---|---|
| 30W | Selectable |
| 40W | Selectable |
| 50W | Selectable |
| 60W | Selectable |
| 68W | Up to 10,200 Lumens |
This field-selectable design gives electrical contractors, distributors, and facility managers greater flexibility when lighting requirements vary between installation locations.
3500K / 4000K / 5000K CCT Selectable
Each fixture provides three selectable color temperatures, allowing the light appearance to be configured during installation:
- 3500K: Neutral white with a slightly warmer appearance
- 4000K: Neutral commercial white for general-purpose lighting
- 5000K: Bright daylight white for high-visibility work areas
Combining five wattage settings with three CCT settings allows one fixture configuration to cover multiple commercial lighting requirements.
High-Efficiency Commercial Lighting
With efficacy of approximately 150 lm/W and maximum output of 10,200 lumens, the J-ST05 delivers high light output while keeping fixture wattage as low as 68W at maximum power.
The fixture also supports 0-10V dimming, allowing compatible commercial lighting controls to further adjust illumination levels when required.
Linkable for Continuous Linear Lighting
The J-ST05 supports linkable installation, allowing multiple fixtures to be connected for continuous linear lighting layouts.
Up to six 4FT fixtures can be connected, with a maximum connected load of 450W. A full six-fixture installation can create up to approximately 24 feet of continuous linear lighting.
An optional linkable alignment plate is available separately when a straight and uniform fixture-to-fixture installation is required.
Designed for Fast Commercial Installation
Surface mounting is the standard installation method. Suspended installation is also available when used with the appropriate optional hanging kit.

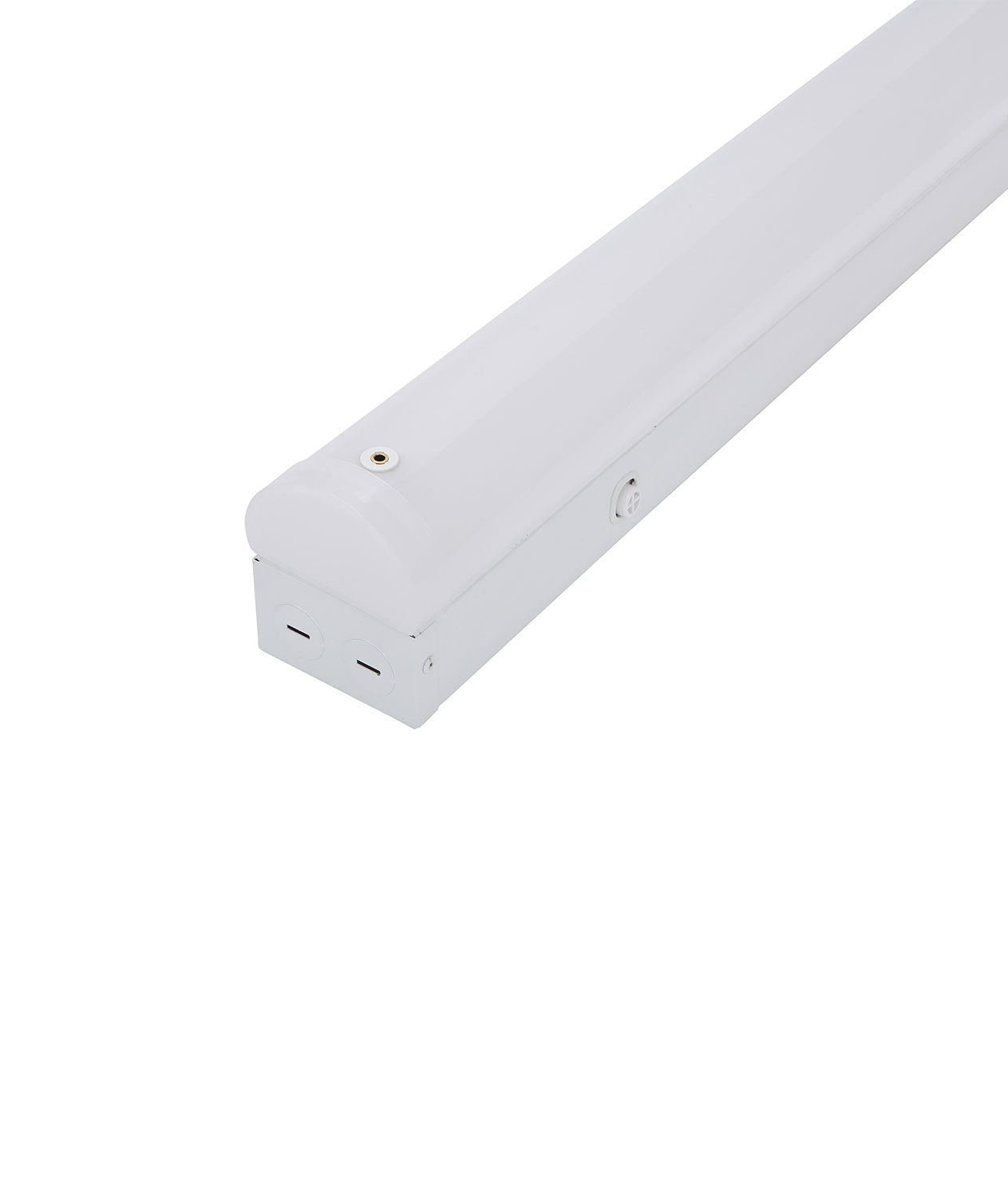

The fixture features a durable sheet-metal housing with a white powder-coated finish and PC diffuser for a clean commercial appearance.
Ideal Applications
- Warehouses and Storage Areas
- Garages
- Workshops
- Shopping Malls
- Commercial Corridors
- Building Hallways
- Stairwells
- Utility Areas
- Task Lighting
- General Commercial Lighting
Technical Specifications
| SKU | SL04002 |
|---|---|
| Model | ST4F-68MDNC |
| Product Type | LED Linear Strip Light |
| Length | 4FT |
| Selectable Wattage | 30W / 40W / 50W / 60W / 68W |
| Selectable CCT | 3500K / 4000K / 5000K |
| Maximum Light Output | 10,200 Lumens |
| Efficacy | Approx. 150 lm/W |
| Input Voltage | AC 120-277V, 50/60Hz |
| Dimming | 0-10V Dimming |
| Linkable | Yes |
| Maximum Linkable Fixtures | Up to 6 Fixtures / 450W Maximum |
| Sensor | Not Included |
| Emergency Battery | Not Included |
| Certifications | ETL & DLC 5.1 |
| Location Rating | Suitable for Dry & Damp Locations |
| Fixture Dimensions | 48" × 2.95" × 3.27" |
| Finish | White |
| Pack Quantity | 6 Fixtures per Pack |
| Warranty | 5-Year Limited Warranty |
Frequently Asked Questions
How many wattage settings does this 4FT LED linear strip light have?
It offers five field-selectable wattage settings: 30W, 40W, 50W, 60W, and 68W.
How many lumens does the fixture produce?
At the maximum 68W setting, each fixture produces up to 10,200 lumens.
What color temperatures are selectable?
Each fixture can be set to 3500K, 4000K, or 5000K.
Can multiple fixtures be linked together?
Yes. The 4FT J-ST05 is linkable, with up to six fixtures and a maximum connected load of 450W.
Does this fixture include a motion sensor?
No. A motion sensor is not included with this model.
Does this model include an emergency battery backup?
No. This configuration does not include an emergency battery backup.
How many fixtures are included?
This product is sold as a 6-pack with six 4FT LED linear strip fixtures.
