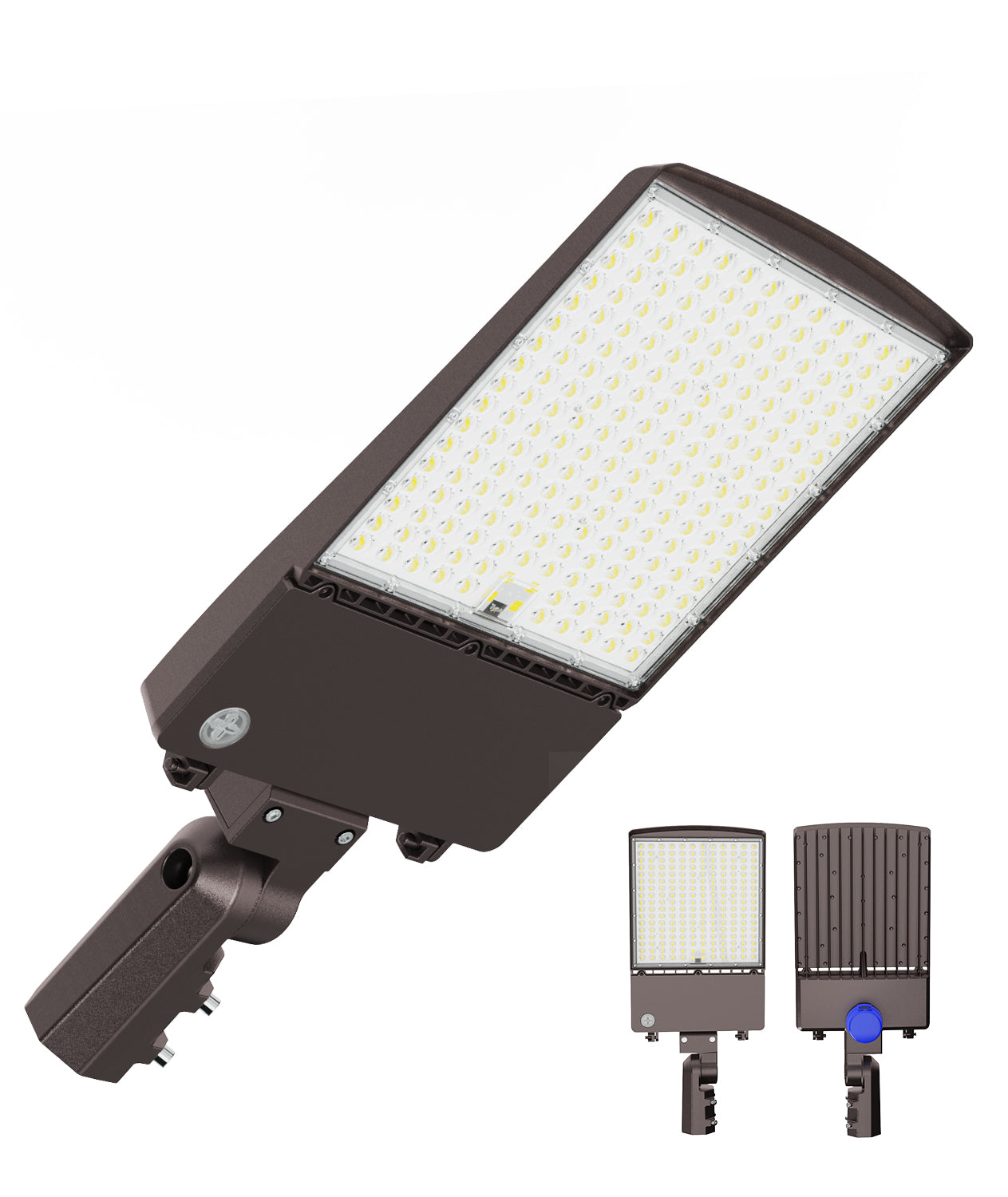

The J-AR09 LED Area Light is a high-efficiency commercial outdoor lighting solution designed for parking lots, roadways, building perimeters, commercial properties, and other exterior area-lighting applications.
Featuring selectable wattage settings of 100W, 120W, and 150W, the fixture allows installers to adjust power output in the field to meet different mounting heights, spacing requirements, and illumination needs. With a maximum output of 25,500 lumens and efficacy up to 170 lm/W, the J-AR09 provides powerful illumination while helping reduce energy consumption compared with traditional HID area lights.
The fixture also features 3CCT selectable technology, allowing users to choose between 3000K, 4000K, and 5000K. Its Type III light distribution is designed for parking areas, roadways, and perimeter lighting where forward and lateral light coverage is required.

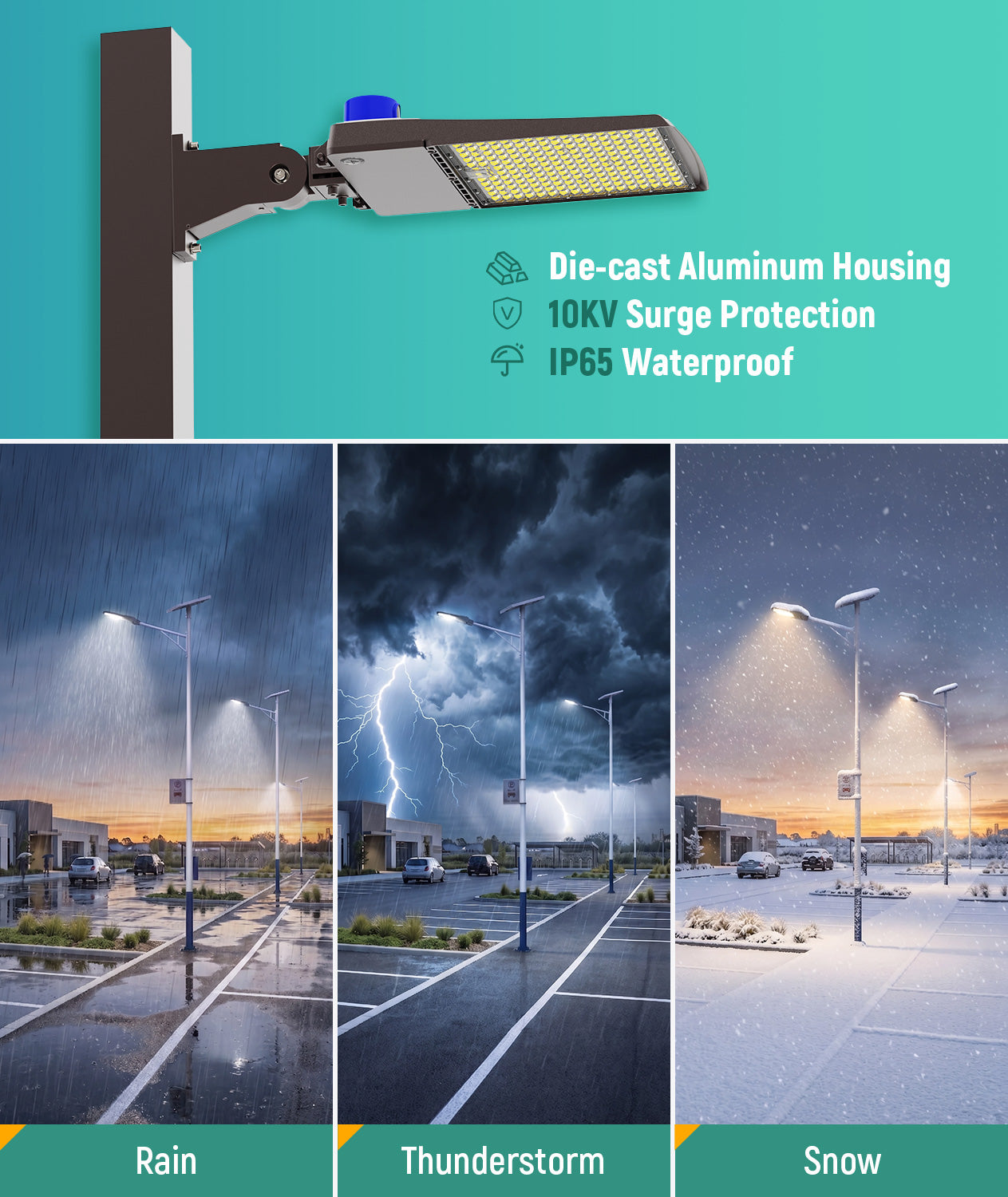

Built with a durable die-cast aluminum housing and polycarbonate lens, the J-AR09 provides excellent heat dissipation and long-term outdoor performance. The IP65-rated construction protects against dust and water, while 10KV surge protection adds additional reliability for demanding outdoor electrical environments.
The fixture operates on AC120-277V and supports 0-10V dimming. Multiple mounting options, optional photocell dusk-to-dawn control, and optional motion sensing provide additional flexibility for commercial lighting projects.
Key Features
- Wattage Selectable: 100W / 120W / 150W
- Maximum Light Output: Up to 25,500 lumens
- High Efficiency: Up to 170 lm/W
- 3CCT Selectable: 3000K / 4000K / 5000K
- Input Voltage: AC120-277V
- 0-10V Dimmable: Compatible with commercial dimming controls
- Type III Distribution: Ideal for parking lots, roadways, and perimeter lighting
- IP65 Rated: Designed for outdoor environments
- 10KV Surge Protection: Helps protect against voltage spikes
- CRI: >70
- Die-Cast Aluminum Housing: Provides excellent heat dissipation
- Polycarbonate Lens: Durable optical protection

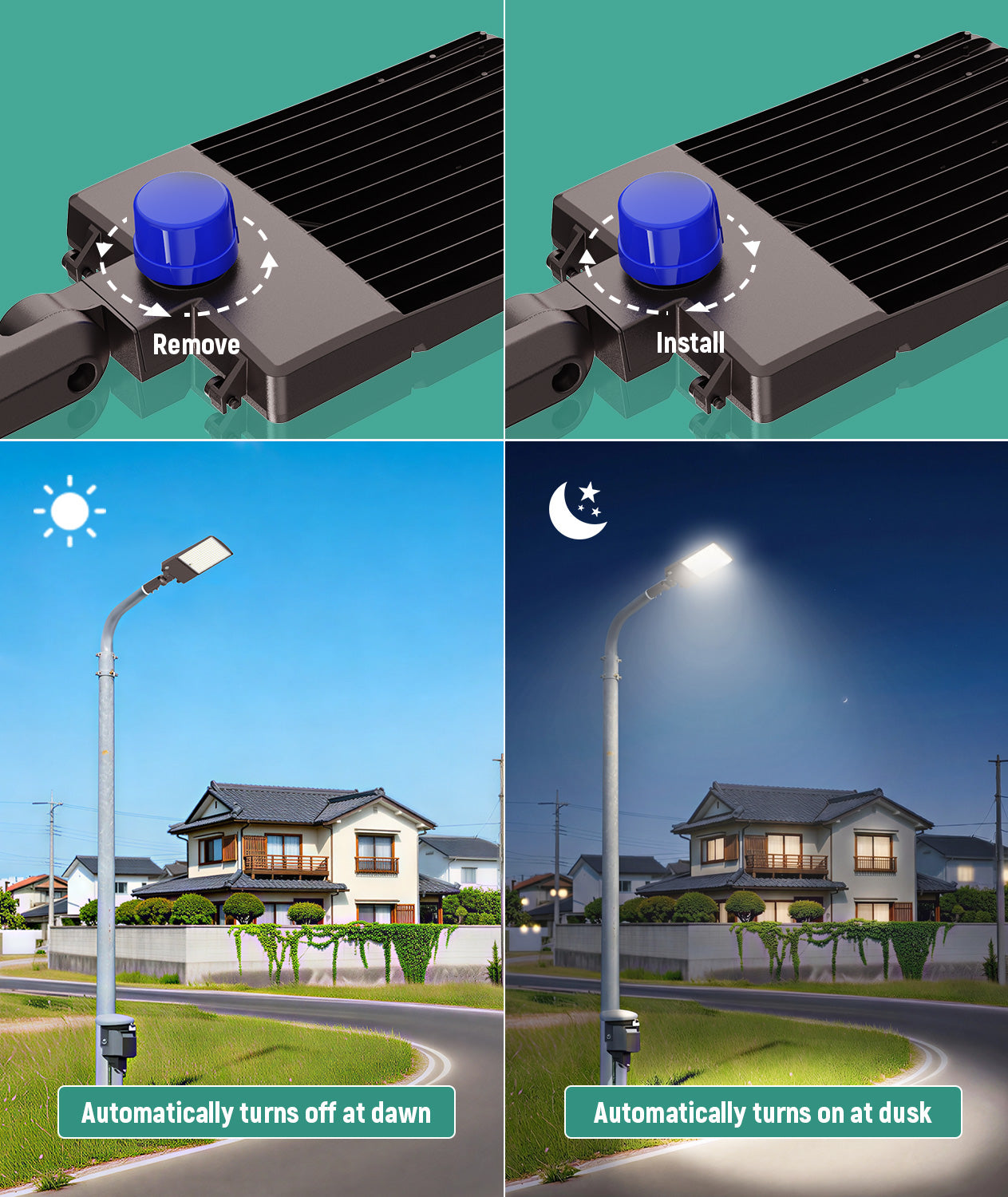

- Optional Photocell: Dusk-to-dawn operation available
- Optional Motion Sensor: Zhaga and plug-in microwave sensor options available

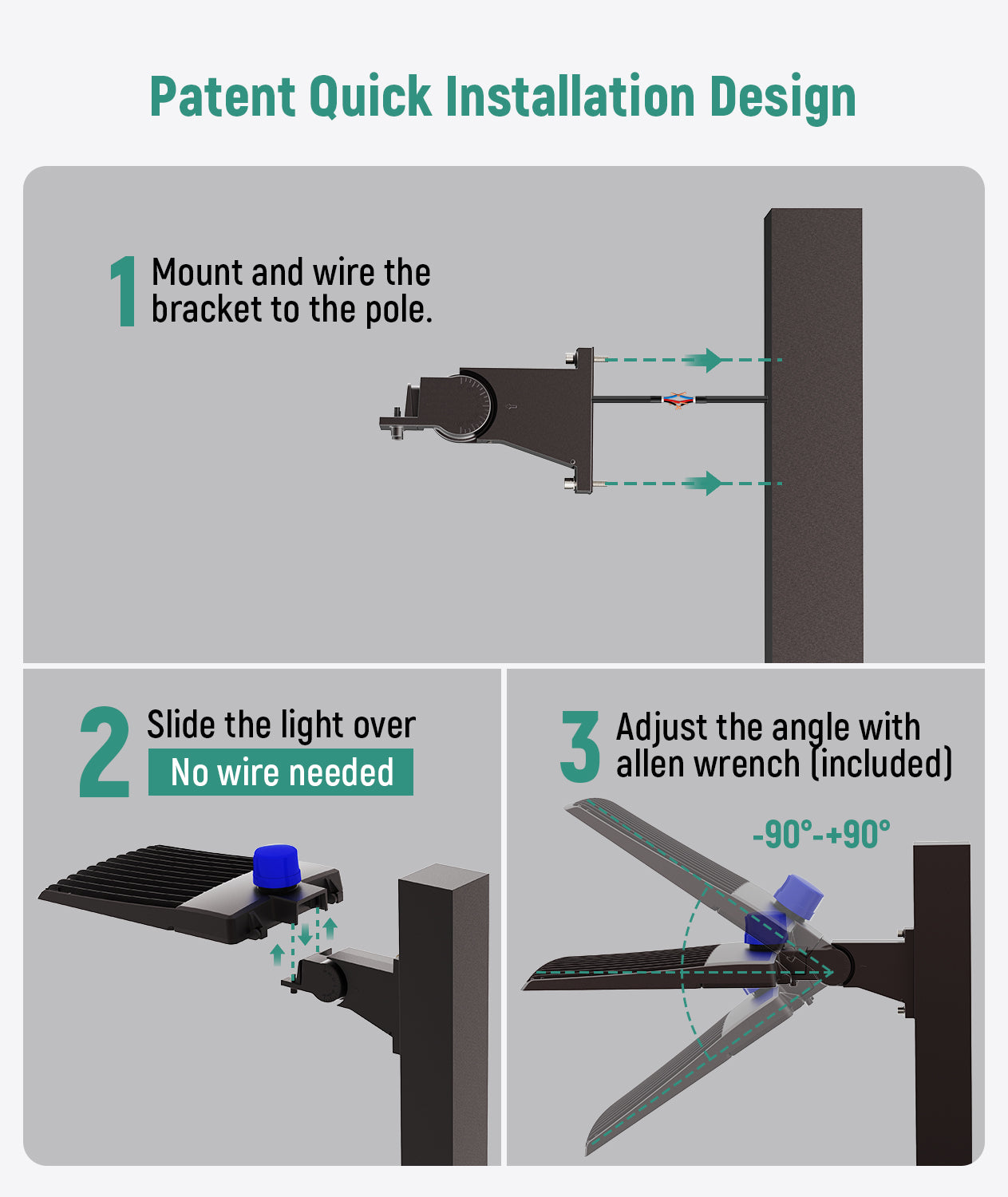

- Multiple Mounting Options: Slip fitter, direct mount, trunnion, and additional bracket options
- UL & DLC Premium Certified
- 5-Year Limited Warranty
Applications
- Parking Lots
- Roadways
- Commercial Properties
- Building Perimeters
- Industrial Facilities
- Distribution Centers
- Outdoor Security Lighting
- Pole-Mounted Area Lighting
- Campus and Site Lighting
