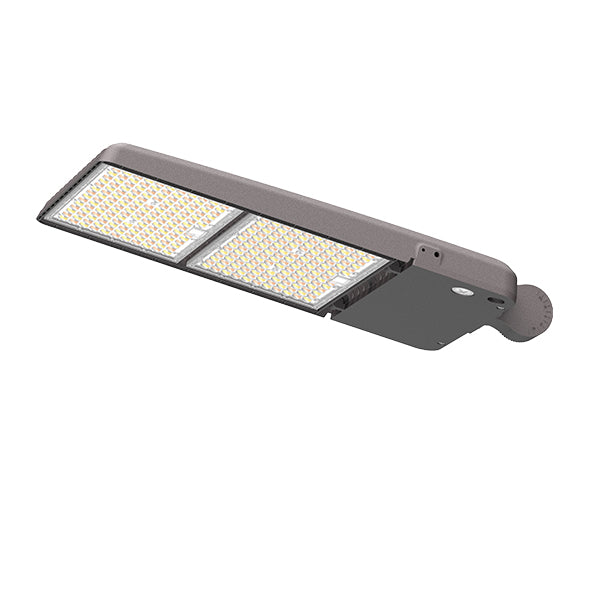

The J-AR09 500W Max LED Area Light is designed for large-scale commercial and industrial outdoor lighting applications requiring powerful output, high efficiency, and flexible field adjustment. With selectable wattage settings of 300W, 350W, 400W, 450W, and 500W, one fixture can cover multiple lighting requirements while helping contractors and distributors reduce the number of fixed-wattage models needed for a project.
Delivering up to 80,000 lumens with efficacy up to 160 lm/W, this high-output LED area light provides powerful illumination for large parking lots, roadways, commercial properties, industrial facilities, distribution centers, campuses, and other outdoor areas.
The fixture features 3CCT selectable technology with 3000K, 4000K, and 5000K options, allowing installers to choose the desired color temperature in the field. Type III light distribution provides effective forward and lateral coverage for parking areas, roadways, and perimeter lighting applications.

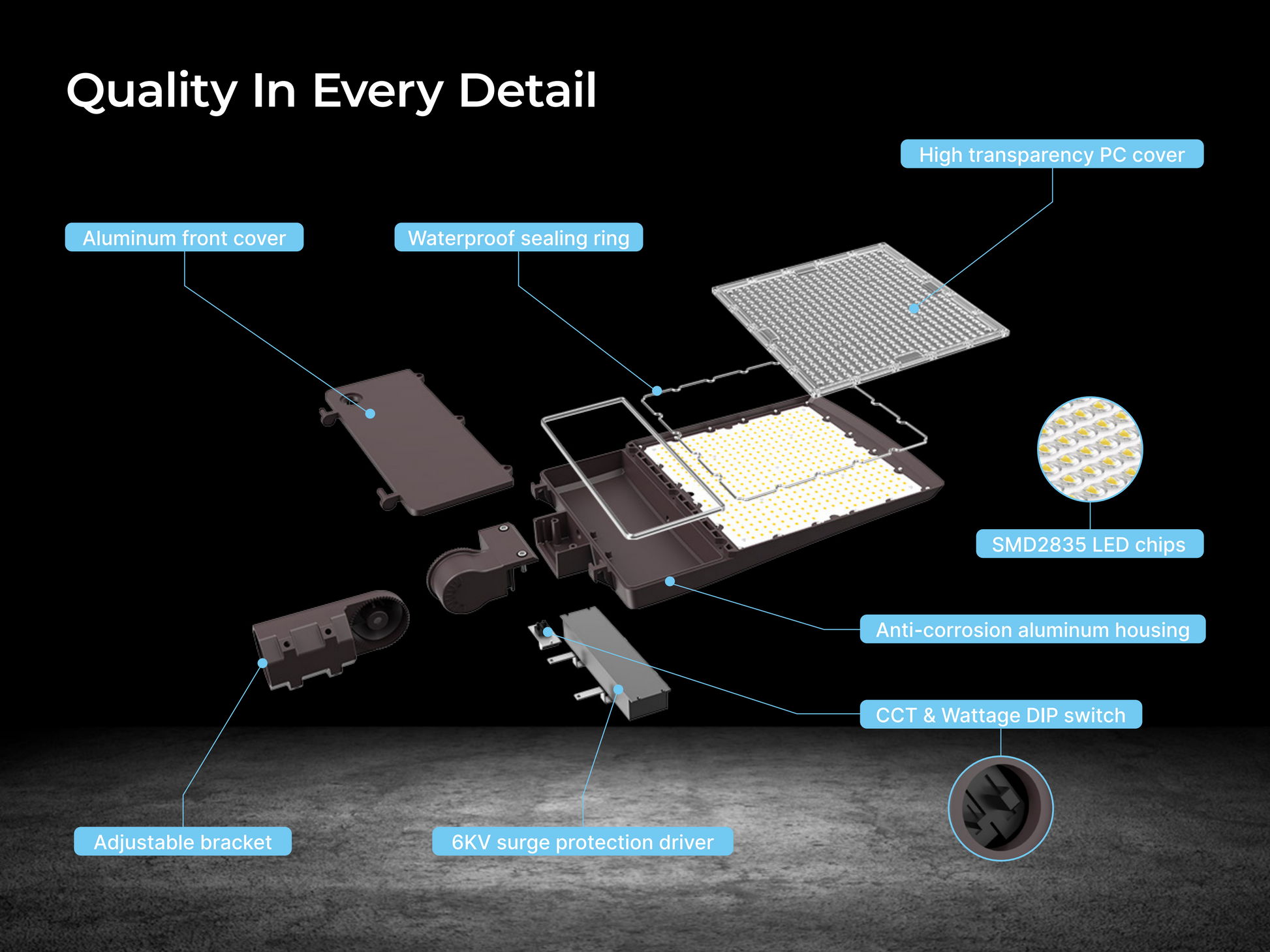

Built with a durable die-cast aluminum housing and polycarbonate lens, the J-AR09 is engineered for reliable outdoor performance. Its IP65-rated construction protects against dust and water, while 10KV surge protection helps safeguard the fixture from voltage spikes and unstable electrical conditions.
The fixture operates on AC120-277V and supports 0-10V dimming for additional lighting control and energy savings. Optional dusk-to-dawn photocell and microwave motion sensor solutions are available for projects requiring automated or occupancy-based lighting control.
Key Features
- 5-Level Wattage Selectable: 300W / 350W / 400W / 450W / 500W
- Maximum Light Output: Up to 80,000 lumens
- High Efficiency: Up to 160 lm/W
- 3CCT Selectable: 3000K / 4000K / 5000K
- Input Voltage: AC120-277V
- 0-10V Dimmable
- CRI: >80

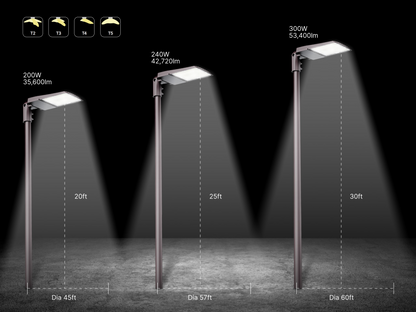

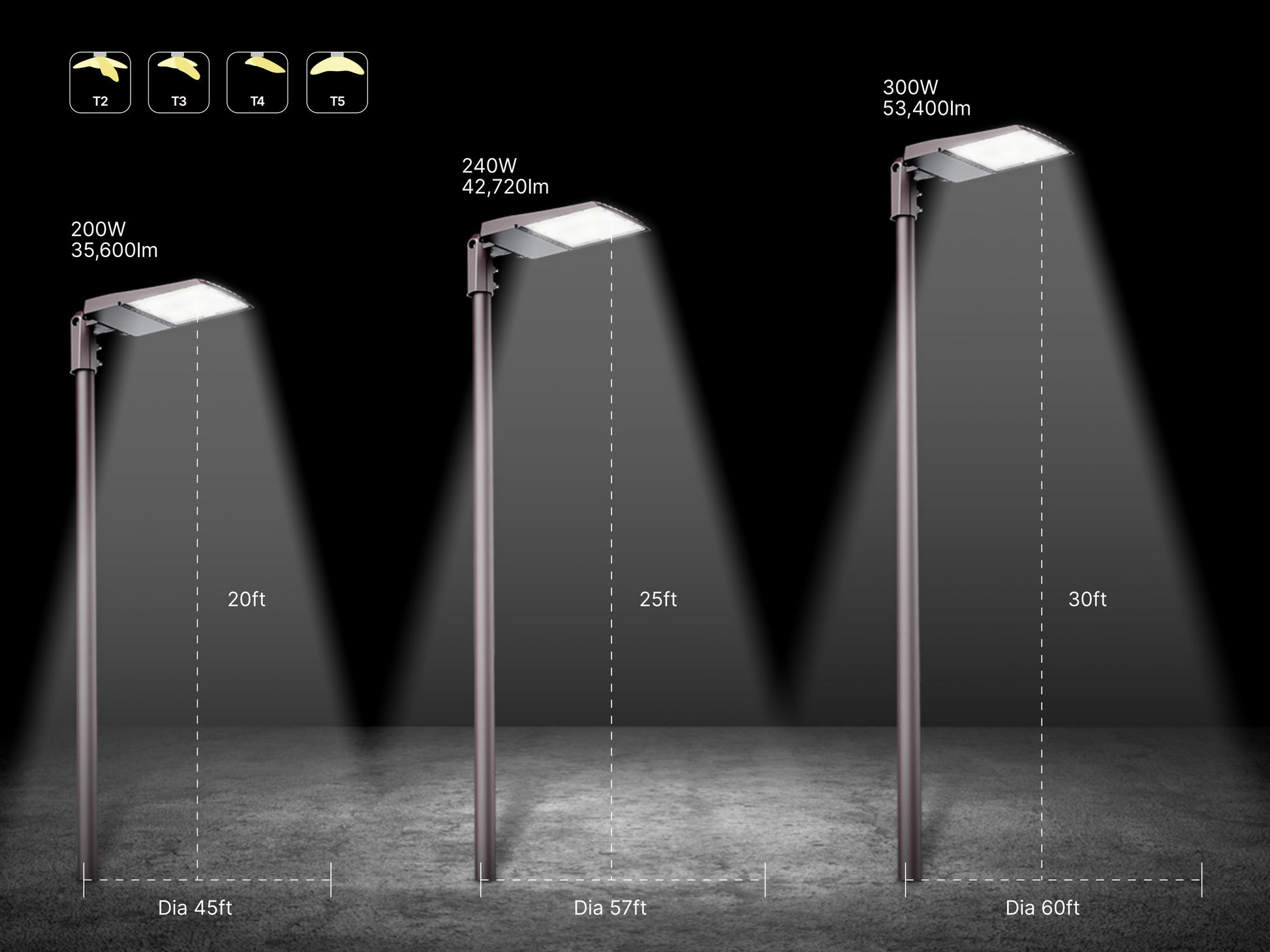

- Type III Light Distribution
- IP65 Rated
- 10KV Surge Protection
- Die-Cast Aluminum Housing
- Polycarbonate Lens
- Optional Dusk-to-Dawn Photocell
- Optional Plug-In / Zhaga Microwave Motion Sensor

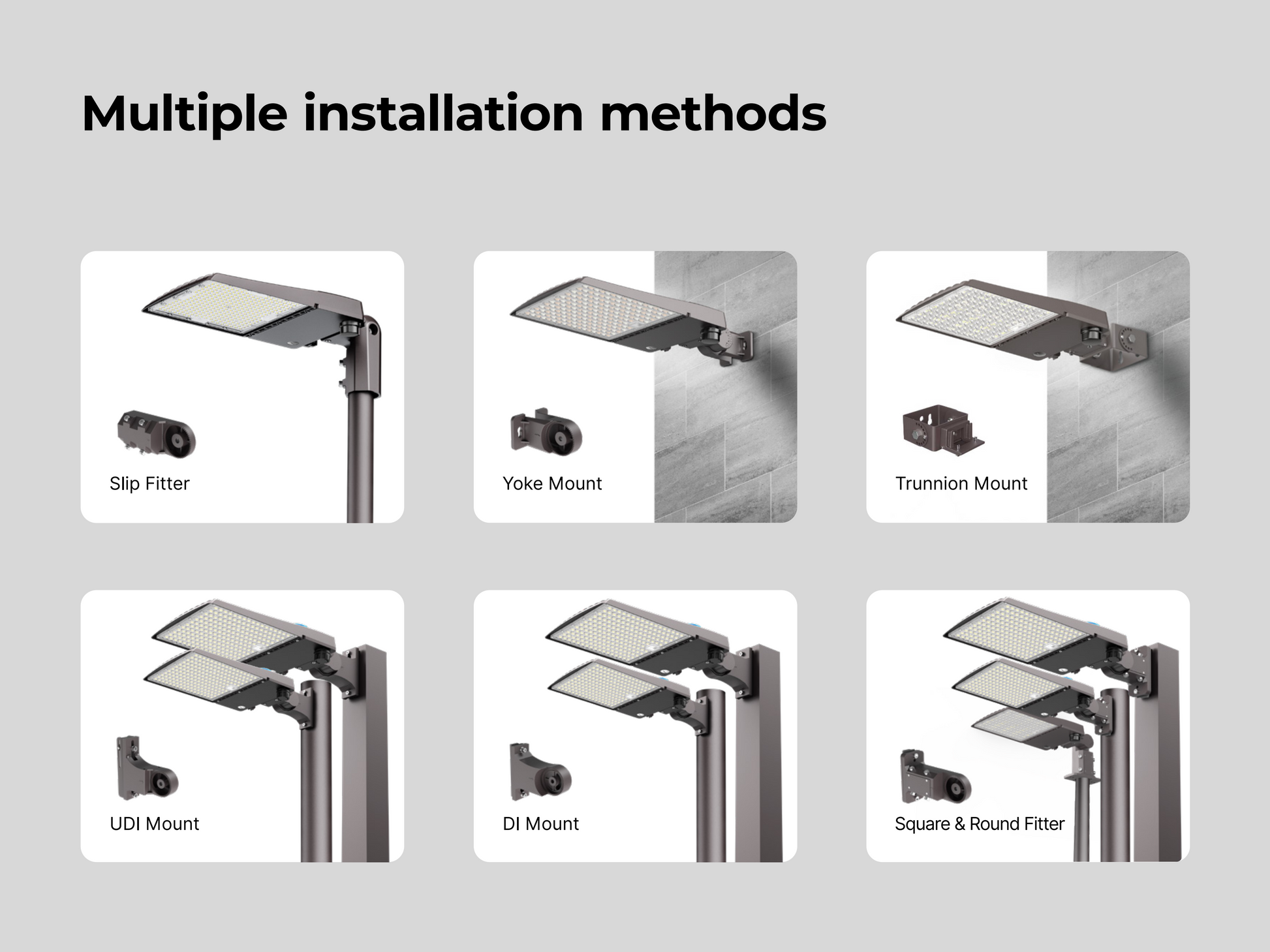

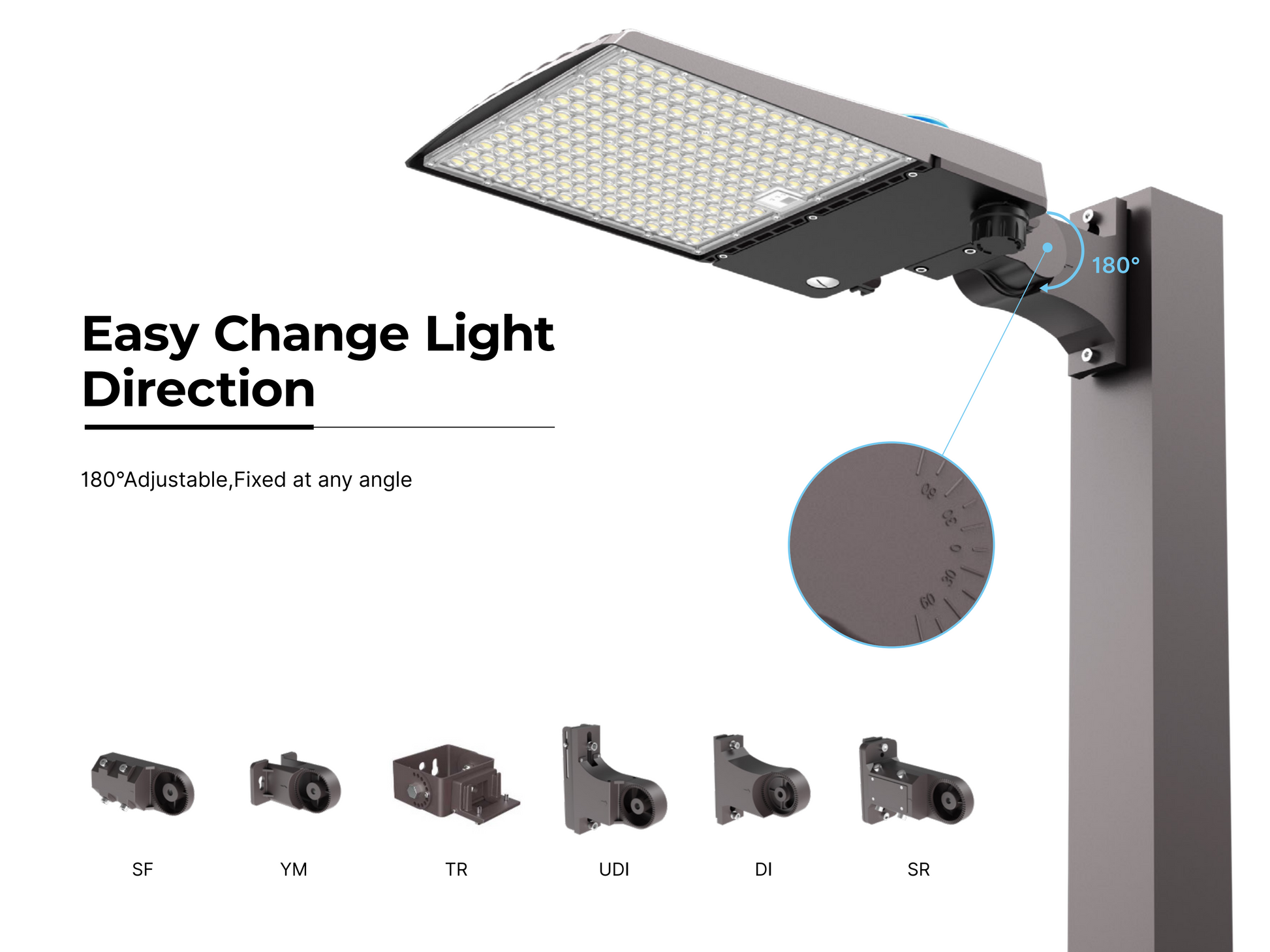

- Multiple Mounting Options: Slip Fitter, Direct Mount, Trunnion
- Operating Temperature: -40°C to 50°C
- UL & DLC Premium Certified
- 5-Year Limited Warranty
Applications
- Large Parking Lots
- Roadways
- Distribution Centers
- Manufacturing Facilities
- Commercial Properties
- Industrial Yards
- Building Perimeters
- Campus Lighting
- Outdoor Security Lighting
- Pole-Mounted Area Lighting
Technical Specifications
| Specification | Value |
|---|---|
| Series | J-AR09 |
| Product Type | LED Area Light |
| Maximum Wattage | 500W |
| Selectable Wattage | 300W / 350W / 400W / 450W / 500W |
| Maximum Lumens | 80,000 lm |
| Luminous Efficacy | Up to 160 lm/W |
| CCT | 3000K / 4000K / 5000K Selectable |
| Input Voltage | AC120-277V |
| Dimming | 0-10V |
| CRI | >80 |
| Light Distribution | Type III |
| Surge Protection | 10KV |
| IP Rating | IP65 |
| Housing | Die-Cast Aluminum |
| Lens | Polycarbonate |
| Operating Temperature | -40°C to 50°C |
| Photocell | Optional |
| Motion Sensor | Optional Plug-In / Zhaga Microwave Sensor |
| Mounting | Slip Fitter / Direct Mount / Trunnion |
| Certifications | UL / DLC Premium |
| Warranty | 5-Year Limited Warranty |
