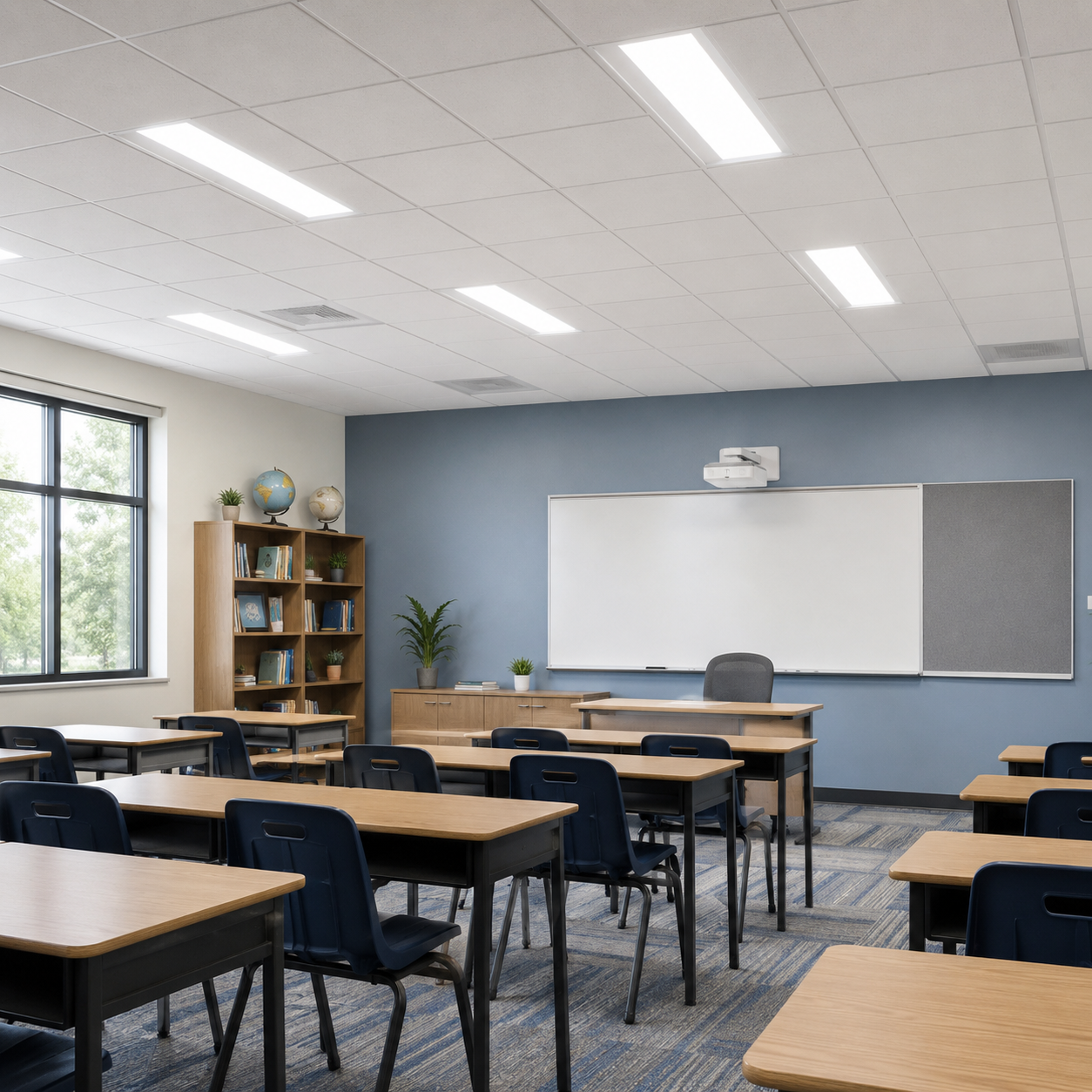

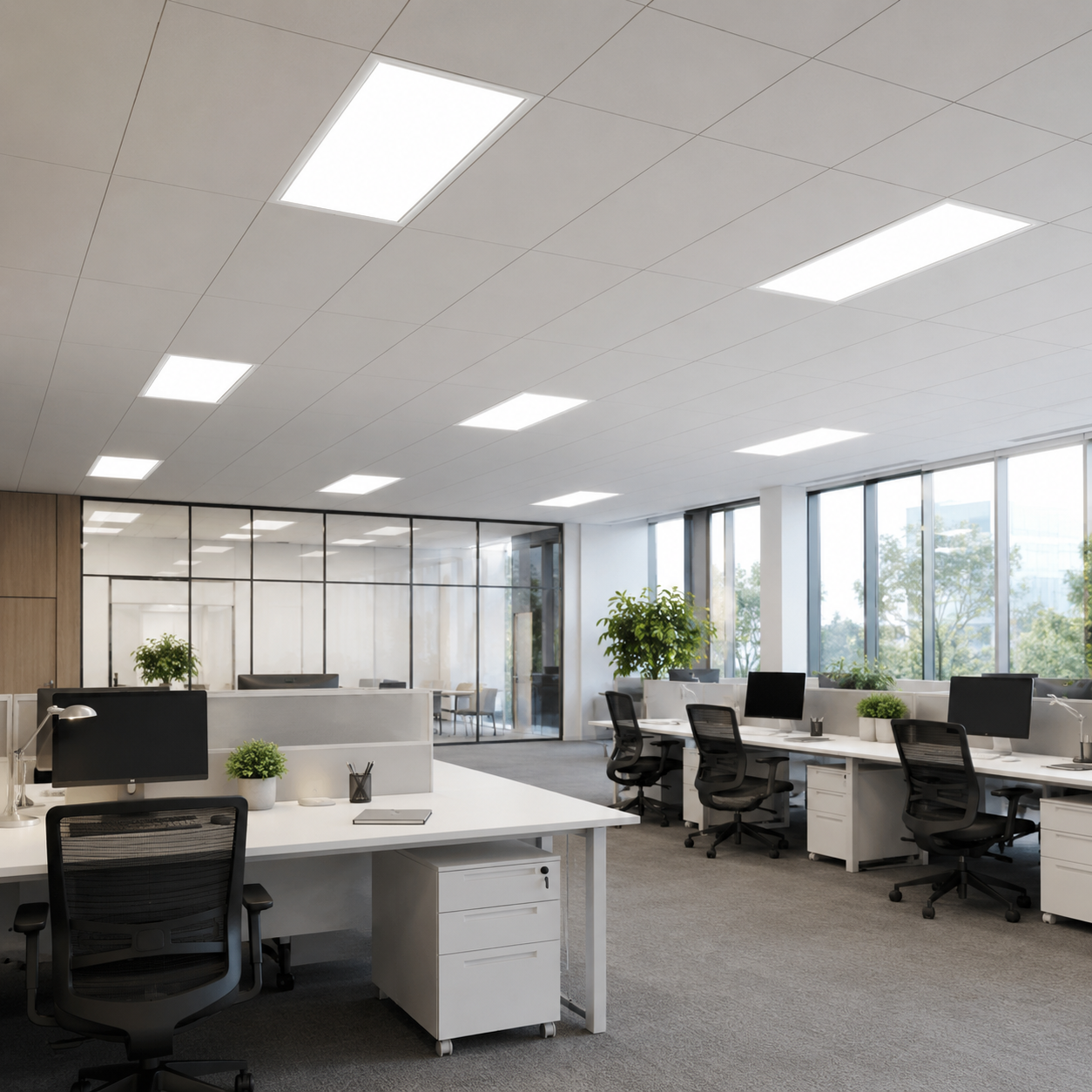

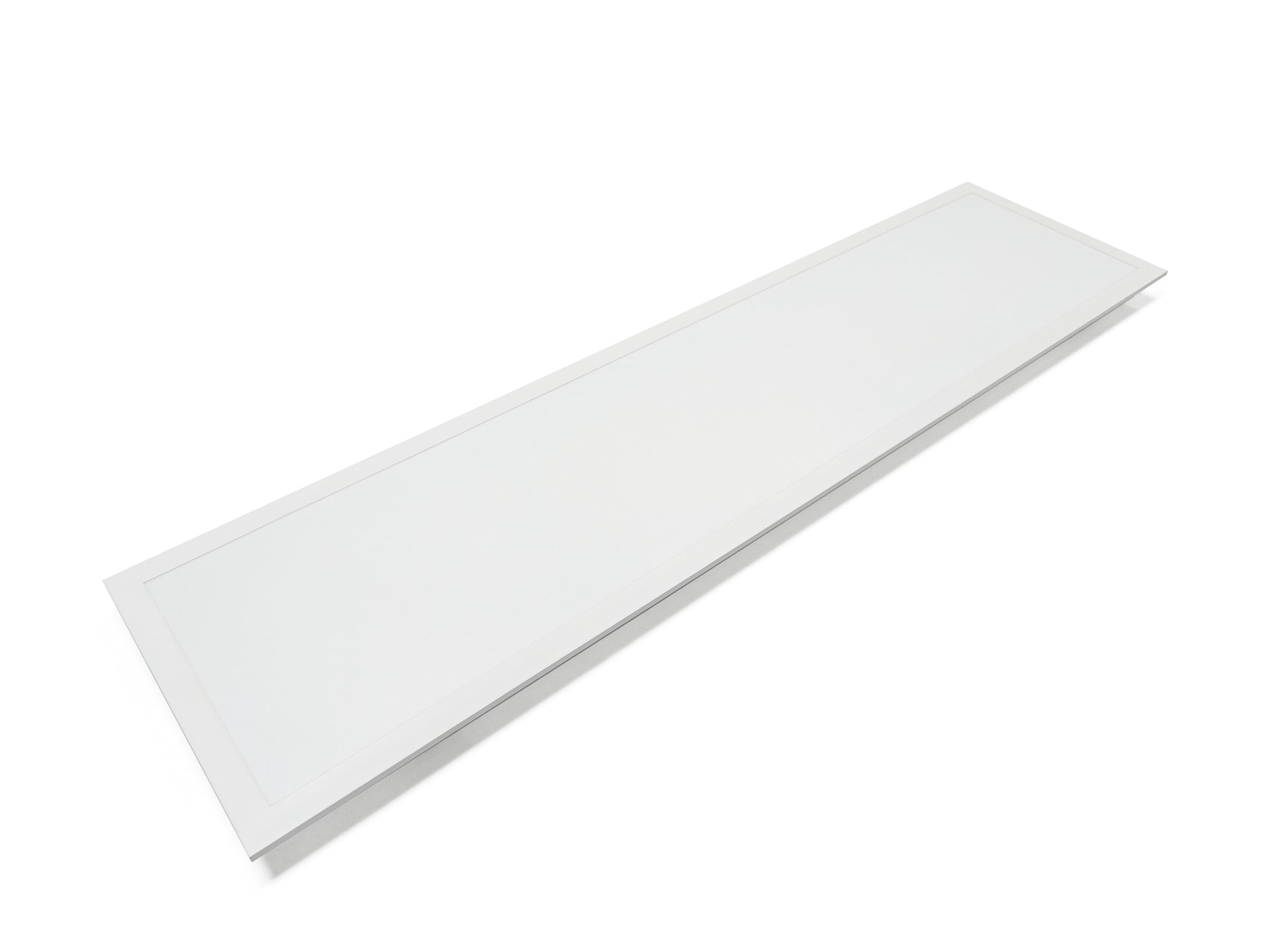

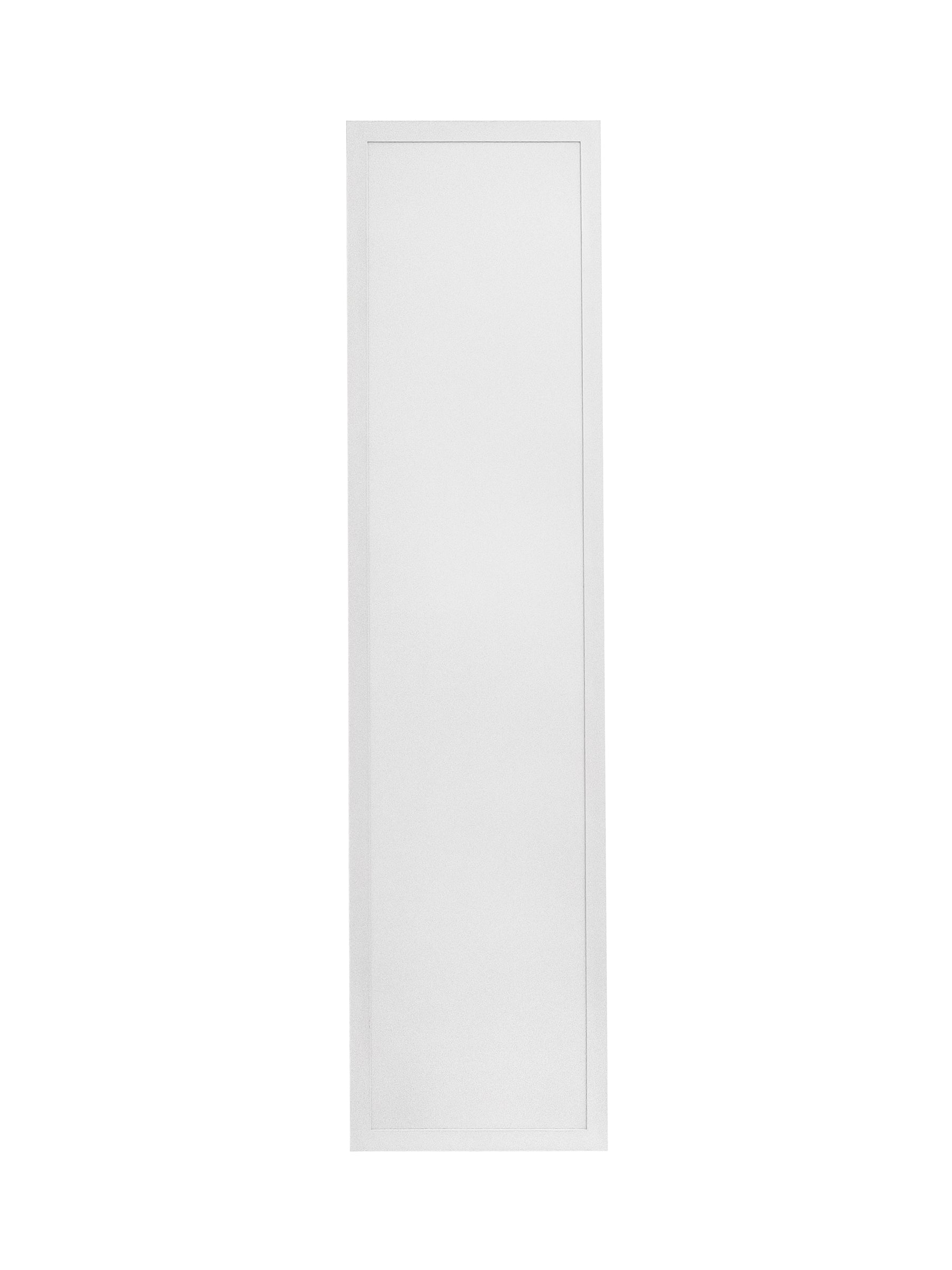

The J-B14-S40-3565 1x4 LED Backlit Panel Light is a versatile commercial lighting solution designed for offices, schools, retail stores, restaurants, healthcare facilities, hospitality spaces, residential applications, and other indoor environments.
Featuring five selectable wattage settings of 15W, 20W, 25W, 30W, and 40W, this fixture allows installers to adjust light output based on room size, ceiling layout, and project requirements. Five selectable color temperatures—3500K, 4000K, 5000K, 5700K, and 6500K—provide additional flexibility for neutral white, cool white, and daylight-style lighting.
With lumen output up to approximately 5,000 lumens and efficacy up to 130 lm/W, the J-B14 provides efficient and uniform illumination while helping reduce energy consumption compared with traditional fluorescent fixtures.
The fixture operates on 120-277VAC and supports 0-10V dimming for commercial lighting control applications. Its integrated aluminum frame provides a durable structure, while the selectable wattage and CCT switches are built into the driver for convenient field adjustment.
A sensor-ready base supports compatible PIR and Bluetooth PIR sensor solutions. Emergency LED driver options are also available for projects requiring emergency backup functionality.

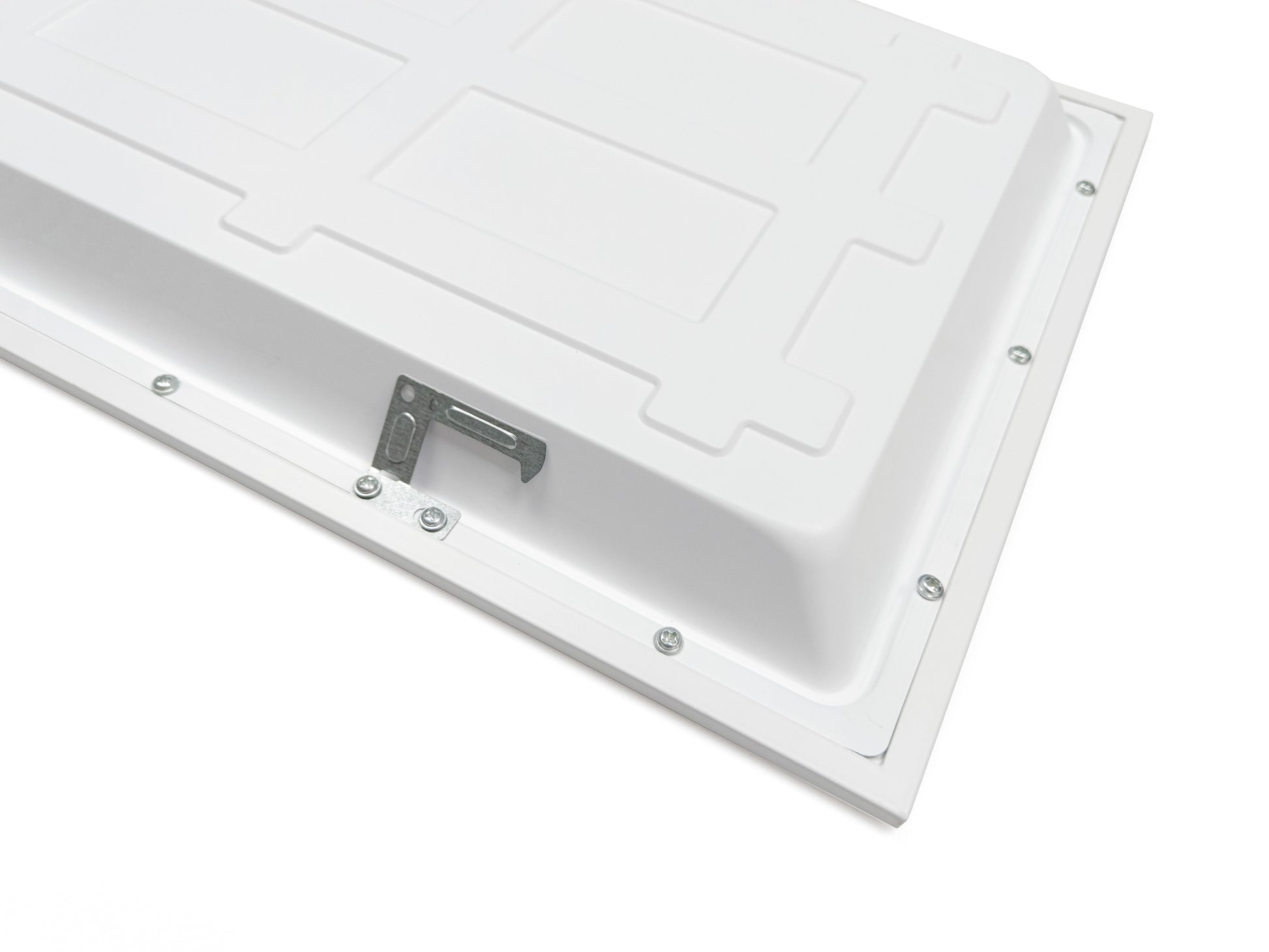

The fixture is designed primarily for recessed installation in T-bar ceilings, while optional suspension and surface-mount kits provide additional installation flexibility.
Key Features
- Size: 1' x 4'
- Wattage Selectable: 15W / 20W / 25W / 30W / 40W
- 5CCT Selectable: 3500K / 4000K / 5000K / 5700K / 6500K
- Maximum Light Output: Up to 5,000 lumens
- High Efficiency: Up to 130 lm/W
- Input Voltage: 120-277VAC, 50/60Hz
- 0-10V Dimmable
- CRI: ≥80
- Sensor-Ready Base
- Optional PIR / Bluetooth PIR Sensors
- Optional Emergency LED Driver
- Recessed T-Bar Installation
- Optional Surface Mount Kit
- Optional Suspension Cable Kit
- Suitable for Damp Locations
- Operating Temperature: -20°C to 45°C
- ETL Listed
- DLC 5.1 Premium
- 5-Year Limited Warranty
Applications
- Offices
- Schools
- Retail Stores
- Restaurants
- Healthcare Facilities
- Hospitality Spaces
- Commercial Buildings
- Residential Applications
Technical Specifications
| Specification | Value |
|---|---|
| Model | J-B14-S40-3565 |
| Product Type | LED Backlit Panel Light |
| Size | 1' x 4' |
| Selectable Wattage | 15W / 20W / 25W / 30W / 40W |
| CCT | 3500K / 4000K / 5000K / 5700K / 6500K |
| Lumen Output | 1,950-5,000 lm |
| Efficacy | Up to 130 lm/W |
| Input Voltage | 120-277VAC |
| Frequency | 50/60Hz |
| Dimming | 0-10V |
| CRI | ≥80 |
| Operating Temperature | -20°C to 45°C |
| Sensor Base | Yes |
| Mounting | Recessed / Surface / Suspended |
| Location Rating | Damp Location |
| Certifications | ETL / DLC 5.1 Premium |
| Warranty | 5 Years |
